5-103955-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5-103955-2

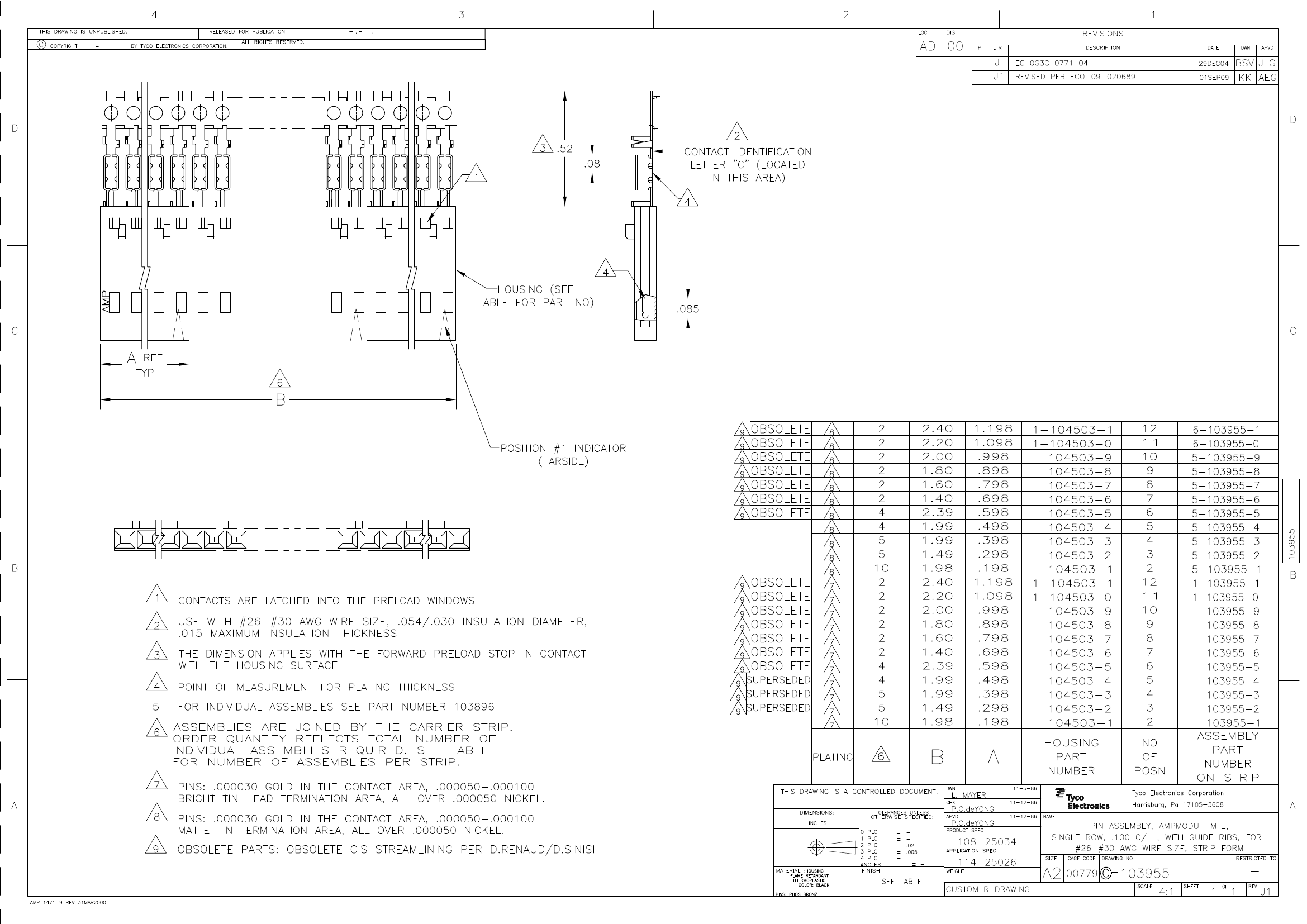

5-103955-2: DescriptionBoard Connector, 3 Contact(s), 1 Row(s), Male, Crimp/IDC Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size146KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

5-103955-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-103955-2	-	-	View	Buy Now

5-103955-2 Overview

Board Connector, 3 Contact(s), 1 Row(s), Male, Crimp/IDC Terminal, Black Insulator, Plug

5-103955-2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	2094455485
Reach Compliance Code	compliant
Samacsys Description	Body Features: Primary Product Color Black \| Configuration Features: Number of Positions 3 \| Number of Rows 1 \| Contact Features: Contact Layout Inline \| Contact Base Material Phosphor Bronze \| Contact Current Rating (Max) 3 AMP \| Contact Type Pin \| PCB Contact Termination Area Plating Material Tin \| Dimensions: Row-to-Row Spacing .1 INCH \| Connector Length 37.85 MM \| Connector Height 2.49 MM \| Wire Size 30 â€“ 26 AWG \| Connector Height .098 INCH \| Row-to-Row Spacing 2.54 MM \| Connector Length 1.49 INCH \| W
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2024-04-03 12:22:25
YTEOL	7.2
Other features	AMPMODU, LATCHED
subject depth	0.098 inch
body length	1.49 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT APPLICABLE
Contact point gender	MALE
Contact material	NOT APPLICABLE
contact mode	RECTANGULAR
DIN compliance	NO
Electromagnetic interference shielding	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	POLYETHYLENE
MIL compliance	NO
Power Connector Ratings	3A
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 2	W/STRAIN RELIEF
Installation type	CABLE
Number of connectors	ONE
Number of ports	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
Panel mounting	NO
Rated current (signal)	3 A
Rated voltage	267 V
Guideline	CSA, LR, U
Terminal pitch	2.54 mm
Termination type	CRIMP/IDC
Total number of contacts	3
UL Flammability Code	94V-0
Maximum wire diameter	26 AWG
Minimum wire diameter	30 AWG
