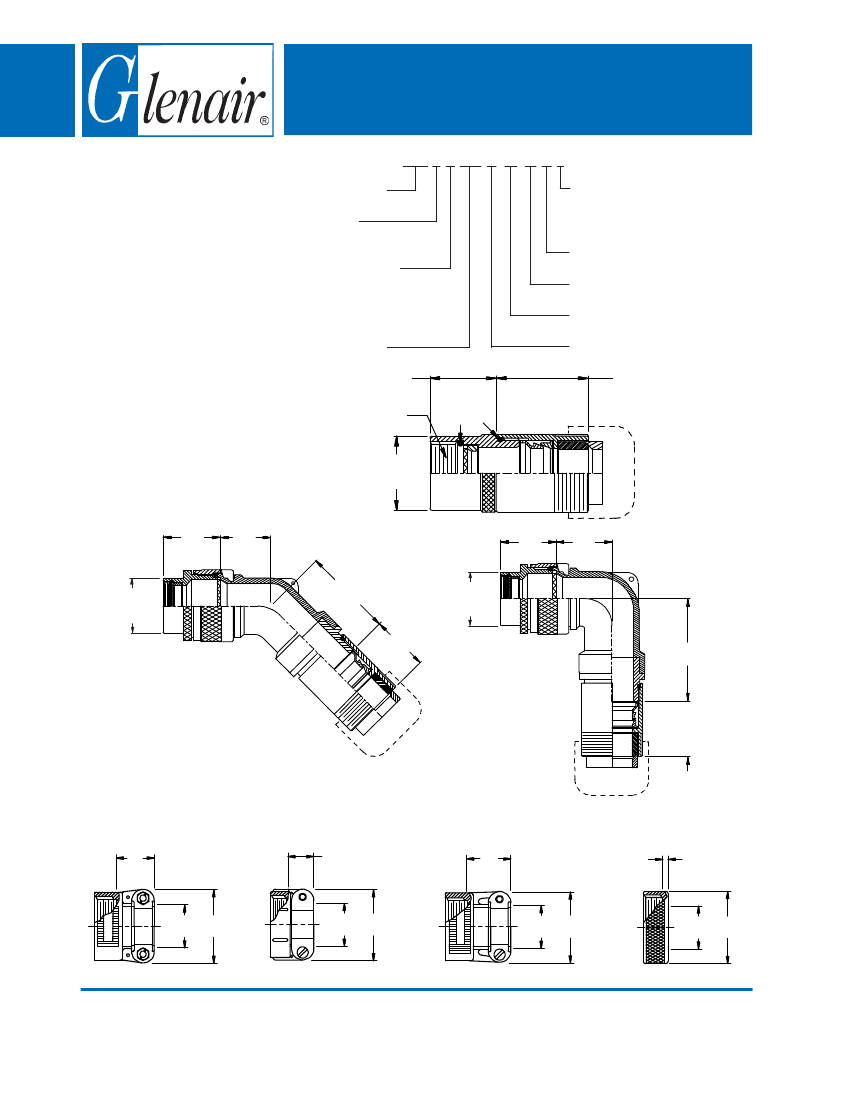

with Strain Relief
Type G - Direct Coupling - Low Profile
See inside back cover fold-out or pages 13 and 14 for Tables I and II.
Shell
Size
08/09
10/11
12/13
14/15
16/17
18/19
20/21
22/23
24/25
28/29
32/33
36
40
TABLE III: FRONT ADAPTER
J Max - Conn. Designator
A-E-F
J-H-L-S
D-B-G-K
C
1.180 (30.0) 1.440 (36.6)
1.180 (30.0) 1.440 (36.6)
1.180 (30.0) 1.440 (36.6) 1.735 (44.1)
1.180 (30.0) 1.440 (36.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.610 (40.9) 1.560 (39.6) 1.915 (48.6)
1.610 (40.9) 1.750 (44.5) 1.915 (48.6)
1.610 (40.9) 1.750 (44.5) 1.915 (48.6)
1.610 (40.9) 2.190 (55.6) 1.915 (48.6)
TABLE IV: ELBOW DIMENSIONS
Elbow
E
G
F
Size
Max
Max
Max
03
.500 (12.7) 1.250 (31.8) .520 (13.2)
04
.500 (12.7) 1.610 (40.9) .520 (13.2)
06
.590 (15.0) 1.730 (43.9) .580 (14.7)
08
.610 (15.5) 1.750 (44.5) .640 (16.3)
10
.700 (17.8) 1.820 (46.2) .730 (18.5)
12
.880 (22.4) 2.080 (52.8) .920 (23.4)
16
.970 (24.6) 2.190 (55.6) 1.020 (25.9)
20 1.120 (28.4) 2.190 (55.6) 1.040 (26.4)
24 1.220 (31.0) 2.360 (59.9) 1.040 (26.4)
28 1.570 (39.9) 2.610 (66.3) 1.090 (27.7)
32 1.770 (45.0) 2.780 (70.6) 1.180 (30.0)
H
Max
1.140 (29.0)
1.170 (29.7)
1.650 (41.9)
1.720 (43.7)
1.800 (45.7)
1.910 (48.5)
2.100 (53.3)
2.250 (57.2)
2.300 (58.4)
2.400 (61.0)
2.600 (66.0)
TABLE X: : CABLE ENTRY
V
Cable Range
Dash
T
Max
Min
No.
Max
Max
.780 (19.8)
.957 (24.3)
.125 (3.2) .312 (7.9)
04
06
.780 (19.8) 1.145 (29.1)
.250 (6.4) .437 (11.1)
.780 (19.8) 1.332 (33.8)
.387 (9.8) .562 (14.3)
08
.780 (19.8) 1.332 (33.8)
.350 (8.9) .625 (15.9)
10
12
.811 (20.6) 1.551 (39.4)
.500 (12.7) .750 (19.1)
16
.905 (23.0) 1.770 (45.0)
.625 (15.9) .937 (23.8)
20
1.092 (27.7) 2.113 (53.7)
.875 (22.2) 1.250 (31.8)
24
1.124 (28.5) 2.363 (60.0) 1.000 (25.4) 1.375 (34.9)
28
1.399 (35.5) 2.770 (70.4) 1.250 (31.8) 1.625 (41.3)
32
1.399 (35.5) 3.020 (76.7) 1.437 (36.5) 1.875 (47.6)
1. Metric dimensions (mm) are indicated
in parentheses.
2. Cable range is defined as the accom-
modations range for the wire bundle or
cable. Dimensions shown are not
intended for inspection criteria.
3. Consult factory for shorter lengths on
straight backshells.
4. When using Connector Designator B
refer to pages 18 and 19 for part
number development.
TABLE XI: CABLE ENTRY
W
X
Y
Dash
Z
Cable Range
Max
No.
Max
Max
Max
Min
Max
.843 (21.4) .630 (16.0) .156 (4.0) .250 (6.4)
03* .437 (11.1) .760 (19.3)
.906 (23.0) .755 (19.2) .188 (4.8) .312 (7.9)
04* .437 (11.1) .760 (19.3)
06* .500 (12.7) .760 (19.3) 1.093 (27.8) .942 (23.9) .281 (7.1) .438 (11.1)
08 .563 (14.3) .760 (19.3) 1.187 (30.1) 1.067 (27.1) .387 (9.8) .562 (14.3)
10 .563 (14.3) .760 (19.3) 1.281 (32.5) 1.192 (30.3) .375 (9.5) .625 (15.9)
12 .563 (14.3) .760 (19.3) 1.500 (38.1) 1.380 (35.1) .438 (11.1) .750 (19.1)
16 .656 (16.7) 1.073 (27.3) 1.719 (43.7) 1.535 (39.0) .625 (15.9) .938 (23.8)
20 .656 (16.7) 1.323 (33.6) 2.062 (52.4) 1.848 (46.9) .875 (22.2) 1.250 (31.8)
24 .656 (16.7) 1.323 (33.6) 2.312 (58.7) 2.255 (57.3) 1.000 (25.4) 1.375 (34.9)
28 1.188 (30.2) 1.572 (39.9) 2.719 (69.1) 2.505 (63.6) 1.250 (31.8) 1.625 (41.3)
32* 1.187 (30.1) 1.572 (39.9) 2.969 (75.4) 2.755 (70.0) 1.437 (36.5) 1.875 (47.6)
* Not available in Style M clamp.
