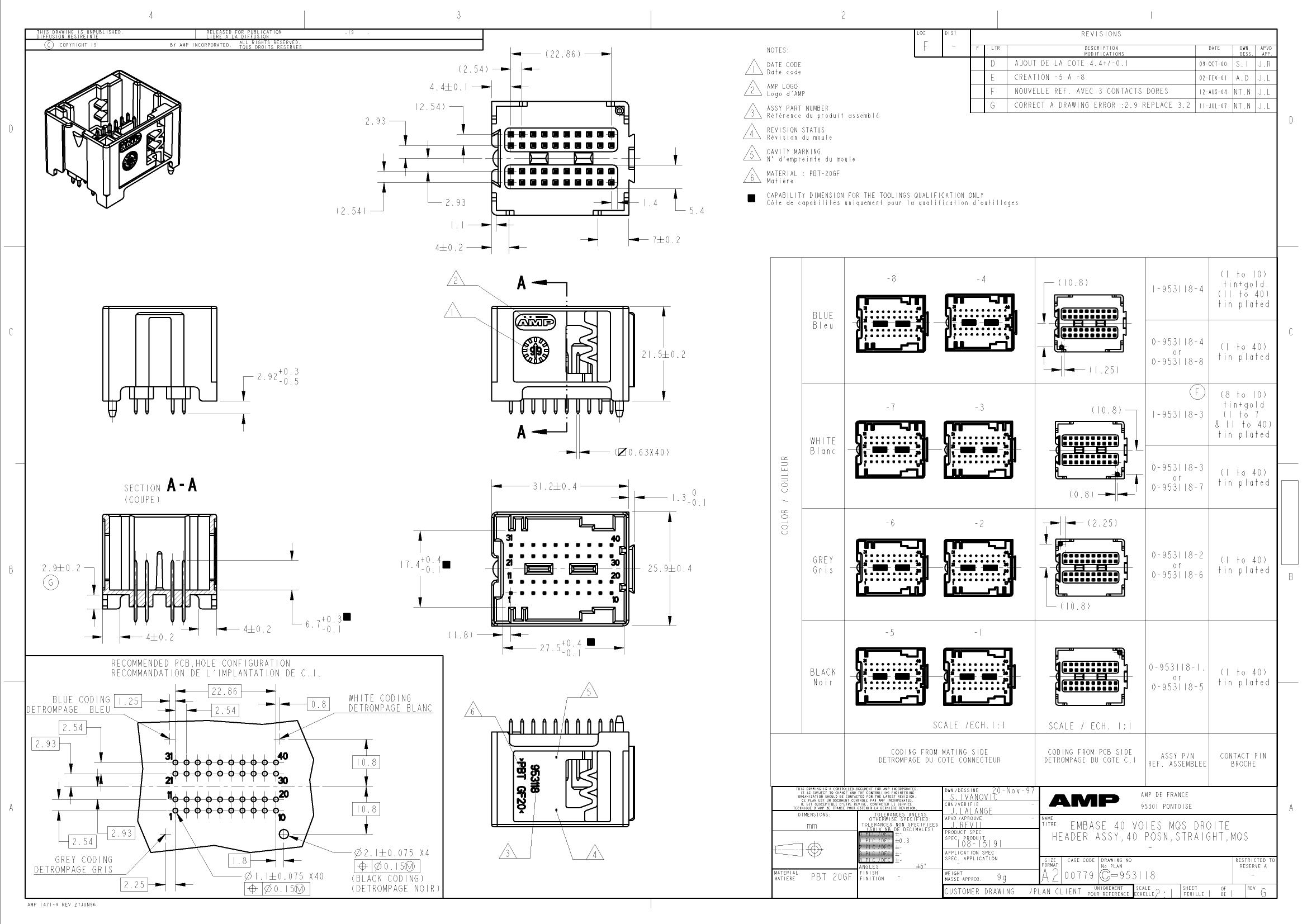

40W MQS STRAIGHT HEADER
| Parameter Name | Attribute value |
| Sealable | no |
| Connectors and terminals terminate to | A printed circuit board |
| shield | no |
| mixing head | no |
| Number of signal positions | 40 |
| Rows | 4 |
| Section number | 1 |
| Nominal Voltage Structure (V) | 12 |
| Operating voltage (VDC) | 12 |
| color | blue |
| Width of male end | .63 mm [ .025 in ] |
| Thickness of male end | .63 mm [ .025 in ] |
| Contact surface plating | Tin (Sn) |
| Termination method | Through Hole - Solder |
| PCB installation and fixation | Without |
| Panel mount features | Without |
| Mounting holes | Without |
| PCB mounting alignment | with |
| Installation direction | Vertical/180° |
| lock interface | with |
| Centerline (Pitch) | 2.54 mm [ .1 in ] |
| width | 25.9 mm [ 1.02 in ] |
| PCB profile height | 21.5 mm [ .846 in ] |
| PCB thickness (recommended) | 1.6 mm [ 0.063 in ] |
| length | 32.5 mm [ 1.28 in ] |
| Working group temperature range | -40 – 85 °C [ -40 – 185 °F ] |
| Operating temperature (max) (°C) | 65, 70, 75, 80, 85 |
| Operating Temperature (Max) (°F) | 149, 158, 167, 176, 185 |
| Circuit Application | Signal |
| UL flammability rating | UL 94-HB |
| Package quantity | 432 |
| Package type | tray |
