DM3C-SF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DM3C-SF

DM3C-SF: CategoryThe connector The connector; File Size754KB，12 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

DM3C-SF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DM3C-SF	-	-	View	Buy Now

DM3C-SF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Hirose
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	Micro SD card hinge version Micro SD card hinge version
Other features	ROHS COMPLIANT
Board mount options	FITTING NAIL
body width	0.072 inch
subject depth	0.555 inch
body length	0.543 inch
Body/casing type	RECEPTACLE
Connector type	PCB CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	100 mΩ
Contact style	COMPRESSION
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	5000 Cycles
IEC compliance	NO
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	DM3C
Plug contact pitch	0.043 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of ports	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.0922 mm
Termination type	SURFACE MOUNT
Total number of contacts	8
Base Number Matches	1

Preview

Download Datasheet

View All

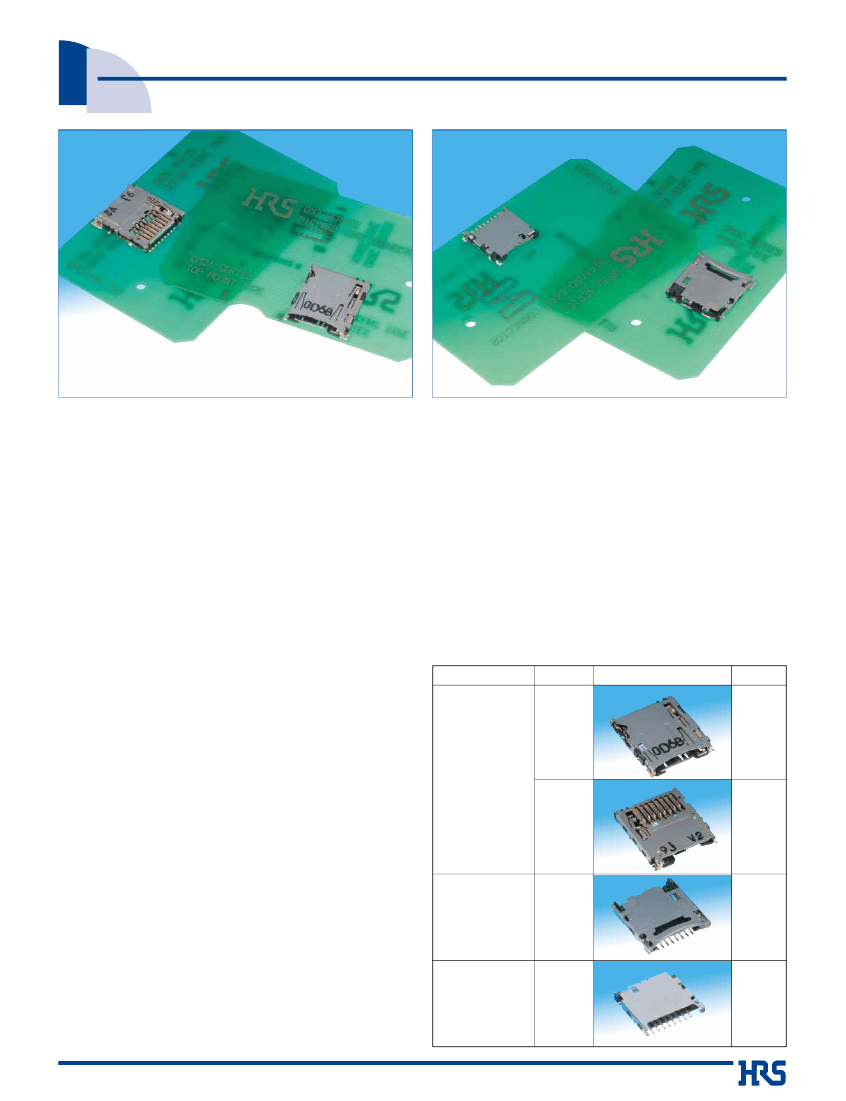

microSD™ Card Connectors

DM3 Series

■

Features

◆

Common to the entire Series

1. Extremely small in size

Small external dimensions and the above-the-board height

make the connectors the smallest on the market.

◆

DM3D (Push -Pull, manual, without

ejection mechanism)

· Partial card insertion hold

Card will not fall-out even when it is not fully inserted. Full

insertion and electrical / mechanical connection is confirmed

with a distinct tactile feel.

2. Reverse card insertion protection

Unique card slot design (patented) protects the connector

from damage when the card is attempted to be inserted in

reverse, allowing it to re-inserted correctly.

· Accessible termination areas

An inner lead system that can be reworked is used in this design.

Contact solder terminations may be inspected and reworked.

3. Effective ground and shield configuration

4-connection points of the metal cover to the printed circuit

board assures secure connection of the ground circuit and

provides EMI protection.

4. Rigid and strong construction

Despite its small size, high-strengths materials used in the

connectors produced a strong and rigid structure.

5. Card detection switch

The card detection switch is Normally Open

Card insertion-ejection

Series


Page

◆

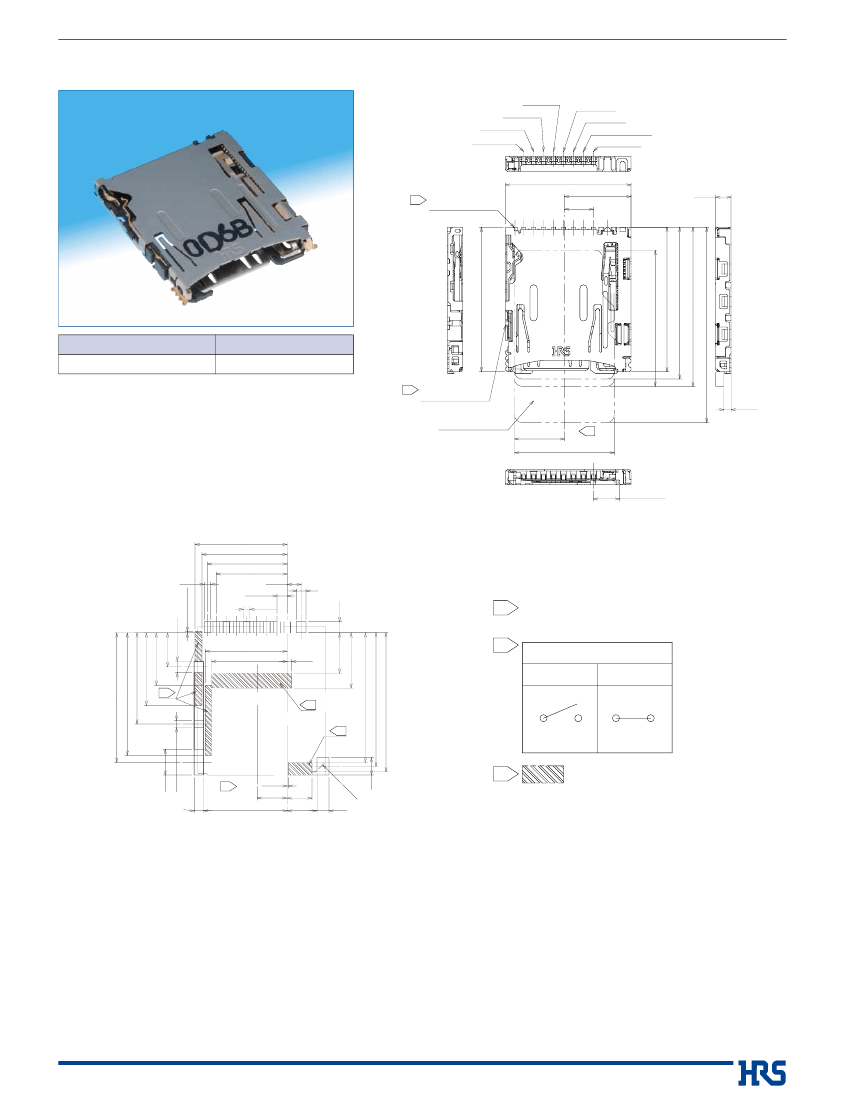

DM3AT and DM3BT (Push - Push, with

ejection mechanism)

· Card fall-out prevention

Built-in card tray and the unique push insertion-push ejection

mechanism (patented) prevent accidental card ejection or fall-

out.

Despite its small size the connectors will eject the card to a

distance of 4.0mm, allowing easy hold and removal of the card.

Push-Push

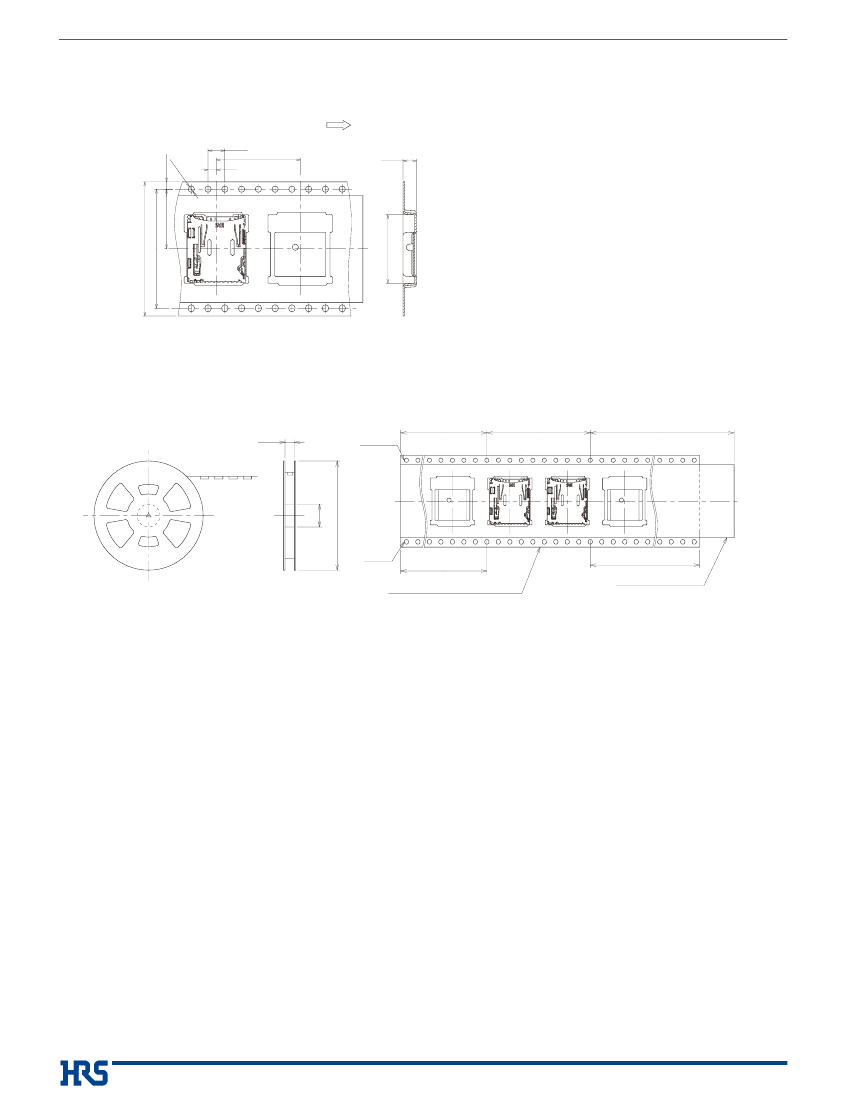

DM3AT

2~4

· Exposed termination leads

Easy inspection and rework of the solder termination joints.

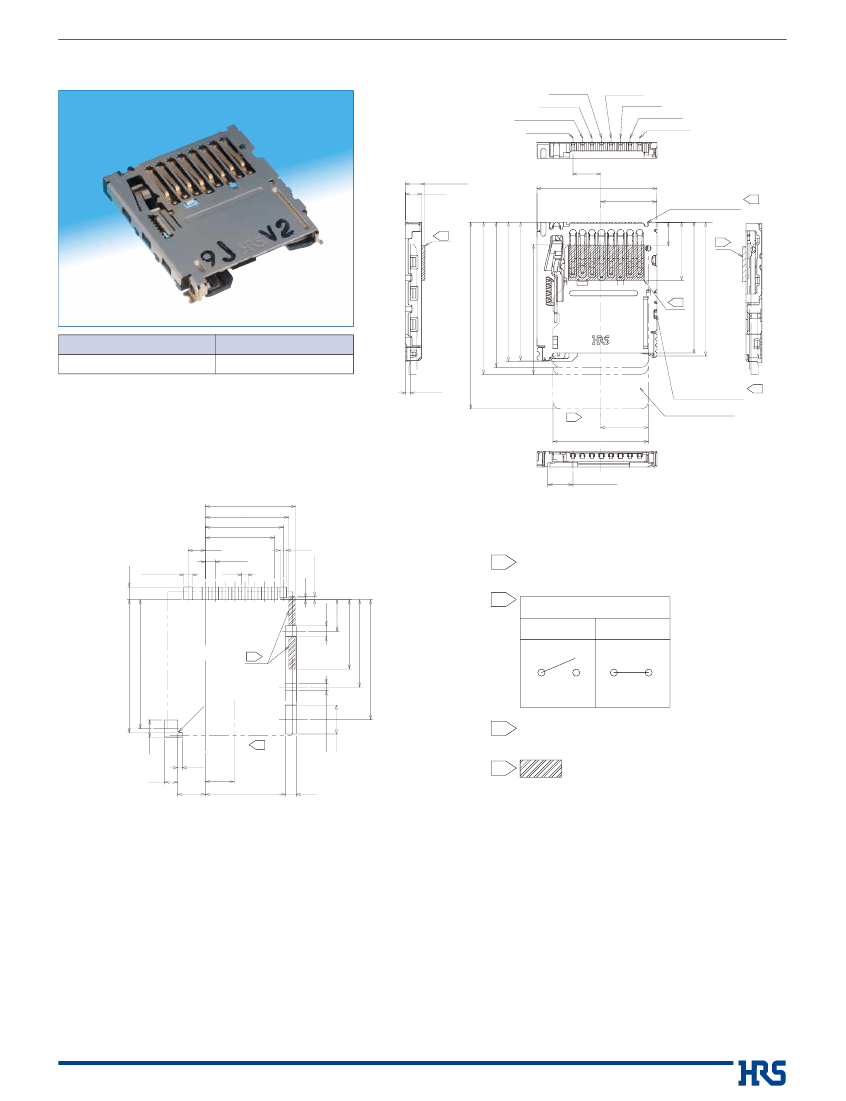

DM3BT

5~6

◆

DM3CS (Hinge, Push-Pull, manual, without

ejection mechanism)

· Simple and reliable card insertion

Hinged metal cover provides location and guides the card

during the insertion / removal. Closing of the cover confirms

the electrical and mechanical connection with a tactile click

sensation.

Hinge-manual

insertion/

ejection

DM3CS

7~8

· Reliable contact with the card contact pads

Unique contact design and card slide action will clean the

contact areas of the card.

· Accessible termination areas

Contact solder terminations may be inspected and reworked.

Push-Pull

manual insertion/

ejection

DM3D

9~10

2017.1

③

DM3C-SF Related Products

	DM3C-SF	DM3AT-SF-PEJM5
Description		Crystals 32.768KHz 12.5pf 3.2 x 1.5 x 0.9mm
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	Hirose	Hirose
Reach Compliance Code	compliant	compliant
Samacsys Description	Micro SD card hinge version Micro SD card hinge version	DM3 RA SMT microSD memory card push/push DM3 RA SMT microSD memory card push/push
body width	0.072 inch	0.066 inch
subject depth	0.555 inch	0.628 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	PCB CONNECTOR	PCB CONNECTOR
Contact to complete cooperation	TIN	NOT SPECIFIED
Contact completed and terminated	TIN	Gold (Au)
Contact point gender	MALE	MALE
Contact material	COPPER ALLOY	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR
Contact resistance	100 mΩ	100 mΩ
Contact style	COMPRESSION	COMPRESSION
DIN compliance	NO	NO
Dielectric withstand voltage	500VAC V	500VAC V
Durability	5000 Cycles	10000 Cycles
IEC compliance	NO	NO
Insulation resistance	100000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3	e4
MIL compliance	NO	NO
Installation method	STRAIGHT	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
PCB row number	1	1
Number of ports	1	1
Number of rows loaded	1	1
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR
Rated current (signal)	0.5 A	0.5 A
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Terminal pitch	1.0922 mm	1.0922 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	8	8
Base Number Matches	1	1
