52885-1474: DescriptionRS-422/RS-485 Interface IC 3-5.5V 1uA Tcvr Multiprotocol; CategoryThe connector The connector; File Size29KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

52885-1474 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	52885-1474	-	-	View	Buy Now

52885-1474 Overview

RS-422/RS-485 Interface IC 3-5.5V 1uA Tcvr Multiprotocol

52885-1474 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	compliant
Samacsys Description	Board to Board & Mezzanine Connectors .635 RECEPTACLE SURFACE MNT 140 CKT
Board mount options	PEG
body width	0.252 inch
subject depth	0.157 inch
body length	2.06 inch
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	40 mΩ
DIN compliance	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	.695 N
Insulation resistance	1000000000 Ω
Insulator color	WHITE
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Plug contact pitch	0.025 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.2098 mm
Plating thickness	9.8u inch
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.635 mm
Termination type	SURFACE MOUNT
Total number of contacts	140
UL Flammability Code	94V-0
Evacuation force-minimum value	.1112 N
Base Number Matches	1

Preview

Download Datasheet

View All

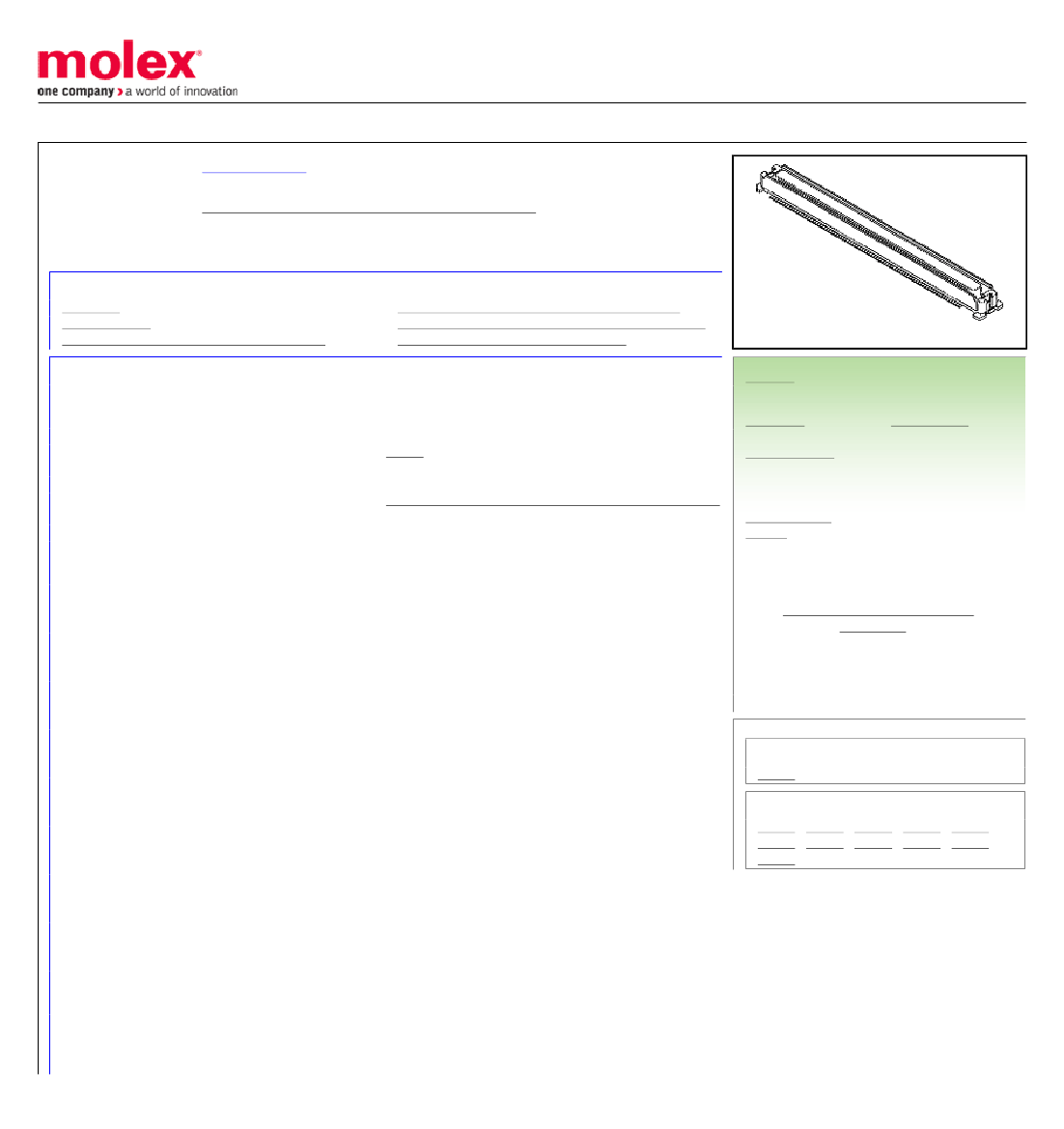

This document was generated on 10/31/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0528851474

Active

SlimStack™ 0.635mm Pitch Board-to-Board Connectors

0.635mm Pitch SlimStack Receptacle, Surface Mount, Dual Row, Vertical Stacking,

6.00 to 10.00mm Stacking Heights, Embossed Tape with Cover Packaging, 140

Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification 527600000-000 (PDF)

Agency Certification

General

Product Family

Series

Application

Comments

Overview

Product Name

UPC

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Mated Height

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Plating min - Mating

Plating min - Termination

Polarized to PCB

Robotic Placement

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Product Specification PS-52760-015-001 (PDF)

Packaging Specification SPK-52885-001-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

E29179

PCB Receptacles

52885

Board-to-Board, Signal

Stacking-Type

SlimStack™ 0.635mm Pitch Board-to-Board Connectors

SlimStack

822348246212

140

Natural

94V-0

10.00mm, 5.00mm, 6.00mm, 7.00mm, 8.00mm, 9.00mm

Phosphor Bronze

Gold

Tin

High Temperature Thermoplastic

1601.401/mg

Vertical

Yes

1.60mm

Embossed Tape on Reel

0.64mm

0.254µm

2.032µm

Yes

Pick and Place Cap

N/A

-55°C to +105°C

Surface Mount

0.5A

100V

Search Parts in this Series

52885 Series

Mates With

55091 , 53649 , 53643 , 53475 , 53627 ,

53553 , 53552 , 53647 , 53551 , 53481 ,

53625
