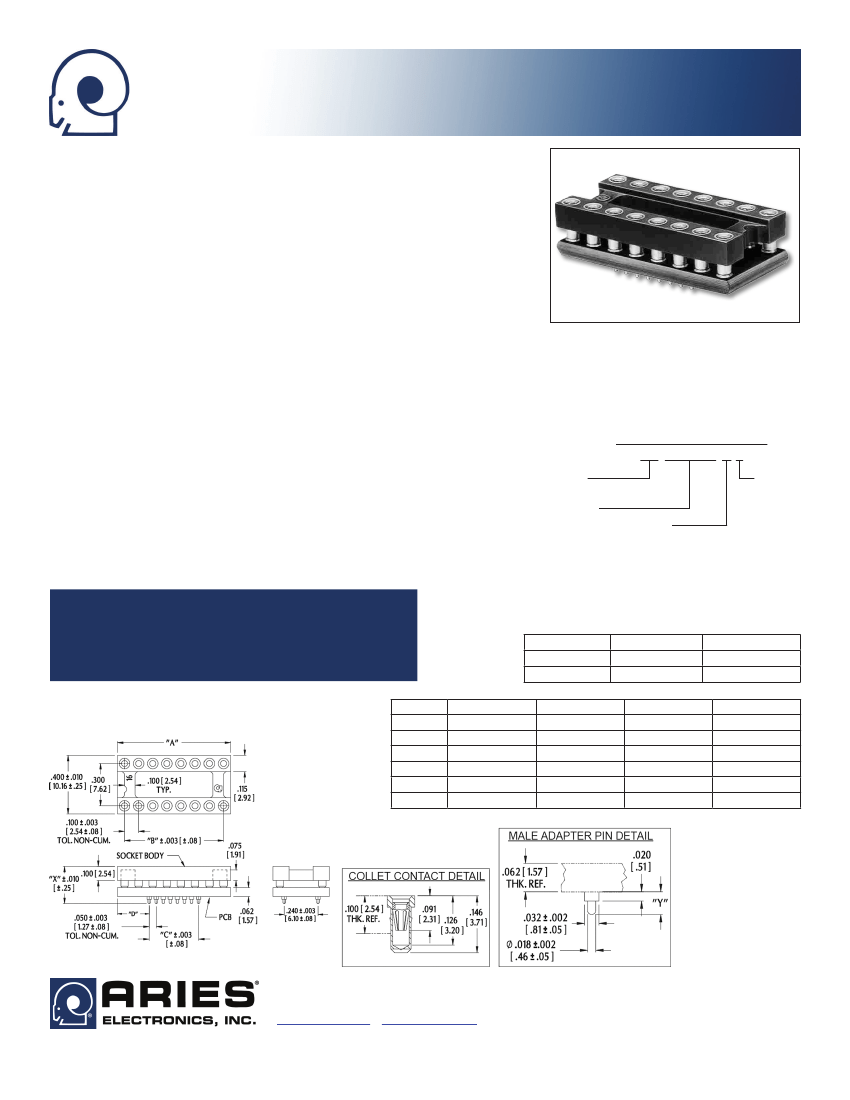

Series 354000
DIP-to-SOIC Adapter
FEATURES
• Convenient, cost-effective means of converting DIP-to-SOIC PC board layouts.
GENERAL SPECIFICATIONS
• SOCKET BODY: black, UL 94V-0 glass-filled 4/6 Nylon 170°C continuous use
temp
• PCB: FR-4, 0.062 [1.58] thick
• MALE ADAPTER PIN: Brass 360 1/2-hard per UNS C36000, ASTM B16/B16M
• MALE PIN PLATING: 200µ [5.08µ] Sn/Pb 93/7 per ASTM B579-73 over 100µ
[2.54µ] Ni per SAE AMS-QQ-N-290
• FEMALE CONTACT PIN: Brass 360 1/2-hard per UNS C36000, ASTM B16/
B16M
• FEMALE PIN PLATING: 10µ [0.254µ] Au per MIL-G-45204 over 100µ [2.54µ] Ni
per SAE AMS-QQ-N-290
• 4-FINGER COLLET CONTACT: BeCu per UNS C17200, ASTM B194-08
• FEMALE CONTACT PLATING: 10µ [0.254µ] Au per MIL-G-45204 over 50µ
[1.27µ] Ni per SAE AMS-QQ-N- 290
• CONTACT CURRENT RATING: 3 amps
• OPERATING TEMPERATURE: 221°F [105°C]
• INSERTION FORCE: 180g/pin; based on a 0.018 [0.46] dia. test lead
• WITHDRAWAL FORCE: 90g/pin; based on a 0.018 [0.46] dia. test lead
• NORMAL FORCE: 140g/pin; based on a 0.018 [0.46] dia. test lead
• SOCKET ACCEPTS LEADS: 0.015-0.025 [0.38-0.64] in dia., 0.100-0.125
[2.54-3.18] long
MOUNTING CONSIDERATIONS
• SUGGESTED PCB SOLDER PAD SIZE: 0.028 [0.71] min. width
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
Pins
8
14
16
20
24
28
Dim. “A”
0.400 [10.16]
0.700 [17.78]
0.800 [20.32]
1.000 [25.40]
1.200 [30.48]
1.400 [35.56]
P/N Suffix
-10
-20
Dim.“B”
0.400 [10.16]
0.600 [15.24]
0.700 [17.78]
0.900 [22.86]
1.100 [27.94]
1.300 [33.02]
Dim. “X”
0.265 [16.73]
0.325 [8.26]
Dim.“C”
0.100 [2.54]
0.300 [7.62]
0.350 [8.89]
0.450 [11.43]
0.550 [13.97]
0.650 [16.51]
Dim. “Y”
0.050 [1.27]
0.110 [2.79]
Dim.“D”
0.125 [3.175]
0.225 [5.72]
0.225 [5.72]
0.275 [6.99]
0.325 [8.26]
0.375 [9.53]
CUSTOMIZATION:
In addition to the standard products shown
on this page, Aries specializes in custom design and production.
Special materials, platings, sizes, and configurations can be
furnished, depending on the quantity.
NOTE:
Aries reserves the
right to change product general specifications without notice.
ORDERING INFORMATION
XX-354000-X 0
Pins
8, 14, 16, 20, 24, 28
Series
Adapter Pin Options
(see P/N Suffix Table)
1 = Short Adapter Pin
2 = Long Adapter Pin
Plating
Sn/Pb
Bristol, PA 19007-6810 USA
TEL (215) 781-9956 • FAX (215) 781-9845
WWW.ARIESELEC.COM • INFO@ARIESELEC.COM
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
18009
Rev. AB
