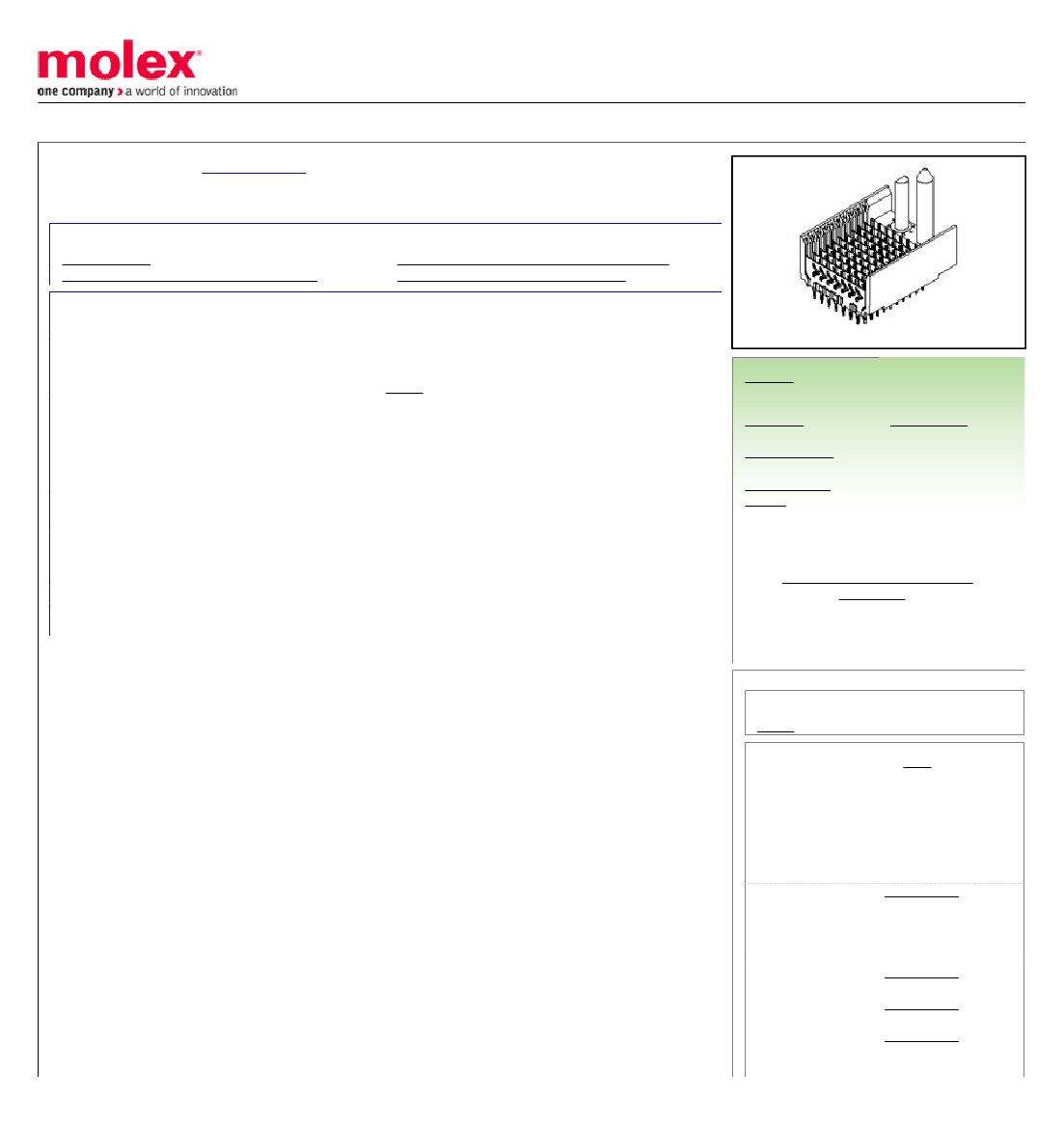

74062-2552: DescriptionHigh Speed / Modular Connectors VHDM BP 8 ROW SHLD E SHLD END ASSY 25 COL; CategoryThe connector The connector; File Size28KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

74062-2552 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	74062-2552	-	-	View	Buy Now

74062-2552 Overview

High Speed / Modular Connectors VHDM BP 8 ROW SHLD E SHLD END ASSY 25 COL

74062-2552 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	25 SHIELD CONTACT AVAILABLE IN 1 ROW, PANEL MOUNTABLE
body width	0.85 inch
subject depth	0.484 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
DIN compliance	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	.3892 N
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.089 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	15
Number of rows loaded	1
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	1.2446 mm
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.098 inch
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	225
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

This document was generated on 06/10/2016

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0740622552

Active

VHDM BP 8 ROW SHLD END ASSY 25 COL

Documents:

Drawing (PDF)

Product Specification PS-74031-999 (PDF)

Agency Certification

CSA

General

Product Family

Series

Product Family

UPC

Physical

Flammability

Net Weight

Solder Process Data

Lead-freeProcess Capability

Material Info

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

Packaging Specification PK-74061-003 (PDF)

RoHS Certificate of Compliance (PDF)

LR19980

Backplane Connectors

74062

Backplane Connectors

800754846059

94V-0

17.610/g

N/A

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Not Reviewed

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

Not Reviewed

Not Relevant

PK-74061-003

PS-74031-999

SD-74062-002

Search Parts in this Series

74062 Series

Application Tooling

|

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

Insertion Module

0622020210

for Standard Shield

Signal Header, 8-

Row by 25-Wide,

50.00mm

Signal Pin Inserter 0622015700

Repair Tool

8-Row Pin and

0622015900

Shield Repair Tool

Insertion Module

0622020206

for Advanced Mate

Signal Header, 6-
