ExpressPort
TM
SFP+ 2xN
UE86-D2527-20321
Amphenol’s ExpressPort
TM
SFP+ 2xN Combo provides data transfer speeds of up to 25 Gbps per port.
ExpressPort
TM
SFP+ 2xN Combos consist of an integrated stacked connector system and a cage with
compliant press- t pins.
Amphenol’s unique ExpressPort
TM
SFP+ cage construction features EMI shielding available in the form of
an elastomeric gasket or metal spring ngers. These cages also eliminate ventilation holes near the front
of the cage to prevent potential catch points for the mating module EMI springs.

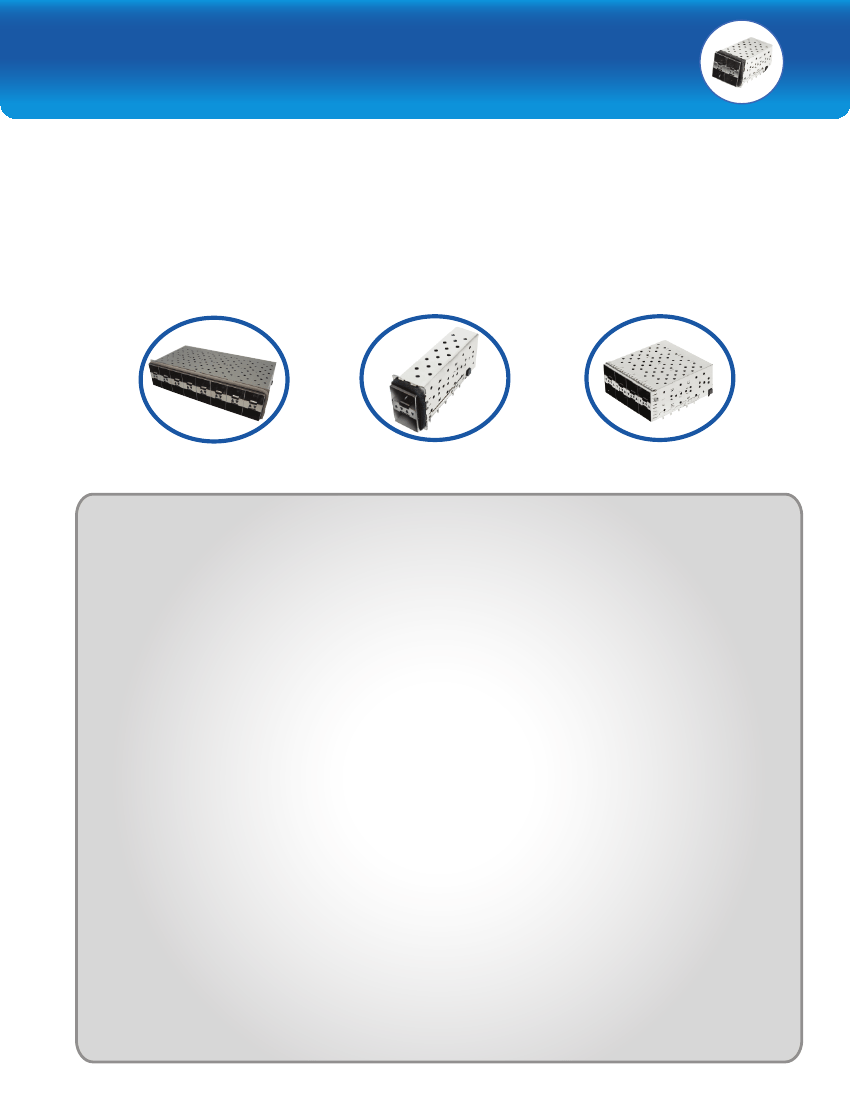

UE86-K8427-20321
UE86-D1427-10321
UE86-D4627-10321
Speci cation Highlights
The interconnect system is comprised of a 2-row stacked,
20-position, 0.8 mm pitch SFP+ connector and cage
assembly as one unit with all press- t construction.
General Characteristics
•
RoHS Compliant
•
Press-fit Cage and Connector Combo for min
1.57 +/- 10% mm (0.0625”) PCB Thickness
•
Industry Standard EIA-364
Mechanical Characteristics
•
Card Entry Slot Accepts 1.0 mm Thick
Integrated Circuit Cards
•
Durability: 250 Mating Cycles min
Electrical Characteristics
•
Hot Swappable
•
Operating Voltage: 3.3 V
•
Operating Current: 0.5 A
•
Differential Impedance: 100 Ω +/- 10 Ω
•
DWV: 300 V AC
•
Insulation Resistance: 1000 MΩ min
•
Contact Resistance: 70 mΩ max
Packaging
•
Tray Packaging: Cage and Connector
Assembly
•
Bulk Packaging: Dust Cover
Materials
•
Cage
o
Base Material: Copper Alloy
o
Plating: Nickel or Tin
o
Light Pipe: Optical Grade Polycarbonate
o
Dust Cover: Thermoplastic
•
Connector
o
Contact Base Material: Copper Alloy
o
Contact Plating: Gold on Mating Area,
Matte Tin on Termination
o
Housings: Glass Reinforced, Lead-Free Solder
Reflow Process Compatible Thermoplastic,
UL94V-0 Rated
Temperature Rating
•
Operating Temperature: -55°C to +85°C
•
Storage Temperature: -55°C to +105°C
Con gurations
(Rows x Ports per Row)
•
2x1
•
2x2
•
2x4
•
2x5
•
2x6
•
2x8
Options
•
Dust Cover
•
Light Pipe
o
4 Light Pipes per 2x1
o
2 Inner Light Pipes per 2x1
o
2 Outer Light Pipes per 2x1
•
EMI Shielding
o
Metal Spring Fingers
o
Conductive Elastomeric Gasket
6
Ordering Information
UE86-K2427-10321
UE86-K442C-20321
(Cage / Connector)
UE86
SERIES DESIGNATION
ExpressPort
™
SFP+
2xN Combo
UE86
- RoHS SFP+ Cage and Connector (Lead Free)
UE86
-
X X X X X
-
X X X X 1
1
- Tray Packaging (Stacked)
PACKAGING
1
X
X
B
- 2xN, No Light Pipe
D
- 2xN, Small Light Pipe Openings
K
- 2xN, Large Light Pipe Openings
L
- 2xN, Low Profile Combo (No Light Pipe)
STYLE
1
- Bright Tin
2
- Nickel
3
- Matte Tin
PLATING OPTION: CAGE
PLATING OPTION: CONNECTOR
X
- Various Options Available
Consult Sales or Website for Details
X
X
X
X
1
- 2x1
2
- 2x2
4
- 2x4
5
- 2x5
6
- 2x6
8
- 2x8
NUMBER OF PORTS IN ROW
0
- Without Dust Cover
D
- With Dust Cover (Shipped Loose)
DUST COVER OPTION
X
4
- Elastomeric Gasket
5
- Elastomeric Gasket, Bottom Mylar Tape
6
- Metal Spring Fingers
CHASSIS GROUNDING
0
- No Light Pipe
1
- 4 Light Pipes per 2x1
2
- 2 Inner Light Pipes per 2x1
3
- 2 Outer Light Pipes per 2x1
LIGHT PIPE OPTION
MOUNTING TYPE: CAGE
7
- Standard 2xN Cage
C
- Enhanced EMI Cage
X
X
2
- Standard Press Fit Pins (12 Gbps)
5
- Small Press Fit Pins for High Speed Termination (16 Gbps)
MOUNTING TYPE: CONNECTOR
Telephone: (416)-291-4401
All speci cations are subject to change without notice.
Website: www.amphenol-highspeed.com
7
Email: cages@amphenol-highspeed.com
