2296207-6: Description6P PM PLUG VAL-U-LOK PM GWT/V0; CategoryThe connector; File Size141KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

2296207-6 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2296207-6	-	-	View	Buy Now

2296207-6 Overview

6P PM PLUG VAL-U-LOK PM GWT/V0

2296207-6 Parametric

Parameter Name	Attribute value
Connector System	wire to wire, wire to panel, wire to panel
insertion force	15 newtons
Line spacing	4.2 mm [ .165 in ]
Connector type	plug
Sealable	no
Connectors and terminals terminate to	Wires and cables
Number of Positions	6
Rows	2
Terminal type	socket
Connector mounting type	Panel, cable installation
Centerline (Pitch)	4.2 mm [ .165 in ]
Shell material	nylon
Working group temperature range	-40 – 105 °C [ -40 – 221 °F ]
Circuit Application	Power

Preview

Download Datasheet

View All

4

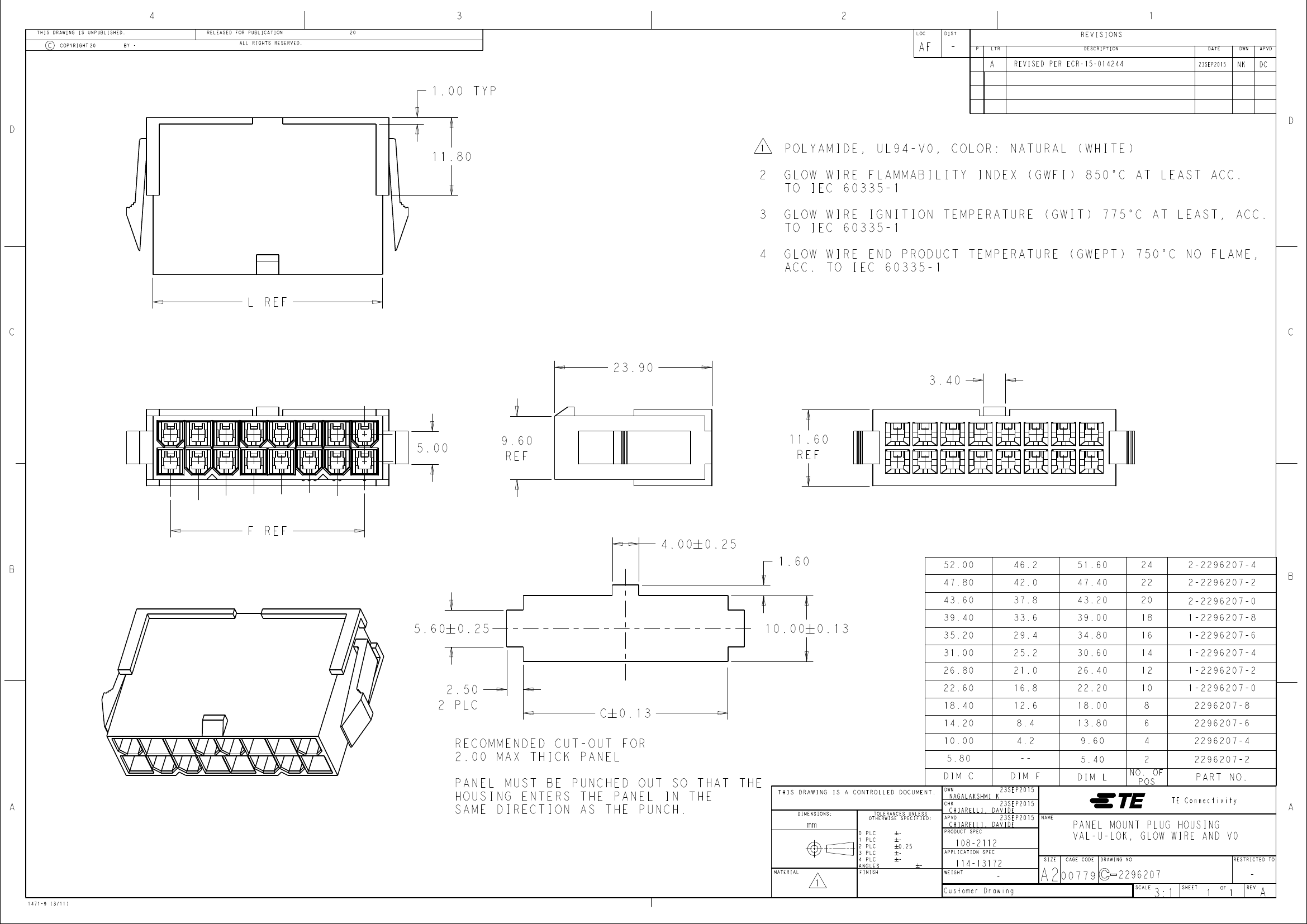

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

20

3

2

LOC

DIST

1

C

COPYRIGHT

20

AF

1.00

TYP

-

REVISIONS

P

LTR

DESCRIPTION

DATE

DWN

APVD

A

REVISED PER ECR-15-014244

23SEP2015

NK

DC

D

11.80

1

POLYAMIDE, UL94-V0, COLOR: NATURAL (WHITE)

GLOW WIRE FLAMMABILITY INDEX (GWFI) 850°C AT LEAST ACC.

TO IEC 60335-1

GLOW WIRE IGNITION TEMPERATURE (GWIT) 775°C AT LEAST, ACC.

TO IEC 60335-1

GLOW WIRE END PRODUCT TEMPERATURE (GWEPT) 750°C NO FLAME,

ACC. TO IEC 60335-1

2

3

4

L REF

C

23.90

3.40

5.00

9.60

REF

11.60

REF

F REF

B

4.00

0.25

1.60

52.00

47.80

43.60

39.40

35.20

31.00

26.80

46.2

42.0

37.8

33.6

29.4

25.2

21.0

16.8

12.6

8.4

4.2

--

DIM F

23SEP2015

51.60

47.40

43.20

39.00

34.80

30.60

26.40

22.20

18.00

13.80

9.60

5.40

DIM L

24

22

20

18

16

14

12

10

8

6

4

NO. OF

POS

2-2296207-4

2-2296207-2

2-2296207-0

1-2296207-8

1-2296207-6

1-2296207-4

1-2296207-2

1-2296207-0

2296207-8

2296207-6

2296207-4

2296207-2

B

5.60

0.25

10.00

0.13

2.50

2 PLC

22.60

C # 0.13

18.40

14.20

10.00

5.80

DIM C

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

RECOMMENDED CUT-OUT FOR

2.00 MAX THICK PANEL

PANEL MUST BE PUNCHED OUT SO THAT THE

HOUSING ENTERS THE PANEL IN THE

SAME DIRECTION AS THE PUNCH.

2

PART NO.

TE Connectivity

A

mm

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

0.25

-

23SEP2015

CHIARELLI, DAVIDE

APVD

23SEP2015

CHIARELLI, DAVIDE

PRODUCT SPEC

NAGALAKSHMI K

NAME

A

APPLICATION SPEC

108-2112

114-13172

SIZE

PANEL MOUNT PLUG HOUSING

VAL-U-LOK, GLOW WIRE AND V0

CAGE CODE

DRAWING NO

RESTRICTED TO

-

WEIGHT

1

1471-9 (3/11)

-

Customer Drawing

A2

00779

2296207

SCALE

3:1

SHEET

1

OF

1

REV

-

A

2296207-6 Related Products

	2296207-6	2-2296207-4	2296207-8	1-2296207-6
Description	6P PM PLUG VAL-U-LOK PM GWT/V0	24P PM PLUG VAL-U-LOK PM GWT/V0	8P PM PLUG VAL-U-LOK PM GWT/V0	16P PM PLUG VAL-U-LOK PM GWT/V0
Connector type	plug	POWER CONNECTOR	plug	plug
Connector System	wire to wire, wire to panel, wire to panel	-	wire to wire, wire to panel, wire to panel	wire to wire, wire to panel, wire to panel
insertion force	15 newtons	-	15 newtons	15 newtons
Line spacing	4.2 mm [ .165 in ]	-	4.2 mm [ .165 in ]	4.2 mm [ .165 in ]
Sealable	no	-	no	no
Connectors and terminals terminate to	Wires and cables	-	Wires and cables	Wires and cables
Number of Positions	6	-	8	16
Rows	2	-	2	2
Terminal type	socket	-	socket	socket
Connector mounting type	Panel, cable installation	-	Panel, cable installation	Panel, cable installation
Centerline (Pitch)	4.2 mm [ .165 in ]	-	4.2 mm [ .165 in ]	4.2 mm [ .165 in ]
Shell material	nylon	-	nylon	nylon
Working group temperature range	-40 – 105 °C [ -40 – 221 °F ]	-	-40 – 105 °C [ -40 – 221 °F ]	-40 – 105 °C [ -40 – 221 °F ]
