52746-1133

Description
FFC u0026 FPC Connectors 0.5 FPC ZIF RA 11Ct Sn-Ag-Bi
CategoryThe connector    The connector
File Size29KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

52746-1133 Online Shopping

Suppliers Part Number Price MOQ In stock
52746-1133 - - View Buy Now

52746-1133 Overview

FFC u0026 FPC Connectors 0.5 FPC ZIF RA 11Ct Sn-Ag-Bi

52746-1133 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time14 weeks
Board mount optionsFITTING NAIL
body width0.079 inch
subject depth0.169 inch
body length0.457 inch
Connector typeFFC/FPC CONNECTOR
Contact to complete cooperationTIN BISMUTH OVER NICKEL
Contact completed and terminatedTin/Bismuth (Sn/Bi) - with Nickel (Ni) barrier
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleBELLOWED TYPE
Dielectric withstand voltage500VAC V
Durability30 Cycles
maximum insertion forceZIF N
Insulation resistance100000000 Ω
Insulator colorWHITE
insulator materialGLASS FILLED POLYAMIDE
Plug contact pitch0.02 inch
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
PCB row number1
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-30 °C
PCB contact patternRECTANGULAR
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch0.508 mm
Termination typeSURFACE MOUNT
Total number of contacts11
Base Number Matches1

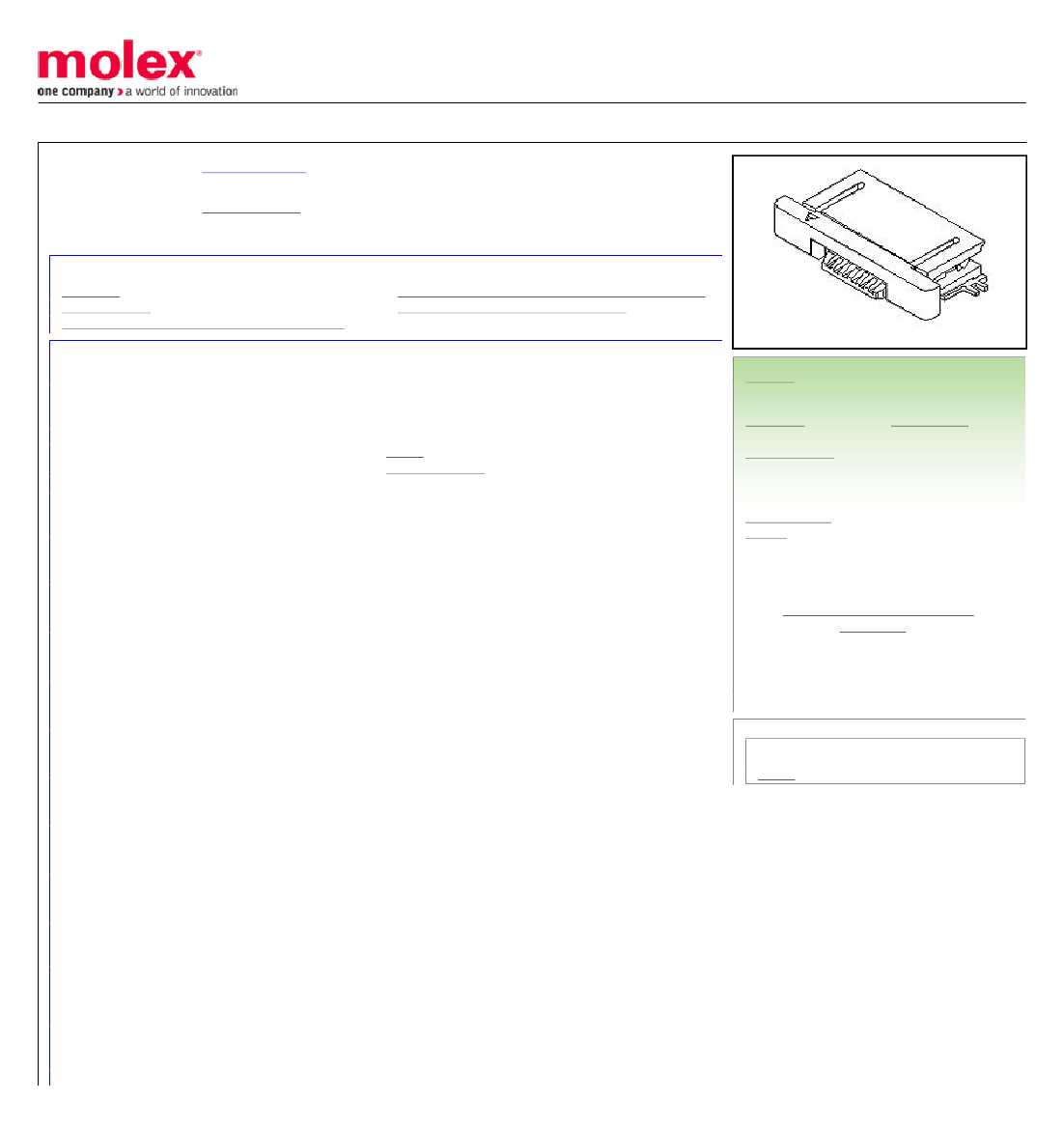

This document was generated on 10/10/2017
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0527461133
Active
FFC-FPC (SMT)
0.50mm Pitch Easy-On Type FFC/FPC Connector, Right Angle, Surface Mount, ZIF,
Bottom Contact Style, 11 Circuits, High Barrier Packaging
Documents:
3D Model
Drawing (PDF)
Product Specification PS-52746-017-001 (PDF)
Agency Certification
CSA
UL
General
Product Family
Series
Overview
Product Name
UPC
Physical
Circuits (Loaded)
Color - Resin
Contact Position
Durability (mating cycles max)
Entry Angle
Flammability
Mated Height
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Net Weight
Number of Rows
Orientation
PC Tail Length
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface
Pitch - Termination Interface
Polarized to PCB
Stackable
Temperature Range - Operating
Termination Interface: Style
Wire/Cable Type
Electrical
Current - Maximum per Contact
Voltage - Maximum
Material Info
Reference - Drawing Numbers
Packaging Specification
Product Specification
Packaging Specification SPK-52746-002-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
LR19980
E29179
FFC/FPC Connectors
52746
FFC-FPC (SMT)
Easy-On
887191295220
11
Natural
Bottom
20
90° Angle
94V-0
2.00mm
Phosphor Bronze
Silver, Tin-Bismuth
Silver, Tin-Bismuth
Nylon
151.000/mg
1
Right Angle
2.00mm
No
Yes
Embossed Tape on Reel
0.50mm
0.50mm
Yes
No
-40°C to +85°C
Surface Mount
FFC/FPC
0.5A
50V
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per -
ED/30/2017 (7 July
2017)
Halogen-Free
Status
Not Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Not Relevant
Not Contained
Search Parts in this Series
52746 Series
SPK-52746-002-001
PS-52746-017-001
