Power entry modules without line filter
https://www.schurter.com /PG05
DF11
IEC Appliance Inlet C14 or C18 with recessed Circuit Breaker TA45
C14
70° C
C18
70° C
Approvals and Compliances

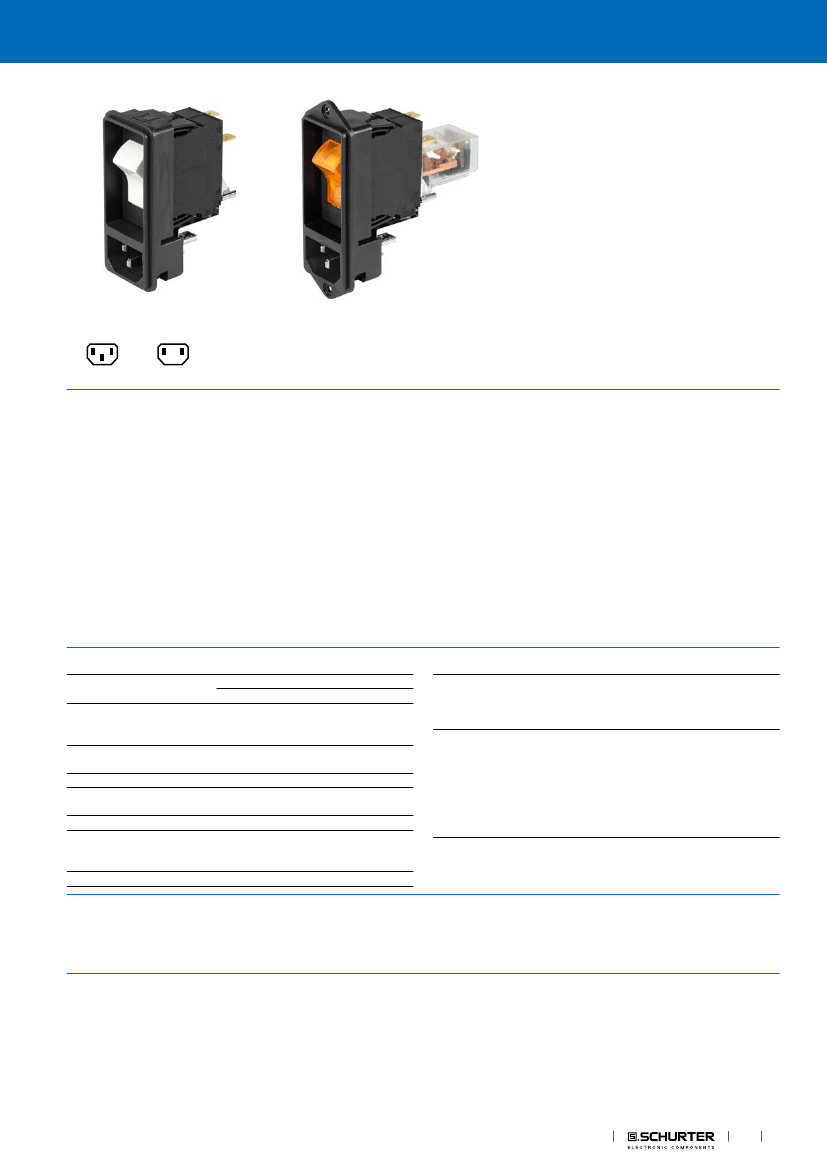

Description
- Panel Mount :
Screw-on version from front or rear side, snap-in version from front
side
- 2 Functions :
Appliance Inlet protection class I or II , circuit breaker type TA45 2-pole
- Quick connect terminals 6.3 x 0.8 mm
Characteristics
- All single elements are already wired
- Circuit Breaker non-illuminated or illuminated
- Suitable for use in equipment according to IEC/UL 60950
Other versions on request
- Unwired versions
- Other rocker marking
- Variant with notch for V-Lock mating Cordsets
References
Weblinks
Alternative: version with line filter
DF12
Substitute for type
6145
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Accessories, Detailed request for product, Microsite
Newly available variants corresponding to V-Lock mating cordset. The connector is equipped with a notch intended for use with the latching cordset.
The cord latching system prevents against accidental removal of the cordset.
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
10 A / 250 VAC; 50 Hz
1 - 15 A / 250 VAC; 60 Hz
> 2.5 kVAC between L-N
> 3 kVAC between L/N-PE
(1 min/50 Hz)
-10 °C to 55 °C
from front side IP 40 acc. to IEC 60529
Suitable for appliances with protection
class I or II acc. to IEC 61140
Quick connect terminals 6.3 x 0.8 mm
Screw: max 8 mm
Mounting screw torque max 0.5 Nm
Snap-in: 1/1.5/2/2.5/3 mm
Thermoplastic, black, UL 94V-0
appliance inlet/-outlet
C14 / C18 acc. to IEC 60320-1,
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C, 10 A,
Protection Class I or II
Acc. IEC/EN 60934, UL 1077, CSA
22.2 no. 235
2-pole rocker switch, illuminated or non-
illuminated. Optional with undervoltage-
or remote trip release
Short circuit capacity Icn:
at In < 3A/240VAC : 10 x In
at In
≥
3A/240VAC : 300A
Circuit Breakers
Allowable Operation Tempe-
rature
IP-Protection
Insulation cover
Terminal
Panel Thickness S
Material: Housing
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Connectors
1
DF11
Approvals
Power entry modules without line filter
https://www.schurter.com /PG05
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: DF11
Approval Logo
Certificates
VDE Approvals
UL Approvals
Certification Body
VDE
UL
Description
Certificate Number: 40011305
UL File Number: E96454
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Designed according to
Designed according to
Standard
IEC 60320-1
IEC 61058-1
UL 498
CSA C22.2 no. 42
Description
Appliance couplers for household and similar general purposes
Switches for appliances. Part 1. General requirements
Standard for Attachment Plugs and Receptacles
General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Standard
IEC/UL 60950
Description
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
V-Lock system are based on a matching plug-dose combination. The
connector is equipped with a notch intended for use with the latching
cordset. The cord latching system prevents against accidental removal of
the cordset.
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG
MicrositeV-Lock
SCHURTER AG
2
Connectors
Power entry modules without line filter
https://www.schurter.com /PG05
DF11
ABT
W
F
150
C0

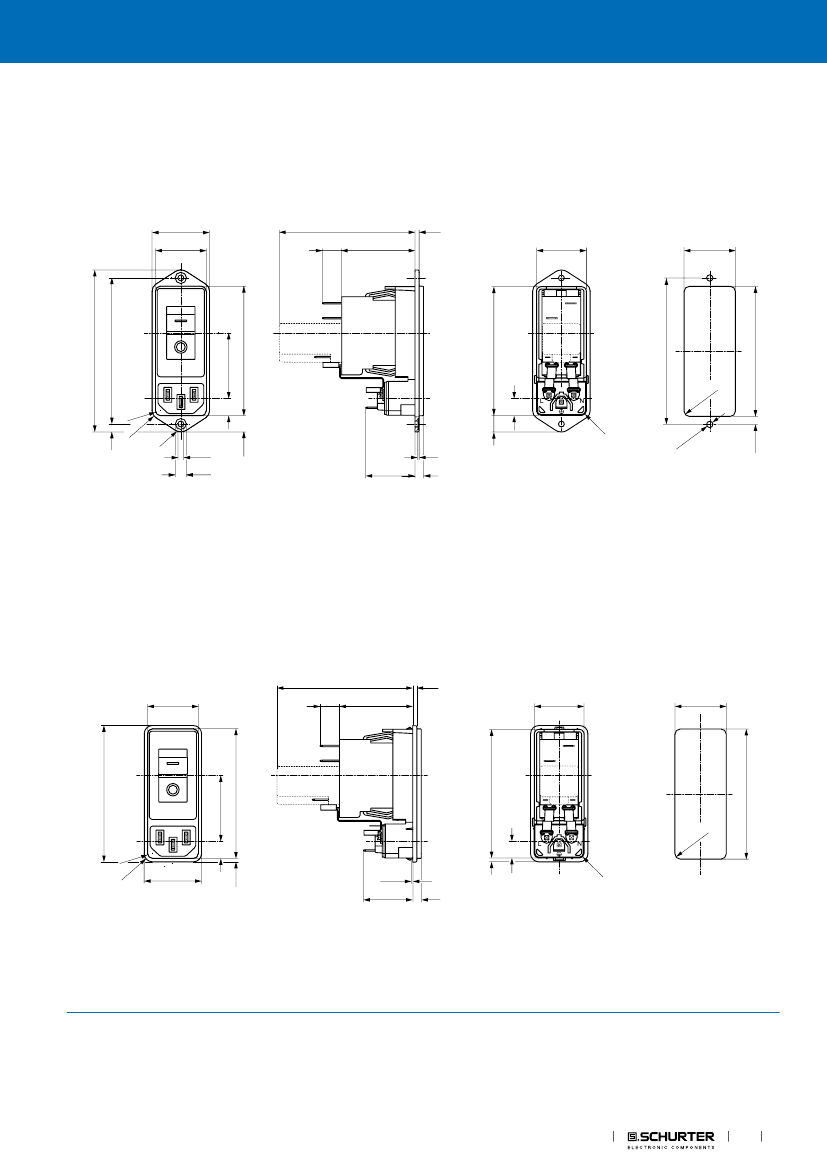

Table 1 Selection for type TA45
Order example
• Circuit Breaker of Equipment
• 2-pole, rocker actuated
• Quick connect terminal
Other types on request
Diagram
Thermal overload protection
1-pole
P2
P1
2-pole
P2
P1
Without illumination
With illumination
220…240 V
110…120 V
6
3
4
3
ABT
A12
A14
ABD
A32
A34
}
Colours
Switch front
Rocker
W
B
6
black
black
black
white
black
–
–
–
orange transp.
Rocker legend
Surface
Illustration
Colour of print
Surface
Illustration
Colour of print
O
F
H
K
L
embossed / Relief
printed / bedruckt
printed / bedruckt
printed / bedruckt
M
white / weiss
black / schwarz
white / weiss
P
R
printed
printed
printed
O
black
white
black
l
OFF OFF
ON
l
I
I
O
O
ON
l
Position of the rocker legend
e.g F
O
Rated current circuit breaker of equipment
In
0,1
0,2
0,3
0,4
0,5
0,6
0,7
0,8
0,9
1,0
1,1
1,2
Code
J01
J02
J03
J04
J05
J06
J07
J08
J09
J10
J11
J12
In
1,3
1,4
1,5
1,6
1,7
1,8
1,9
2,0
2,1
2,2
2,3
2,5
Code
J13
J14
J15
J16
J17
J18
J19
J20
J21
J22
J23
J25
In
2,8
3,0
3,5
4,0
4,5
5,0
6,0
6,5
7,0
7,5
8,0
9,0
Code
J28
030
035
040
045
050
060
065
070
075
080
090
In
10,0
11,0
12,0
13,0
14,0
15,0
20,0
Code
100
110
120
130
140
150
200
Without release: code C0
Undervoltage release
P2
U<
P1
P2
b
U<
P1
P2
ba
U<
P1
Remote trip release
P2
c P1
U
E
Z
A
Code
2
3
4
Rated
voltage Un
240 V AC
230 V AC
120 V AC
•
•
•
•
•
•
•
•
•
•
•
•
