HD36-24-9SN-L005

Description
PLUG ASM
CategoryThe connector
File Size316KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

HD36-24-9SN-L005 Online Shopping

Suppliers Part Number Price MOQ In stock
HD36-24-9SN-L005 - - View Buy Now

HD36-24-9SN-L005 Overview

PLUG ASM

HD36-24-9SN-L005 Parametric

Parameter NameAttribute value
Connector typeFemale terminal housing
Connector Systemline to line
Sealableyes
Hybrid connectoryes
Main locking featuresHousing integration
strain reliefAdd according to attachment
Number of Positions9
Nominal Voltage Structure (V)12, 24, 42, 48, 80, 90, 125, 240
Operating voltage (VAC)250
colorgreen
Cable exit angle180°
Engagement pin diameter (mm)2.5, 4, 6
Bonding Pin Diameter (in).098, .157, .236
Terminal position guaranteeno
Installation featuresWithout
polarizationyes
Working group temperature range-55 – 125 °C [ -67 – 257 °F ]
Circuit ApplicationPower and Signal
protection levelIP67
Encapsulation methodPackage
Package quantity1
Able to ensure connector positionno
Repairableyes
4
THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
BY TE CONNECTIVITY
ALL RIGHTS RESERVED.
3
2014
LOC
2
DIST
P
LTR
1
REVISIONS
DESCRIPTION
DATE
DWN
APVD
C
COPYRIGHT
2014
A
NEW RELEASE PER ECO-14-013992
06OCT2014
JA
DM
D
D
2.570
.050
[ 65.28
1.27 ]
MAIN POLARIZING KEY
1.480
[ 37.59 ]
C
[
1.942
+.000
-.100
0
49.32
-2.54
C
OVER KNURL
]
1.605
[ 40.77 ]
ADAPTOR
B
6
5.
4.
3.
MATERIAL: SHELL, COUPLING RING AND ADAPTOR: ALUMINUM ALLOY 6061-T6, SEAL:
FOR ARRANGEMENT OF CONTACT LOCATION SEE ENVELOPE DWG 0425-014-2400.
FOR CONNECTOR PERFORMANCE AND APPLICATION INFORMATION,
SEE DRAWING NUMBER 0425-016-0000.
THIS CONNECTOR MATES WITH PART NO.
HD34-24-XXS/PX-XXXX.
XX= NUMBER OF CAVITIES, X= TYPE OF SEAL,
XXXX= ALL MODIFICATION.
21 PIN ARRANGEMENT SHOWN FOR REFERENCE ONLY.
CONSULT FACTORY FOR ELECTRICAL AND
MATERIAL SPECIFICATIONS.
THIS DRAWING IS A CONTROLLED DOCUMENT.
1.4375-18UNEF-2A
B
SILICONE MQ.
DIMENSIONS:
A
2.
1.
NOTES:
1470-19 (3/11)
INCHES[mm]
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
0
1
2
3
4
MATERIAL
ANGLES
PLC
PLC
PLC
PLC
PLC
06OCT2014
JAIME C. APOSTOL
CHK
06OCT2014
ILINA GRANTCHAROVA
APVD
06OCT2014
DAVID MEYER
DWN
PRODUCT SPEC
APPLICATION SPEC
TE Connectivity
NAME
.025 [.63]
N/A
FINISH
6
N/A
0°30'0"
WEIGHT
N/A
N/A
Customer Drawing
A3
4AFU8
SIZE
CAGE CODE

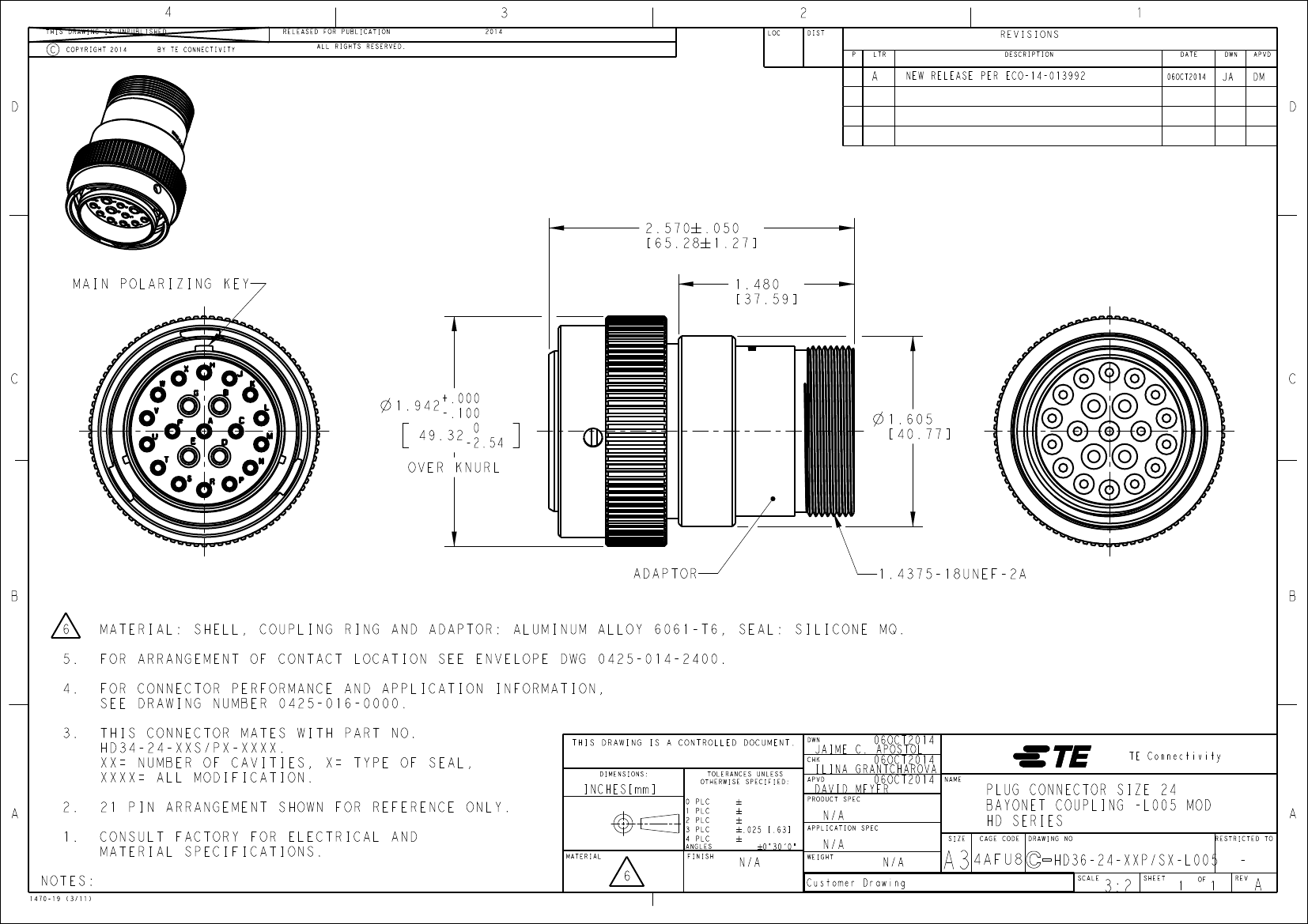

PLUG CONNECTOR SIZE 24
BAYONET COUPLING -L005 MOD
HD SERIES
DRAWING NO
A
RESTRICTED TO
HD36-24-XXP/SX-L005
SCALE
3:2
SHEET
1
OF
1
REV
-
A
