THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
BY -
ALL RIGHTS RESERVED.
20
3
2
LOC
DIST
1
C
COPYRIGHT
20
-
-
REVISIONS
P
LTR
DESCRIPTION
DATE
DWN
APVD
A1
REVISED PER ECR-13-009328
03JUL2013
RS
DD
D
D
1
7.55
MATERIAL:
CONNECTOR SYSTEM TUBE: PBT-GFF15
COLOUR: WHITE
PLUG HOUSING: PBT-GFF15
COLOUR: WHITE
RECEPTACLE CONTACT:
CONTACT: CuNiSi
SPRING: X10CrNi188
SQUARE WIRE: CuSn6
C
POL. KEY HV-3
39.00
POL. KEY HV-4
2
FINISH:
RECEPTACLE CONTACT:
CONTACT: TIN
SPRING: NONE
SQUARE WIRE: TIN OVER NICKEL
C
3
OBSOLETE
5.00
6.55
B
9.20
TYP
20.50
B
3D VIEW
SCALE
3:1
15.50
TYP
2213142-3 SHOWN
3
THIS DRAWING IS A CONTROLLED DOCUMENT.
DWN
CHK
DIMENSIONS:
HV-3
LV-2
HV-3
& HV-4
2213142-3
2213142-2
PART NUMBER
TE Connectivity
A
RAVI.S
D.DECKER
01AUG2012
01AUG2012
01AUG2012
POLARIZATION
NAME
2213142-1
mm
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
APVD
A
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
-
0.5
0.13
0.013
0.0001
PRODUCT SPEC
D.DECKER
APPLICATION SPEC
-
-
WEIGHT
-
1
1471-9 (3/11)
-
2
-
Customer Drawing
-
A2
00779
SIZE

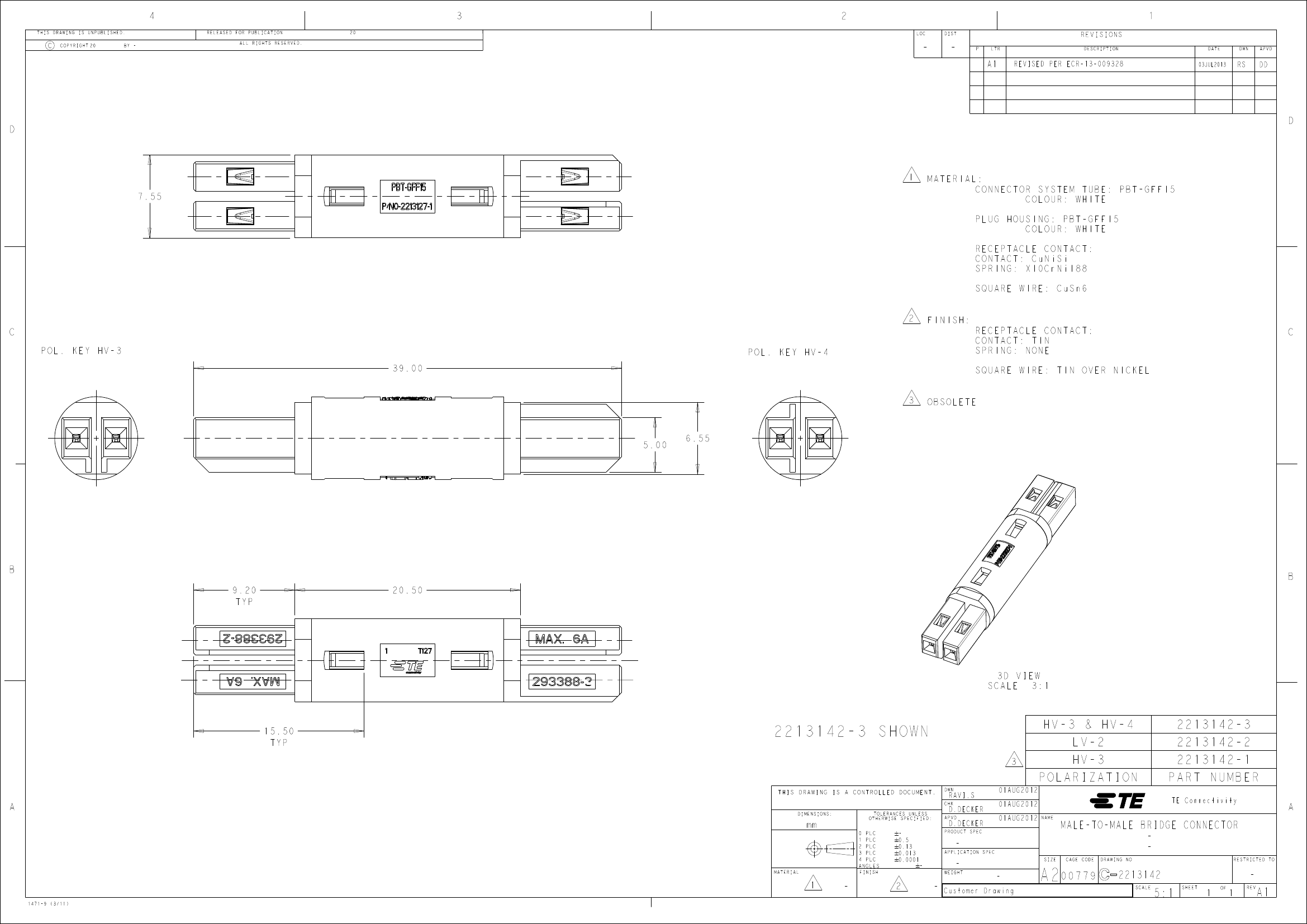

MALE-TO-MALE BRIDGE CONNECTOR
-
-
CAGE CODE
DRAWING NO
RESTRICTED TO
2213142
SCALE
5:1
SHEET
1
OF
1
REV
-
A1
