M39012-56-3125 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> M39012-56-3125

M39012-56-3125: DescriptionRF MIL Spec Connectors SMA M Conn R/A for RG-178 Cbl; CategoryThe connector; File Size75KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

M39012-56-3125 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M39012-56-3125	-	-	View	Buy Now

M39012-56-3125 Overview

RF MIL Spec Connectors SMA M Conn R/A for RG-178 Cbl

M39012-56-3125 Parametric

Parameter Name	Attribute value
Product Category	RF MIL Spec Connectors
Manufacturer	Amphenol
Product	Connectors
RF Series	SMA
Gender	Plug
Termination Style	Solder
Polarity	Standard
Contact Plating	Gold
Packaging	Bag
Body Finish	Passivated
Body Style	Right Angle
Cable Type	RG-178
Factory Pack Quantity	100

Preview

Download Datasheet

View All

ROHS COMPLIANT

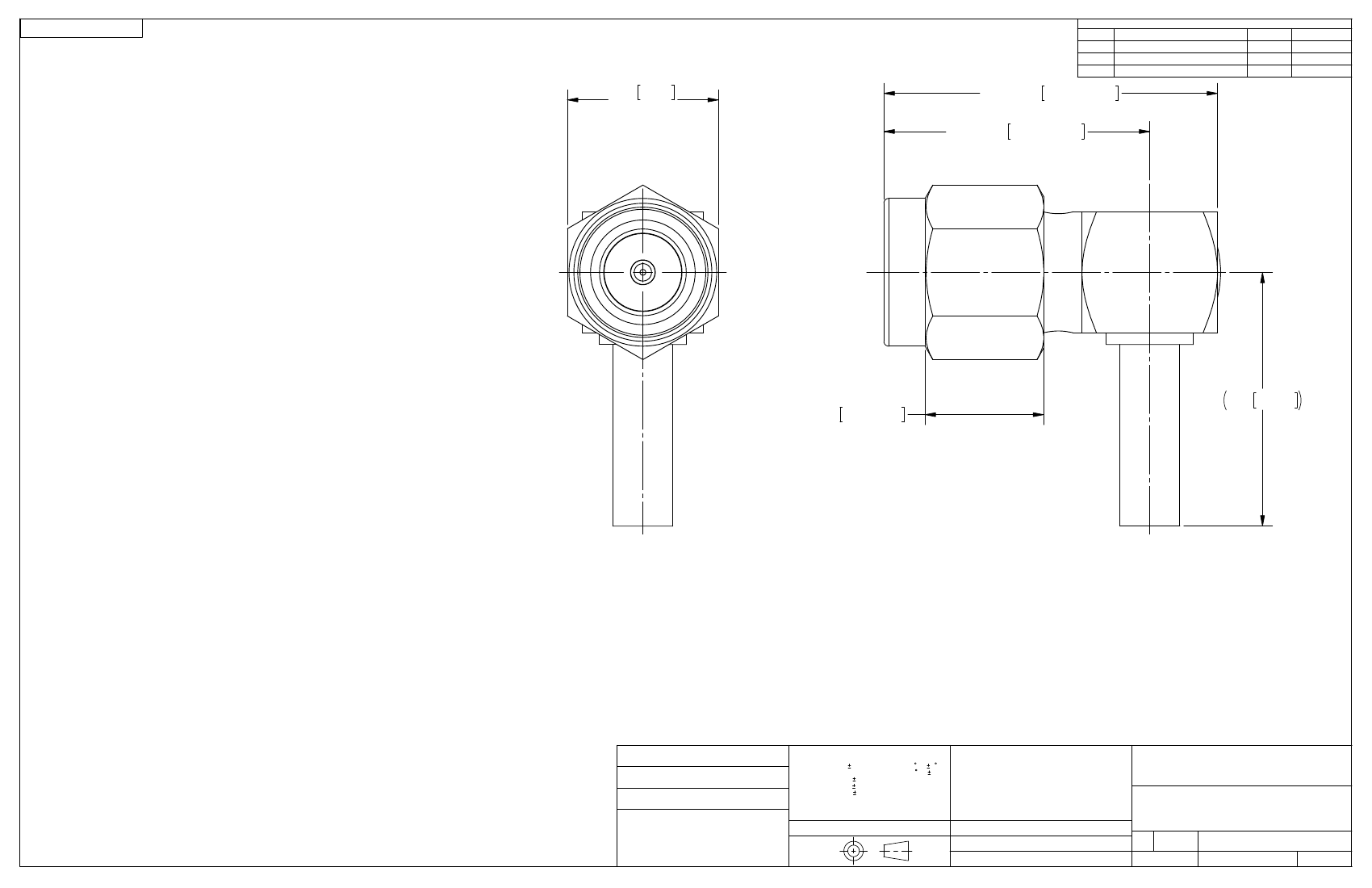

PRODUCT DATA DRAWING

.312 7.92

HEX.

REV

REVISION HISTORY

DESCRIPTION

DATE

APPROVED

DCN 40101

10/13

STW

.738 MAX 18.75 MAX

.575 MAX 14.61 MAX

MATERIAL:

BODY &

COUPLING NUT:

LOCK RING

CONTACT &

CRIMP RING:

INSULATOR:

GASKET:

PRESS CAP:

SHRINK TUBING

(NOT SHOWN):

STAINLESS STEEL PER AMS-5640,

ALLOY UNS S30300, TYPE 1

BERYLLIUM COPPER PER ASTM B196,

ALLOY No. UNS C17300, TD04

BRASS PER ASTM B16, ALLOY UNS No. C36000

PTFE PER ASTM D1710, TYPE I, GRADE 1, CLASS B

SILICONE RUBBER PER

A-A-59588,

CLASS 2B, GRADE 50/60

304 STAINLESS STEEL

FLEXIBLE POLYOLEFIN

.524 13.31

.150 MIN 3.81 MIN

FINISH:

BODY,

PRESS CAP &

COUPLING NUT:

CONTACT:

PASSIVATED PER AMS-2700.

GOLD PER ASTM B488, TYPE II,

CODE C, CLASS 1.27, OVER NICKEL

PER AMS-QQ-N-290, CLASS 1, .00005" MIN.

NICKEL PER QQ-N-290, .00005" MIN.

MATERIAL:

FINISH:

CRIMP RING:

PERFORMANCE:

IMPEDANCE:

FREQ. RANGE:

VSWR:

50 OHMS

DC TO 12.4 GHz

1.20 + .03F(F IN GHz), 0.5 TO 12.4 GHz

OR APPROXIMATELY 80% OF THE CUT OFF FREQUENCY

OF THE CABLE, WHICHEVER IS LOWER

SEE NOTES

N/A

PROPRIETARY

DIMENSIONS ARE IN INCHES TOLERANCES:

FRACTIONAL:

DECIMAL: .X

.XX

.XXX

1/64

.030

.010

.005

ANGULAR: X

X X'

1 0'

15'

UNLESS OTHERWISE SPECIFIED

1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]

2) ALL DIMENSIONS ARE AFTER PLATING.

3) BREAK CORNERS & EDGES .005 R. MAX.

4) CHAM. 1ST & LAST THREADS.

5) SURFACE ROUGHNESS 63

MIL-STD-10.

6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC

WITHIN .005 T.I.R.

7) REMOVE ALL BURRS

SV Microwave, Inc.

2400 Centrepark West Drive, Suite 100

West Palm Beach, FL 33409

SURFACE AREA:

INTERPRET DIMENSIONS AND TOLERANCES

PER ASME Y14.5M - 1994

THE INFORMATION CONTAINED IN THIS DRAWING

IS THE SOLE PROPERTY OF SV MICROWAVE, INC.

ANY REPRODUCTION IN PART OR AS A WHOLE

WITHOUT THE WRITTEN PERMISSION OF

SV MICROWAVE, INC IS PROHIBITED.

THIRD ANGLE PROJECTION

DRAWN:

CHECKED:

APPROVED:

FSG 10/03/13

STW 10/03/13

SMA PLUG R/A

CRIMP ATTACHMENT

FOR RG-178 CABLE

SIZE CAGE CODE DWG. NO.

M39012/56-3125

95077

SCALE: 4:1

SHEET 1 OF 1

TITLE:
