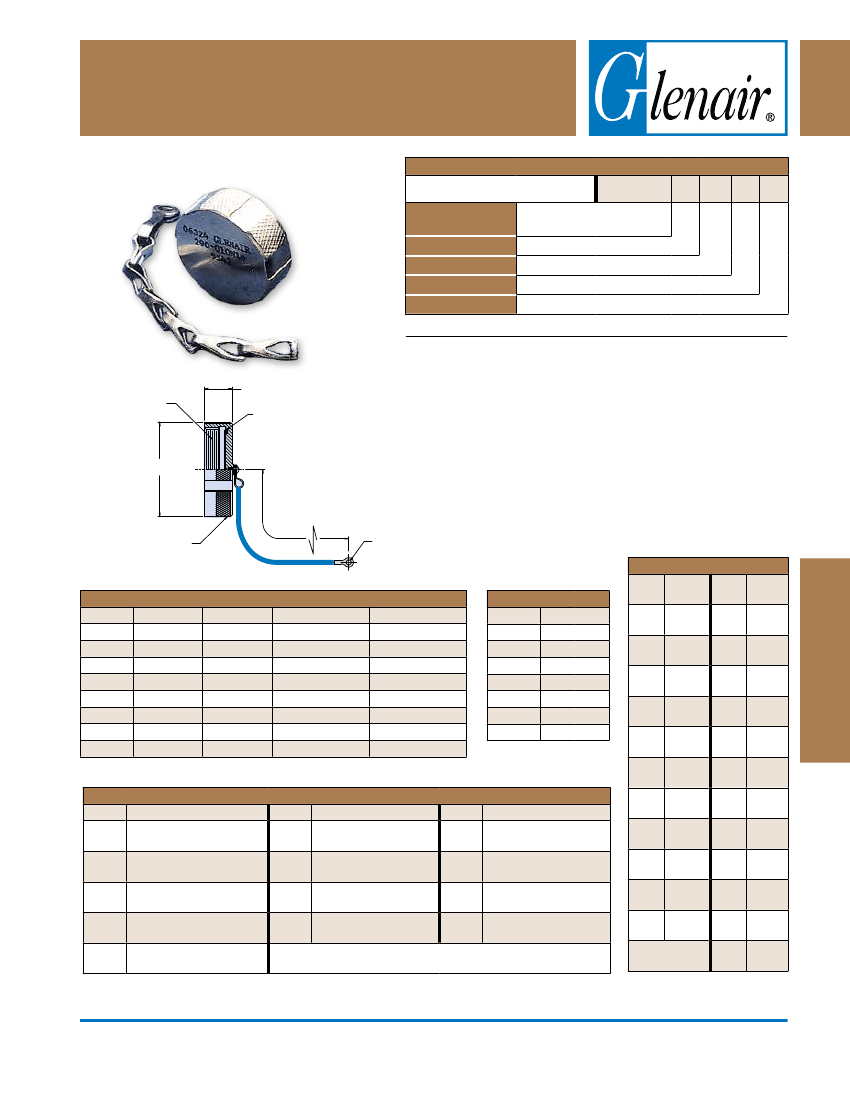

for Standard (Non-Scoop-Proof) Series 22 Connectors
How To Order Receptacle Cover
Sample Part Number
Series -
Shell Style
Attachment Type
Shell Size
Dash No.
Attachment Length
290-010
S
18
03
-6
290-010
= Scoop Proof
See Table III
See Table I
See Table II or Table IV
5 = 5 inches
Notes:
.600 Max
C Thread
O-ring
A Dia
Attachment
Length
See note 2
Knurl Style Mfr Option
D Dia
1. Assembly identified with manufacturer’s name and P/N, space
permitting.
2. Length tolerance for link chain (e) and sash chain (s) is ± one (1) link,
for all other attachments ±.25.
3. Protective cover is capable of hydrostatic sealing pressures to 5000
PSI, when fully mated with counterpart plug.
4. Material/finish:
Cover, hardware & split ring - 300 series stainless steel/passivate
Attachment - see Table III/passivate
O-ring - nitrile/n.a.
Table IV: Split Ring Dia.
Table I: Dimensions
B Max
C Thread Class 2B
0.430 (10.9)
.750 -.1P-.1L
.875 -.1P-.1L
1.000 -.1P-.1L
1.125 -.1P-.1L
1.250 -.1P-.1L
1.375 -.1P-.1L
1.500 -.1P-.1L
Table II: Solid Ring Dia.
Piston O-Ring Size*
2-014
2-016
2-018
2-020
2-022
2-024
2-026
2-028
Dash No
01
02
03
04
05
06
10
D Dia
0.125 (3.2)
0.140 (3.6)
0.167 (4.2)
0.182 (4.6)
0.191 (4.9)
0.197 (5.0)
0.266 (6.8)
Dash
No
50
52
54
56
58
60
Sym
T
K
S
U
Attachment
Wire rope, no jacket,
w/terminal
Nylon rope
#8 Sash chain, CRES,
passivate
Wire rope, polyurethane
jacket, with terminal
62
64
66
68
70
E
Dia
0.425
(10.8)
0.485
(12.3)
0.640
(16.3)
0.750
(19.1)
0.890
(22.6)
1.015
(25.8)
1.095
(27.8)
1.130
1.250
(31.8)
1.350
(34.3)
1.375
(34.9)
Dash
No
72
74
76
78
80
82
84
86
88
90
92
94
E
Dia
1.485
(37.7)
1.625
(41.3)
1.750
(44.5)
1.875
(47.6)
1.980
(50.3)
2.060
(52.3)
2.235
(56.8)
2.310
(58.7)
2.475
(62.9)
2.655
(67.4)
2.810
(71.4)
3.045
(77.3)
Shell Size
A Max
10
0.900 (22.9)
12
14
16
18
20
22
1.025 (26.0) 0.555 (14.1)
1.150 (29.2) 0.680 (17.3)
1.275 (32.4) 0.805 (20.4)
1.525 (38.7)
1.650 (41.9)
1.775 (45.1)
0.930 (23.6)
1.055 (26.8)
1.180 (30.0)
24
1.900 (48.3) 1.305 (33.1)
1.625 -.1P-.1L
* Reference piston o-ring P/N when purchasing replacement rings
Sym
B
C
D
E
F
Attachment
Bead chain, brass, nickel
plated, with terminal
Link chain, brass, nickel
plated, with clevis terminal
Bead chain, CRES,
passivated, with terminal
Link chain, CRES, passivated,
with clevis terminal
Wire rope, nylon jacket
w/terminal
Table III: Attachment Type
Sym
Attachment
Bead chain, CRES,
G
passivated, no terminal
H
N
R
Wire rope, Fluoropolymer
jacket w/ terminal
Attachment omited
Wire rope, pvc jacket
w/terminal
© 2014 Glenair, Inc.
Series 22 Geo-Marine
®
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
C-9
E-Mail: sales@glenair.com
Geo-Marine
®
Accessories
290-010
Metal Receptacle Protective Covers
