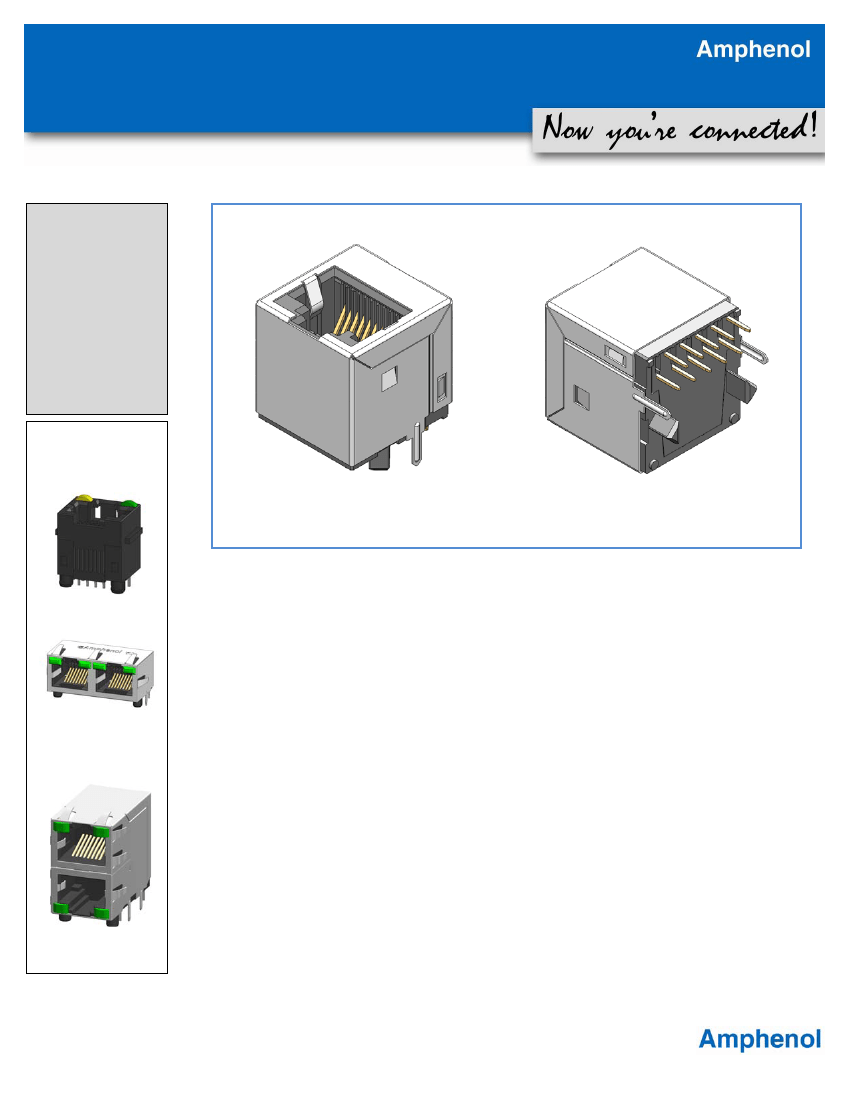

RJE74
Product Specification S6049C Rev 1.1
About Amphenol
Commercial Products
Amphenol’s commercial
connector products are
used in a variety of end
user applications
including networking,
telecom, server &
computer, storage &
HDD, consumer
electronics and
entertainment,
professional audio &
Industrial &
Military/Aerospace.
Related Products
RJHSE
RJE74‐1AA‐1411 SHOWN
Overview
P/N RJHSE‐3081 SHOWN
SINGLE PORT VERTICAL MOUNT,
NO SHIELD, WITH LEDs
This product specification defines the general use and performance parameters for Amphenol’s
RJE74 series of vertical modular jacks.
Availability: Single port, 10 position, shielded versions available with RMK4 key.
Usage
The RJE74 vertical modular jack supports Ethernet Protocols. Shielding is available for increased
EMI performance and RMK4 keyed interface prevents mating with regular plugs.
P/N RJHSE‐5385‐02 SHOWN
TWO PORT REGULAR MOUNT,
WITH SHIELD AND LEDs
Applications
Intended for use in applications such as:
Networking & Telecom
Wireless (WiMAX)
Network servers
Hubs, routers, switches
Office & Home Equipment
PC’s, Laptops, Copiers/Printers
Telephones, modems
Surge Protectors
ATMs, Vending Machines
RJSAE
P/N RJSAE‐5385‐02 SHOWN
STACKED 2x1, 8 POSITION,
WITH SHIELD AND LEDs
Revision date: June 15,2012
Page 1 of 2

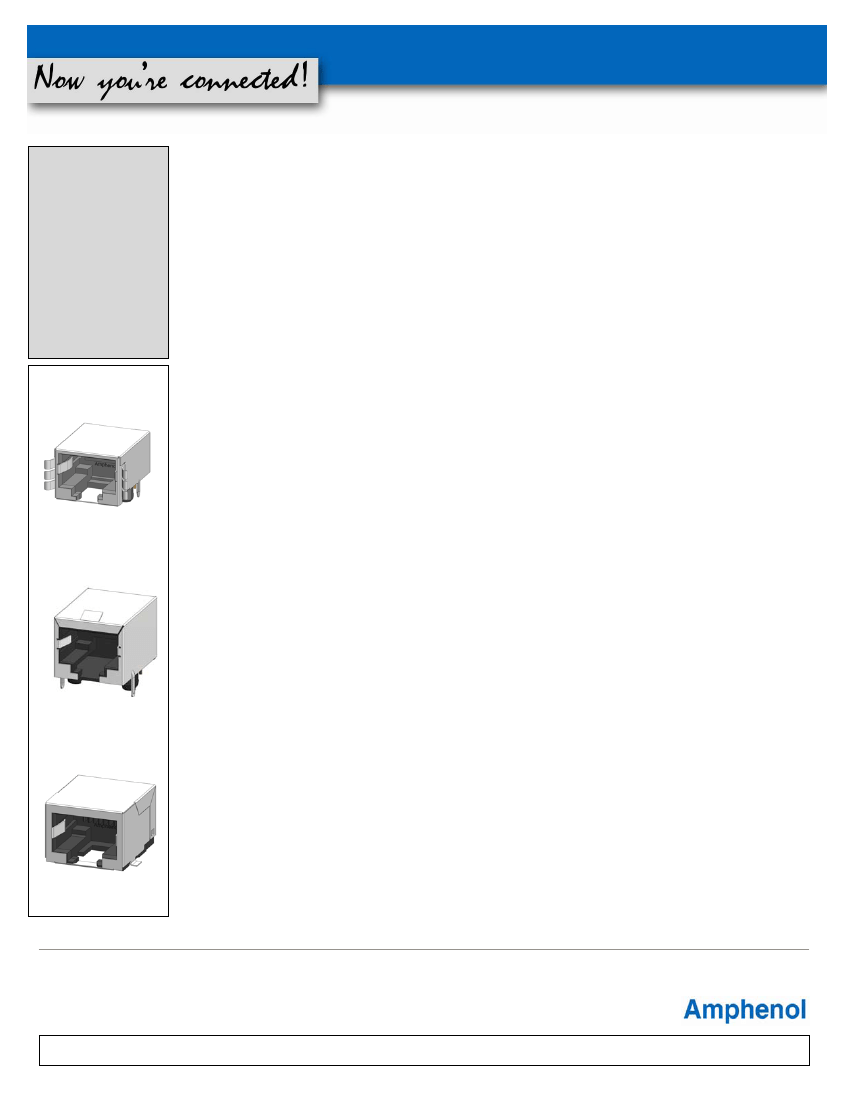

S6049C Rev 1.1
About Amphenol
Commercial Products
Amphenol’s commercial
connector products are
used in a variety of end
user applications
including networking,
telecom, server &
computer, storage &
HDD, consumer
electronics and
entertainment,
professional audio &
Industrial &
Military/Aerospace.
Electrical Characteristics
Contact resistance:
Insulation resistance:
Current rating:
Voltage rating:
DWV
20 mΩ max.
500 MΩ minimum at 500V DC for 2 minutes max.
1.5 Amps
125 Volts AC
1000 VAC, 60 Hz. 1 min.
Mechanical Characteristics
RMK4 keyed interface available to prevent mating with regular plugs.
Mating connector insertion force: 5.0 lbs. Maximum.
Mating connector pull retention force: 20 lbs Minimum.
Durability: 750 mating & unmating cycles
Recommended soldering temperature: 260°C for 5 seconds max.
Connectors are suitable for IR Reflow
Operating temperature: -55° C to +85° C
Related Products
RJULE
Material Requirements
RJE74 connectors are RoHS compliant.
Unless otherwise specified, the materials for each component shall be:
Insulator:
High Temp thermoplastic. Complies with UL 94V-0, Black color
Contacts:
Phosphor Bronze hard temper with 30µ” min gold thickness over 50µ” minimum Nickel
on contact mating area.
100µ” minimum matte tin plating on soldering tail
Shield:
Stainless steel; pure tin dipped tail
P/N RJULE‐4X182‐01 SHOWN
SINGLE PORT REGULAR MOUNT,
STANDARD SHIELD WITH SMT
FRJAE
Available Documents
Drawing Numbers:
P-RJE74-1XX-XX10-X
P-RJE74-1XX-XX11-X
P/N FRJAE‐418 SHOWN
SINGLE PORT, 8 POSITION,
WITH FERRITE FILTER AND
SHIELD (FRONT TABS)
10 Position Modular Jack, Shield and Kapton tape options..
10 Position Modular Jack with RMK4 key, Shield, Kapton tape options.
Contact factory or Authorized Amphenol representative for additional configurations
RJLSE
P/N RJLSE‐41181‐01 SHOWN
SINGLE PORT REGULAR MOUNT,
STANDARD SHIELD WITH SMT
Amphenol Canada Corp.
605 Milner Avenue
Toronto, Ontario, Canada, M1B 5X6
+1 416 291 4401
www.amphenolcanada.com
Page 2 of 2
Copyright © Amphenol Corporation 2011 • All rights reserved
