HSA-SP22SFYAG: DescriptionTelecom and Datacom Connector, 22 Contact(s), Female, Straight, Surface Mount Terminal, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size67KB，1 Pages; ManufacturerHonda Tsushin Kogyo Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

HSA-SP22SFYAG Overview

Telecom and Datacom Connector, 22 Contact(s), Female, Straight, Surface Mount Terminal, Receptacle, ROHS COMPLIANT

HSA-SP22SFYAG Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Honda Tsushin Kogyo Co., Ltd.
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Plug information	HSA-SP22LMYG
Mixed contacts	YES
Installation method	STRAIGHT
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	LIQUID CRYSTAL POLYMER
Termination type	SURFACE MOUNT
Total number of contacts	22
Base Number Matches	1

Preview

Download Datasheet

View All

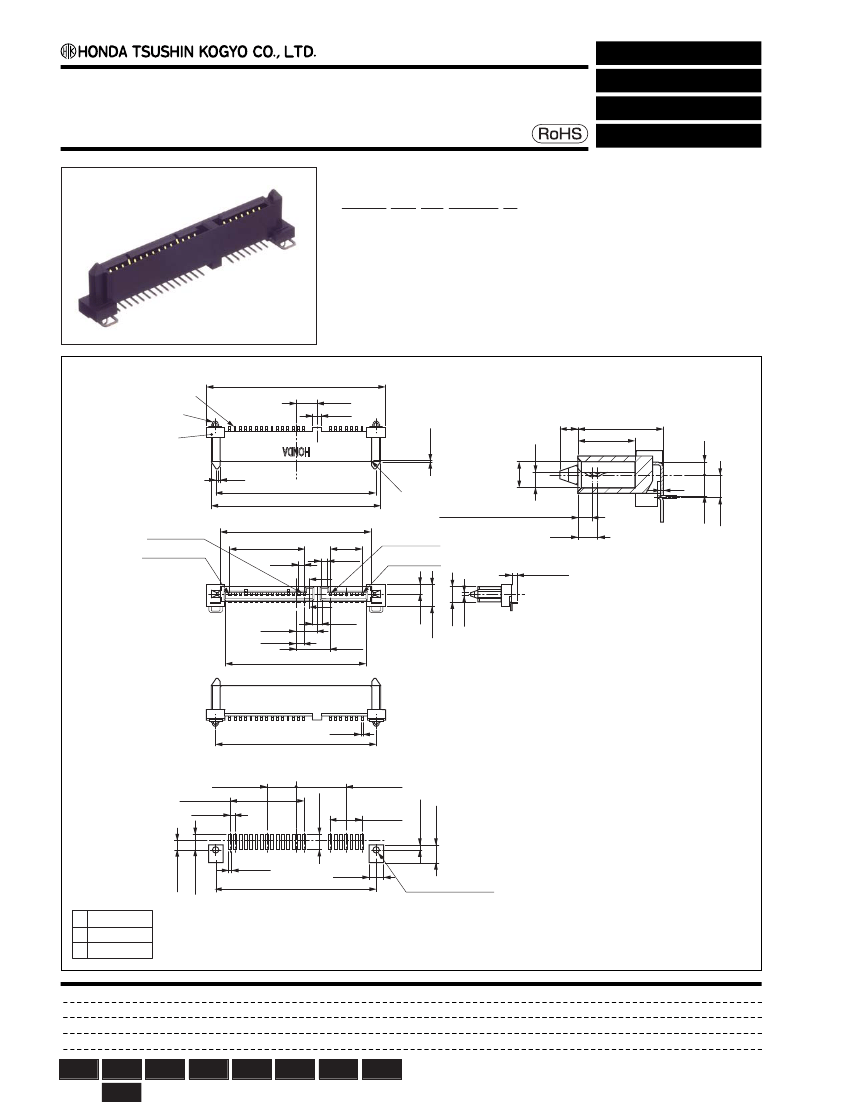

For high-speed transmission

Straight SMT type female connector (Standard type)

HSA-SP22SFYAG

●

Configuration of product Part No.

For PCB

Straight SMT

Serial ATA standard

HSA- SP 22 SFYA G

➀

➁ ➂

➃

➄

➀

Series name

➁

For signals and power supply

➂

No. of contacts: 22

➃

Straight SMT type, female

➄

Contact plating

G: Gold plate

42.73

™

£

¡

0.5

38.05

40.43

POS.#P1

POS.#P15

36.19

17.78

1.27

5.08

2.11

1.7

0.35

1.4

8.15

5.5

1.2

0.3

1.95

A-A' cross section

1.3 MAX.

2.13

1.9

1.4 (POS.#P4&P12 ONLY)

7.62

1.45

A

A'

2.11

8.255

POS.#S7

POS.#S1

2.3

5.28

5.08

1.905

33.69

0.35

38.33

±0.1

6.985

±0.05

3.6

±0.05

17.78

1.27

±0.05

12.065

±0.05

1.05

±0.05

7.62

±0.05

2.13

±0.05

3.6

±0.05

0.6

±0.05

38.33

±0.05

3.5

±0.05

2-ø1.5

±0.05

(P.T.H)

Ω

Components

¡ Insulator

™ Contacts

£ Lock pin

Recommended PCB layout

Board thickness: t =1.6mm

Mating connector:

HSA-SP22LMYG

Through

hole

SMT

Press-in

IDC

Wire

Soldering Crimping wrapping

Others

4.1

3.5

0.6

2.4

35

0.

C
