75836-2124: DescriptionHigh Speed / Modular Connectors GbX 3-Pair 10-Col. L eft End LF Backplane; CategoryThe connector The connector; File Size37KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

75836-2124 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	75836-2124	-	-	View	Buy Now

75836-2124 Overview

High Speed / Modular Connectors GbX 3-Pair 10-Col. L eft End LF Backplane

75836-2124 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant

Preview

Download Datasheet

View All

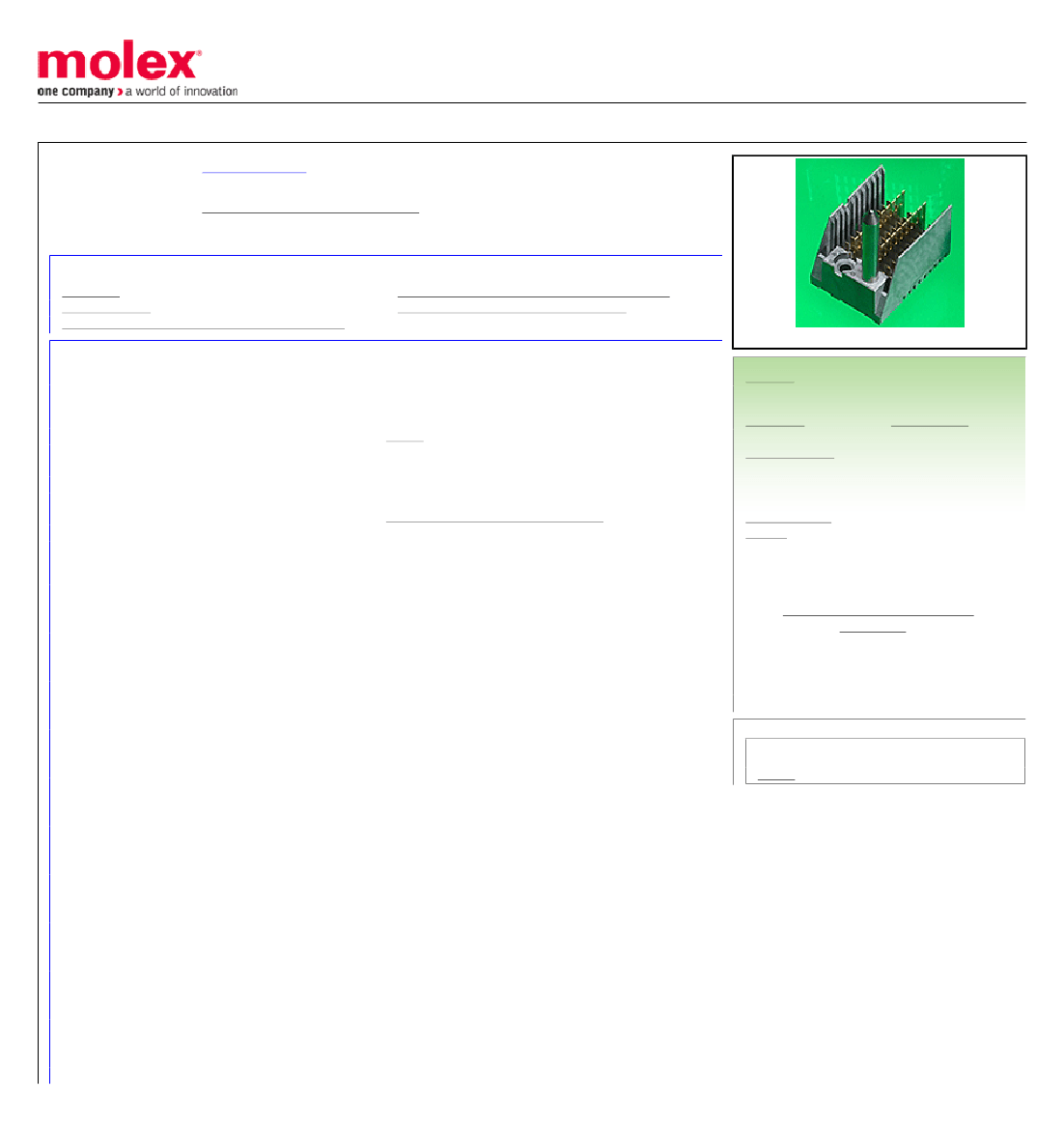

This document was generated on 11/28/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0758362124

Active

GbX® Backplane Connector System

GbX Backplane Connector System, 3 Pair, Left Guide Header, 60 Circuits, 10

Columns, Pin Length 4.55mm, Lead-Free, Keying Orientation B

Documents:

3D Model

Drawing (PDF)

Product Specification PS-75221-999-001 (PDF)

Agency Certification

General

Product Family

Series

Application

Application Tooling Documents

Comments

Component Type

Overview

Product Name

UPC

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Guide to Mating Part

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Columns

Number of Pairs

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to PCB

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Packaging Specification PK-70873-572 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

E29179

Backplane Connectors

75836

Backplane

TM-622022099

Left Guide Header, Keying Position B

Power Header

GbX® Backplane Connector System

GbX

822350907354

Gray

200

94V-0

Yes

High Performance Alloy (HPA)

Gold

Tin

High Temperature Thermoplastic

6.055/g

Vertical

2.30mm

Yes

1.60mm

Tube

1.85mm

0.762µm

Yes

105°C

Through Hole - Compliant Pin

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

75836 Series
