PM5-PPGD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> PM5-PPGD

PM5-PPGD: DescriptionBoard Mount Temperature Sensors Prgmble Resolution 1-Wire Parasite Pwr; CategoryLED optoelectronic/LED; File Size127KB，2 Pages; ManufacturerBivar

Download Datasheet Parametric Compare View All

PM5-PPGD Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PM5-PPGD	-	-	View	Buy Now

PM5-PPGD Overview

Board Mount Temperature Sensors Prgmble Resolution 1-Wire Parasite Pwr

PM5-PPGD Parametric

Parameter Name	Attribute value
Product Category	LED Panel Mount Indicators
Manufacturer	Bivar
RoHS	Details
Illumination Color	Green
Mounting Hole Size	9.9 mm x 7.9 mm
Mounting Style	Nut and Washer
Termination Style	Straight Lead
Lens Color/Style	Non-Tinted, Diffused
LED Size	5 mm
If - Forward Current	20 mA
Vf - Forward Voltage	8 VAC, 48 VDC
Wavelength/Color Temperature	555 nm
Lens Shape	Round Flat
Packaging	Bulk
IP Rating	IP67
Luminous Intensity	10 mcd
Product	LED Panel Mount Indicators
Factory Pack Quantity	100
Viewing Angle	120 deg

Preview

Download Datasheet

View All

ITEM

Q'TY

PART NUMBER

PM5-PE

PM5-HP

PM5-VS

WASH-1008

NUT-1003

5XX

PCBA-1081

PART DESCRIPTION

5mm Polycarbonate Panel Mount Extended Housing

5mm Panel Mount Wide Range Plug

5mm Sealing Ring

10mm Internal Tooth Lock Washer

10mm Thin Nut

5mm LED, SEE SHEET #2

8~48V Universal Power Board

REV.

DESCRIPTION

DATE

APPROVED

Engineering Release

Updated Descriptions

Updated LED Optical Characteristics

04/12/12

03/21/13

09/15/15

T. Y.

J. C.

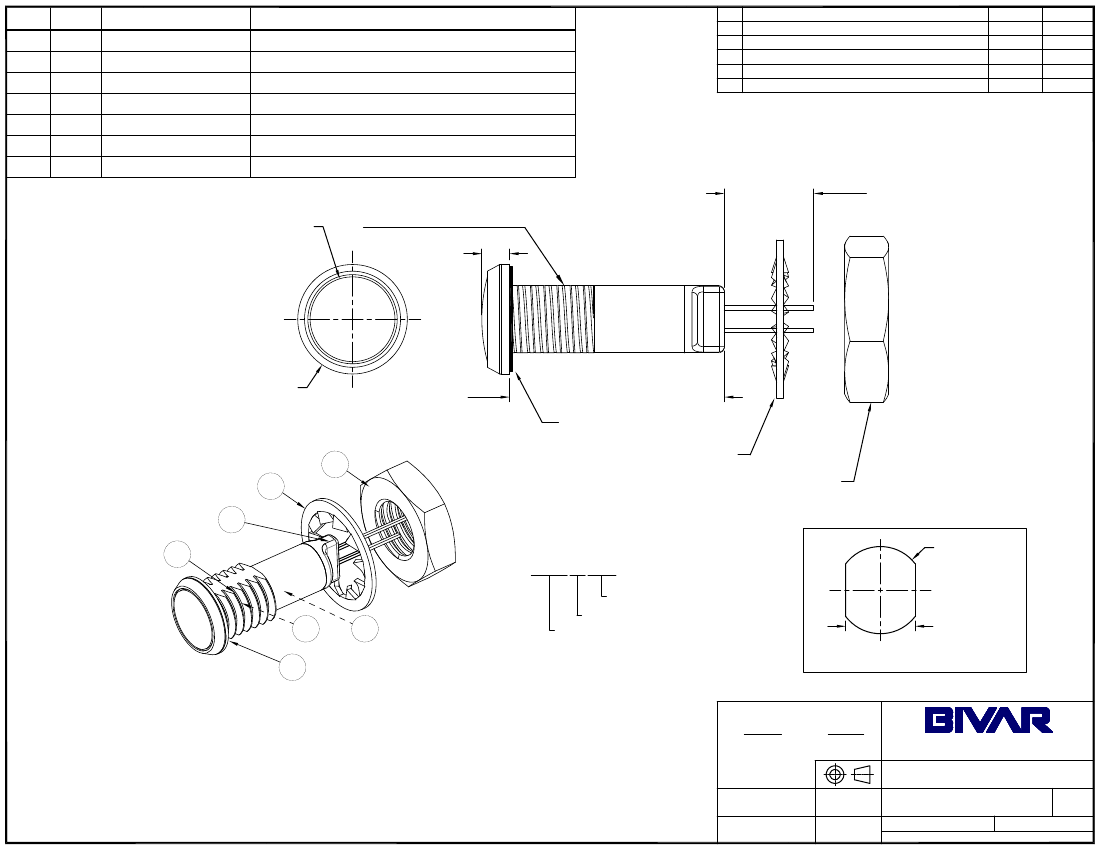

0.40 [10.2mm] MIN

Ø0.380 [Ø9.7mm]

M10x1.5 Thread

0.124 [3.2mm]

Ø0.490 [Ø12.4mm]

0.96 [24.4mm]

SEALING RING

EXAMPLE:

PM5-PRDW6.5

LOCK WASHER

M10 NUT

MOUNTING TORQUE 0.35 Nm

Ø.390+.003

-.002

Wire Length in 0.5" Increments

LED Color & Lens Appearance.

Series

0.310 [7.9mm]

Recommended Mounting Hole

1.5mm-6mm Panel Thickness

NOTES:

1. SEALED TO IP67 RATING

2. WIDE RANGE VOLTAGE INPUT, 8-48 VAC/VDC

3. BI-POLAR OPERATION

4. ROHS COMPLIANT

5. MOUNTING HARDWARE SHIPPED NON-ASSEMBLED

6. INSERT SEALING RING ON PANEL MOUNT PRIOR TO PANEL INSERTION

STANDARD TOLERANCE

( UNLESS OTHERWISE SPECIFIED )

DECIMALS

ANGULAR

.XX

.XXX

DESIGNED:

± .1

± .02

± .010

X°

± 1°

4 THOMAS, IRVINE, CA. 92618

TEL: (949) 951-8808

FAX: (949) 951-3974

DATE:

TITLE:

IP67 Rated Panel Mount Indicator

REVISION:

PART NO:

T. Yin

CHECKED:

04/12/12

DATE:

PM5-PXXX

B. Oliver

04/12/12

CAGE CODE : 32559

SHEET #

CAD GENERATED DOCUMENT, DO NOT MEASURE DRAWING.

PM5-PPGD Related Products

	PM5-PPGD	PM5-PYD	PM5-PWD	PM5-PHD	PM5-PAD	PM5-PBWD
Description	Board Mount Temperature Sensors Prgmble Resolution 1-Wire Parasite Pwr		LED Panel Mount Indicators 12.4mm Wht Diff IP67 Rtd Sealed PMI	Multilayer Ceramic Capacitors MLCC - SMD/SMT 25volts 0.1uF X7R 10%	LED Panel Mount Indicators 12.4mm Amb Diff Lens IP67 Rtd Sealed PMI	LED Panel Mount Indicators 12.4mm Blu Diff Lens IP67 Rtd Sealed PMI
Product Category	LED Panel Mount Indicators	LED Panel Mount Indicators	LED Panel Mount Indicators	LED Panel Mount Indicators	LED Panel Mount Indicators	LED Panel Mount Indicators
Manufacturer	Bivar	Bivar	Bivar	Bivar	Bivar	Bivar
RoHS	Details	Details	Details	Details	Details	Details
Illumination Color	Green	Yellow	White	Red	Amber	Blue
Mounting Hole Size	9.9 mm x 7.9 mm	9.9 mm x 7.9 mm	9.9 mm x 7.9 mm	9.9 mm x 7.9 mm	9.9 mm x 7.9 mm	9.9 mm x 7.9 mm
Mounting Style	Nut and Washer	Nut and Washer	Nut and Washer	Nut and Washer	Nut and Washer	Nut and Washer
Termination Style	Straight Lead	Straight Lead	Straight Lead	Straight Lead	Straight Lead	Straight Lead
Lens Color/Style	Non-Tinted, Diffused	Non-Tinted, Diffused	Non-Tinted, Diffused	Non-Tinted, Diffused	Non-Tinted, Diffused	Non-Tinted, Diffused
LED Size	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk
IP Rating	IP67	IP67	IP67	IP67	IP67	IP67
Factory Pack Quantity	100	100	100	100	100	100
