PM5-A12B28V: DescriptionLED Panel Mount Indicators IP67 Blk Al Blu 12mm 470nm 128mcd Diff; CategoryLED optoelectronic/LED; File Size159KB，2 Pages; ManufacturerBivar

Download Datasheet Parametric Compare View All

PM5-A12B28V Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PM5-A12B28V	-	-	View	Buy Now

PM5-A12B28V Overview

LED Panel Mount Indicators IP67 Blk Al Blu 12mm 470nm 128mcd Diff

PM5-A12B28V Parametric

Parameter Name	Attribute value
Product Category	LED Panel Mount Indicators
Manufacturer	Bivar
RoHS	Details
Illumination Color	Blue
Mounting Hole Size	12.5 mm
Mounting Style	Nut and Washer
Termination Style	Straight Lead
Lens Color/Style	Blue Diffused
LED Size	5 mm
Vf - Forward Voltage	24 VDC to 28 VDC
Wavelength/Color Temperature	470 nm
Packaging	Bulk
IP Rating	IP67
Luminous Intensity	128 mcd
Factory Pack Quantity	10

Preview

Download Datasheet

View All

REV.

DESCRIPTION

DATE

APPROVED

B

C

Engineering Release

Engineering Update w/o Changes

07/28/11

08/11/16

T. Y.

J. C.

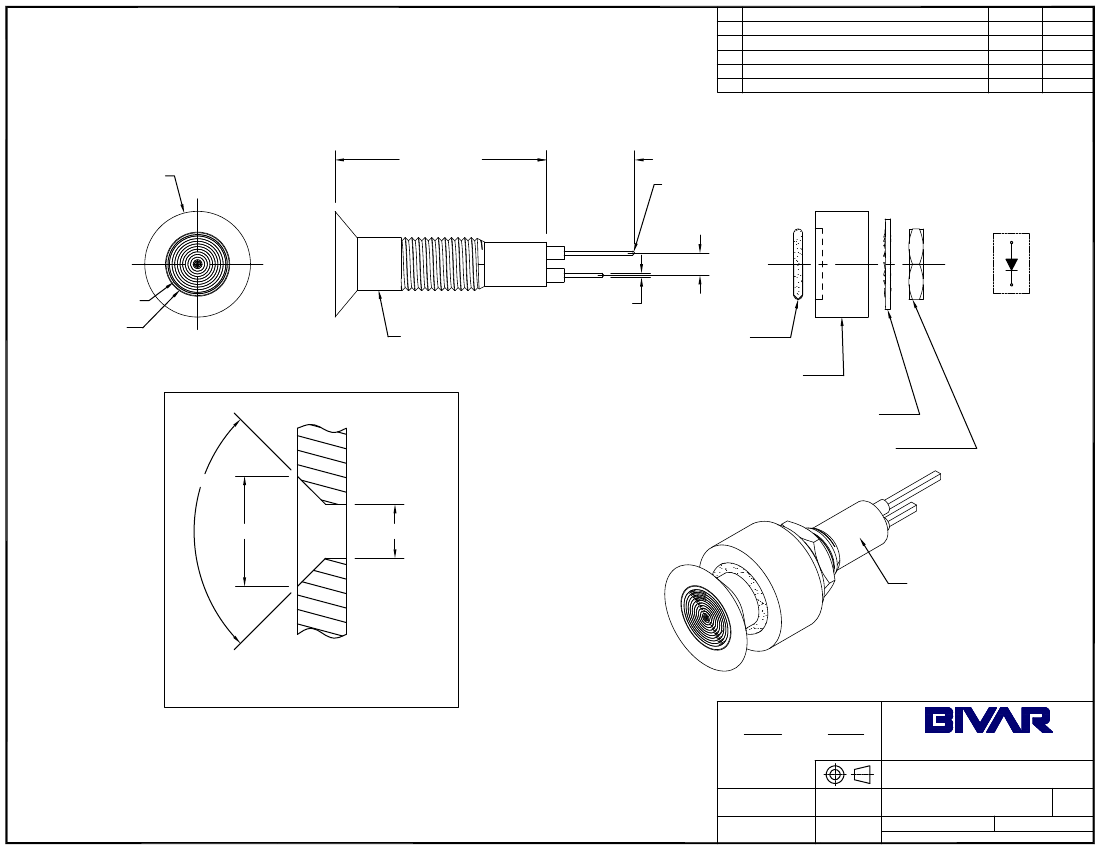

0.94 [24.0mm]

Ø.472 [Ø12.0mm]

0.39 [10.0mm]

LONG LEAD ANODE

TIN PLATED PHOSPHOR BRONZE

0.100 [2.5mm]

Ø.265 [Ø6.7mm]

DIFFUSED

FRESNEL LENS

BLACK ANODIZED

ALUMINUM HOUSING

0.020 [0.5mm]

SQ. TYP.

O-RING

BLACK ANODIZED ALUMINUM

SEALING RING

STAINLESS STEEL LOCK WASHER

BLACK ANODIZED ALUMINUM NUT

MOUNTING TORQUE 0.65 Nm

90°

0.492 [12.5mm]

0.240 [6.1mm]

BIVAR LOGO &

POWER INPUT

RECOMMENDED MOUNTING HOLE

3.0 - 6.5mm PANEL THICKNESS

STANDARD TOLERANCE

( UNLESS OTHERWISE SPECIFIED )

®

NOTES:

1. FLUSH MOUNTING

2. SEALED TO IP67 RATING

3. INTERNAL REVERSE PROTECTION DIODE

4. ROHS COMPLIANT

5. MOUNTING HARDWARE SHIPPED NON-ASSEMBLED

DECIMALS

ANGULAR

.X

.XX

.XXX

DESIGNED:

± .1

± .02

± .010

X°

± 1°

4 THOMAS, IRVINE, CA. 92618

TEL: (949) 951-8808

FAX: (949) 951-3974

DATE:

R. Paje

CHECKED:

02/23/11

DATE:

TITLE:

WATER TIGHT PANEL MOUNT

LED ASSEMBLY, 6MM MOUNTING

REVISION:

PART NO:

PM5-A12XXX

CAGE CODE : 32559

C

T. Yin

02/23/11

SHEET #

1

OF

2

CAD GENERATED DOCUMENT, DO NOT MEASURE DRAWING.

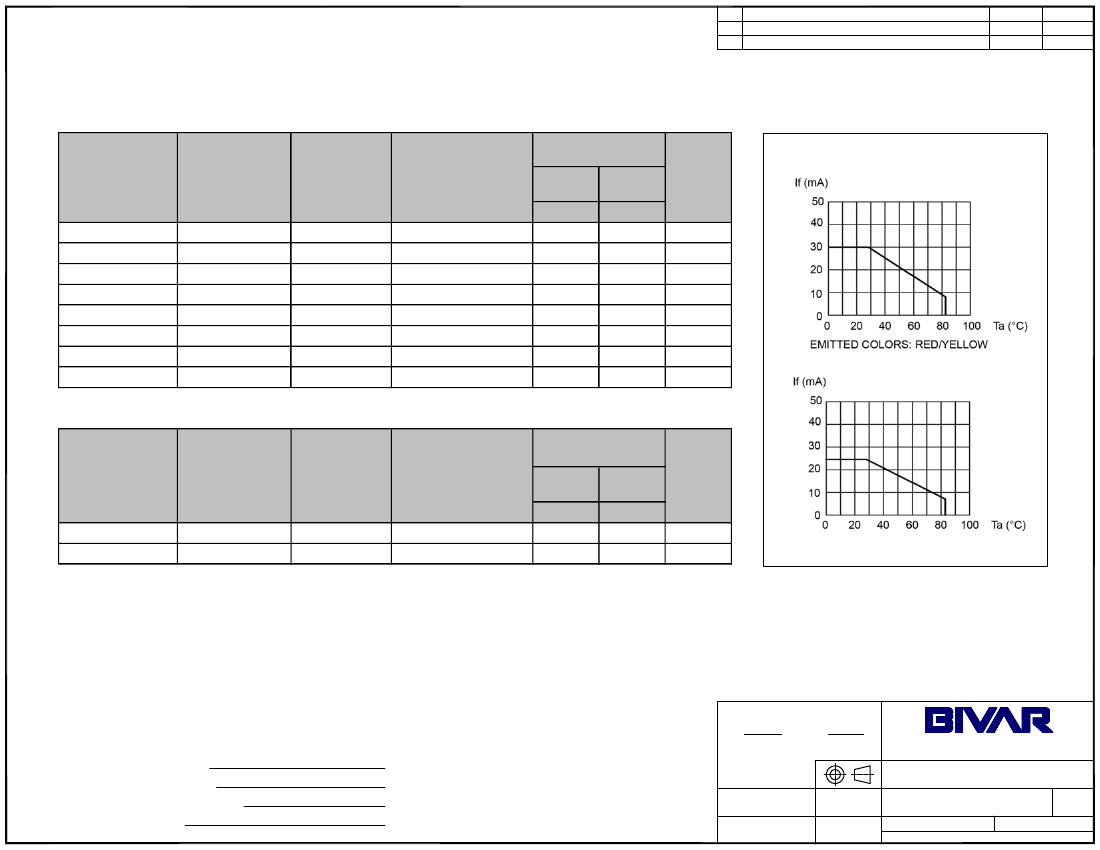

PM5-A12B28V Related Products

	PM5-A12B28V	PM5-A12R12V	PM5-A12Y28V	PM5-A12B12V	PM5-A12Y12V	PM5-A12G12V	PM5-A12R28V
Description	LED Panel Mount Indicators IP67 Blk Al Blu 12mm 470nm 128mcd Diff		LED Panel Mount Indicators IP67 Blk Al Ylw 12mm 585nm 87mcd Diff	LED Panel Mount Indicators IP67 Blk Al Blu 12mm 470nm 128mcd Diff		LED Panel Mount Indicators IP67 Blk Al Grn 12mm 525nm 576mcd Diff	LED Panel Mount Indicators IP67 Blk Al Red 12mm 660nm 39mcd Diff
Product Category	LED Panel Mount Indicators	LED Panel Mount Indicators	LED Panel Mount Indicators	LED Panel Mount Indicators	LED Panel Mount Indicators	LED Panel Mount Indicators	LED Panel Mount Indicators
Manufacturer	Bivar	Bivar	Bivar	Bivar	Bivar	Bivar	Bivar
RoHS	Details	Details	Details	Details	Details	Details	Details
Illumination Color	Blue	Red	Yellow	Blue	Yellow	Green	Red
Mounting Hole Size	12.5 mm	12.5 mm	12.5 mm	12.5 mm	12.5 mm	12.5 mm	12.5 mm
Mounting Style	Nut and Washer	Nut and Washer	Nut and Washer	Nut and Washer	Nut and Washer	Nut and Washer	Nut and Washer
Termination Style	Straight Lead	Straight Lead	Straight Lead	Straight Lead	Straight Lead	Straight Lead	Straight Lead
Lens Color/Style	Blue Diffused	Red Diffused	Yellow Diffused	Blue Diffused	Yellow Diffused	Green Diffused	Red Diffused
LED Size	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm
Vf - Forward Voltage	24 VDC to 28 VDC	12 VDC	24 VDC to 28 VDC	12 VDC	12 VDC	12 VDC	24 VDC to 28 VDC
Wavelength/Color Temperature	470 nm	660 nm	585 nm	470 nm	585 nm	525 nm	660 nm
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk
IP Rating	IP67	IP67	IP67	IP67	IP67	IP67	IP67
Luminous Intensity	128 mcd	39 mcd	87 mcd	128 mcd	87 mcd	576 mcd	39 mcd
