User’s Guide
D0104MT-24-0503
VFD-
RoHS Compliant
(Vacuum Fluorescent Display Module)
For product support, contact
Newhaven Display International
2511 Technology Drive, #101
Elgin, IL 60124
Tel: (847) 844-8795
Fax: (847) 844-8796
February 12, 2008
Newhaven Display International
Vacuum Fluorescent Display
Specification
PART NUMBER:
D0104MT-24-0503
FEATURES:
4 Digits, 7-Segmented, Clock
APPLICATION:
Character Display (7-Segmented)
RATINGS:
Below
Panel Length
Panel Height
Panel Thickness
Lead Pitch
Lead Out
Character Height
Character Width
P.L.
P.H.
P.T.
L.P.
-
C.H.
C.W.
55.6
24.8
6.1
2.54
SIL
7.6
5.4
mm
mm
mm
mm

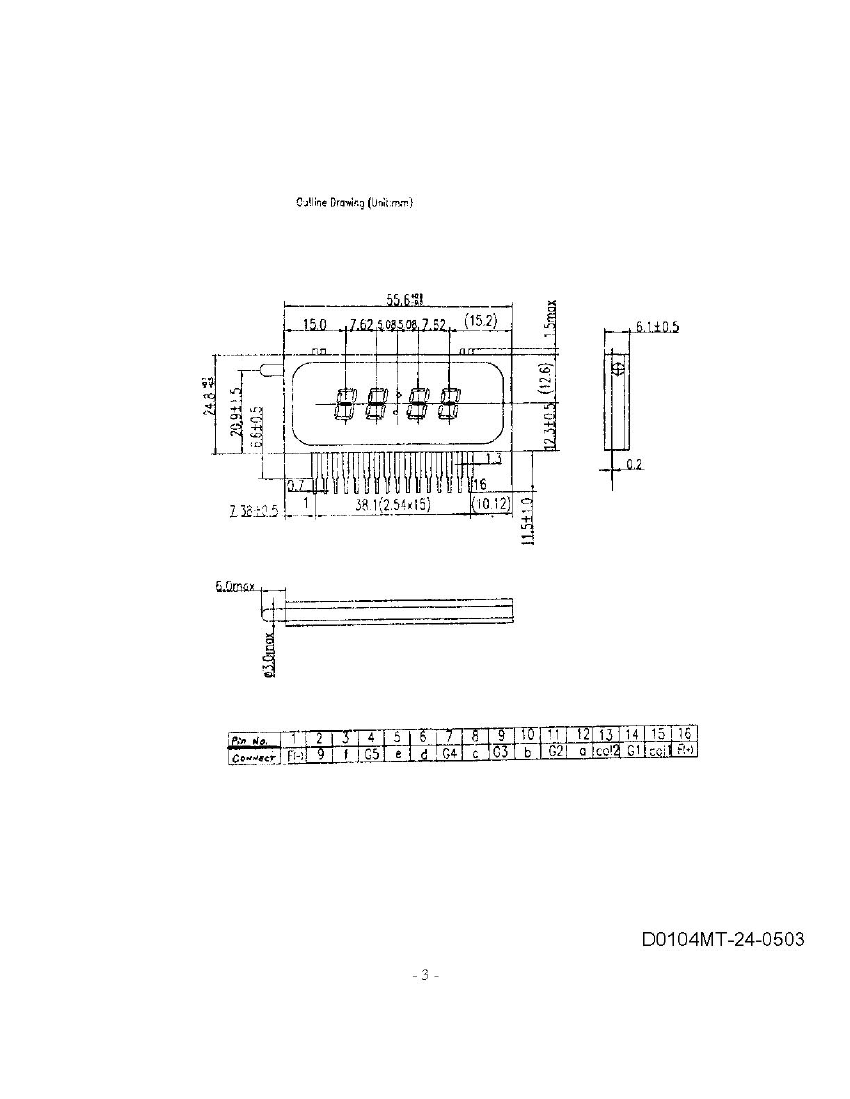

Outer Dimensions
Leads
Character Size
mm
mm
Item
Filament Voltage
Peak Grid Voltage
Peak Anode Voltage
Cut-off Bias
Duty
Cycle
Pulse Width
Operating Temperature
Storage Temperature

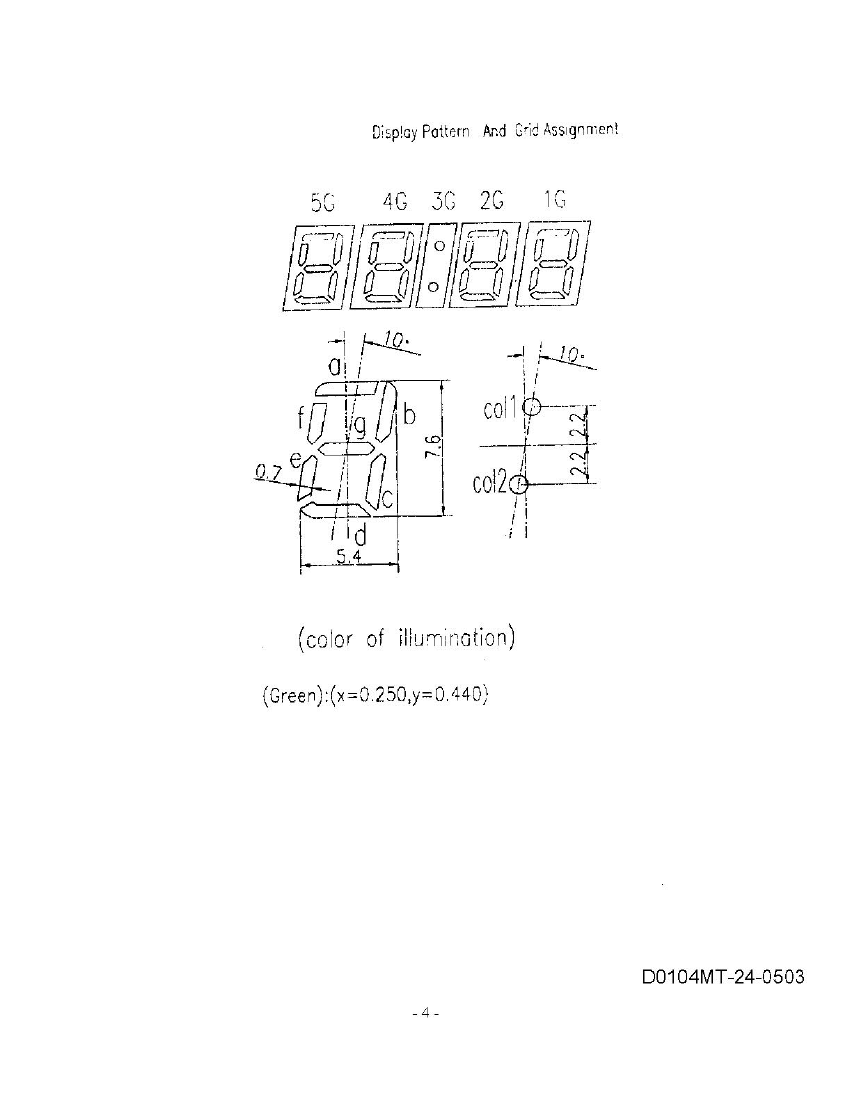

Color of Illumination
Symbol
Ef
ec
eb
Ek
Du
tp
Topr
Tstg
Min.
1.53
-
-
-
-
-
-20
-55
Recommended
1.7
24.0
24.0
-
1/ 7.5
80
-
-
Green
Max.
1.87
35.0
35.0
-
-
-
+ 70
+ 80
Unit
Vdc
Vp-p
Vp-p
Vdc
-
uS
C
C
