5mm (T1 ¾) Package Discrete LED
3mm (T1)¾) Package Discrete LED
5mm (T1 Package Discrete LED
YELLOW/GREEN, Tri-Color
AMBER/GREEN, Tri-Color
YELLOW/GREEN, Bi-Color
5BC-3-Y/G-CA-X
♦
♦
♦
♦
♦
♦
Industry Standard 5mm (T1 ¾) Package
RoHS Compliant
White Diffused Lens
Available in Flange (F) Lead Frame styles
3-Lead Bi-Color LED
Ideal for Status Indication and Display
Bivar 5mm T1 ¾ Package Tri-Color LED is ideal for those applications where multiple signals need to
be displayed at the same location such as standby-on indication for server or computer peripherals.
When needed, the 3rd color signal could be created by powering up both chips together for on-off-
standy applications that require three distinct signals. Bivar offers white diffused LED lens for uniform
light output. The Flange LED is ideal for Panel Mount Clip & Ring assemblies. This 3-Lead Bi-Color
LED package comes in a common anode Lead Frame configuration.
Part Number
Material
GaAsP/GaP
GaP/GaP
Emitted Color
YELLOW
GREEN
Peak. Wavelength
λp(nm)
TYP.
590nm
568nm
Lens Appearance
Viewing Angle
5BC-3-Y/G-CA-F
White Diffused
40°
Part Number Designation
5 B C - 3 -X X - X X - X
LED Body, mm
Bi-Color
Tri-Lead
Lead Frame & Body Style
i.e. –F for Flanged
•
Common Anode, CA
•
Common Cathode, “ ”
Emitted Colors, i.e. Y/G, “ ” for R/G
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
SENSITIVE DEVICES
RoHS
Compliant
Moisture
Sensitivity
Levels 1
Bivar reserves the right to make changes at any time without notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Revision B 08/15
Page 1 of 5
3mm (T1 ¾) Package Discrete LED
5mm (T1) Package Discrete LEDs
AMBER
YELLOW/GREEN, Bi-Color

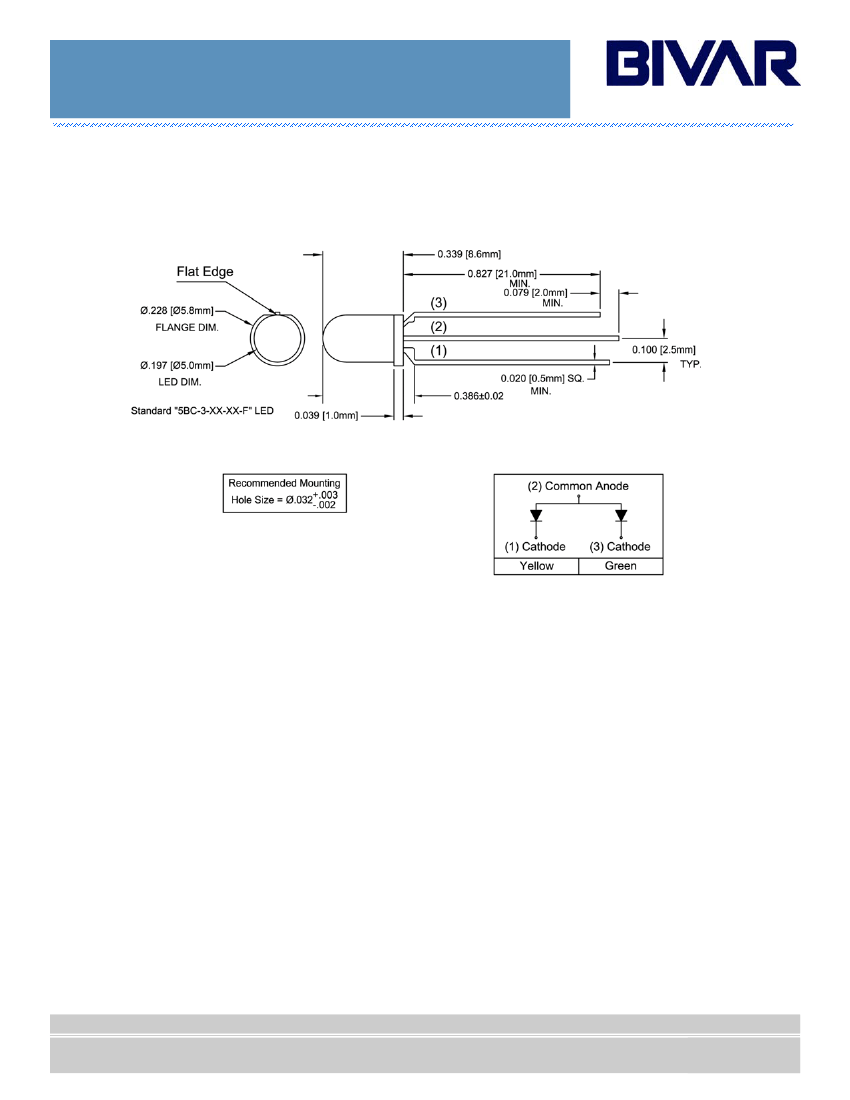

Outline Dimensions
Outline Drawings Notes:
1. All dimensions are in inches [millimeters].
2. Standard tolerance: ±0.010" unless otherwise noted.
3. Tolerance of overall epoxy outline: ±0.020" unless otherwise noted.
4. Epoxy meniscus may extend to 0.060" max.
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Revision B 08/15
Page 2 of 5
3mm (T1 ¾) Package Discrete LED
5mm (T1) Package Discrete LEDs
AMBER
YELLOW/GREEN, Bi-Color
Absolute Maximum Ratings
T
A
= 25°C unless otherwise noted
Power Dissipation
Forward Current ( DC )
Peak Forward Current
1
Operating Temperature Range
Storage Temperature Range
Lead Soldering Temperature ( 3 mm from the base of the epoxy bulb )
2
Notes: 1. 10% Duty Cycle, Pulse Width
≤
0.1 msec.
80 mW
30 mA
150 mA
-25 ~ +85°C
-30 ~ +100°C
260°C
2. Solder time less than 5 seconds at temperature extreme.
Electrical / Optical Characteristics
T
A
= 25°C & I
F
= 20 mA unless otherwise noted
Forward
Voltage (V)
1
Recommend
Forward
Current (mA)
Reverse
Dominant
Current
Wavelength (nm)
2
(μA)
MAX
100
MIN
/
/
Luminous
Intensity Iv
(mcd)
Viewing
Angle
2
Ө
½
(deg)
TYP
40
Part
Number
Emitted
Color
MIN TYP MAX MIN TYP MAX
5BC-3-
Y/G-CA-F
Yellow
Green
/
/
2.0
2.1
2.8
2.8
/
20
/
TYP MAX MIN TYP MAX
/
/
/
/
/
/
4
6
/
/
Notes: 1. Tolerance of forward voltage : ±0.05V.
2. Tolerance of dominant wavelength : ±1.0nm.
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Revision B 08/15
Page 3 of 5
3mm (T1 ¾) Package Discrete LED
5mm (T1) Package Discrete LEDs
AMBER
YELLOW/GREEN, Bi-Color
Typical Electrical / Optical Characteristics
T
A
= 25°C unless otherwise noted
Iv
0°
10°
20°
30°
40°
50°
1.
40°
0.5
60°
70°
80°
0.0
500
550
600
650
λ(nm)
90°
0.5
0.3
0.1
0.2
0.4
0.6
Fig. 2 Directivity Radiation Diagram
Fig. 1 Relative Luminous Intensity vs. Wavelength
@ 20mA
If (mA)
1000
3.0
100
10
1
0.1
1.0
Vf (V)
Iv
2.0
1.0
0.0
If (mA)
2.0
3.0
4.0
5.0
1
10
100
1000
Fig. 3 Forward Current vs. Forward Voltage
Fig. 4 Relative Luminous Intensity vs. Forward Current
Normalize @ 20 mA
Iv
Vf (V)
1.2
1.1
1.0
0.9
0.8
-40
T (°C)
3.0
2.0
1.0
0
40
80
0.0
T (°C)
-40
0
40
80
Fig. 5 Forward Voltage vs. Temperature
Fig. 6 Relative Luminous Intensity vs. Temperature
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Revision B 08/15
Page 4 of 5
3mm (T1 ¾) Package Discrete LED
5mm (T1) Package Discrete LEDs
AMBER
YELLOW/GREEN, Bi-Color
Recommended Soldering Conditions
Recommended Lead Free Wave Soldering Profile
Preheat Temperature: 100ºC Max.
Preheat Time: 20 ~ 50 Seconds
Peak Temperature: 260ºC Max.
Solder Time Above 217ºC: 5 Seconds Max.
Note: Turn off top heater at preheat to prevent the lamp body directly exposed to the heat source.
Packaging and Labeling Plan
AntiStatic Poly Bag with Desiccant
(500 pcs Max. per Bag)
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Rev. A 01/16/08
Revision B 08/15
Page 4 of 4
Page 5 of 5
