LTM-900

CategoryLED optoelectronic/LED    photoelectric
File Size41KB,1 Pages
ManufacturerBivar
Environmental Compliance
Download Datasheet Parametric View All

LTM-900 Online Shopping

Suppliers Part Number Price MOQ In stock
LTM-900 - - View Buy Now

LTM-900 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerBivar
Reach Compliance Codecompliant
Optoelectronic device typesLED MOUNTING HARDWARE
REV.
DESCRIPTION
DATE
APPROVED
D
E
F
Engineering Update w/o Changes
Changed LTM Material from 44-BK to 56-BK
Removed Material Code
02/27/04
06/27/07
05/21/16
M. C.
M. C.
J. C.
0.100 [2.5mm]
Ø.200 [Ø5.1mm]
H
DH
LEAD RETAINING
AND DRAINAGE.
TYP.
0.100 [2.5mm]
Ø.04 [Ø1.0mm]
Ø.14 [Ø3.4mm]
0.020 [0.5mm]
TYP.
Ø.150 [Ø3.8mm]
PART
NO.
H
DH
PART
NO.
H
DH
PART
NO.
H
DH
.310(7.9)
LTM / NTM-120 .120(3.1)
LTM / NTM-130 .130(3.3)
LTM / NTM-140 .140(3.6)
LTM / NTM-150 .150(3.8)
LTM / NTM-160 .160(4.1)
LTM / NTM-170 .170(4.3)
LTM / NTM-180 .180(4.6)
LTM / NTM-190 .190(4.8)
LTM / NTM-200 .200(5.1)
LTM / NTM-210 .210(5.3)
LTM / NTM-220 .220(5.6)
LTM / NTM-230 .230(5.8)
LTM / NTM-240 .240(6.1)
LTM / NTM-250 .250(6.4)
LTM / NTM-260 .260(6.6)
LTM / NTM-270 .270(6.9)
LTM / NTM-280 .280(7.1)
LTM / NTM-290 .290(7.4)
.185(7.7)
.060(1.5)
LTM / NTM-300 .300(7.6)
LTM / NTM-310 .310(7.9)
LTM / NTM-320 .320(8.1)
LTM / NTM-330 .330(8.4)
LTM / NTM-340 .340(8.6)
LTM / NTM-350 .350(8.9)
LTM / NTM-360 .360(9.1)
LTM / NTM-370 .370(9.4)
LTM / NTM-380 .380(9.7)
LTM / NTM-390 .390(9.9)
LTM / NTM-400 .400(10.2)
LTM / NTM-410 .410(10.4)
LTM / NTM-420 .420(10.7) .310(7.9)
LTM / NTM-430 .430(10.9)
LTM / NTM-440 .440(11.2)
LTM / NTM-450 .450(11.4)
LTM / NTM-460 .460(11.7)
LTM / NTM-480 .480(12.2)
.185(4.7)
LTM / NTM-490 .490(12.5)
LTM / NTM-500 .500(12.7)
LTM / NTM-520 .520(13.2)
LTM / NTM-550 .550(14.0)
LTM / NTM-570 .570(14.5)
LTM / NTM-600 .600(15.2)
LTM / NTM-620 .620(15.8)
LTM / NTM-650 .650(16.5)
LTM / NTM-670 .670(17.0)
LTM / NTM-700 .700(17.8)
LTM / NTM-720 .720(18.3)
LTM / NTM-750 .750(19.1)
LTM / NTM-770 .770(19.6)
LTM / NTM-800 .800(20.3)
LTM / NTM-820 .820(20.8)
LTM / NTM-850 .850(21.6)
LTM / NTM-870 .870(22.1)
LTM / NTM-900 .900(22.9)
.435(11.1)
.560(14.2)
.690(17.5)
STANDARD TOLERANCE
( UNLESS OTHERWISE SPECIFIED )
DECIMALS
ANGULAR
®
3. NTM MATERIAL: NYLON 6/6, 94V-2, NATURAL.
2. LTM MATERIAL: MPPS, 94V-0, BLACK.
1. GENERAL SPECIFICATIONS: BIVAR MOLDED COMPONENT SPECIFICATION BV00-E101.
.X
.XX
.XXX
DESIGNED:
± .1
± .01
± .005
± 1°
4 THOMAS, IRVINE, CA. 92618
TEL: (949) 951-8808
FAX: (949) 951-3974
TITLE:

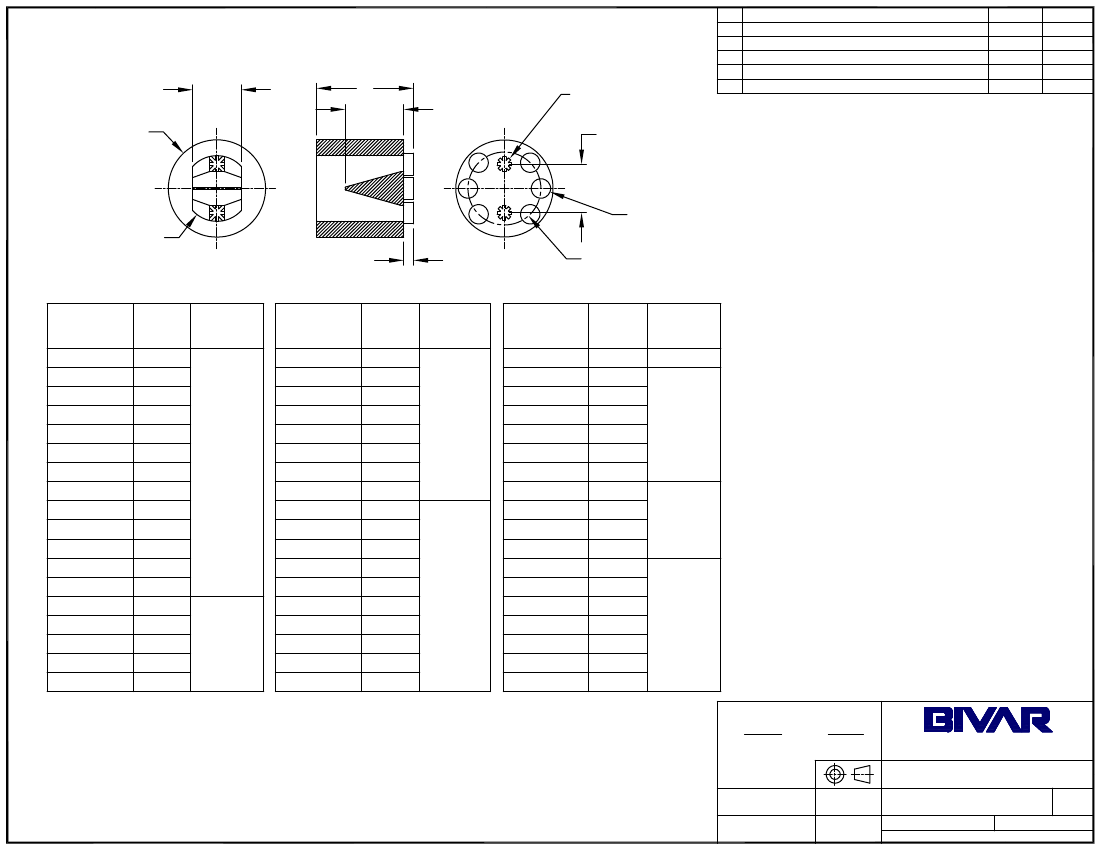

MOLDED, SELF-RETAINING LED MOUNT
DATE:
PART NO:
REVISION:
D. Green
CHECKED:
01/06/03
DATE:
LTM-NTM-XXX
F
M. Chen
01/06/03
CAGE CODE : 32559
SHEET #
1
OF
1
CAD GENERATED DOCUMENT, DO NOT MEASURE DRAWING.
