54722-0504 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 54722-0504

54722-0504: CategoryThe connector The connector; File Size32KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

54722-0504 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	54722-0504	-	-	View	Buy Now

54722-0504 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	Molex SLIMSTACK Series 0.5mm 50 Way 2 Row Straight PCB Socket Surface Mount Board to Board
Other features	ROHS AND ELV COMPLIANT
body width	0.197 inch
subject depth	0.047 inch
body length	0.594 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	40 mΩ
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Plug contact pitch	0.02 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	9.8u inch
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	50
UL Flammability Code	94V-0
Base Number Matches	1

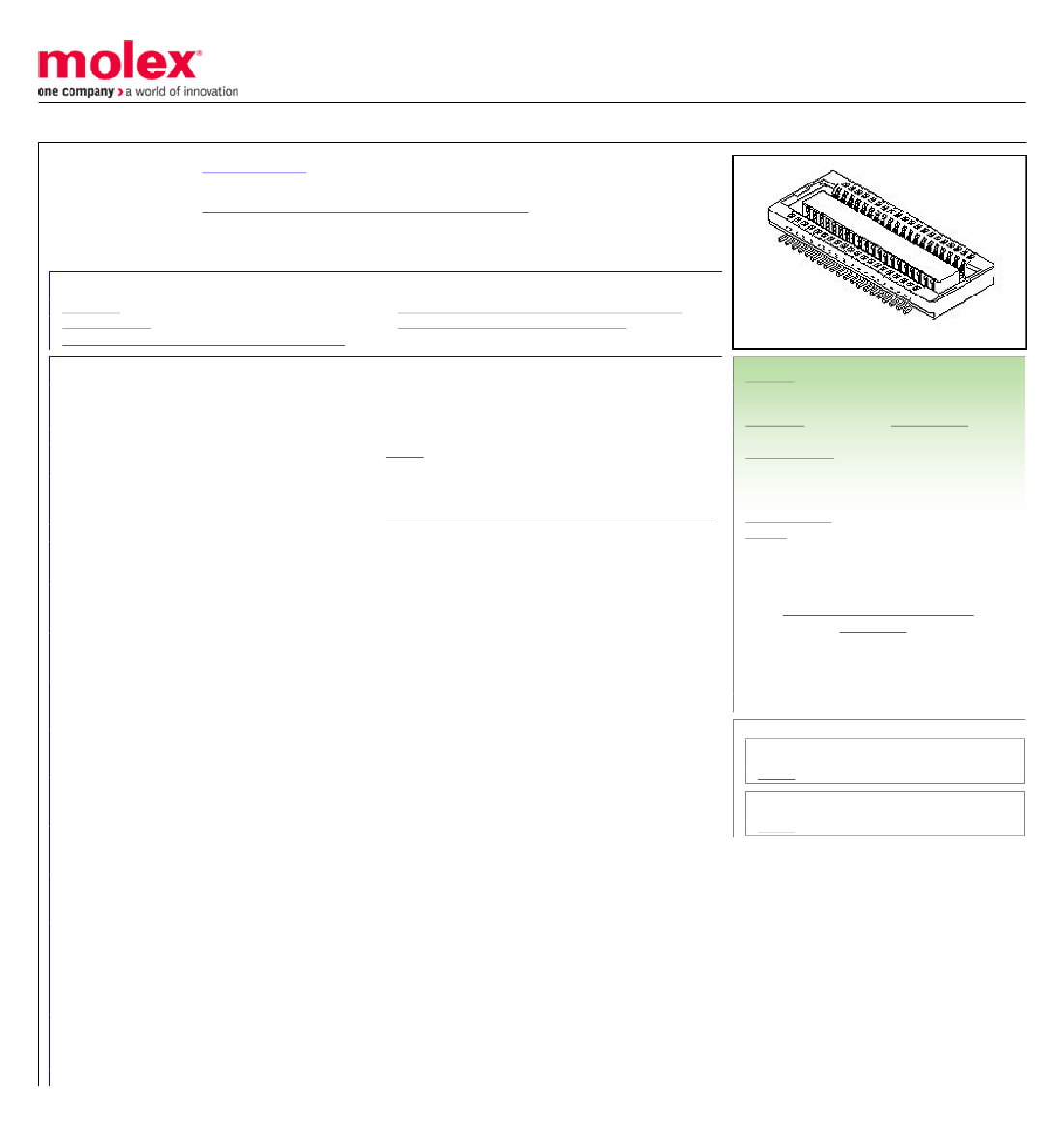

Preview

Download Datasheet

View All

This document was generated on 10/30/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0547220504

Active

SlimStack™ 0.50mm Pitch Board-to-Board Connectors

0.50mm Pitch SlimStack Receptacle, Surface Mount, Dual Row, Vertical, 1.50mm

Stacking Height, Lower Circuit Size Version, 50 Circuits, Gold Plating with Nickel

Barrier Plating Between Contact and Tail

Documents:

3D Model

Drawing (PDF)

Product Specification PS-54722-010-001 (PDF)

Agency Certification

General

Product Family

Series

Application

Comments

Overview

Product Name

UPC

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Glow-Wire Compliant

Lock to Mating Part

Mated Height

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Polarized to PCB

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Reference - Drawing Numbers

Application Specification

Application Specification 547220000-A00 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

E29179

PCB Receptacles

54722

Board-to-Board, Signal

Embossed Tape Reel Height: 380.00mm|Gold plating

with Nickel plating between contact and tail

SlimStack™ 0.50mm Pitch Board-to-Board Connectors

SlimStack

756054574379

Black

None

1.50mm

Phosphor Bronze

Gold

High Temperature Thermoplastic

149.401/mg

Vertical

None

1.60mm

Embossed Tape on Reel

0.50mm

N/A

-40°C to +105°C

Surface Mount

0.5A

50V

Search Parts in this Series

54722 Series

Mates With

55560 PCB Header

547220000-A00
