59S2AA-400A5-B: DescriptionRF Connectors / Coaxial Connectors FAKRA R/A Plug PCB w/Housing White; CategoryThe connector The connector; File Size345KB，3 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

59S2AA-400A5-B Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	59S2AA-400A5-B	-	-	View	Buy Now

59S2AA-400A5-B Overview

RF Connectors / Coaxial Connectors FAKRA R/A Plug PCB w/Housing White

59S2AA-400A5-B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Rosenberger
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Samacsys Description	RF Connectors / Coaxial Connectors FAKRA R/A Plug PCB w/Housing White
Other features	VSWR MAX AT: 4 GHZ
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF F CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	BRASS
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.24 dB
insulator material	PA6.6T
JESD-609 code	e4
MIL compliance	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Maximum operating frequency	6 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	SOLDER
voltage standing wave ratio	1.38

Preview

Download Datasheet

View All

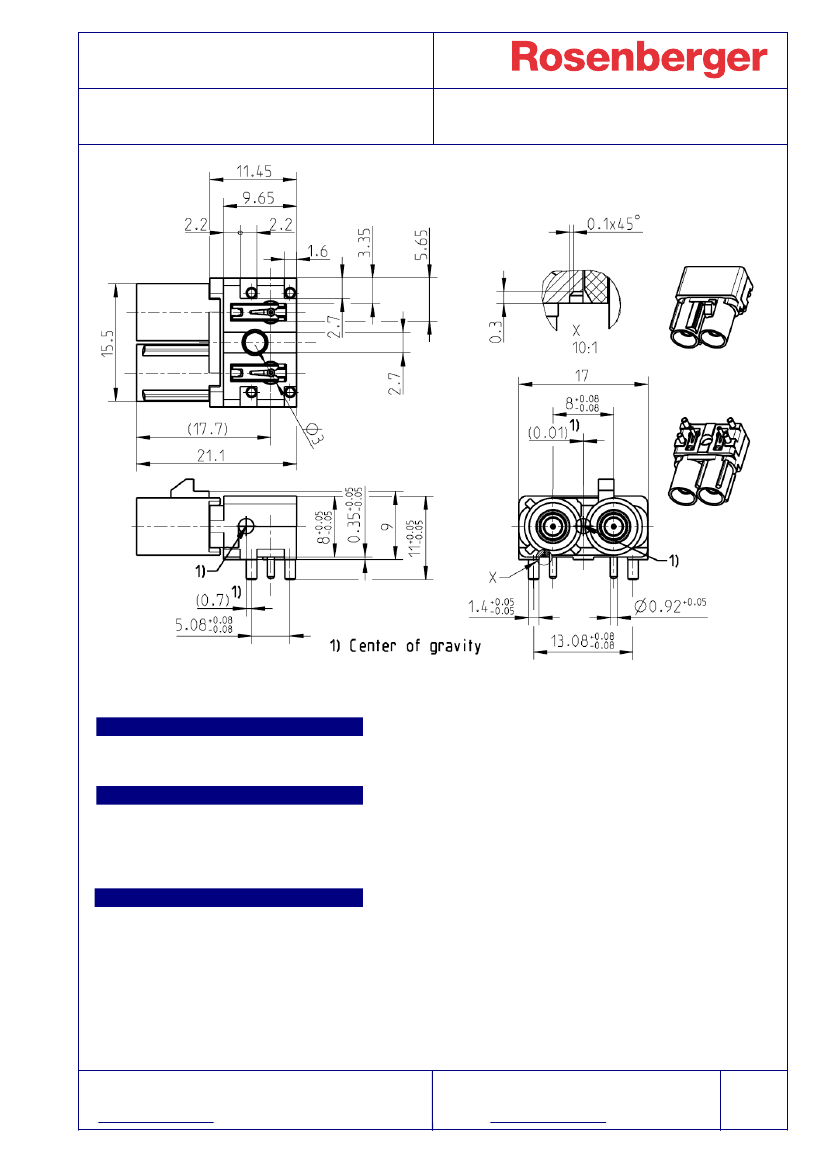

TECHNICAL DATA SHEET

FAKRA - HF

RIGHT ANGLE PLUG

FOR PCB

59S2AA-400A5-Y

All dimensions are in mm; tolerances according to ISO 2768 m-H

Y = Part number has to be accomplished by codification

Interface

According to

DIN 72594-1

Documents

Assembly instruction

PCB layout

Tape & reel packaging

MA_59V054

MB_187

VG_75.20000

Material and plating

Connector parts

Center contact

Outer contact

Body

Dielectric

Housing

RF_35/12.04/3.0

Material

Brass

Zinc alloy

PA 6.6T

PA 6T/66

Plating

AuroDur®, gold plated

Nickel, 2.5-5 µm

Tin, 2-5 µm, over Nickel 1-5µm

Rosenberger Hochfrequenztechnik GmbH & Co. KG

P.O.Box 1260

D-84526 Tittmoning

Germany

www.rosenberger.de

Tel.: +49 8684 18-0

Fax: +49 8684 18-499

email: info@rosenberger.de

Page

1/3

59S2AA-400A5-B Related Products

	59S2AA-400A5-B	59S2AA-400A5-A	59S2AA-400A5-C
Description	RF Connectors / Coaxial Connectors FAKRA R/A Plug PCB w/Housing White		RF Connectors / Coaxial Connectors FAKRA R/A Plug PCB w/Housing Blue
Is it Rohs certified?	conform to	conform to	conform to
Maker	Rosenberger	Rosenberger	Rosenberger
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant
Other features	VSWR MAX AT: 4 GHZ	VSWR MAX AT: 4 GHZ	VSWR MAX AT: 4 GHZ
Body/casing type	PLUG	PLUG	PLUG
Characteristic impedance	50 Ω	50 Ω	50 Ω
Connector type	RF F CONNECTOR	RF F CONNECTOR	RF F CONNECTOR
Contact to complete cooperation	GOLD	GOLD	GOLD
Contact completed and terminated	Gold (Au)	Gold (Au)	Gold (Au)
Contact point gender	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS
Coupling type	SNAP	SNAP	SNAP
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
Insertion loss	0.24 dB	0.24 dB	0.24 dB
insulator material	PA6.6T	PA6.6T	PA6.6T
JESD-609 code	e4	e4	e4
MIL compliance	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Maximum operating frequency	6 GHz	6 GHz	6 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO
Termination type	SOLDER	SOLDER	SOLDER
voltage standing wave ratio	1.38	1.38	1.38
Samacsys Description	RF Connectors / Coaxial Connectors FAKRA R/A Plug PCB w/Housing White	RF Connectors / Coaxial Connectors FAKRA R/A Plug PCB w/Housing Black	-

Recommended Resources

This application circuit of LM135-235-335b

Noise generator circuit

555 household electric heating and humidity control circuit

Circuit diagram: 8515 extended RAM

Multiple feedback second-order bypass filter

audio amplifier circuit
