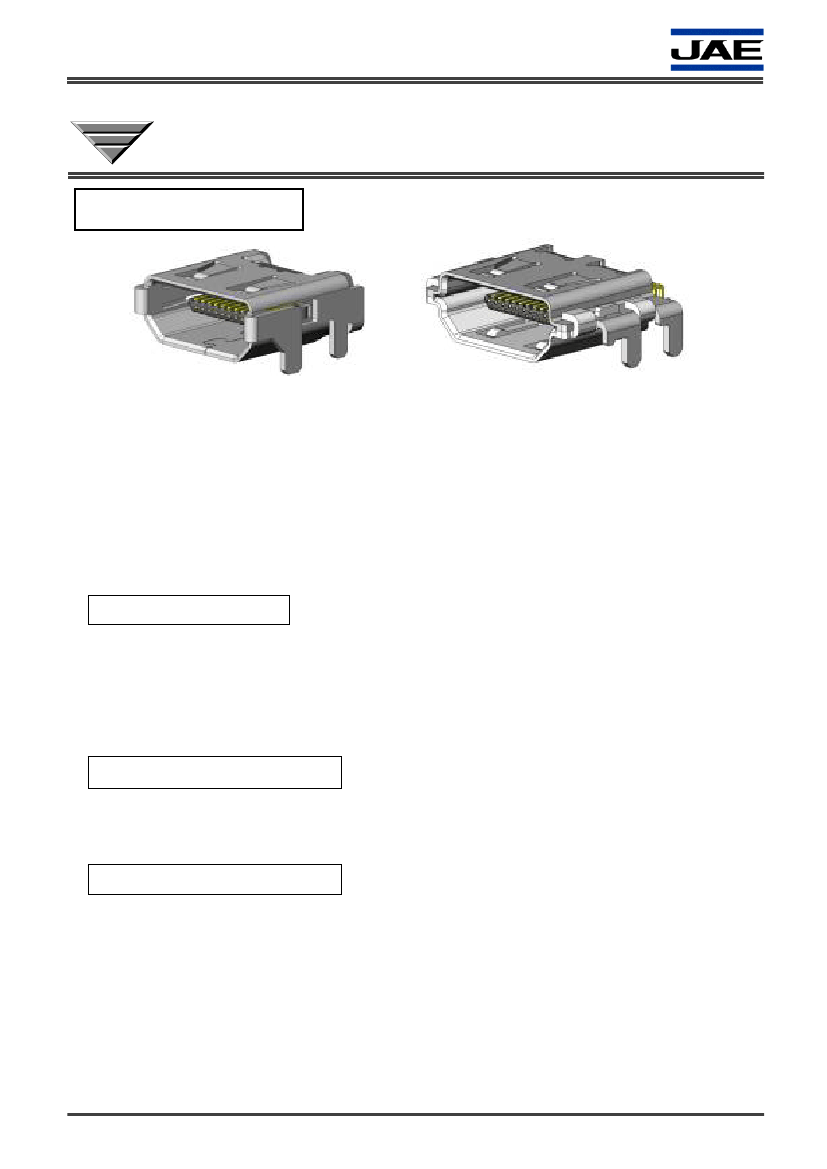

HDMI Standard Type D HDMI Micro Connector
CONNECTOR
MB-0233-2
May 2013
DC3 Series
RoHS Compliant
Recently in the camcorder and digital still camera market, devices that are compatible with
digital high-vision are becoming the standard.
The DC3 Series is a connector compliant with the HDMI D Type standard targeting these
types of portable devices.
*HDMI stands for High-Definition Multimedia Interface and is a registered trademark of
HDMI Licensing LLC.
Features
2
row, 0.4mm pitch, 19 position, compact connector
Impedance-matching
design compliant with high-speed transmission.
Grounded
structure design for EMI control.
Design
prevents solder wicking and flux scattering during reflow.
Available
in on-board and mid-mount types.
Applicable Markets
Mobile phone, high definition camcorder, digital still camera (single-lens reflex, compact) ,
tablet PC, portable game device, compact audio player, etc.
General Specifications
No.
of Contacts: 19 position
Contact
Resistance: Contact Area, 60m max.; Shell Area, 50m max.
Dielectric
Withstanding Voltage: AC 250Vr.m.s per minute (when not mated)
Operating
Temperature and Humidity Range
Temperature: -20 Deg. C to +85 Deg. C
Percentage Humidity: 85% max.
Rated
Current: 0.3A per contact
Durability:
5,000 mating cycles
Impedance:
100
25% (connector area)
JAE PMK Div. Proprietary. Copyright © 2013, Japan Aviation Electronics Industry, Ltd.
1/7
MB-0233-2
Drawings
■
Receptacle
---

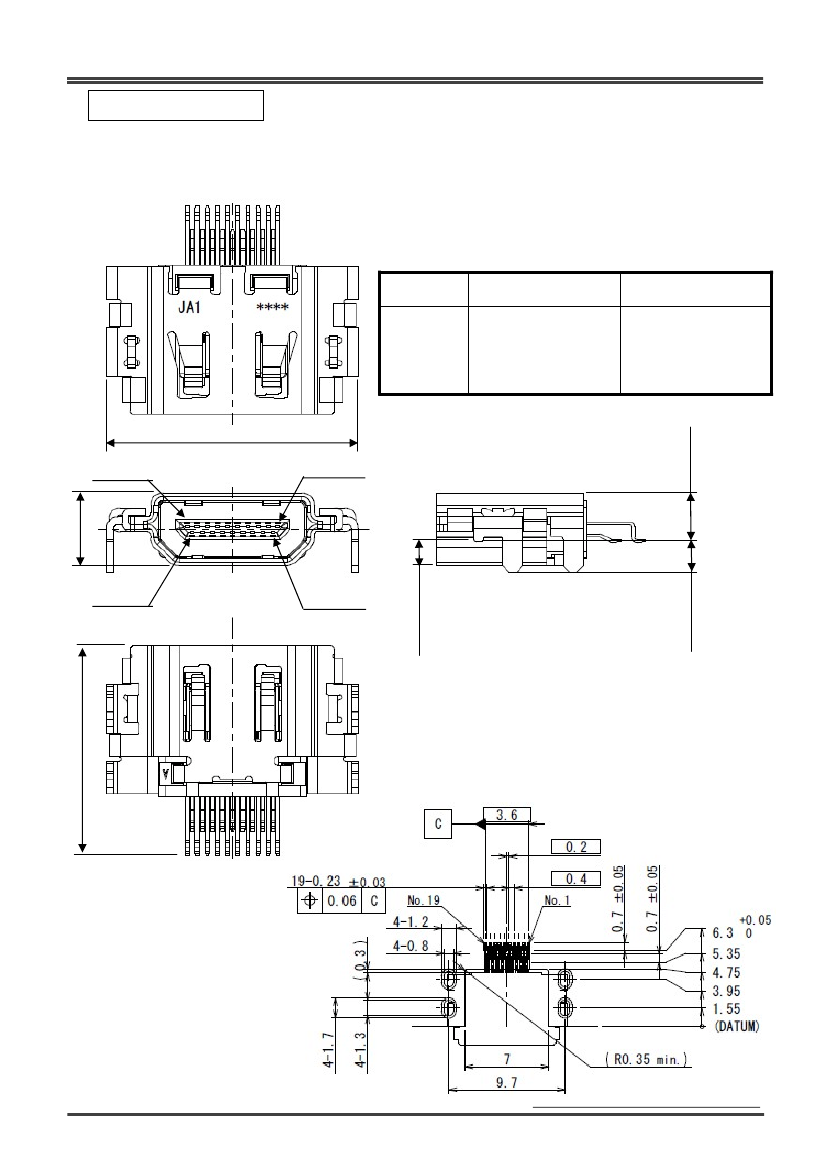

Mid-mount Type (mounting depth: 0.95mm version)
DC3R019JA1 / 5 [SJ110571 / SJ111076]
DC3R019JA1
Shell
DIP
Length
1.2
DC3R019JA5
0.8
No.19
2.9
No.1
Mounting
Depth
8.3
0.95
No.18
No.2
*Please refer to SJ Drawing when
considering this product.
Applicable Board Dimension
JAE PMK Div. Proprietary. Copyright © 2013, Japan Aviation Electronics Industry, Ltd.
Shell
DIP Length
1.95
3/7
10
MB-0233-2
■
Receptacle
---

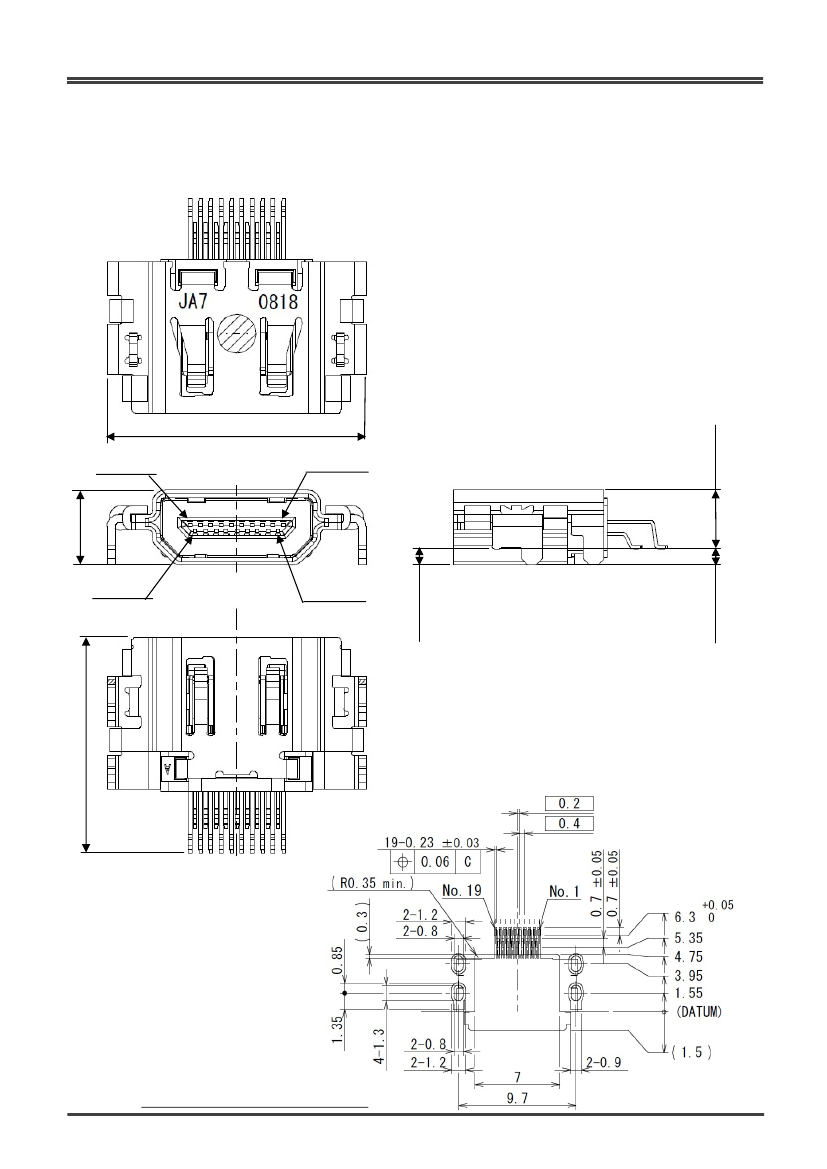

Mid-mount Type (mounting depth: 0.65mm version)
DC3R019JA7 [SJ111784]
No.19
2.9
No.1
2.25
*Please refer to SJ Drawing when
considering this product.
10
8.3
Applicable Board Dimension
JAE PMK Div. Proprietary. Copyright © 2013, Japan Aviation Electronics Industry, Ltd.
0.65
0.65
No.18
No.2
Shell
DIP Length
4/7
Mounting
Depth
MB-0233-2
■
Receptacle
---

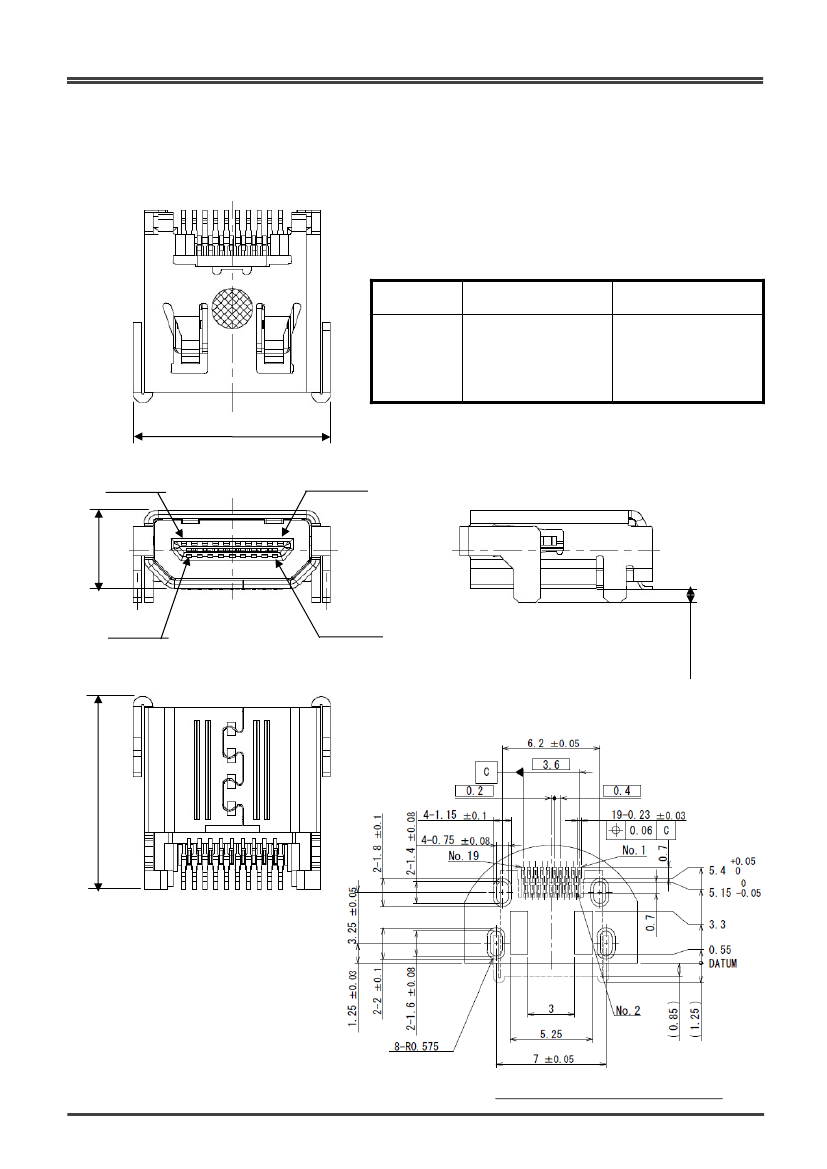

On-board Type (shell 4 point DIP version)
DC3RX19JA2 / 3 [SJ111288 / SJ111264]
DC3RX19JA2
Shell
DIP
Length
0.8
DC3RX19JA3
0.58
7.3
No.19
2.9
No.1
No.18
No.2
*Please refer to SJ Drawing when
considering this product.
7.15
Applicable Board Dimension
JAE PMK Div. Proprietary. Copyright © 2013, Japan Aviation Electronics Industry, Ltd.
Shell
DIP Length
5/7
