ADT4-ED7832/1

Description
RF Transformer, 0.02MHz Min, 300MHz Max
CategoryPower management    transformer
File Size96KB,1 Pages
ManufacturerMini-Circuits
Websitehttps://www.minicircuits.com
Download Datasheet Parametric View All

ADT4-ED7832/1 Overview

RF Transformer, 0.02MHz Min, 300MHz Max

ADT4-ED7832/1 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerMini-Circuits
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresOHMS RATIO IS 4
maximum cutoff frequency300 MHz
minimum cutoff frequency0.02 MHz
high5.232 mm
JESD-609 codee0
length7.874 mm
Manufacturer's serial numberADT4-ED7832/1
Installation featuresSURFACE MOUNT
method of packingTAPE & REEL
physical size7.874mm X 5.588mm X 5.232mm
surface mountYES
Terminal surfaceTin/Lead (Sn/Pb)
Transformer typeRF TRANSFORMER
width5.588 mm
Base Number Matches1
Engineering Development Model
RF Transformer
Impedance Ratio : 4
Important Note
This model has been designed, built and tested in our engineering
department. Performance data represents model capability.
At present it is a non-catalog model. On request, we can supply a
final specification sheet, part number and price/delivery information.

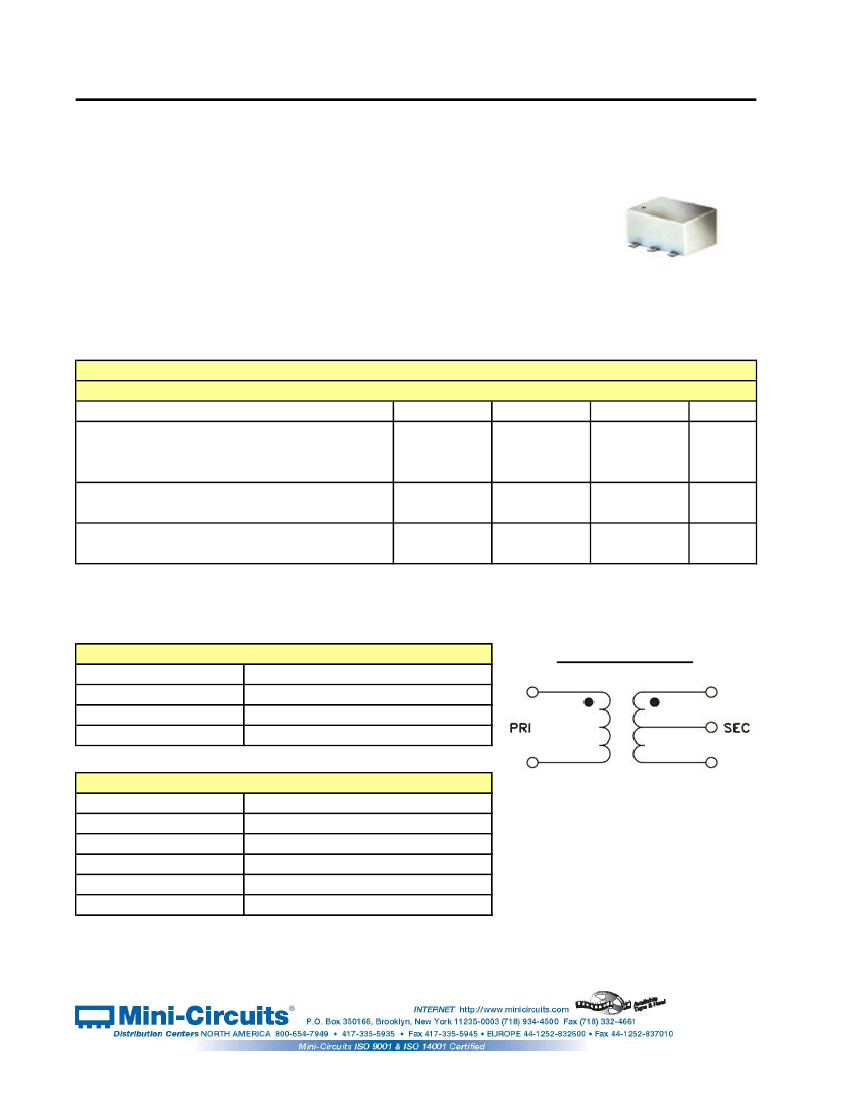

ADT4-ED7832/1
Please click "Back", and then click "Contact Us" for Applications support.
CASE STYLE : CD637
ELECTRICAL SPECIFICATIONS 50Ω @ +25°C
Parameter
Frequency
Insertion Loss *
Min.
0.02
3 dB Bandwidth
2 dB Bandwidth
1 dB Bandwidth
over 3dB Bandwidth
over 1dB Bandwidth
over 3dB Bandwidth
over 1dB Bandwidth
Typ.
0.02 - 300
0.03 - 300
0.05 - 275
0.5
0.1
5.0
1.00
Max.
300
Units
MHz
MHz
MHz
MHz
dB
dB
deg.
deg.
Ampitude Unbalance
Phase Unbalance
Note:
* Insertion Loss is referenced to mid-band loss, 0.22dB typ.
MAXIMUM RATINGS
-20°C to 85°C
Operating Temperature
-55°C to 100°C
Storage Temperature
0.25 W
RF Power
30 mA
DC Current
PIN CONNECTIONS
PRIMARY DOT
PRIMARY
SECONDARY DOT
SECONDARY
SECONDARY CT
ISOLATE
3
1
4
6
5
2
Configuration : A
REV. X1
ADT4-ED7832/1
060808
Page 1 of 1
