MX23L1610YC-15 Overview

3.3 Volt 16-Mbit (2M x 8 / 1M x 16) Mask ROM

MX23L1610YC-15 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Macronix
Parts packaging code	TSSOP2
package instruction	TSOP2, TSOP44,.46,32
Contacts	44
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum access time	150 ns
Spare memory width	8
JESD-30 code	R-PDSO-G44
JESD-609 code	e0
length	18.41 mm
memory density	16777216 bi
Memory IC Type	MASK ROM
memory width	16
Number of functions	1
Number of terminals	44
word count	1048576 words
character code	1000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1MX16
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP2
Encapsulate equivalent code	TSOP44,.46,32
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3 V
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum standby current	0.000015 A
Maximum slew rate	0.025 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	10.16 mm

Preview

Download Datasheet

View All

MX23L1610

3.3 Volt 16-Mbit (2M x 8 / 1M x 16) Mask ROM

FEATURES

• Bit organization

- 2M x 8 (byte mode)

- 1M x 16 (word mode)

• Fast access time

- 70ns (max.)@3.3V±10%

• Current

- Operating:25mA

- Standby:15uA

• Supply voltage

- 3.0V ~ 3.6V

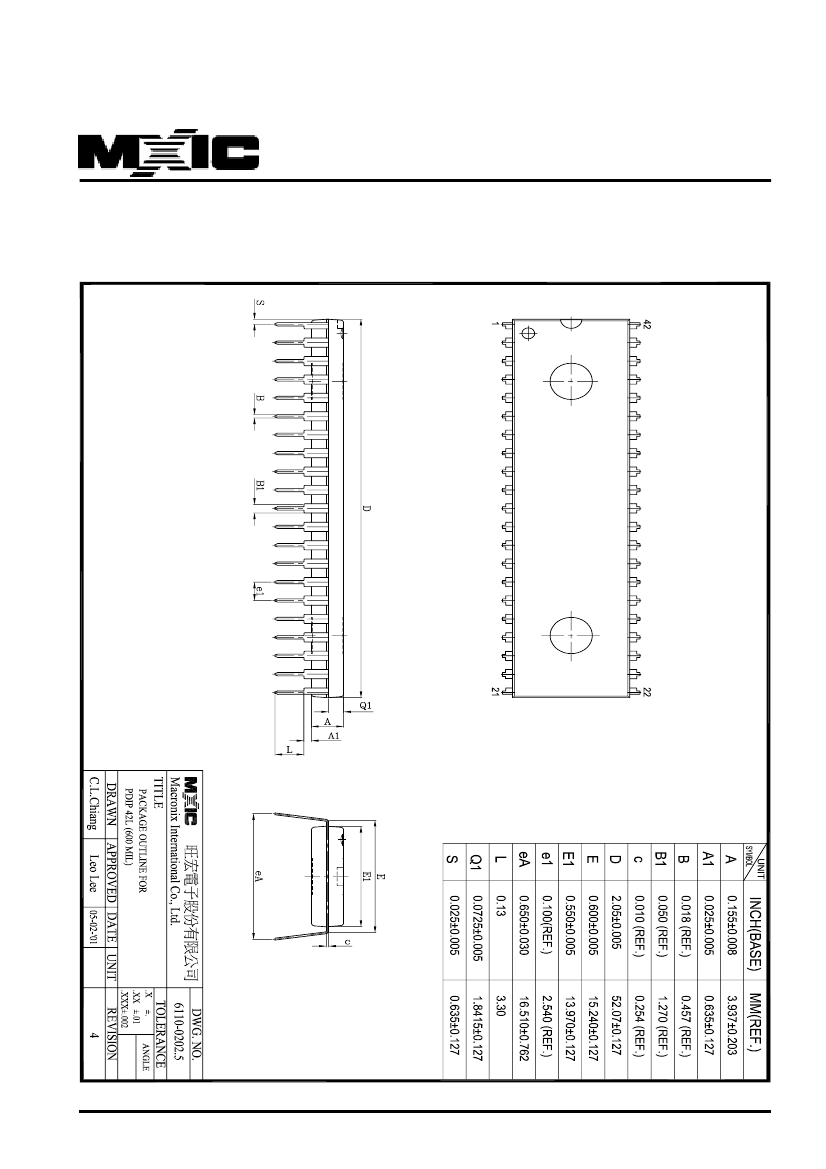

• Package

- 44 pin SOP (500mil)

- 42 pin DIP (600mil)

- 48 pin TSOP (12mm x 20mm)

- 44 pin TSOP (Type II)

ORDER INFORMATION

Part No.

MX23L1610MC-70

MX23L1610MC-90

MX23L1610MC-10

MX23L1610MC-12

MX23L1610MC-15

MX23L1610PC-10

MX23L1610PC-12

MX23L1610PC-15

MX23L1610TC-70

MX23L1610TC-90

MX23L1610TC-10

MX23L1610TC-12

MX23L1610TC-15

MX23L1610RC-10

MX23L1610RC-90

Access

70ns

90ns

100ns

120ns

150ns

100ns

120ns

150ns

70ns

90ns

100ns

120ns

150ns

100ns

90ns

120ns

150ns

120ns

100ns

120ns

150ns

Package

44 pin SOP

42 pin PDIP

48 pin TSOP

(Reverse type)

48 pin TSOP

(Reverse type)

48 pin TSOP

(Reverse type)

48 pin TSOP

(Reverse type)

48 pin TSOP

44 pin TSOP

PIN CONFIGURATION

MX23L1610RC-12

44 SOP/44 TSOP

A18

A17

VSS

D10

D11

A19

A10

A11

A12

A13

A14

A15

A16

BYTE

VSS

D15/A-1

D14

D13

D12

VCC

42 PDIP

A18

A17

VSS

D10

D11

A19

A10

A11

A12

A13

A14

A15

A16

BYTE

VSS

D15/A-1

D14

D13

D12

VCC

MX23L1610RC-15

MX23L1610TI-12*

MX23L1610YC-10

MX23L1610YC-12

MX23L1610YC-15

MX23L1610

*Note:Temperature: -40~85°C

PIN DESCRIPTION

Symbol

A0~A19

D0~D14

D15/A-1

Byte

VCC

VSS

Pin Function

Address Inputs

Data Outputs

D15 (Word Mode)/ LSB Address

(Byte Mode)

Chip Enable Input

Output Enable Input

Word/ Byte Mode Selection

Power Supply Pin

Ground Pin

No Connection

REV. 2.5, AUG. 15, 2001

P/N:PM0243
