PA6605-AL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> PA6605-AL

PA6605-AL: DescriptionAudio Transformers / Signal Transformers PA6605 60W 4.7Ohms For LM5122; CategoryPower management transformer; File Size148KB，1 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/; Environmental Compliance

Download Datasheet Parametric View All

PA6605-AL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PA6605-AL	-	-	View	Buy Now

PA6605-AL Overview

Audio Transformers / Signal Transformers PA6605 60W 4.7Ohms For LM5122

PA6605-AL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	COILCRAFT
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	COILCRAFT - PA6605-AL - PLANAR TRANSFORMER, 12V, 5A, SMT
JESD-609 code	e3
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Transformer type	SMPS TRANSFORMER
Base Number Matches	1

Preview

Download Datasheet

View All

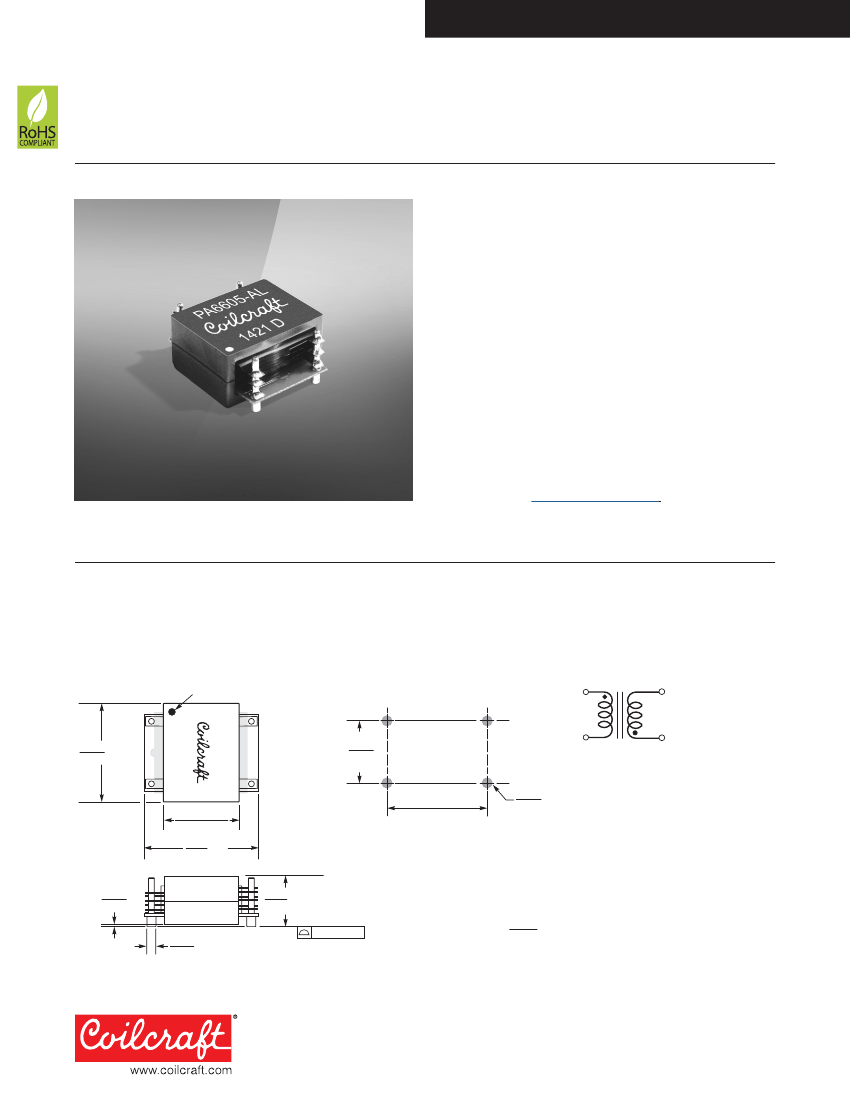

Document 1213

Planar Transformer

For TI LM5122 Synchronous

Flyback Controller

• Designed for Texas Instruments LM5122 Synchronous Flyback

Controller with Multiple Phase Capability

• 96% efficiency

• 9.0 – 60 V input; up to 12 V, 5 A output

• 1500 Vrms, one minute isolation (hipot) from primary to

secondary; 500 Vrms windings to core

Core material

Ferrite

Terminations

Matte tin over nickel over brass.

Weight

Ambient temperature

–40°C to +85°C

Storage temperature

Component: –40°C to +85°C.

Tray packaging: –40°C to +80°C

Resistance to soldering heat

Max three 40 second reflows at

+260°C, parts cooled to room temperature between cycles

Moisture Sensitivity Level (MSL)

1 (unlimited floor life at <30°C /

85% relative humidity)

Failures in Time (FIT) / Mean Time Between Failures (MTBF)

38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

Packaging

25 parts per tray

PCB washing

Tested to MIL-STD-202 Method 215 plus an additional

aqueous wash. See

Doc787_PCB_Washing.pdf.

Part number

PA6605-AL

Inductance

at 0 A

±10% (µH)

Inductance

Ipk

min (µH)

9.0

DCR max

(mOhms)

4.7

Leakage

inductance

max (µH)

0.13

Ipk

(Adc)

12.5

Output

12 V, 5 A

1. Inductance is for the primary and is measured at 250 kHz, 0.1 Vrms.

Ipk

is the current drawn at minimum input voltage

3. DCR is for each winding

4. Leakage inductance is for the primary, measured at 250 kHz, 0.1 Vrms with secondary winding shorted.

5. Electrical specifications at 25°C.

Refer to Doc 362 “Soldering Surface Mount Components” before soldering.

Dot indicates pin 1

Pri

Sec

PA6605-AL

XXXXY

1.050

max

26,67

0.625

15,875

Recommended

Land Pattern

0.748 ±0.012

19,0 ±0,30

1.00

25,40

0.110

∅

2,80

1.181

max

30,0

0.009

0,229

0.535

max

13,6

0.083

2,11

0.006 /0,15

Dimensions are in

inches

+1-847-639-6400 sales@coilcraft.com

+44-1236-730595 sales@coilcraft-europe.com

Taiwan

+886-2-2264 3646 sales@coilcraft.com.tw

China

+86-21-6218 8074 sales@coilcraft.com.cn

Singapore

+ 65-6484 8412 sales@coilcraft.com.sg

Document 1213

Revised 09/12/17

This product may not be used in medical or high

risk applications without prior Coilcraft approval.

Specification subject to change without notice.

Please check web site for latest information.
