oscillator offering excellent jitter and stability
performance over a wide range of supply
voltages and temperatures.
The device
operates from 1 to 150MHz with supply voltages
between 1.8 to 3.3 Volts and extended
temperatures from -40ºC to 105ºC. The
DSC1004 has the same functionality and
performance as the DSC1001 but with greater
output drive (C
L
< 40pf).
The DSC1004 incorporates an all silicon
resonator that is extremely robust and nearly
immune to stress related fractures, common to
crystal based oscillators. Without sacrificing the
performance and stability required of today’s
systems, a crystal-less design allows for a
higher level of reliability, making the DSC1004
ideal for rugged, industrial, and portable
applications where stress, shock, and vibration
can damage quartz crystal based systems.
Available in industry standard packages, the
DSC1004 can be “dropped-in” to the same PCB
footprint as standard crystal oscillators.
Features
Frequency Range: 1 to 150MHz
Exceptional Stability over Temperature
o
±10 PPM , ±25 PPM, ±50 PPM
Operating voltage
o
1.7 to 3.6V
Operating Temperature Range
o
Ext. Industrial -40ºC to 105ºC
o
Industrial -40ºC to 85ºC
o
Ext. Commercial -20ºC to 70ºC
o
Commercial 0ºC to 70ºC
Low Operating and Standby Current
o
8mA Operating (40MHz)
o
15uA Standby
Ultra Miniature Footprint
o
2.5 x 2.0 x 0.85 mm
o
3.2 x 2.5 x 0.85 mm
o
5.0 x 3.2 x 0.85 mm
o
7.0 x 5.0 x 0.85 mm
Excellent Shock and Vibration
Resistance
Lead Free, RoHS & Reach SVHC
Compliant
Benefits
Pin for pin “drop in” replacement for
industry standard oscillators
Semiconductor level reliability,
significantly higher than quartz
Longer Battery Life / Reduced Power
Compact Plastic package
Cost Effective

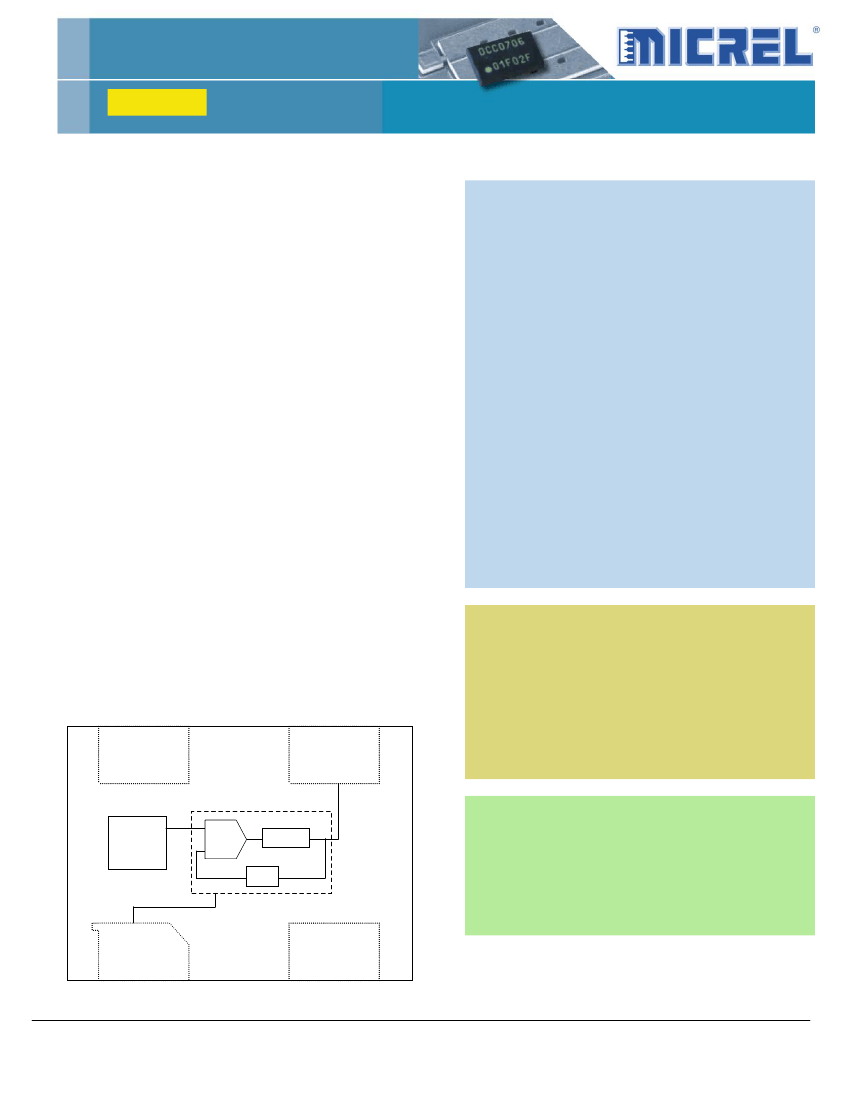

Block Diagram
V
DD
Output
Applications
Resonator
PFD
VCO
Frac-N
PLL
Mobile Applications
Consumer Electronics
Portable Electronics
CCD Clock for VTR Cameras
Low Profile Applications
Industrial
Standby#
(pin1)
GND
All Rights Reserved. No part of this document may be copied or reproduced in any form without the prior written permission of Micrel, Inc. Micrel Inc. may update or make changes
to the contents, products, programs or services described at any time without notice. This document neither states nor implies any kind of warranty, including, but not limited to
implied warranties of merchantability or fitness for a particular use.
Page 1
MK-Q-B-P-D-083010-02-4
DSC1004
1.8~3.3V
Low-Power Precision Oscillator
Absolute Maximum Ratings
1
Item
Input Voltage
Junction Temp
Storage Temp
Soldering Temp
ESD
HBM
MM
CDM
Min.
-0.3
-
-55
-
-
4000
200
1500
Max
VDD+0.3
+150
+150
+260
Unit
V
°C
°C
°C
V
40 sec max.
Condition
DSC1004
Family
Package, Temp
& Stability
CE1
-
032.0000
T
Output Freq
1.0 to 150MHz
Tape/
Reel
* See Ordering Information for details
Ordering Code
Recommended Operating Conditions
Parameter
Supply Voltage
Output Load
Operating Temperature
Option 1
Option 2
Option 3
Option 4
Symbol
V
DD
Z
L
Range
1.7 – 3.6V
R>10KΩ, C≤40pF
-40 to +105 °C
-40 to +85 °C
-20 to +70 °C
0 to +70 °C
T
Specifications
(VDD
= 1.8 to 3.3v) T
A
=85
0
C unless otherwise specified
Parameter
Frequency
Frequency Tolerance
Aging
Supply Current, standby
Output Startup Time
2
Output Disable Time
Output Duty Cycle
Input Logic Levels
Input logic high
Input logic low
Symbol
f
0
Δf
Δf
I
DD
t
SU
t
DA
SYM
V
IH
V
IL
45
0.75*V
DD
-
Condition
Single Frequency
Includes frequency
variations due to initial
tolerance, temperature
and power supply voltage
1 year @25°C
T=25°C
T=25°C
1.0
20
Min
1
Typ
Max
150
±10,±25,±50
±5
15
1.3
100
55
-
0.25* V
DD
Unit
MHz
ppm
ppm
uA
ms
ns
%
Volts
Notes:
1.
Absolute maximum ratings are those values beyond which the safety of the device cannot be guaranteed. The device should not be
operated beyond these limits.
2.
t
SU
is time to stable output frequency after V
DD
is applied. t
SU
and t
EN
(after EN is asserted) are identical values.
3.
Measured over 50k clock cycles.
All Rights Reserved. No part of this document may be copied or reproduced in any form without the prior written permission of Micrel, Inc. Micrel Inc. may update or make changes
to the contents, products, programs or services described at any time without notice. This document neither states nor implies any kind of warranty, including, but not limited to
implied warranties of merchantability or fitness for a particular use.
Page 2
MK-Q-B-P-D-083010-02-4
DSC1004
VDD = 1.8v
Parameter
Supply Current, no load
Output Logic Levels
Output logic high
Output logic low
Output Transition time
Rise Time
Fall Time
Output Transition time
Rise Time
Fall Time
Period Jitter
1.8~3.3V
Low-Power Precision Oscillator
Symbol
I
DD
Condition
1MHz
C
L
=0p
27MHz
R
L
=∞
70MHz
T=25°C
150MHz
-6mA
6mA
C
L
=40pF; T=25°C
20%/80%*V
DD
C
L
=40pF; T=25°C
10%/90%*V
DD
F = 100MHz
3
Min
Typ
5.9
6.7
8.1
10.6
Max
6.2
7.1
8.5
11.9
-
0.2*V
DD
Unit
mA
V
OH
V
OL
t
R
t
F
t
R
t
F
J
p
0.8*V
DD
-
1.4
1.1
2.2
1.8
10
Volts
3
3
4
4
15
ns
ns
ps rms
VDD = 2.5v
Parameter
Supply Current, no load
Output Logic Levels
Output logic high
Output logic low
Output Transition time
Rise Time
Fall Time
Output Transition time
Rise Time
Fall Time
Period Jitter
Symbol
I
DD
Condition
1MHz
C
L
=0p
27MHz
R
L
=∞
70MHz
T=25°C
150MHz
-6mA
6mA
C
L
=40pF; T=25°C
20%/80%*V
DD
C
L
=40pF; T=25°C
10%/90%*V
DD
F = 100MHz
3
Min
Typ
6.1
7.2
8.9
12.2
Max
6.4
7.5
9.4
13.9
-
0.1*V
DD
1.0
0.9
1.7
1.5
5
2
2
3.5
3
10
Unit
mA
V
OH
V
OL
t
R
t
F
t
R
t
F
J
p
0.9*V
DD
-
Volts
ns
ns
ps rms
VDD = 3.3v
Parameter
Supply Current, no load
Output Logic Levels
Output logic high
Output logic low
Output Transition time
Rise Time
Fall Time
Output Transition time
Rise Time
Fall Time
Period Jitter
Symbol
I
DD
Condition
1MHz
C
L
=0p
27MHz
R
L
=∞
70MHz
T=25°C
150MHz
-8mA
8mA
C
L
=40pF; T=25°C
20%/80%*V
DD
C
L
=40pF; T=25°C
10%/90%*V
DD
F = 100MHz
3
Min
Typ
6.2
7.6
10.0
14.4
Max
6.5
8.0
10.5
16.6
-
0.1*V
DD
0.8
0.8
1.4
1.3
5
2
2
3
3
10
Unit
mA
V
OH
V
OL
t
R
t
F
t
R
t
F
J
p
0.9*V
DD
-
Volts
ns
ns
ps rms
All Rights Reserved. No part of this document may be copied or reproduced in any form without the prior written permission of Micrel, Inc. Micrel Inc. may update or make changes
to the contents, products, programs or services described at any time without notice. This document neither states nor implies any kind of warranty, including, but not limited to
implied warranties of merchantability or fitness for a particular use.
Page 3
MK-Q-B-P-D-083010-02-4
DSC1004
Output Waveform
1.8~3.3V
Low-Power Precision Oscillator
t
R
V
OH
t
F
Output
V
OL
1/f
o
t
DA
V
IH
t
EN
Standby#
V
IL
Standby Function
Standby#
(pin 1)
Output
(pin 3)
Hi Level
Open
(no connect)
Low Level
Output ON
Output ON
High Impedance
Test Circuit
I
DD
4
1
V
DD
0.01uF
*V
SD
3
2
40pF
*V
SD
= Standby# Logic Level Input
All Rights Reserved. No part of this document may be copied or reproduced in any form without the prior written permission of Micrel, Inc. Micrel Inc. may update or make changes
to the contents, products, programs or services described at any time without notice. This document neither states nor implies any kind of warranty, including, but not limited to
implied warranties of merchantability or fitness for a particular use.
Page 4
MK-Q-B-P-D-083010-02-4
DSC1004
1.8~3.3V
Low-Power Precision Oscillator

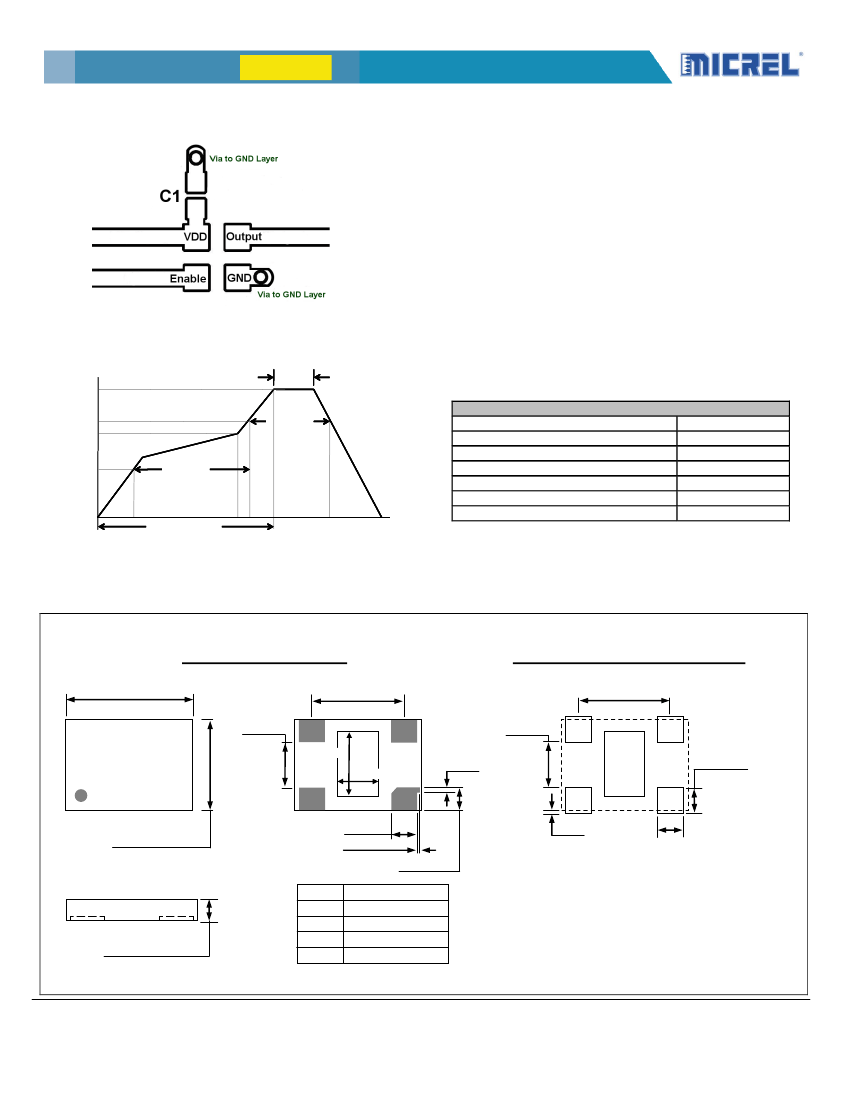

Board Layout (recommended)
Solder Reflow Profile
ax
260
°
C
Temperature (°C)
Se
cM
.
20-40
Sec
217
°
C
200
°
C
.
ax
60-150
Sec
150
°
C
3C
/Se
60-180
Sec
cM
Reflow
Pre heat
8 min max
Cool
Time
25
°
C
MSL 1 @ 260°C refer to JSTD-020C
Ramp-Up Rate (200°C to Peak Temp) 3°C/Sec Max.
Preheat Time 150°C to 200°C
60-180 Sec
Time maintained above 217°C
60-150 Sec
255-260°C
Peak Temperature
Time within 5°C of actual Peak
20-40 Sec
6°C/Sec Max.
Ramp-Down Rate
Time 25°C to Peak Temperature
8 min Max.
3C
/
S
S
S
6C
6C
6C/
c
c
ec
Ma
Ma
Ma
.
.
x.
Package Dimensions
7.0 x 5.0 mm Plastic Package
External Dimensions
7.0±0.10 [0.276±0.004]
#4
#3
2.6 [0.102]
3.5 [0.138]
Recommended Land Pattern*
5.08 [0.200]
#4
2.6 [0.102]
o
0.2 [0.008]
2.2 [0.087]
5.08 [0.2]
#3
o
o
o
1.4 [0.055]
o
o
#1
#2
5.0±0.10 [0.197±0.004]
#2
1.4 [0.055]
0.2 [0.008]
#1
1.2 [0.047]
0.2 [0.008]
1.4 [0.055]
*Note: The center pad is not connected
internally and should be left un-
connected or tied to GND.
0.85±0.05 [0.033±0.002]
No.
1
2
3
4
Pin Terminal
Standby#
GND
Output
VDD
units: mm [inch]
All Rights Reserved. No part of this document may be copied or reproduced in any form without the prior written permission of Micrel, Inc. Micrel Inc. may update or make changes
to the contents, products, programs or services described at any time without notice. This document neither states nor implies any kind of warranty, including, but not limited to
implied warranties of merchantability or fitness for a particular use.
Chapter 1 Introduction
1.1 Overview of Electromagnetic Compatibility
Electromagnetic compatibility is an emerging comprehensive subject. The main research of electromagnetic compatibility is how to ma...
Sorry to trick you into coming here. There is no soldering iron in the picture, but I found that the soldering iron is amazing during this debugging process! P5.1, P5.2, P5.3 are the main MCU RB1, RB2...
nWAIT [Input] nWAIT requests to prolong a current bus cycle. As long as nWAIT is L, th
current bus cycle cannot be completed.
-----
nWAIT PIN OPERATION
If the WAIT bit(WSn bit in BWSCON) corresponding...
After asking a lot of useful questions, I finally got the thermal imaging data. I modified the 16_ov2640_sdram routine of verimake-team, replaced the 16-bit ov2640 data with 8-bit thermal imaging data...
Hello everyone! I am an undergraduate student and have already learned VerilogHDL in a relatively systematic way. Now I want to learn FPGA, but the materials in the library are all about VHDL. Could y...
Use flash224 to download bootrom to arm9 development board, the hyperterminal can connect and display running information, the indicator light of the network port is also on, why can't ping be connect...
While
the solid-state battery
industry is still engaged in a long technological marathon for
the "ultimate solution" for
electric vehicles
, some companies have begun looking for mor...[Details]
Wave soldering is a crucial electronic component soldering technique used in the production of a wide range of electronic devices, from home appliances to computers to avionics. The process is wide...[Details]
Introduction to the principles of speech recognition technology
Automatic speech recognition (ASR) technology aims to enable computers to understand human speech and extract the textual inform...[Details]
1 Introduction
In the mid-1960s, American scientist Maas conducted extensive experimental research on the charging process of open-cell batteries and proposed an acceptable charging curve for ...[Details]
On August 21, WeRide officially launched WePilot AiDrive, a one-stage end-to-end assisted driving solution developed in cooperation with Bosch. This comes only half a year after the two parties' "t...[Details]
Industrial computers with GPUs leverage powerful parallel processing to build deep learning models to analyze and respond to optical inputs. The systems develop an understanding of visual data to i...[Details]
A patent disclosed by Ford proposes replacing traditional segmented side curtain airbags with integrated full-width side curtain airbags that span the side of the vehicle and can be deployed simult...[Details]
We often hear about the precautions for using pure electric vehicles in winter, and many owners even develop relevant strategies, such as adopting a "charge as you go" principle for their vehicles,...[Details]
With the gradual popularization of new energy vehicles in recent years, more and more people have been able to access and purchase electric vehicles. The structure of electric vehicles is composed ...[Details]
Electric vehicles are composed of three main components: electric motors, electric motors, and electric vehicles. Maintenance is much simpler than for gasoline-powered vehicles. Maintenance for ele...[Details]
Common Mode Semiconductor has officially launched the GM6503 series—a 5 V, 3 A synchronous step-down DC/DC power module designed for optical communications, servers, industrial applications, and FP...[Details]
Today,
the Intel®
Universal
Quick Connector (UQD) Interchangeability Alliance was officially established
. At the inaugural ceremony, Intel and its first certified partners—Invicta...[Details]
Introduction: Traditionally, lead-acid batteries have primarily been used to provide backup power and power regulation based on location. In typical applications, the battery's actual use (discharg...[Details]
As the core of electric vehicles, batteries are concerned with vehicle use and maintenance. The operation of vehicles is guaranteed by the electricity generated by batteries. For batteries, battery...[Details]
Charge your electric car for just six minutes and you'll get 1,000 kilometers! This isn't just a scene from a science fiction film, but a reality made possible by Guoxuan High-Tech's Jinshi solid-s...[Details]
PCB Design
京公网安备 11010802033920号
EEWORLD
