VSOR1601102JUF

Description
Resistor Networks u0026 Arrays 1Kohms 16pin Bus 5%
CategoryPassive components    The resistor
File Size107KB,4 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric Compare View All

VSOR1601102JUF Online Shopping

Suppliers Part Number Price MOQ In stock
VSOR1601102JUF - - View Buy Now

VSOR1601102JUF Overview

Resistor Networks u0026 Arrays 1Kohms 16pin Bus 5%

VSOR1601102JUF Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerVishay
package instructionSMT, 3915
Reach Compliance Codecompliant
ECCN codeEAR99
structureMolded Case
Component power consumption0.1 W
The first element resistor1000 Ω
JESD-609 codee3
Installation featuresSURFACE MOUNT
Network TypeBUSSED
Number of components15
Number of functions1
Number of terminals16
Maximum operating temperature150 °C
Minimum operating temperature-55 °C
Package height1.63 mm
Package length9.91 mm
Package shapeRECTANGULAR PACKAGE
Package formSMT
Package width3.86 mm
method of packingTUBE
Rated power dissipation(P)1 W
Rated temperature70 °C
resistance1000 Ω
Resistor typeARRAY/NETWORK RESISTOR
size code3915
surface mountYES
technologyTHIN FILM
Temperature Coefficient100 ppm/°C
Terminal surfaceMatte Tin (Sn)
Terminal shapeGULL WING
Tolerance5%
Operating Voltage50 V

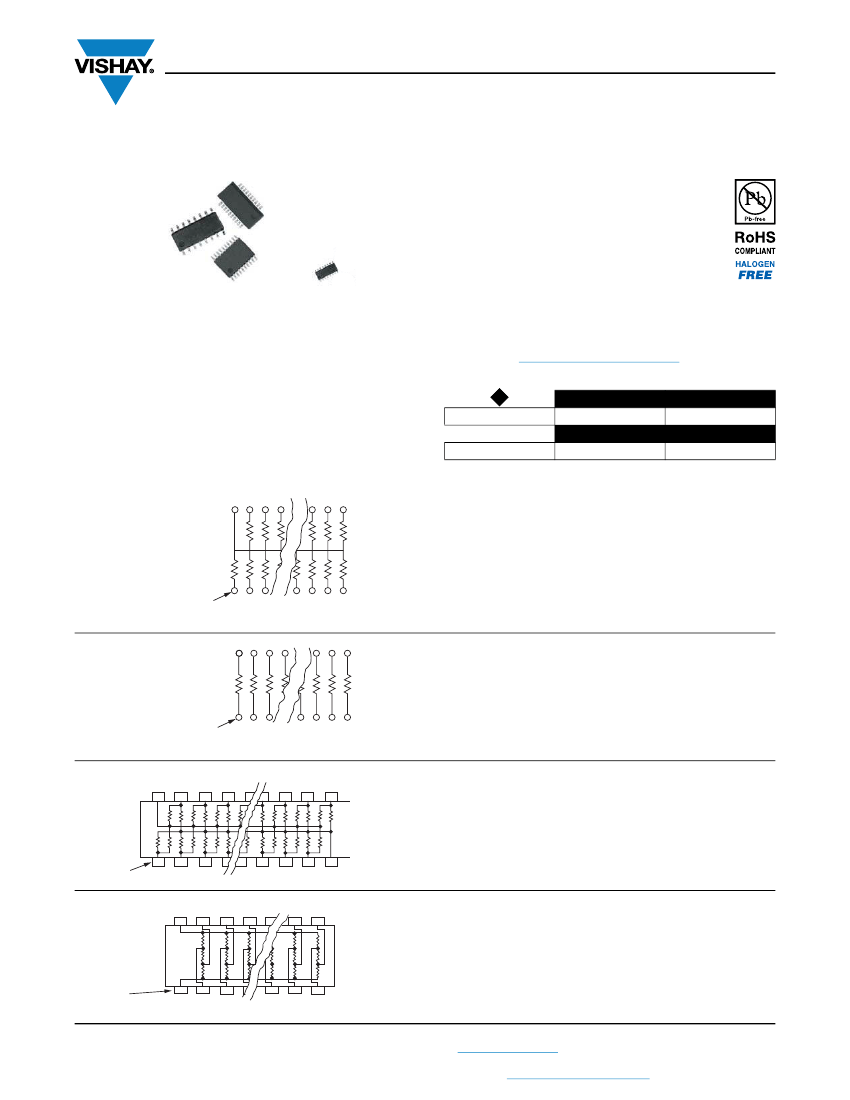

VTSR, VSSR, VSOR
www.vishay.com
Vishay Dale Thin Film
Molded, 25 mil or 50 mil Pitch, Dual-In-Line Thin Film Resistor,
Surface Mount Network
FEATURES
• Reduces total assembly costs
• Compatible with automatic surface mounting
equipment
• UL 94 V-0 flame resistant
• Thin film tantalum nitride on silicon
• Choice of package sizes: VTSR (TSSOP)
JEDEC
®
MO-153, VSSR (SSOP or QSOP)
JEDEC MO-137, VSOR (SOIC narrow) JEDEC MS-012
• Moisture sensitivity level 1 (per IPC/JEDEC STD-20C)
• Isolated/bussed/dual terminator/differential terminator
circuits
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
Actual Size
Vishay Dale Thin Film resistor networks are designed to be
used in either analog or digital circuits. The use of thin film
resistive elements within the network allows you to achieve
an infinite number of very low noise and high stability circuits
for industrial, medical and scientific instrumentation. Vishay
Dale Thin Film resistor networks are packaged in molded
plastic packages with sizes that are recognized throughout
the world. The rugged packaging offers superior
environmental protection and consistent dimensions for
ease of placement with automatic SMT equipment. Vishay
Dale Thin Film stocks many designs and values for
off-the-shelf convenience. With Vishay Dale Thin Film you
can depend on quality products delivered on time with
service backing the product.
TYPICAL PERFORMANCE
ABSOLUTE
TCR
TOL.
100
ABSOLUTE
5, 2, 1
TRACKING
NA
RATIO
NA
SCHEMATICS
01 SCHEMATIC
RESISTORS WITH ONE PIN COMMON
The 01 circuit provides nominally equal resistors
connected between a common pin and a discrete PC
board pin.
Commonly used in the following applications:
MOS/ROM
TTL input pull-down
pull-up/-down
Digital pulse squaring
Open collector pull-up
TTL unused gate pull-up
“Wired OR” pull-up
High speed parallels
pull-up
Power driven pull-up
Broad selection of standard values available
ISOLATED RESISTORS
The 03 circuit provides nominally equal resistors isolated
from all others and wired directly across.
Commonly used in the following applications:
“Wired OR” pull-up
Long-line impedance
balancing
Power driven pull-up
LED current limiting
Powergate pull-up
ECL output pull-down
Line termination
TTL input pull-down
Broad selection of standard values available
DUAL-LINE TERMINATOR; PULSE SQUARING
The 05 circuit contains pairs of resistors connected
between ground and a common line. The junctions of
these resistor pairs are connected to the input leads. The
05 circuits are designed for dual-line termination and pulse
squaring.
Standard values are:
VSSR1605:
VSSR2005:
R
1
= 220
,
R
2
= 330

R
1
= 220
,
R
2
= 330

R
1
= 330
,
R
2
= 470

R
1
= 220
,
R
2
= 1.8 k
R
1
= 1.5 k, R
2
= 3.3 k
DIFFERENTIAL TERMINATOR
The 47 schematic consists of series resistor sections
connected between V
CC
and ground. Each contains 3
resistors of 2 different resistance values.
Standard values are:
VSSR20 and VTSR20:
VSSR16 and VTSR16:
R
1
= 270
,
R
2
= 120
R
1
= 330
,
R
2
= 150
R
1
= 330
, R
2
= 220
Resistance Range:
10
Ω
to 47 kΩ
Lead #1
03 SCHEMATIC
Resistance Range:
10
Ω
to 47 kΩ
Lead #1
05 SCHEMATIC
R
1
R
2
R
2
R
1
R
2
R
1
R
1
R
2
R
2
R
1
R
1
R
2
R
2
R
1
R
2
R
2
R
1
R
1
R
2
R
2
R
1
R
1
R
2
R
2
R
1
R
1
R
2
Pin 1
47 SCHEMATIC
V
CC
R
1
R
2
R
3
Lead #1
GND
Revision: 19-Sep-14
Document Number: 60003
1
For technical questions, contact:
thinfilm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000

VSOR1601102JUF Related Products

VSOR1601102JUF VSSR2003330JTF VSSR1601221GTF VSSR2001103JUF VTSR1601103GTF VSSR2401472GUF VSSR2401103GTF
Description Resistor Networks u0026 Arrays 1Kohms 16pin Bus 5% Resistor Networks u0026 Arrays 220 2% 16 PIN BUSS QSOP Resistor Networks u0026 Arrays 10Kohms 20pin Bus 5% Array/Network Resistor, Bussed, Thin Film, 0.1W, 10000ohm, 50V, 2% +/-Tol, -100,100ppm/Cel, 2117, Resistor Networks u0026 Arrays 4.7K 2% 24 PIN BUSS Resistor Networks u0026 Arrays 10Kohms 24pin Bus 2%
Is it Rohs certified? conform to conform to conform to conform to conform to conform to conform to
Reach Compliance Code compliant compliant unknown compliant compliant compliant compliant
structure Molded Case Molded Case Molded Case Molded Case Rectangular Molded Case Molded Case
Component power consumption 0.1 W 0.1 W 0.1 W 0.1 W 0.1 W 0.1 W 0.1 W
The first element resistor 1000 Ω 33 Ω 220 Ω 10000 Ω 10000 Ω 4700 Ω 10000 Ω
JESD-609 code e3 e3 e3 e3 e3 e3 e3
Installation features SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT
Network Type BUSSED ISOLATED BUSSED BUSSED BUSSED BUSSED BUSSED
Number of components 15 1 15 19 15 23 23
Number of functions 1 10 1 1 1 1 1
Number of terminals 16 20 16 20 16 24 24
Maximum operating temperature 150 °C 125 °C 150 °C 150 °C 150 °C 150 °C 150 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C
Package height 1.63 mm 1.63 mm 1.63 mm 1.63 mm 1.09 mm 1.63 mm 1.63 mm
Package length 9.91 mm 8.66 mm 4.9 mm 8.66 mm 4.39 mm 8.66 mm 8.66 mm
Package form SMT SMT SMT SMT TSSOP SMT SMT
Package width 3.86 mm 3.91 mm 3.91 mm 3.91 mm 5.23 mm 3.91 mm 3.91 mm
method of packing TUBE TR TR TUBE TR, 13 INCH TUBE TR
Rated power dissipation(P) 1 W 1.2 W 1 W 1.2 W 1 W 1.4 W 1.4 W
Rated temperature 70 °C 70 °C 70 °C 70 °C 70 °C 70 °C 70 °C
resistance 1000 Ω 33 Ω 220 Ω 10000 Ω 10000 Ω 4700 Ω 10000 Ω
Resistor type ARRAY/NETWORK RESISTOR ARRAY/NETWORK RESISTOR ARRAY/NETWORK RESISTOR ARRAY/NETWORK RESISTOR ARRAY/NETWORK RESISTOR ARRAY/NETWORK RESISTOR ARRAY/NETWORK RESISTOR
size code 3915 1534 1915 3415 1721 3415 3415
surface mount YES YES YES YES YES YES YES
technology THIN FILM THIN FILM THIN FILM THIN FILM THIN FILM THIN FILM THIN FILM
Temperature Coefficient 100 ppm/°C 100 ppm/°C 100 ppm/°C 100 ppm/°C 100 ppm/°C 100 ppm/°C 100 ppm/°C
Terminal surface Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn) MATTE TIN Matte Tin (Sn) Matte Tin (Sn)
Terminal shape GULL WING GULL WING GULL WING GULL WING GULL WING GULL WING GULL WING
Tolerance 5% 5% 2% 5% 2% 2% 2%
Operating Voltage 50 V 50 V 50 V 50 V 50 V 50 V 50 V
Is it lead-free? Lead free Lead free Lead free Lead free - Lead free Lead free
Maker Vishay Vishay Vishay Vishay - Vishay Vishay
package instruction SMT, 3915 SMT, 1534 SMT, 1915 SMT, 3415 - SMT, 3415 QSOP, HALOGEN FREE AND ROHS COMPLIANT
ECCN code EAR99 - EAR99 EAR99 EAR99 EAR99 EAR99
Package shape RECTANGULAR PACKAGE RECTANGULAR PACKAGE RECTANGULAR PACKAGE RECTANGULAR PACKAGE - RECTANGULAR PACKAGE RECTANGULAR PACKAGE
