Features
■
Carbon element
■
Assortment of resistance tapers
■
45 mm and 60 mm travel lengths
■
Single and dual gang elements
■
Long operational life
■
Tracking error within ±2 dB
■
Various lever styles
*R
oH
S

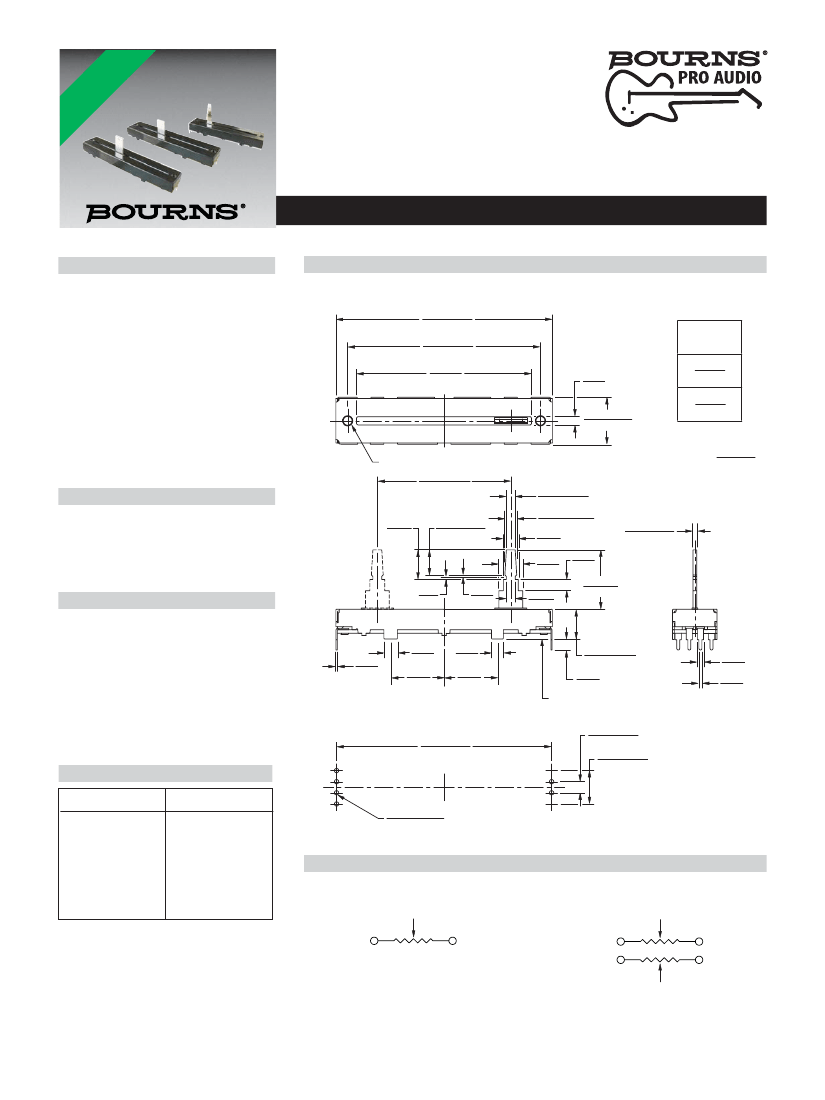

PTE Series Low Profile Slide Potentiometer
Electrical Characteristics
Standard Resistance Range
....................... 1K ohms to 1 megohm
Standard Resistance Tolerance... ±20 %
End Resistance ................. 2 ohms max.
Insulation Resistance @ 100 VDC
............................. 100 megohms min.
Dielectric Withstanding Voltage
.............................................. 250 VAC
Tracking Error ............................... ±2 dB
Standard Taper .................. Linear, Audio
Power Rating
Linear ..................................... 0.2 watt
Audio ...................................... 0.1 watt
Slider Noise .......................100 mV max.
Environmental Characteristics
Operational Life ..............100,000 cycles
TR Shift .................................... ±15 %
Operating Temperature Range
................................. -10 °C to +55 °C
Resistance to Solder Heat............. ±5 %
Mechanical Characteristics
Mechanical Angle ...................300 ° ±5 °
Mechanical Travel ........ Length ±0.5 mm
Operating Force .............................50 gf
Stop Strength ......................... 5 kgf min.
Shaft Axial Force .................... 5 kgf min.
Shaft Wobble .. 2(2 x L/25) mm p-p max.
Soldering Condition
Manual ...........300 °C ±5 °C for 3 sec.
Wave ..............260 °C ±5 °C for 5 sec.
Wash .....................Not recommended
Standard Resistance Table
Resistance
(Ohms)
1,000
2,000
5,000
10,000
20,000
50,000
100,000
200,000
500,000
1,000,000
Resistance
Code
102
202
502
103
203
503
104
204
504
105
10.0
(0.394)
Product Dimensions
45 mm Length of Travel
Lever End Style “B”
72.0 ± 0.5
(2.835 ± 0.020)
65.0 ± 0.3
(2.559 ± 0.012)
57.0
(2.244)
2.8
(0.110)
16.0 ± 0.5
(0.630 ± 0.020)
Lever
Length
15.0
(.591)
20.0
(.787)
M3 2 PLCS.
45.0 ± 0.5
(1.772 ± 0.020)
TRAVEL
8.5 ± 0.2
(0.335 ± 0.008)
DIMENSIONS:
MM
(INCHES)
3.0 ± 0.2
(0.118 ± 0.008)
4.0 +0.2/-0
(0.157 +0.008/-0)
5.0
(0.197)
3.8
8.0
(0.150)
(0.315)
3.0
(0.118)
L ± 0.5
(L ± 0.020)
1.2 ± 0.05
(0.047 ± 0.002)
1.0
(0.039)
0.5
(0.020)
0.5
(0.020)
4.9
(.193)
18.0
(.709)
3.8
(0.150)
18.0
(.709)
10.0 ± 0.5
(0.394 ± 0.020)
4.1
(0.161)
MOUNTING
SURFACE
3.75 ± 0.1
(0.148 ± 0.004)
11.25 ± 0.1
(0.443 ± 0.004)
3
3’
2.1
(0.083)
1.0
(0.039)
Mounting Hole Detail
72.5 ± 0.1
(2.854 ± 0.004)
2
1
1’
2’
1.5 +0.2/-0
(0.059 +0.008/-0)
DIA. 6 PLCS.
Schematics
Single Gang
2
R1 1
3
R1 1
R2 1'
2'
Dual Gang
2
3
3'
*RoHS Directive 2002/95/EC Jan 27 2003 including Annex
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
Applications
■
Mixing consoles
■
Drum machines
■
Keyboards and synthesizers
■
Equalizers

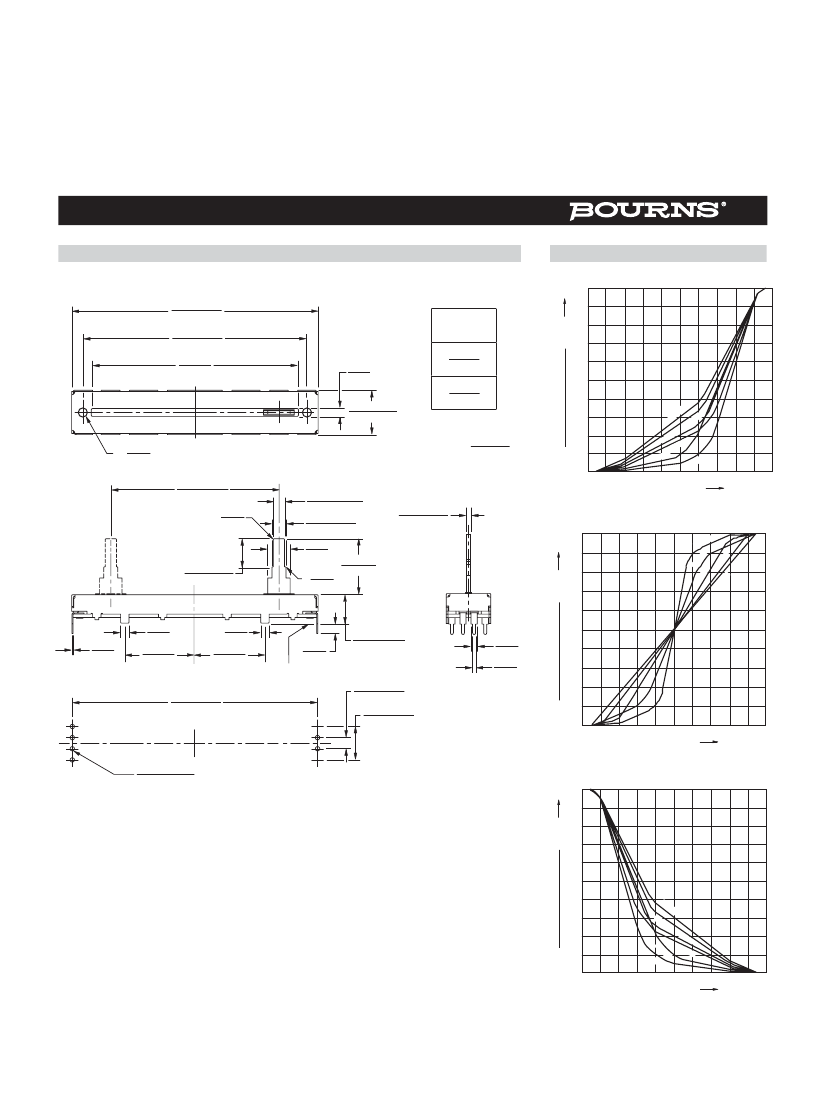

PTE Series Low Profile Slide Potentiometer
Product Dimensions
60 mm Length of Travel
Lever End Style “A”
Output Voltage across Terminals 1-2
X 100 (%)
Input Voltage across Terminals 1-3
Tapers
A Series Tapers
100
90
87.0 ± 0.5
(3.425 ± 0.020)
80.0 ± 0.3
(3.150 ± 0.012)
72.0
(2.835)
2.8
(0.110)
16.0 ± 0.5
(0.630 ± 0.020)
Lever
Length
15.0
(.591)
20.0
(.787)
80
70
60
50
40
30
20
10
(3
0A
);A
6
(25
A);
A5
M3
0.5
2 PLCS.
(0.020)
60.0 ± 0.5
(2.362 ± 0.020)
TRAVEL
0.5
R
(0.020)
DIMENSIONS:
MM
(INCHES)
A4
A);
3
(20
A);A
(15
A2
(10A);
(05
1
A);A
0
10
20
30
40
50
60
70
80
90
100
Terminal 1
Rotational Travel (%)
Terminal 3
4.0 +0/-0.1
(0.157 +0/-0.004)
5.0 ± 0.2
(0.197 ± 0.008)
8.0
(0.315)
1.2 ± 0.05
(0.047 ± 0.002)
100
B Series Tapers
);B5
(5B
(4B
);B
4
Output Voltage across Terminals 1-2
X 100 (%)
Input Voltage across Terminals 1-3
70
60
50
40
30
20
10
0.5
(0.020)
3.8
(0.150)
30.0
(1.181)
3.8
(0.150)
20.0
(0.787)
4.1
(0.161)
MOUNTING
SURFACE
10.0 ± 0.5
(0.394 ± 0.020)
2.1
(0.083)
1.0
(0.039)
87.5 ± 0.1
(3.444 ± 0.004)
2
1
1’
2’
1.5 +0.2/-0
(0.059 +0.008/-0)
DIA. 6 PLCS.
3.75 ± 0.1
(0.148 ± 0.004)
11.25 ± 0.1
(0.443 ± 0.004)
3
3’
0
10
20
30
40
50
60
(3B
10.0 ± 0.1
(0.394 ± 0.004)
R
0.3
(0.012)
);B
L ± 0.5
(L ± 0.020)
80
70
(1
(2
B)
B)
;B
;B
2
1
90
3
80
90
100
Terminal 1
Rotational Travel (%)
Terminal 3
C Series Tapers
100
90
Output Voltage across Terminals 1-2
X 100 (%)
Input Voltage across Terminals 1-3
80
70
60
50
40
30
20
(1
(25
(3
0C
);C
6
C)
;C5
10
2
(05
C);C
1
0C
);C
(20
C);
C4
(15
C);
C3
0
10
20
30
40
50
60
70
80
90
100
Terminal 1
Rotational Travel (%)
Terminal 3
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
PTE Series Low Profile Slide Potentiometer
Additional Lever End Styles
Lever End Style “C”
R
0.5
(0.020)
8.0
(0.318)
1.6
DIA.
(.630)
How To Order
PTE 45 - 15 2 A - 103 B2
MM
(INCHES)
Model Number
Designator
PTE = Low Profile
Slide
Potentiometer
Length of Travel
45 = 45 mm
60 = 60 mm
Lever Length
12 = 12 mm (Available with
Lever End Style C)
13 = 12.8 mm (Available with
Lever End Style D)
15 = 15 mm (Available with
Lever End Styles A,B,E)
20 = 20 mm (Available with
Lever End Styles A,B,D,E)
No. of Gangs
1 = Single Gang
2 = Dual Gang
Metal Lever End Style
(Refer to Drawings)
•A •D
•B •E
•C
Resistance Code
(See Standard Resistance Table)
Resistance Taper (See Taper Charts)
Taper Series followed by Curve Number
DIMENSIONS:
1.35
(0.053)
12.0 ± 0.1
(0.472 ± 0.004)
Lever End Style “D”
R
0.5
(0.020)
8.0
(0.318)
Lever
Length
12.8
(.504)
L ± 0.1
(L ± 0.004)
20.0
(.787)
Lever End Style “E”
3.0
(0.118)
4.0
(0.157)
5.0
(0.197)
10.0
(0.394)
1.0
0.5
(0.020) (0.039)
Lever
Length
15.0
(.591)
20.0
(.787)
3.0
(0.118)
L ± 0.1
(L ± 0.004)
REV. 02/10
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
