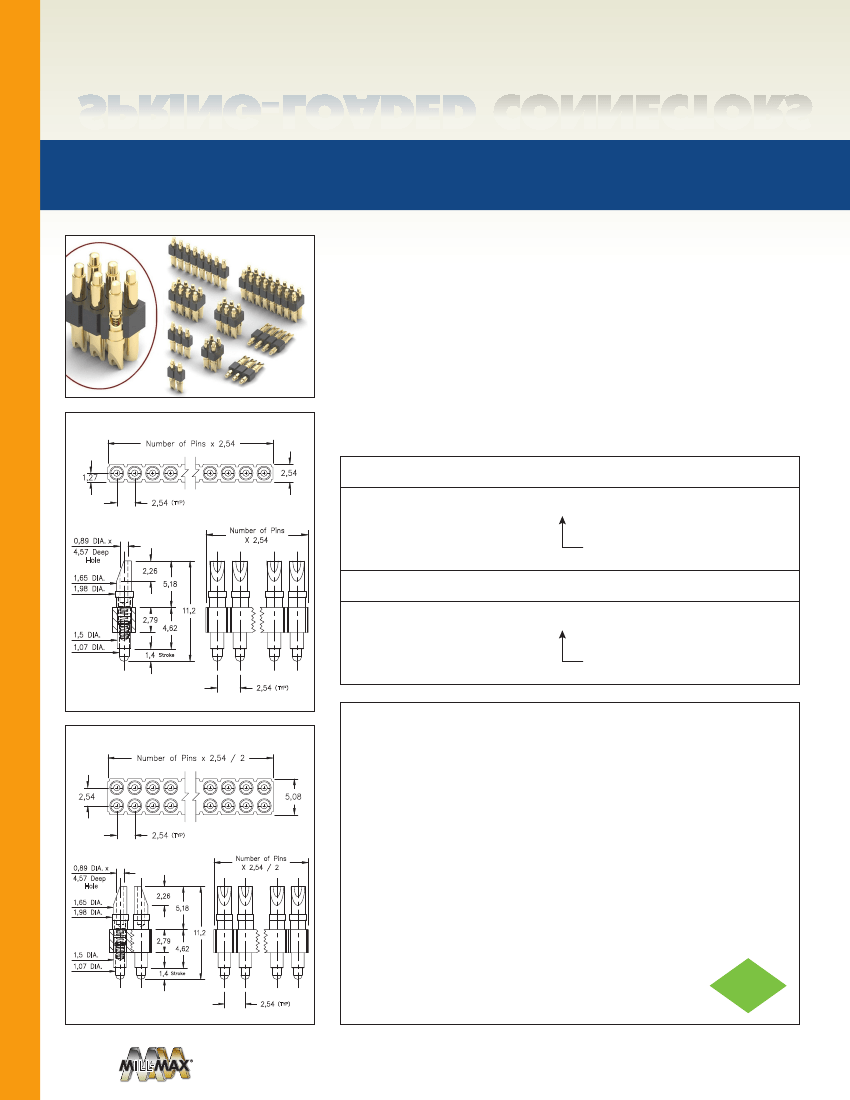

SPRING-LOADED
CONNECTORS
SERIES 824 & 826 • 2,54 GRID SOLDERCUP HEADER •
SINGLE AND DOUBLE ROW STRIPS
• Modular contacts for use on 2,54 grid, supplied in single and double row contact strips
• Precision-machined piston / base and gold-plated components assure up to 1,000,000
cycle life durability
• Pistons have a 0,7 mid. stroke and a 1,4 max. stroke
• Low resistance, high current contacts are rated at 2 amps continuous, 3 amps peak
• Insulators are high temperature thermoplastic
• Both 824 & 826 series strips have spring pins with wire termination soldercups. The
soldercups are aligned to provide easy access for soldering up to size 22 AWG wires
SINGLE ROW Series 824
ORDERING INFORMATION
Single Row Series 824
824-22-0XX-00-001000
Specify number of contacts
01-64
Double Row Series 826
826-22-0XX-00-001000
Specify number of contacts
04-72
DOUBLE ROW Series 826
PAGE 17 | SPRING-LOADED CONNECTORS
Materials:
Contact piston & base: Machined copper alloy plated 0,51μm gold over
2,54μm nickel
Spring: Beryllium copper-plated 0,25μm gold
Insulator: High temperature thermoplastic, rated UL94 V-0
Mechanical:
Spring force @ initial height: 25 grams
Spring force @ mid stroke (0,7): 60 grams
Durability: Up to 1,000,000 cycles
Electrical:
Voltage rating: 100Vrms/150Vdc
Current rating: 2A (continous), 3A (peak) per contact
Contact resistance: 20mW max.
Insulation resistance: 10,000MW min.
Dielectric strength: 700Vrms min.
Capacitance: 1pF max.
Technical Specifications
2011/65/EU
RoHS - 2
Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
