29S201-302L5-NM

Description
RF MCX Connector, Male, Cable Mount, Crimp Terminal, Plug, ROHS COMPLIANT
CategoryThe connector    The connector
File Size59KB,2 Pages
ManufacturerRosenberger
Websitehttps://www.rosenberger.com/
Download Datasheet Parametric View All

29S201-302L5-NM Overview

RF MCX Connector, Male, Cable Mount, Crimp Terminal, Plug, ROHS COMPLIANT

29S201-302L5-NM Parametric

Parameter NameAttribute value
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
Other featuresAPPLICABLE CABLES: RG 316 /U; RG 174 A/U; RG 188 A/U, INSERTION LOSS AND VSWR MAX AT: 4 GHZ
Body/casing typePLUG
Characteristic impedance50 Ω
Connector typeRF MCX CONNECTOR
Contact to complete cooperationGOLD
Contact completed and terminatedGOLD
Contact point genderMALE
Coupling typeSNAP
DIN complianceNO
Filter functionNO
IEC complianceNO
Insertion loss0.1 dB
insulator materialPOLYTETRAFLUORO ETHYLENE
JESD-609 codee4
MIL complianceNO
Manufacturer's serial number29S201-302L5-NM
Installation methodRIGHT ANGLE
Installation typeCABLE
Maximum operating frequency6 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
Termination typeCRIMP
voltage standing wave ratio1.1
Base Number Matches1

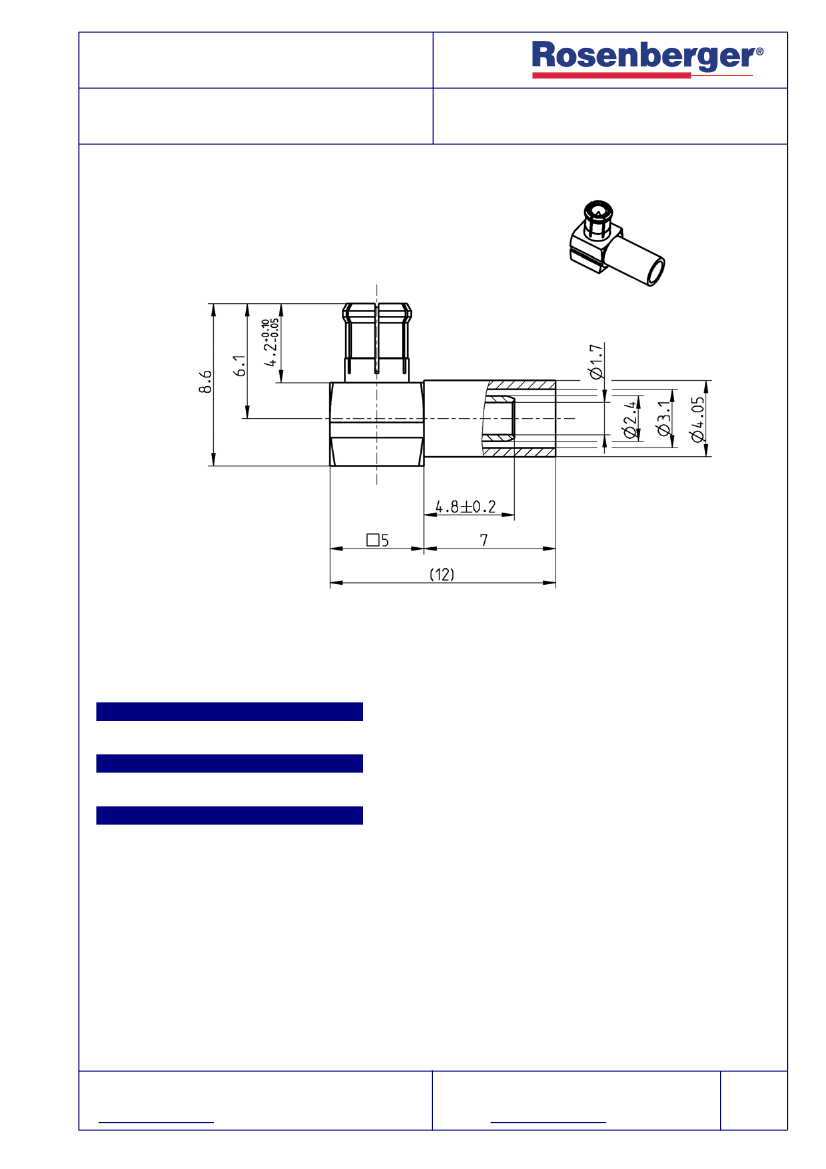

TECHNICAL DATA SHEET
MCX
RIGHT ANGLE PLUG
29S201-302L5-NM
All dimensions are in mm; tolerances acc. ISO 2768 m-H
Interface
According to
CECC 22 220, IEC 60169-36
Documents
Assembly instruction
29 C
Material and plating
Non-magnetic version
Connector parts
Center contact
Outer contact
Dielectric
Crimping sleeve
Material
Spring bronze
Beryllium copper
PTFE
Copper
Plating
AuroDur, gold plated
AuroDur, gold plated
AuroDur, gold plated
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
