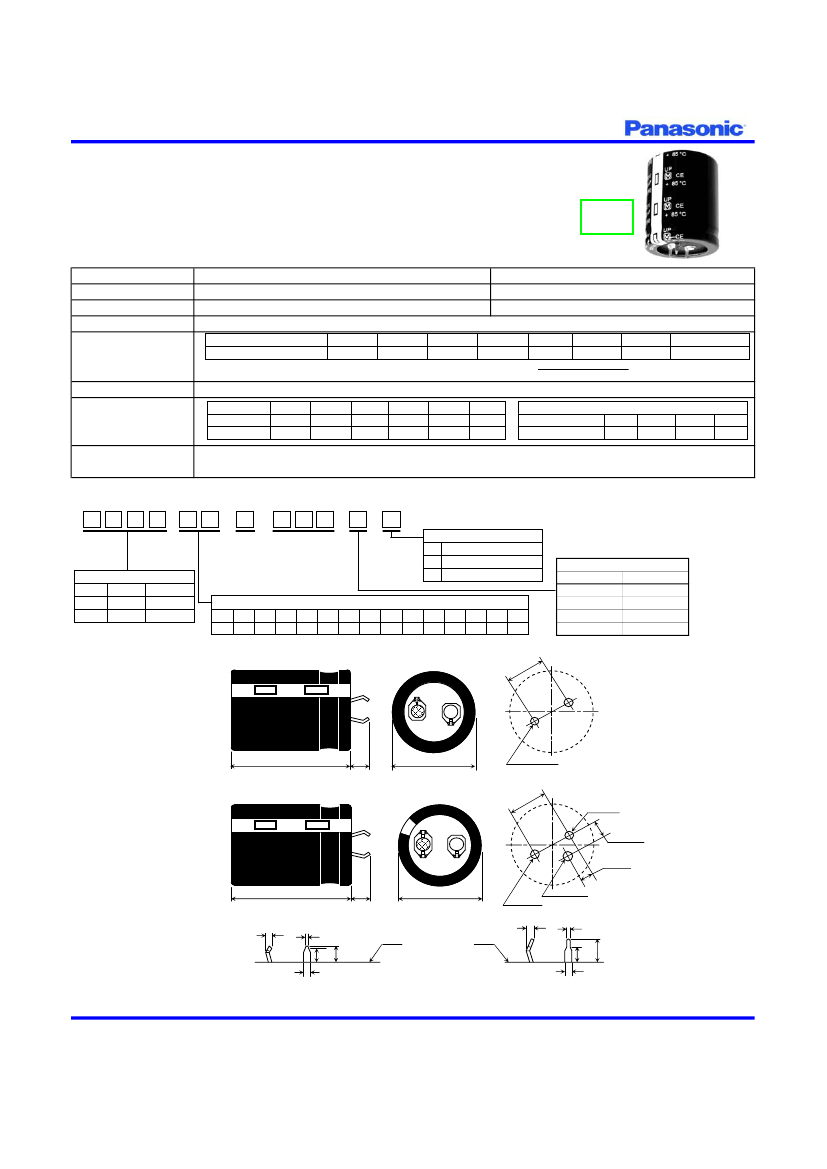

Aluminum Electrolytic Capacitors
TS-UP Series
85°C, 3000 hours
RoHS
Compliant
Compact size for general purpose and industrial applications
2 and 3 pin versions available
20mm lengths for low profile applications
Rated Working Voltage:
Operating Temperature:
Nominal Capacitance:
Capacitance Tolerance:
Dissipation Factor:
(120 Hz, +20°C)
Leakage Current:
Ripple Current Multipliers:
16 ~ 250 VDC
-40 ~ +85°C
120 ~ 68000µF
± 20%
Working Voltage [V]:
Max. D.F. (%):
16
50
25
40
35
35
50
30
63
25
80
20
100
20
160 ~ 450
15
350 ~ 450 VDC
-25 ~ +85°C
33 ~ 820µF
For capacitance values > 33000µF, add the value of:
(rated cap. [µF] - 33000 )
1000
3√CV (µA) max. after 5 minutes;
C = Capacitance in µF, V = WV
Frequency(Hz):
16~100WV:
160~450WV:
50
0.93
0.75
60
0.95
0.8
100~120
1.0
1.0
500
1.05
1.2
1k
1.08
1.25
10k
1.15
1.4
Ripple Current Ambient Temperature Factors**
Temperature (°C): 85°C
70°C
60°C
Multiplier: 1.0
1.3
1.4
≤45°C
1.5
Endurance:
3000 hours* at +85°C with maximum specified ripple current (see page 4)
*2000 hours for 20mm length sizes
**Use of temperature ripple current multipliers may limit life to the hours specified for the maximum operating temperature.
Part Number System
E
C
E
C
P
Series
Code
Terminal Style
Prefix Length # of Pins
2
ECEC
4.0mm
2
ECOS
6.3mm
Capacitance
Code
A
X
L
Voltage Code
1C
16
1E
25
1V
35
1H
50
1J
63
1K 2A 2C 2D 2E 2V 2T 2G 2S 2W
80 100 160 200 250 350 385 400 420 450
Suffix
Standard Ratings
Extended CV Ratings
20mm Length Ratings
RoHS compliant PVC sleeve and top
plate is standard. PET sleeve is
available without top plate.
Diameter
Diameter
Code
22
B
25
C
30
D
35
E
Dimensions in millimeters
2 Pin Mounting Style
10.0±0.1
Circuit Board Mounting Holes
L+2 max.
T
D+1 max.
2 x Ø2.0±0.1
10.0±0.1
Circuit Board Mounting Holes
Ø2.0±0.1
4.75±0.1
3.3±0.1
3 Pin Mounting Style
(Optional)
L+2 max.
T
D+1 max.
Ø2.0±0.1
2.0 max.
Ø2.5 min.
Pin Dimensions
2.0 max.
0.8
-0.1
3.5
1.5±0.2
+0.2
0.8
+0.2
-0.1
Top of Capacitor Body
4.0±0.5
1.5±0.2
4.0
6.3±1.0
4mm Length: Standard on 2 Pin, Available on 3 Pin Mounting Styles
6.3mm Length: Available on 2 Pin Mounting Style Only
14
Aluminum Electrolytic Capacitors
TS-UP Standard Ratings (continued)
Cap.
(µF)
2200
3300
3900
4700
Size (mm)
DxL
22
22
22
25
22
22
25
30
22
25
22
25
35
22
25
22
25
30
35
25
30
35
25
30
35
30
35
30
35
35
35
22
22
22
25
22
22
25
30
22
25
22
25
30
35
22
25
30
22
25
30
25
30
25
30
35
30
35
30
35
35
35
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
20
25
25
20
25
30
25
20
30
25
35
30
20
40
35
45
40
30
25
45
35
30
50
40
30
45
35
50
40
45
50
20
25
25
20
25
30
25
20
30
25
35
30
25
20
40
35
30
50
40
30
45
35
50
40
30
45
35
50
40
45
50
Part numbers shown with 2 pins
Max 85°C R.C. (A
rms
)
20°C ESR (Ω, max.)
Panasonic Part Number (By Terminal Length)
6.3mm Length Terminal
4.0mm Length Terminal
120Hz
10kHz~
120Hz
20kHz
35 VDC Working,
44 VDC Surge (continued)
ECOS1VP222BL
ECEC1VP222BL
1.40
1.61
0.181
0.136
ECOS1VP222BA
ECEC1VP222BA
1.52
1.75
0.166
0.124
ECOS1VP332BA
ECEC1VP332BA
2.29
2.63
0.111
0.083
ECOS1VP332CL
ECEC1VP332CL
1.70
1.96
0.121
0.090
ECOS1VP392BA
ECEC1VP392BA
2.71
3.12
0.094
0.070
ECOS1VP472BA
ECEC1VP472BA
3.26
3.75
0.078
0.058
ECOS1VP472CA
ECEC1VP472CA
3.26
3.75
0.078
0.058
ECOS1VP472DL
ECEC1VP472DL
2.00
2.30
0.088
0.066
ECOS1VP562BA
ECEC1VP562BA
3.36
3.86
0.080
0.060
ECOS1VP562CA
ECEC1VP562CA
3.36
3.86
0.080
0.060
ECOS1VP682BA
ECEC1VP682BA
3.68
4.23
0.066
0.049
ECOS1VP682CA
ECEC1VP682CA
3.68
4.23
0.066
0.049
ECOS1VP682EL
ECEC1VP682EL
2.40
2.76
0.071
0.053
ECEC1VP822BA
ECOS1VP822BA
4.00
4.60
0.057
0.042
ECEC1VP822CA
ECOS1VP822CA
4.00
4.60
0.057
0.042
ECEC1VP103BA
ECOS1VP103BA
4.42
5.08
0.050
0.037
ECEC1VP103CA
ECOS1VP103CA
4.42
5.08
0.050
0.037
ECEC1VP103DA
ECOS1VP103DA
4.42
5.08
0.050
0.037
ECEC1VP103EA
ECOS1VP103EA
4.42
5.08
0.050
0.037
ECEC1VP123CA
ECOS1VP123CA
5.05
5.81
0.044
0.033
ECEC1VP123DA
ECOS1VP123DA
5.05
5.81
0.044
0.033
ECEC1VP123EA
ECOS1VP123EA
5.05
5.81
0.044
0.033
ECOS1VP153CA
ECEC1VP153CA
5.57
6.41
0.036
0.027
ECOS1VP153DA
ECEC1VP153DA
5.57
6.41
0.036
0.027
ECOS1VP153EA
ECEC1VP153EA
5.57
6.41
0.036
0.027
ECEC1VP183DA
ECOS1VP183DA
5.68
6.53
0.030
0.023
ECOS1VP183EA
ECEC1VP183EA
5.68
6.53
0.030
0.023
ECOS1VP223DA
ECEC1VP223DA
6.10
7.02
0.026
0.020
ECOS1VP223EA
ECEC1VP223EA
6.10
7.02
0.026
0.020
ECOS1VP273EA
ECEC1VP273EA
6.84
7.87
0.021
0.017
ECEC1VP333EA
ECOS1VP333EA
7.15
8.22
0.018
0.014
50 VDC Working,
63 VDC Surge
ECOS1HP152BL
ECEC1HP152BL
1.20
1.38
0.254
0.191
ECOS1HP152BA
ECEC1HP152BA
1.24
1.43
0.221
0.166
ECEC1HP222BA
ECOS1HP222BA
1.82
2.09
0.151
0.113
ECOS1HP222CL
ECEC1HP222CL
1.40
1.61
0.173
0.130
ECEC1HP272BA
ECOS1HP272BA
2.23
2.56
0.123
0.092
ECOS1HP332BA
ECEC1HP332BA
2.73
3.14
0.100
0.075
ECEC1HP332CA
ECOS1HP332CA
2.73
3.14
0.100
0.075
ECEC1HP332DL
ECOS1HP332DL
1.70
1.96
0.116
0.087
ECEC1HP392BA
ECOS1HP392BA
2.75
3.16
0.085
0.064
ECOS1HP392CA
ECEC1HP392CA
2.75
3.16
0.085
0.064
ECEC1HP472BA
ECOS1HP472BA
3.03
3.48
0.071
0.053
ECOS1HP472CA
ECEC1HP472CA
3.03
3.48
0.071
0.053
ECOS1HP472DA
ECEC1HP472DA
3.03
3.48
0.071
0.053
ECOS1HP472EL
ECEC1HP472EL
2.10
2.42
0.081
0.061
ECOS1HP562BA
ECEC1HP562BA
3.42
3.93
0.059
0.044
ECOS1HP562CA
ECEC1HP562CA
3.42
3.93
0.059
0.044
ECOS1HP562DA
ECEC1HP562DA
3.42
3.93
0.059
0.044
ECEC1HP682BA
ECOS1HP682BA
3.85
4.43
0.049
0.037
ECEC1HP682CA
ECOS1HP682CA
3.85
4.43
0.049
0.037
ECEC1HP682DA
ECOS1HP682DA
3.85
4.43
0.049
0.037
ECEC1HP822CA
ECOS1HP822CA
4.41
5.07
0.040
0.030
ECEC1HP822DA
ECOS1HP822DA
4.41
5.07
0.040
0.030
ECEC1HP103CA
ECOS1HP103CA
4.97
5.72
0.036
0.027
ECEC1HP103DA
ECOS1HP103DA
4.97
5.72
0.036
0.027
ECOS1HP103EA
ECEC1HP103EA
4.97
5.72
0.036
0.027
ECEC1HP123DA
ECOS1HP123DA
5.58
6.42
0.032
0.024
ECEC1HP123EA
ECOS1HP123EA
5.58
6.42
0.032
0.024
ECEC1HP153DA
ECOS1HP153DA
6.44
7.41
0.028
0.021
ECEC1HP153EA
ECOS1HP153EA
6.44
7.41
0.028
0.021
ECEC1HP183EA
ECOS1HP183EA
6.94
7.98
0.023
0.018
ECEC1HP223EA
ECOS1HP223EA
7.57
8.71
0.021
0.017
5600
6800
8200
10000
12000
15000
18000
22000
27000
33000
1500
2200
2700
3300
3900
4700
5600
6800
8200
10000
12000
15000
18000
22000
16
Aluminum Electrolytic Capacitors
TS-UP Standard Ratings (continued)
Cap.
(µF)
1000
1500
1800
2200
Size (mm)
DxL
22
22
22
25
22
22
25
30
22
25
22
25
30
35
22
25
30
22
25
30
35
25
30
35
25
30
35
30
35
35
35
22
22
22
25
22
22
25
30
22
25
22
25
30
35
22
25
30
22
25
30
25
30
25
30
30
35
30
35
35
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
20
25
25
20
25
30
25
20
35
30
40
30
25
20
45
35
30
50
40
30
25
45
35
30
50
40
30
45
35
40
50
20
25
25
20
25
30
25
20
35
30
40
30
25
20
45
35
30
50
40
30
45
35
50
40
45
35
50
40
50
Max 85°C R.C. (A
rms
)
20°C ESR (Ω, max.)
120Hz
10kHz~
120Hz
20kHz
63 VDC Working,
79 VDC Surge
1.20
1.38
0.381
0.286
1.20
1.38
0.332
0.249
1.72
1.98
0.221
0.166
1.30
1.50
0.254
0.191
2.06
2.37
0.184
0.138
2.52
2.90
0.151
0.113
2.52
2.90
0.151
0.113
1.50
1.73
0.173
0.130
3.73
4.29
0.123
0.092
3.73
4.29
0.123
0.092
4.10
4.72
0.105
0.079
4.10
4.72
0.105
0.079
4.10
4.72
0.105
0.079
1.70
1.96
0.126
0.094
4.44
5.11
0.098
0.073
4.44
5.11
0.098
0.073
4.44
5.11
0.098
0.073
4.86
5.59
0.081
0.061
4.86
5.59
0.081
0.061
4.86
5.59
0.081
0.061
4.86
5.59
0.081
0.061
5.36
6.16
0.068
0.051
5.36
6.16
0.068
0.051
5.36
6.16
0.068
0.051
5.84
6.72
0.061
0.046
5.84
6.72
0.061
0.046
5.84
6.72
0.061
0.046
6.00
6.90
0.051
0.038
6.00
6.90
0.051
0.038
6.52
7.50
0.041
0.033
7.15
8.22
0.035
0.028
80 VDC Working,
100 VDC Surge
1.00
1.15
0.439
0.329
1.02
1.17
0.390
0.293
1.51
1.74
0.265
0.199
1.20
1.38
0.298
0.224
1.81
2.08
0.221
0.166
2.26
2.60
0.177
0.133
2.26
2.60
0.177
0.133
1.40
1.61
0.199
0.149
2.52
2.90
0.147
0.111
2.52
2.90
0.147
0.111
2.73
3.14
0.121
0.090
2.73
3.14
0.121
0.090
2.73
3.14
0.121
0.090
1.70
1.96
0.136
0.102
2.78
3.20
0.098
0.074
2.78
3.20
0.098
0.074
2.78
3.20
0.098
0.074
3.21
3.69
0.085
0.064
3.21
3.69
0.085
0.064
3.21
3.69
0.085
0.064
3.59
4.13
0.077
0.057
3.59
4.13
0.077
0.057
4.09
4.70
0.063
0.048
4.09
4.70
0.063
0.048
4.55
5.23
0.056
0.042
4.55
5.23
0.056
0.042
5.16
5.93
0.046
0.035
5.16
5.93
0.046
0.035
5.83
6.70
0.038
0.029
Part numbers shown with 2 pins
Panasonic Part Number (By Terminal Length)
4.0mm Length Terminal
6.3mm Length Terminal
ECOS1JP102BL
ECOS1JP102BA
ECOS1JP152BA
ECOS1JP152CL
ECOS1JP182BA
ECOS1JP222BA
ECOS1JP222CA
ECOS1JP222DL
ECOS1JP272BA
ECOS1JP272CA
ECOS1JP332BA
ECOS1JP332CA
ECOS1JP332DA
ECOS1JP332EL
ECOS1JP392BA
ECOS1JP392CA
ECOS1JP392DA
ECOS1JP472BA
ECOS1JP472CA
ECOS1JP472DA
ECOS1JP472EA
ECOS1JP562CA
ECOS1JP562DA
ECOS1JP562EA
ECOS1JP682CA
ECOS1JP682DA
ECOS1JP682EA
ECOS1JP822DA
ECOS1JP822EA
ECOS1JP103EA
ECOS1JP123EA
ECOS1KP681BL
ECOS1KP681BA
ECOS1KP102BA
ECOS1KP102CL
ECOS1KP122BA
ECOS1KP152BA
ECOS1KP152CA
ECOS1KP152DL
ECOS1KP182BA
ECOS1KP182CA
ECOS1KP222BA
ECOS1KP222CA
ECOS1KP222DA
ECOS1KP222EL
ECOS1KP272BA
ECOS1KP272CA
ECOS1KP272DA
ECOS1KP332BA
ECOS1KP332CA
ECOS1KP332DA
ECOS1KP392CA
ECOS1KP392DA
ECOS1KP472CA
ECOS1KP472DA
ECOS1KP562DA
ECOS1KP562EA
ECOS1KP682DA
ECOS1KP682EA
ECOS1KP822EA
ECEC1JP102BL
ECEC1JP102BA
ECEC1JP152BA
ECEC1JP152CL
ECEC1JP182BA
ECEC1JP222BA
ECEC1JP222CA
ECEC1JP222DL
ECEC1JP272BA
ECEC1JP272CA
ECEC1JP332BA
ECEC1JP332CA
ECEC1JP332DA
ECEC1JP332EL
ECEC1JP392BA
ECEC1JP392CA
ECEC1JP392DA
ECEC1JP472BA
ECEC1JP472CA
ECEC1JP472DA
ECEC1JP472EA
ECEC1JP562CA
ECEC1JP562DA
ECEC1JP562EA
ECEC1JP682CA
ECEC1JP682DA
ECEC1JP682EA
ECEC1JP822DA
ECEC1JP822EA
ECEC1JP103EA
ECEC1JP123EA
ECEC1KP681BL
ECEC1KP681BA
ECEC1KP102BA
ECEC1KP102CL
ECEC1KP122BA
ECEC1KP152BA
ECEC1KP152CA
ECEC1KP152DL
ECEC1KP182BA
ECEC1KP182CA
ECEC1KP222BA
ECEC1KP222CA
ECEC1KP222DA
ECEC1KP222EL
ECEC1KP272BA
ECEC1KP272CA
ECEC1KP272DA
ECEC1KP332BA
ECEC1KP332CA
ECEC1KP332DA
ECEC1KP392CA
ECEC1KP392DA
ECEC1KP472CA
ECEC1KP472DA
ECEC1KP562DA
ECEC1KP562EA
ECEC1KP682DA
ECEC1KP682EA
ECEC1KP822EA
2700
3300
3900
4700
5600
6800
8200
10000
12000
680
1000
1200
1500
1800
2200
2700
3300
3900
4700
5600
6800
8200
17
Aluminum Electrolytic Capacitors
TS-UP Standard Ratings (continued)
Cap.
(µF)
470
560
680
1000
Size (mm)
DxL
22
22
22
22
25
22
25
30
22
25
22
25
30
35
22
25
30
22
25
30
35
25
30
35
25
30
30
35
30
35
35
35
22
22
22
22
25
22
25
22
25
22
25
30
22
25
30
25
35
25
30
35
25
30
35
30
35
30
35
35
35
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
20
25
25
25
20
30
25
20
35
30
40
30
25
20
45
35
30
50
40
30
25
45
35
30
50
40
45
35
50
40
45
50
25
25
25
25
25
30
25
35
25
40
30
25
45
35
30
40
30
50
35
30
50
45
35
50
35
50
40
45
50
Max 85°C R.C. (A
rms
)
20°C ESR (Ω, max.)
120Hz
10kHz~
120Hz
20kHz
100 VDC Working,
125 VDC Surge
1.00
1.15
0.459
0.298
1.11
1.28
0.459
0.298
1.32
1.52
0.385
0.250
1.61
1.85
0.317
0.206
1.10
1.27
0.366
0.238
1.96
2.25
0.216
0.140
1.96
2.25
0.216
0.140
1.20
1.38
0.249
0.162
2.31
2.66
0.193
0.126
2.31
2.66
0.180
0.117
2.57
2.96
0.155
0.101
2.57
2.96
0.155
0.101
2.57
2.96
0.155
0.101
1.50
1.73
0.177
0.115
2.84
3.27
0.129
0.084
2.84
3.27
0.138
0.090
2.84
3.27
0.138
0.090
3.14
3.61
0.121
0.078
3.14
3.61
0.121
0.078
3.14
3.61
0.121
0.078
3.14
3.61
0.121
0.078
3.71
4.27
0.104
0.068
3.71
4.27
0.104
0.068
3.71
4.27
0.104
0.068
4.06
4.67
0.090
0.059
4.06
4.67
0.090
0.059
4.54
5.22
0.077
0.050
4.54
5.22
0.081
0.052
5.13
5.90
0.071
0.049
5.13
5.90
0.071
0.049
5.75
6.61
0.059
0.041
6.60
7.59
0.049
0.037
160 VDC Working,
200 VDC Surge
0.91
1.27
0.829
0.414
1.19
1.67
0.675
0.338
1.45
2.03
0.553
0.276
1.62
2.27
0.468
0.234
1.62
2.27
0.468
0.234
2.11
2.95
0.423
0.212
2.11
2.95
0.423
0.212
2.25
3.15
0.355
0.178
2.25
3.15
0.355
0.178
2.50
3.50
0.293
0.146
2.50
3.50
0.293
0.146
2.50
3.50
0.293
0.146
2.75
3.85
0.263
0.131
2.75
3.85
0.263
0.131
2.75
3.85
0.263
0.131
3.00
4.20
0.216
0.108
3.00
4.20
0.232
0.128
3.25
4.55
0.207
0.114
3.25
4.55
0.207
0.114
3.25
4.55
0.207
0.114
3.73
5.22
0.166
0.091
3.73
5.22
0.166
0.091
3.73
5.22
0.166
0.091
4.20
5.88
0.138
0.083
4.20
5.88
0.138
0.083
4.78
6.69
0.105
0.053
4.78
6.69
0.113
0.073
4.78
6.69
0.113
0.073
5.45
7.63
0.092
0.060
Part numbers shown with 2 pins
Panasonic Part Number (By Terminal Length)
4.0mm Length Terminal
6.3mm Length Terminal
ECOS2AP471BL
ECOS2AP471BA
ECOS2AP561BA
ECOS2AP681BA
ECOS2AP681CL
ECOS2AP102BA
ECOS2AP102CA
ECOS2AP102DL
ECOS2AP122BA
ECOS2AP122CA
ECOS2AP152BA
ECOS2AP152CA
ECOS2AP152DA
ECOS2AP152EL
ECOS2AP182BA
ECOS2AP182CA
ECOS2AP182DA
ECOS2AP222BA
ECOS2AP222CA
ECOS2AP222DA
ECOS2AP222EA
ECOS2AP272CA
ECOS2AP272DA
ECOS2AP272EA
ECOS2AP332CA
ECOS2AP332DA
ECOS2AP392DA
ECOS2AP392EA
ECOS2AP472DA
ECOS2AP472EA
ECOS2AP562EA
ECOS2AP682EA
ECOS2CP221BA
ECOS2CP271BA
ECOS2CP331BA
ECOS2CP391BX
ECOS2CP391CA
ECOS2CP471BA
ECOS2CP471CA
ECOS2CP561BA
ECOS2CP561CX
ECOS2CP681BA
ECOS2CP681CX
ECOS2CP681DA
ECOS2CP821BA
ECOS2CP821CA
ECOS2CP821DA
ECOS2CP102CX
ECOS2CP102EA
ECOS2CP122CA
ECOS2CP122DA
ECOS2CP122EA
ECOS2CP152CX
ECOS2CP152DA
ECOS2CP152EA
ECOS2CP182DA
ECOS2CP182EX
ECOS2CP222DX
ECOS2CP222EX
ECOS2CP222EA
ECOS2CP272EA
ECEC2AP471BL
ECEC2AP471BA
ECEC2AP561BA
ECEC2AP681BA
ECEC2AP681CL
ECEC2AP102BA
ECEC2AP102CA
ECEC2AP102DL
ECEC2AP122BA
ECEC2AP122CA
ECEC2AP152BA
ECEC2AP152CA
ECEC2AP152DA
ECEC2AP152EL
ECEC2AP182BA
ECEC2AP182CA
ECEC2AP182DA
ECEC2AP222BA
ECEC2AP222CA
ECEC2AP222DA
ECEC2AP222EA
ECEC2AP272CA
ECEC2AP272DA
ECEC2AP272EA
ECEC2AP332CA
ECEC2AP332DA
ECEC2AP392DA
ECEC2AP392EA
ECEC2AP472DA
ECEC2AP472EA
ECEC2AP562EA
ECEC2AP682EA
ECEC2CP221BA
ECEC2CP271BA
ECEC2CP331BA
ECEC2CP391BX
ECEC2CP391CA
ECEC2CP471BA
ECEC2CP471CA
ECEC2CP561BA
ECEC2CP561CX
ECEC2CP681BA
ECEC2CP681CX
ECEC2CP681DA
ECEC2CP821BA
ECEC2CP821CA
ECEC2CP821DA
ECEC2CP102CX
ECEC2CP102EA
ECEC2CP122CA
ECEC2CP122DA
ECEC2CP122EA
ECEC2CP152CX
ECEC2CP152DA
ECEC2CP152EA
ECEC2CP182DA
ECEC2CP182EX
ECEC2CP222DX
ECEC2CP222EX
ECEC2CP222EA
ECEC2CP272EA
1200
1500
1800
2200
2700
3300
3900
4700
5600
6800
220
270
330
390
470
560
680
820
1000
1200
1500
1800
2200
2700
18
51mcu
京公网安备 11010802033920号
EEWORLD
