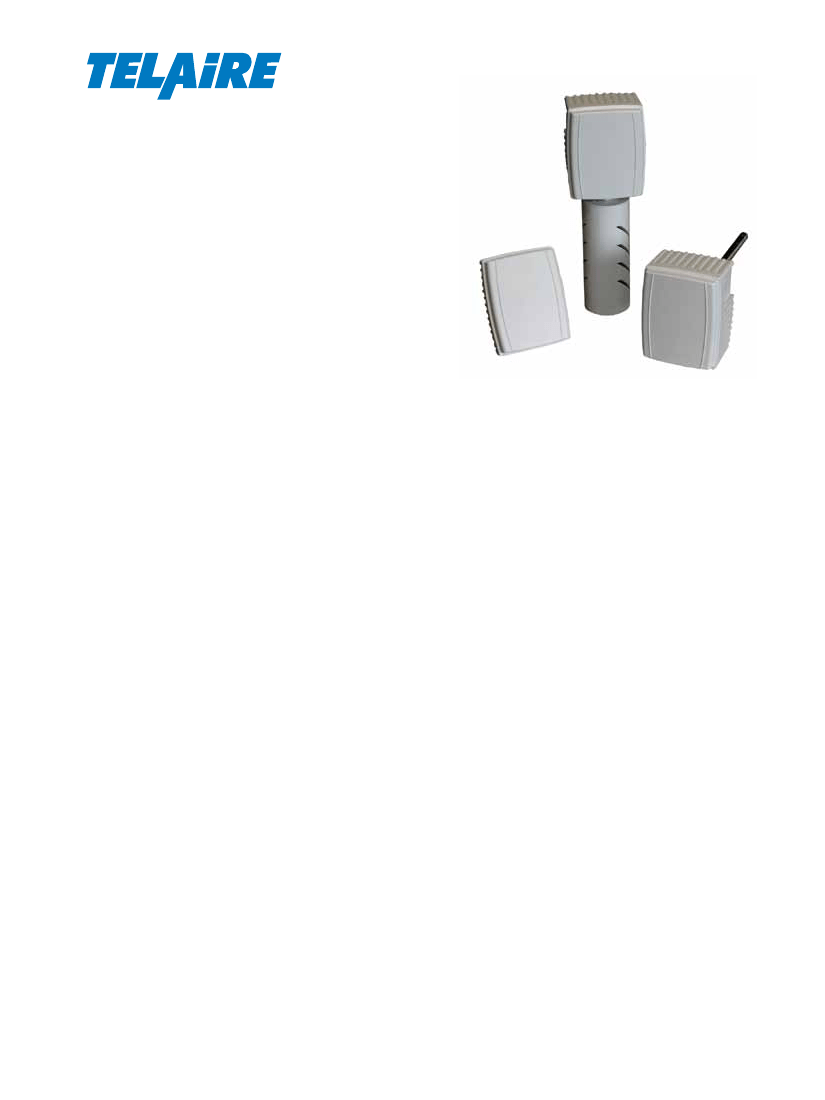

HumiTrac™
Relative
Humidity/Temperature
Transmitters
Features
• National Institute of Standards and
Technology (NIST) traceable, field-replaceable
sensor
• Full Scale (FS) 0 to 100% RH measurement
• Energy Management Systems (EMS)
• NIST traceable factory calibration
• Enthalpy control
• User selectable RH and temperature outputs
• Indoor Air Quality (IAQ)
• Robust, proven capacitive sensor technology
• Clean rooms
• Attractive and rugged packaging
• Museums/archives
• 2%, 3% or 5% RH accuracy
• Hospitals/labs
• NIST certification available
• Refrigeration control
• Versatile temperature measurement
• Pharmaceutical
• Temperature compensated
• Swimming pools
• Low cost of ownership
• Animal rooms
• Two year warranty
Applications
• HVAC/building controls
Amphenol
Advanced Sensors
Enhanced Field Serviceability

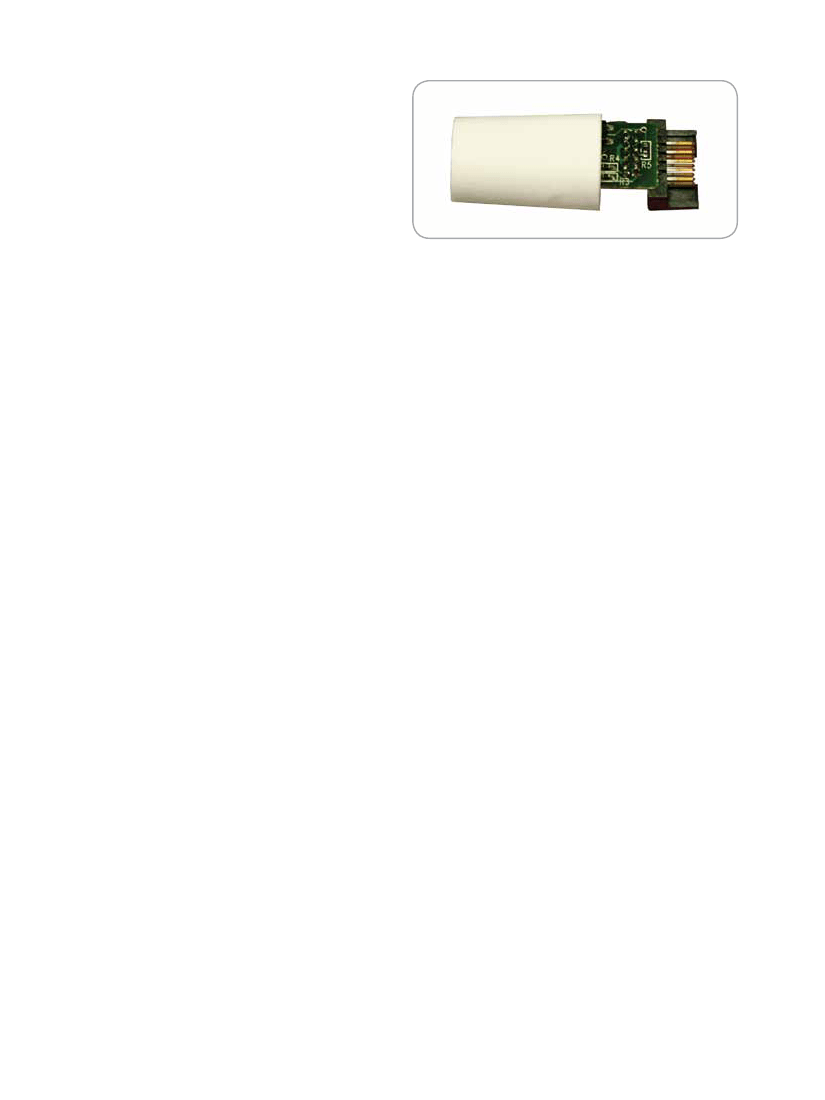

HumiTrac features a National Institute of Standards
and Technology (NIST) traceable, field-replaceable
sensor tip module that allows the end user to replace
the sensor on-site while maintaining ±2% RH accuracy
and NIST traceability. The user simply powers off the
unit, installs the new sensor module and powers back
the unit. All necessary calibration constants are stored
in the memory of the sensor module and uploaded to
the transmitter instantly. This virtually eliminates the
need for time consuming and costly factory calibration,
while reducing downtime during service intervals to
near zero.
Rugged, Attractive Enclosures
All HumiTrac configurations feature rugged flame
retardant, UL-94V ABS plastic. Duct and outdoor air
versions provide excellent weather resistance (IP42
rated). Special care has been taken in the design
of the wall mount enclosure to provide enhanced
airflow, increasing sensor response time and virtually
eliminating the potential of “self-heating” by transmitter
electronics that can lead to decreased accuracy
measurements.
Unsurpassed Sensor Performance
HumiTrac utilizes a rugged capacitive sensor that
provides full-scale 0-100% RH measurement with
unsurpassed response times, linearity and stability.
Recovery to condensation and chemicals is excellent
and an integrated filter, plus conformal-coated module
electronics ensure long life. All sensors undergo a ten
hour digital calibration, certified against a primary NIST
reference standard. Signal conditioned temperature
versions maintain specified RH accuracy across the full
operating range of -40°F to 140°F (-40°C to 60°C).
Simple, Fast Installation
All HumiTrac models feature large removable,
pluggable terminal blocks, eliminating the need to
wire in a confined space and allow the unit to be pre-
wired separate from the electronics—an especially
attractive feature in unfinished construction, where
exposed sensors and electronics could be damaged by
moisture, drywall dust and paint. All models incorporate
a retaining wire that attaches the cover to the base,
allowing the installer to wire the unit without using an
extra hand to hold the cover.
Maximum Flexibility
HumiTrac is designed to be highly configurable in the
field or in your warehouse. By minimizing the necessary
number of configurations, Telaire reduces distributor
inventory costs and provides maximum flexibility to the
installer. All versions feature field-selectable outputs
(0 to 5V, 0 to 10V, 4 to 20mA) and passive temperature
versions incorporate both a 3K and 10K W thermistor.
Simple adjustment of slide switches is all that is
required. Signal-conditioned temperature versions
are available scaled from 32°F to 122°F (0°C to 50°C)
or -40°F to 140°F (-40°C to 60°C). Custom ranges are
available upon request for high volume applications.
HumiTrac is available in humidity accuracies of ±2%,
±3% or ±5%, and offered in wall mount, duct mount
and outdoor air configurations.
Lowest Cost of Ownership
With a two-year warranty*, simplified inventory
management, reduced installation times and field-
serviceability, HumiTrac sets the standard in reduced
cost of ownership and performance-to-price ratio.
*Transmitter only, one year warranty on replaceable sensor.
HumiTrac
Specifications
Operating Range
• -40°F to 140°F (-40°C to 60°C)
• 0% to 99% RH (non-condensing)

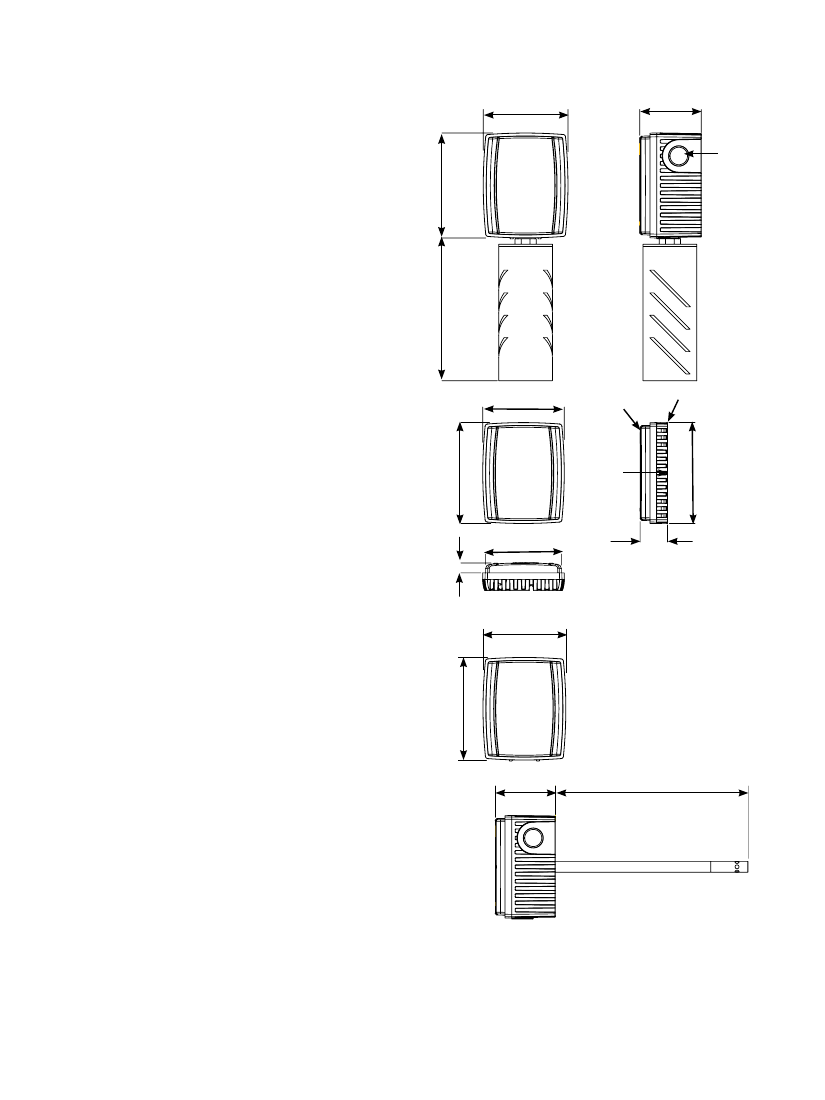

6.38 in
(162 mm)
4.70 in
(119.2 mm)
3.80 in
(96.3 mm)
2.75 in
(70 mm)
Outside Air
Mount
1/2 in
(12.7 mm)
conduit
knockout
2 places
Environmental Conditions
Storage Temperature
-67°F to 185°F (-55°C to 85°C)
Humidity
Sensing Element
Capacitive polymer sensor
4.70 in
(119.2 mm)
3.80 in
(96.3 mm)
Cover
Base
Space (Wall)
Mount
Accuracy at 71.6°F (22°C)
• ±2% version: ±2% 10 to 90% RH
±5% 0 to 10% & 90-99% RH
• 3% version: ±3% @ 10 to 90% RH
• 5% version: ±5% RH @ 0 to 99% RH
*Includes hysteresis, linearity and repeatability
Wiring
access
4.70 in
(119.2 mm)
Long Term Stability
Less than 1% drift per year, typical
0.46 in
(11.7 mm)
3.52 in
(89.5 mm)
1.28 in
(32.4 mm)
Temperature Effect**
Delta %RH = (0.0014 x %RH + 0.1325) x T°C -
(0.0317 x %RH + 3.0876)
**Not applicable to signal-conditioned temperature
units.
3.80 in
(96.3 mm)
Duct
Mount
Repeatability
See accuracy statement
4.70 in
(119.2 mm)
Linearity
See accuracy statement
2.75 in
(70 mm)
8.80 in
(223.7 mm)
Hysteresis
• < ±1.5% RH (30%RH 1h ->70%RH 1h
->90%RH 1h ->30%RH, Vair = 2m/sec)
Signal Outputs
4 to 20mA, 0 to 5V or 0 to 10V (user selectable)
Outside Air Mount
Case: ABS flame retardant IP42 rated
Space (Wall) Mount
Case: ABS flame retardant
Duct Mount
Case: ABS flame retardant IP42 rated
Probe: Stainless steel
HumiTrac
Specifications
Temperature-Direct Connection
Thermistor
Sensing Element
• 10K W thermistor at 77°F (25°C)
• 3K W thermistor at 77°F (25°C)
General
Protection
IP42 rating for Duct Mount and Outside Air Transmitters
Ordering Information
Model
5%
Space (Wall) Mount)
Accuracy
3%
2%
2% with NIST
Certificate
Signal Output
Direct connection, user selectable between 3K or 10K
RH only
RH and 3/10K W
thermistor
RH and Active
Temperature
32°F to 122°F
(0°C to 50°C)*
RH and Active
Temperature
-40°F to 140°F
(-40°C to 60°C)*
Duct Mount
RH only
RH and 3/10K W
thermistor
RH and Active
Temperature
32°F to 122°F
(0°C to 50°C)*
RH and Active
Temperature
-40°F to 140°F
(-40°C to 60°C)*
Outside Air
RH only
RH and 3/10K W
thermistor
RH and 1000 PRTD
-40°F to 140°F
(-40°C to 60°C)*
Replaceable
Sensor Tip
(RH Only)
P40250121
P40250122
P40250123
P40250181
P40250182
P40250183
P40250109
P40250110
P40250111
P40250139
P40250141
P40250142
Accuracy
Refer to DC95F103W (10K) and DC95F302W (3K) from
Telaire
P40250125
P40250184
P40250112
P40250143
Active Temperature Output
Calibration Accuracy at 71.6°F (22°C)
±0.5°F (±0.3°C)
P40250129
P40250130
P40250131
P40250190
P40250191
P40250192
P40250117
P40250118
P40250119
P40250147
P40250149
P40250150
Long Term Stability
Less than 0.2°F drift per year
Sensor Interchangeability
±0.5°F (±0.3°C)
P40250133
P40250193
P40250120
P40250151
Signal Outputs
4 to 20mA, 0 to 5V or 0 to 10V (user selectable)
P40250126
P40250127
P40250128
P40250185
P40250186
P40250189
P40250113
P40250114
P40250115
P40250144
P40250145
P40250146
Power Requirements
Supply Voltage
12 to 30 VDC
P40254276
P40254277
P40254275
N/A
Maximum Load (current output only)
W = Supply Voltage-10
0.02
*Signal conditioned temperature output corresponding to 4 to 20 mA, 0 to 5V or 0
to 10V
(user selectable)
