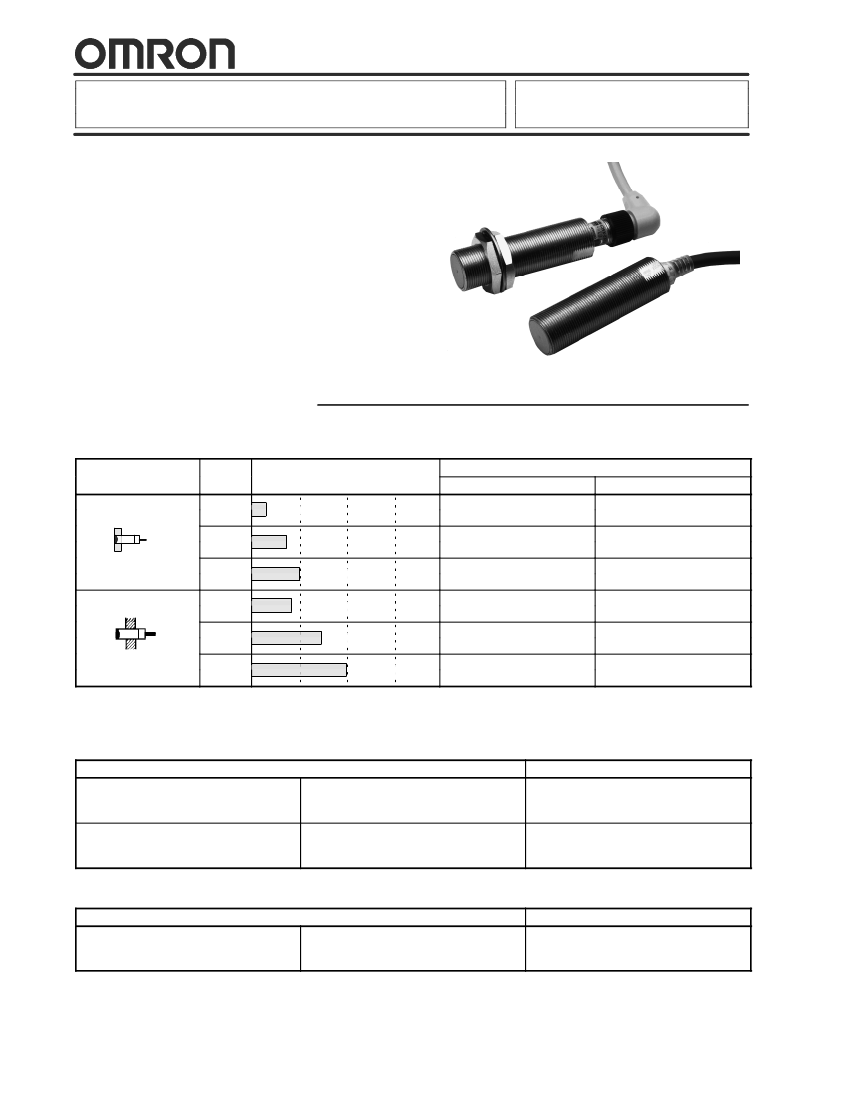

R
Long Barrel Inductive Prox
Reduce Wiring to Control Devices with
2-Wire Inductive Prox Sensors
H
Thick nickel-plated brass barrel for
ruggedness
H
Solid potted internal circuitry withstands
shocks and water washdown to IP67
H
Wrench flats allow easy installation
E2E2 2-Wire DC
Ordering Information
J
PREWIRED SENSORS
Type
yp
Shielded
Size
M12
M18
M30
Unshielded
M12
M18
M30
Sensing distance
g
Part number
NO
3 mm
7 mm
10 mm
8 mm
14 mm
20 mm
E2E2 X3D1
E2E2-X3D1
E2E2 X7D1
E2E2-X7D1
E2E2 X10D1
E2E2-X10D1
E2E2 X8MD1
E2E2-X8MD1
E2E2 X14MD1
E2E2-X14MD1
E2E2 X20MD1
E2E2-X20MD1
NC
E2E2 X3D2
E2E2-X3D2
E2E2 X7D2
E2E2-X7D2
E2E2 X10D2
E2E2-X10D2
E2E2 X8MD2
E2E2-X8MD2
E2E2 X14MD2
E2E2-X14MD2
E2E2 X20MD2
E2E2-X20MD2
Note: A different oscillating frequency is available to reduce mutual interference. Add a “5” to the part number (e.g., E2E2-X3D15).
J
ACCESSORIES
Description
Mounting brackets
Fits M12 size sensors
Fits M18 size sensors
Fits M30 size sensors
Fits M12 size sensors
Fits M18 size sensors
Fits M30 size sensors
Part number
Y92E-B12
Y92E-B18
Y92E-B30
Y92E-E12-2
Y92E-E18-2
Y92E-E30-2
Silicone rubber covers for shielded sensors
J
REPLACEMENT PARTS
Description
Mounting hardware including one pair of
metal nuts and one washer
Fits M12 size sensors
Fits M18 size sensors
Fits M30 size sensors
Part number
M12-MHWS
M18-MHWS
M30-MHWS
2
E2E2 2-WIRE DC
E2E2 2-WIRE DC
Specifications
Part number
Size
Type
Sensing distance
Supply voltage (operating
voltage range)
Leakage current
Sensing object
Setting distance
Standard object (mild steel)
E2E2-X3Dj
M12
Shielded
3 mm (0.12
in)
±10%
Unshielded
8 mm (0.31 in)
±10%
E2E2-X8MDj
E2E2-X7Dj
M18
Shielded
7 mm (0.28
in)
±10%
Unshielded
14 mm (0.55 in)
±10%
E2E2-X14MDj
E2E2-X10Dj
M30
Shielded
10 mm (0.39
in)
±10%
Unshielded
20 mm (0.79
in)
±10%
E2E2-X20Mj
12 to 24 VDC, ripple (p-p): 10% max., (10 to 30 VDC)
0.8 mA max.
Magnetic metals (refer to
Engineering Data
for non-magnetic metals)
0 to 2.4 mm
(0 to 0.09 in)
12 x 12 x
1 mm (0.47 x
0.47 x 0.04 in)
1.0 kHz
0 to 6.4 mm
(0 to 0.25 in)
30 x 30 x
1 mm (1.18 x
1.18 x 0.04 in)
0.8 kHz
0 to 5.6 mm
(0 to 0.22 in)
18 x 18 x
1 mm (0.71 x
0.71 x 0.04 in)
0.5 kHz
0 to 11.2 mm
(0 to 0.44 in)
30 x 30 x 1 mm
(1.18 x 1.18 x
0.04 in)
0.4 kHz
0 to 8.0 mm
(0 to 0.31 in)
30 x 30 x
1 mm (1.18 x
1.18 x 0.04 in)
0.4 kHz
0 to 16.0 mm
(0 to 0.63 in)
54 x 54 x
1 mm (2.13 x
2.13 x 0.04 in)
0.1 kHz
Differential travel
Response frequency
Operation (with sensing object
approaching)
Control output (switching
capacity)
Circuit protection
Indicator
Ambient
temperature
Ambient humidity
Voltage influence
Residual voltage
Insulation resistance
Dielectric strength
Vibration resistance
Shock resistance
Enclosure
rating
Weight
Material
Body
Sensing face
IEC
NEMA
Operating
Operating
10% max. of sensing distance
D1 models: Load ON
D2 models: Load OFF
3 to 100 mA
Surge absorber, load short-circuit protection
D1 models: Operation indicator (red LED), operation set indicator (green LED)
D2 models: Operation indicator (red LED)
-
-25°C to 70°C (-
-13°F to 158°F) with no icing
35% to 95%
±10%
max. of sensing distance at 23°C in temperature range of -
-25°C to 70°C (-
-13°F to 158°F)
±1%
max. of sensing distance in rated voltage range
±15%
3.0 V max. (under load current of 100 mA with cable length of 2 m)
50 MΩ min. (at 500 VDC) between current carry parts and case
1,000 VAC for 1 min. between current carry parts and case
10 to 55 Hz, 1.5-mm double amplitude for 10 times each in X, Y, and Z axes
1,000 m/s
2
(approx. 100G) for 10 times each in X, Y, and Z axes
IP67
1, 4, 6, 12, 13
65 g
Brass
PBT
150 g
220 g
Temperature influence
3
E2E2 2-WIRE DC
E2E2 2-WIRE DC
Operation
J

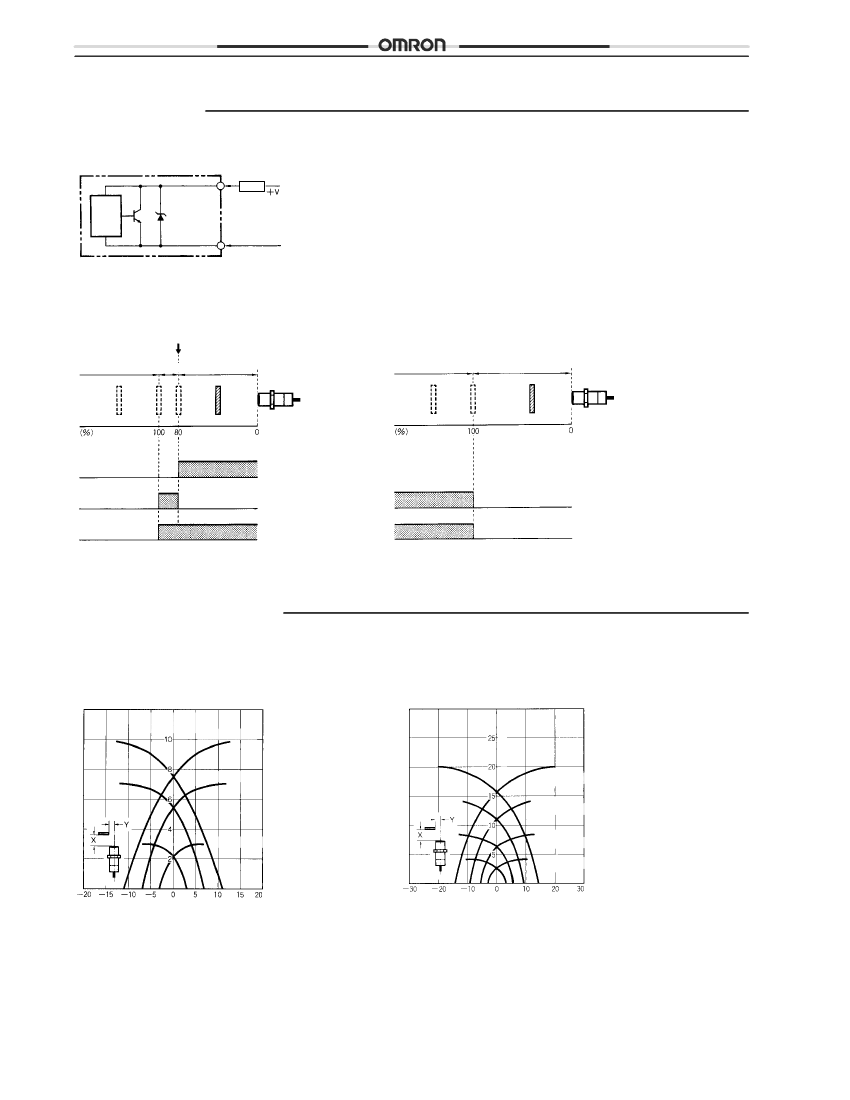

OUTPUT CIRCUITS
1
Load
Brown
Main
circuit
4 (or 2)
Blue
0V
J
TIMING CHARTS
NO Type
Non-sensing
zone
Sensing
object
Setting
position
Unstable
Stable sensing
sensing zone zone
NC Type
Non-sensing zone
Sensing
object
Sensing zone
Proximity
Sensor
Proximity
Sensor
Rated sensing
Rated sensing
distance
Lit
Not lit
Green
indicator
Lit
Red
Not lit indicator
ON
OFF
Control
output
distance
Lit
Red
Not lit indicator
ON
OFF
Control
output

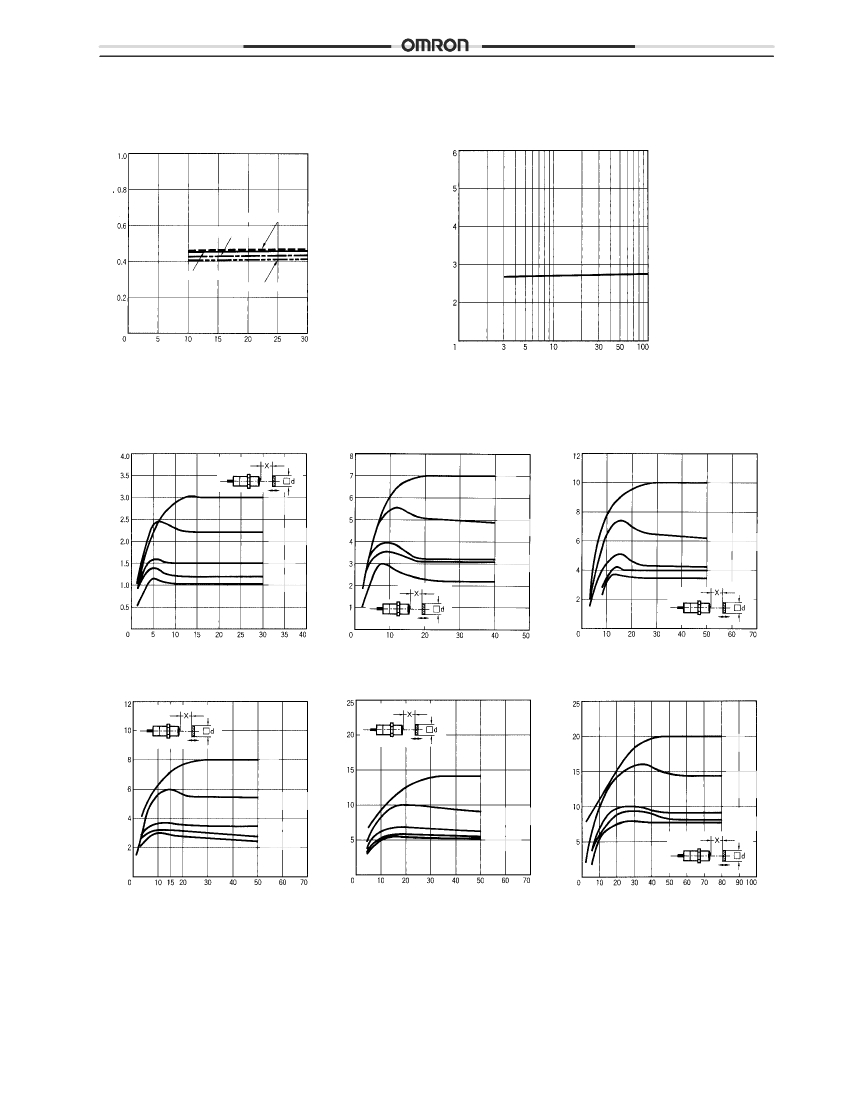

Engineering Data
J
OPERATING RANGE (TYPICAL)
Shielded Models
E2E2-XjDj
Sensing distance
X (mm)
E2Ej-X10Dj
Unshielded Models
E2E2-XjMDj
Sensing distance
X (mm)
E2Ej-X20MDj
E2Ej-X14MDj
E2Ej-X8MDj
E2Ej-X4MDj
E2Ej-X7Dj
E2Ej-X3Dj
Y (mm)
Y (mm)
4
E2E2 2-WIRE DC
J
LEAKAGE CURRENT (TYPICAL)
E2E2-XjDj
E2E2 2-WIRE DC
J
RESIDUAL OUTPUT VOLTAGE (TYPICAL)
E2E2-XjDj
E2E2-X10D1-NM
E2E2-X3D1-NM
E2E2-X2D1-NM
E2E2-X7D1-NM
Supply voltage (V)
Residual output voltage (V)
Leakage current (mA)
Load current (mA)
J
SENSING DISTANCE VS. SENSING OBJECT (TYPICAL)
E2E2-X3Dj
E2E2-X7Dj
E2E2-X10Dj
Sensing distance (mm)
Sensing distance (mm)
Mild
steel
Stainless steel
(SUS304)
Brass
Aluminum
Copper
Stainless steel
(SUS304)
Brass
Aluminum
Copper
Sensing distance (mm)
Mild
steel
Mild
steel
Stainless steel
(SUS304)
Brass
Aluminum
Copper
Side length of sensing object d (mm)
E2E2-X8MDj
Side length of sensing object d (mm)
E2E2-X14MDj
Side length of sensing object d (mm)
E2E2-X20MDj
Sensing distance (mm)
Sensing distance (mm)
Sensing distance (mm)
Mild
steel
Stainless
steel
(SUS304)
Brass
Aluminum
Copper
Mild
steel
Stainless steel
(SUS304)
Brass
Aluminum
Copper
Mild
steel
Stainless steel
(SUS304)
Brass
Aluminum
Copper
Side length of sensing object d (mm)
Side length of sensing object d (mm)
Side length of sensing object d (mm)
5
E2E2 2-WIRE DC
E2E2 2-WIRE DC

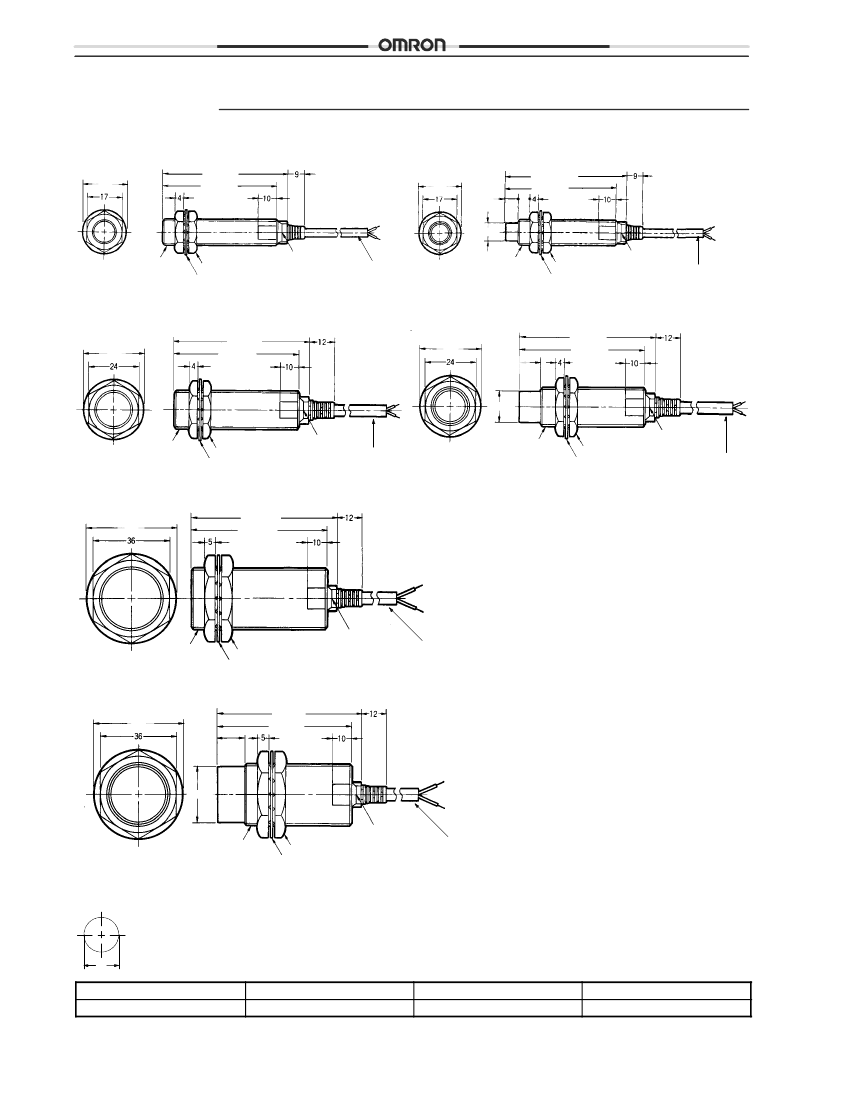

Dimensions
Unit: mm (inch)
E2E2-X3Dj
21 dia.
(0.83)
60 (2.36)
55 (2.17)
E2E2-X8MDj
21 dia.
(0.83)
7
(0.28)
9 dia.
Operation indicator
Two clamping nut
Round vinyl-insulated cable
4 dia. (0.08 dia. x 60)
Toothed washer
2/3 cores
Standard length: 2 m
Operation indicator
Two clamping nut
Toothed washer
Round vinyl-insulated cable
4 dia. (0.08 dia. x 60)
2/3 cores
Standard length: 2 m
60 (2.36)
55 (2.17)
M12
×
1
M12
×
1
E2E2-X7Dj
29 dia.
(1.14)
65 (2.56)
60 (2.36)
E2E2-X14MDj
29 dia.
(1.14)
65 (2.56)
60 (2.36)
10
(0.39)
14.8 dia.
M18
×
1
Operation indicator
Round vinyl-insulated cable
6 dia. (0.12 dia. x 45)
2/3 cores
Standard length: 2 m
Two clamping nut
Toothed washer
M18
×
1
E2E2-X10Djj
42 dia.
(1.65)
70 (2.76)
65 (2.56)
Operation indicator
Two clamping nut
Round vinyl-insulated cable
Toothed washer
6 dia. (0.12 dia. x 45)
2/3 cores
Standard length: 2 m
Operation indicator
M30
×
1.5
Two clamping nut
Toothed washer
Round vinyl-insulated cable
6 dia. (0.12 dia. x 45)
2/3 cores
Standard length: 2 m
E2E2-X20MDj
42 dia.
(1.65)
70 (2.76)
65 (2.56)
13
(0.51)
26.8 dia.
Operation indicator
M30
×
1.5
Two clamping nut
Toothed washer
Round vinyl-insulated cable
6 dia. (0.12 dia. x 45)
2/3 cores
Standard length: 2 m
J
MOUNTING HOLES
F
Dimensions
F (mm)
M12
12.5 (0.49 in) dia.
M18
18.5 (0.73 in) dia.
M30
30.5 (1.20 in) dia.
6
