.09 in
2 mm
.62 in
16 mm
3.12 in
79 mm
.27 in
7 mm
.53 in
13 mm
3.50 in
89 mm
11.75 in
298 mm

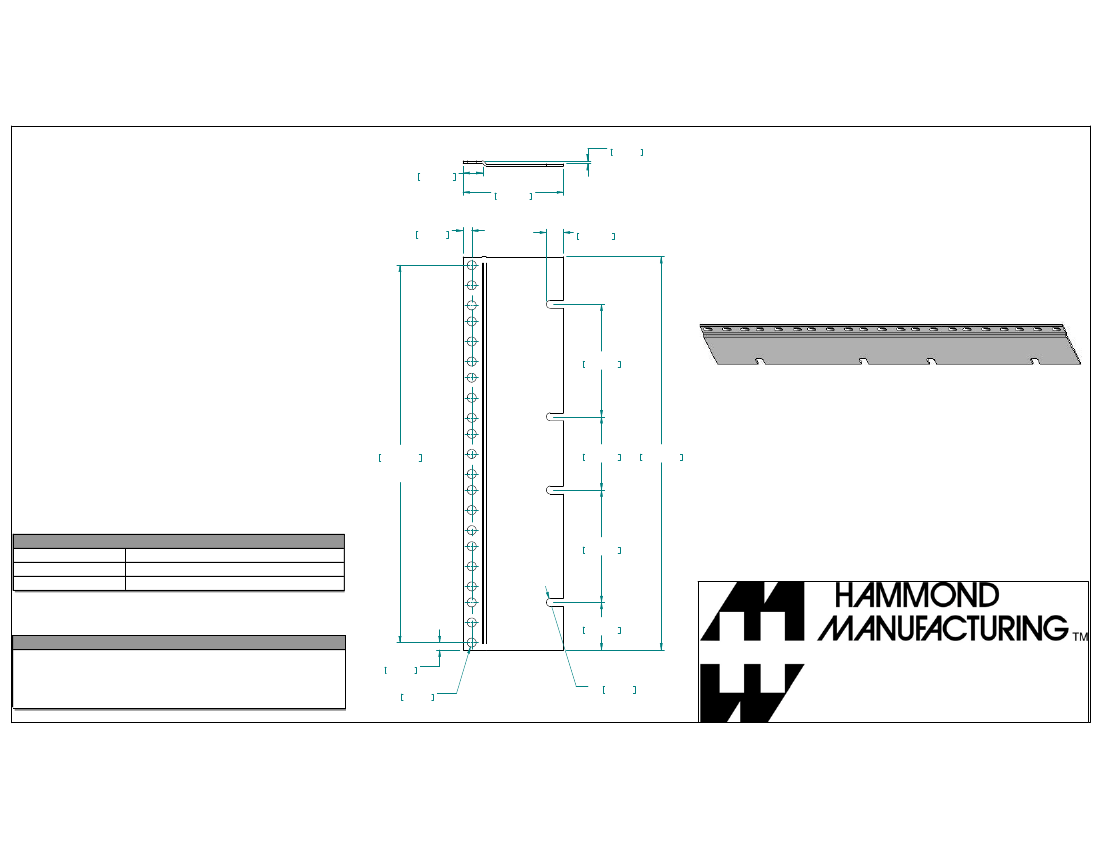

EIA-310-D UNIVERSAL
HOLE SPACING
2.28 in
58 mm
12.25 in
311 mm
PBAS19012BK2
PBAS19012CG2
PBAS19012LG2
PART NUMBERS
PAINTED BLACK (SEMI-GLOSS)
PAINTED RAL7032 GRAY (SEMI-GLOSS)
PAINTED RAL7035 GRAY (SEMI-GLOSS)
3.50 in
89 mm
Data subject to change without notice. Isometric drawing not to scale.
1.48 in
38 mm
NOTES
Material: 14 Gauge Steel
Includes 10-32 Mounting Hardware
Sold in Pairs
.23 in
6 mm
www.hammondmfg.com
O
4X
.25 in
6 mm
O
.28 in
7 mm
TYP
PART NO.
PBAS19012
