173-BLACK datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 173-BLACK

173-BLACK: DescriptionDC Power Connectors 2.5MM ROUND W/NUT; CategoryTopical application Mechanical and electrical/engineering/automation; File Size669KB，2 Pages; ManufacturerSERPAC

Download Datasheet Parametric Compare View All

173-BLACK Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	173-BLACK	-	-	View	Buy Now

173-BLACK Overview

DC Power Connectors 2.5MM ROUND W/NUT

173-BLACK Parametric

Parameter Name	Attribute value
Product Category	Enclosures, Boxes, & Cases
Manufacturer	SERPAC
RoHS	Details
Product	Enclosures
Material	Plastic
Color	Black
Length	174.76 mm
Width	123.96 mm
Height	63.76 mm
IP Rating	IP40
NEMA Rating	1
Flammability Rating	UL 94 HB
Packaging	Bulk
Cover Color	Black
Dimensions	174.76 mm L x 123.96 mm W x 63.76 mm H
Features	Customs, Colors, Machining, Molding & Pad Printing, 2-Piece Standard Design
Factory Pack Quantity	1
Unit Weight	8.000135 oz

Preview

Download Datasheet

View All

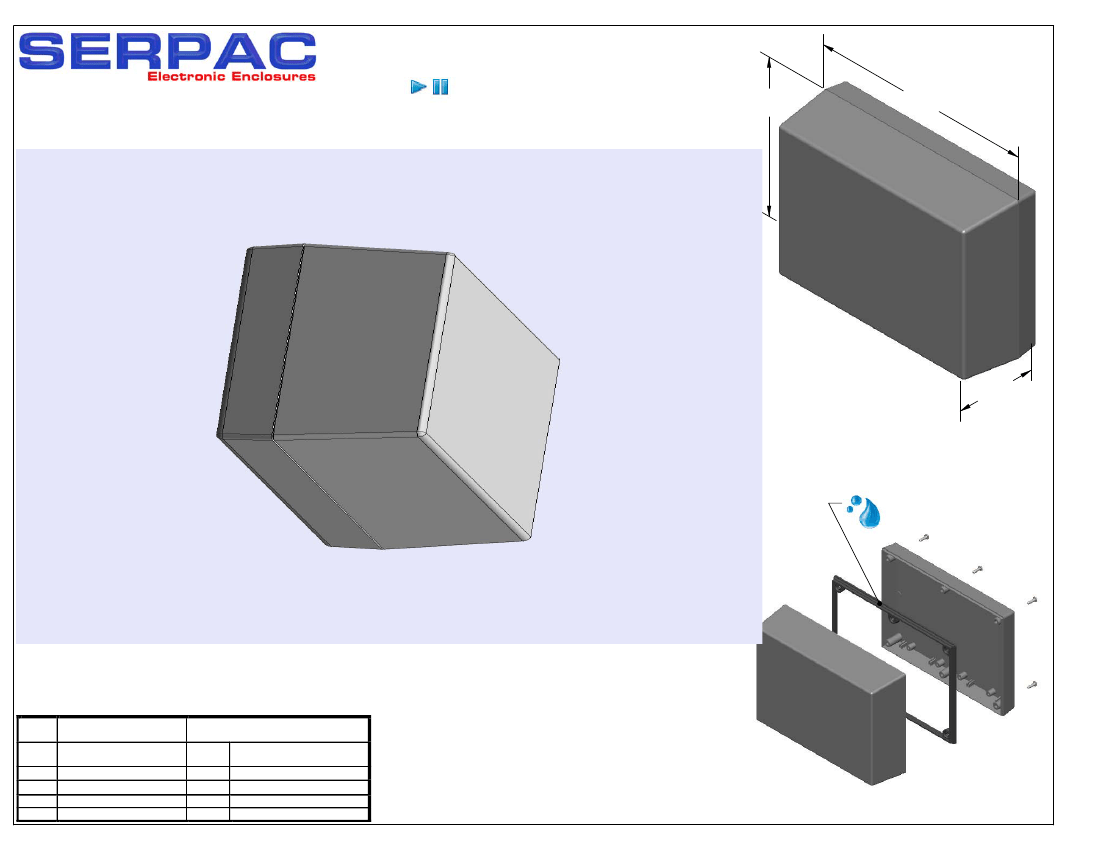

173

(exploded isometric)

-Click on image to show toolbar. Use

to Play/Pause Animation.

-Left click and drag on image to move 3D model.

4.88

6.88

2.50

Water proofing gasket

PS17 optional.

see note #2

3D model options:

a) Zoom in & out with center wheel.

b) Pause at any moment to view and or print views.

c) Change the views to ortho and section views if needed from the Views pull down menu.

d) Explore options included in the tool bar like: Views, Transparency of model, Lighting type, etc.

PART

NO.

7-3

6005

DESCRIPTION

(Included)

TOP

BOTTOM

#4X3/8” Self tapping (6)

ACCSESSORIES

(Optional)

PART

NO.

PS17

370

470

DESCRIPTION

Non-skid Feet

Perimeter Seal

Prototype grid board (bottom)

Prototype clad board (bottom)

Notes:

Enclosure weight .48 lbs / 217 gm

1) Enclosure meets or exceeds IP40 and NEMA 1

2) When used with PS17 the enclosure meets or exceeds

IP 66 and NEMA 4X, 12 and 13 MIL-STD-810G 506.5

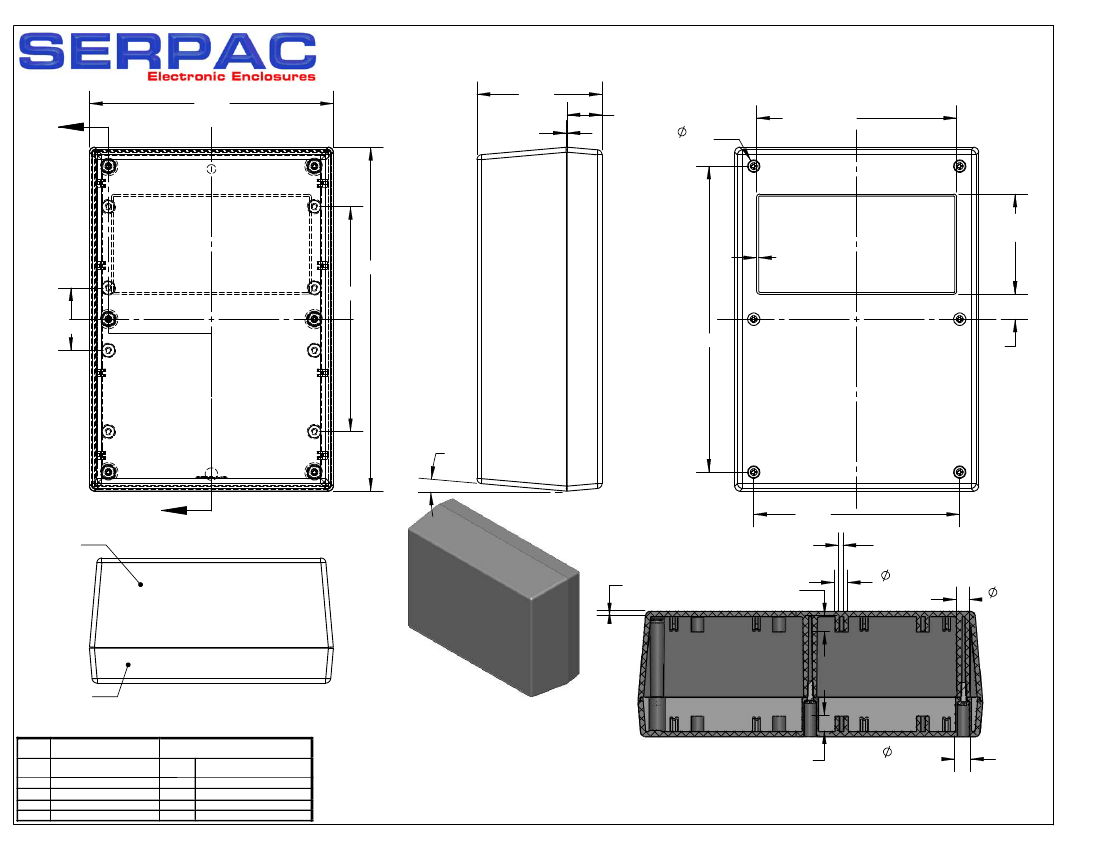

3) Circuit Board drawings can be download at:

TOP:

http://www.serpac.com/Accessories/CircuitBoard/drawings/X73.pdf

BOTTOM:

http://www.serpac.com/Accessories/CircuitBoard/drawings/370-470.pdf

4) All components are RoHS Compliant.

Ph. (626) 331-0517 Fx. (626) 331-8584 serpac.com

ALL DIMENSIONS ARE ± .010"

3/23/10

(1 of 2)

619 Commercial Ave. Covina, CA 91723

173-BLACK Related Products

	173-BLACK	173-GRAY
Description	DC Power Connectors 2.5MM ROUND W/NUT	MOSFET MOSFT P-Ch -30V -3A 98mOhm 9.5nC Log Lvl
Product Category	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases
Manufacturer	SERPAC	SERPAC
RoHS	Details	Details
Product	Enclosures	Enclosures
Material	Plastic	Plastic
Color	Black	Gray
Length	174.76 mm	174.76 mm
Width	123.96 mm	123.96 mm
Height	63.76 mm	63.76 mm
IP Rating	IP40	IP40
NEMA Rating	1	1
Flammability Rating	UL 94 HB	UL 94 HB
Cover Color	Black	Gray
Dimensions	174.76 mm L x 123.96 mm W x 63.76 mm H	174.76 mm L x 123.96 mm W x 63.76 mm H
Features	Customs, Colors, Machining, Molding & Pad Printing, 2-Piece Standard Design	Customs, Colors, Machining, Molding & Pad Printing, 2-Piece Standard Design
Factory Pack Quantity	1	1
Unit Weight	8.000135 oz	8.000135 oz
