DVPB-HD
Digital Video Processing Board - High Definition
Overview

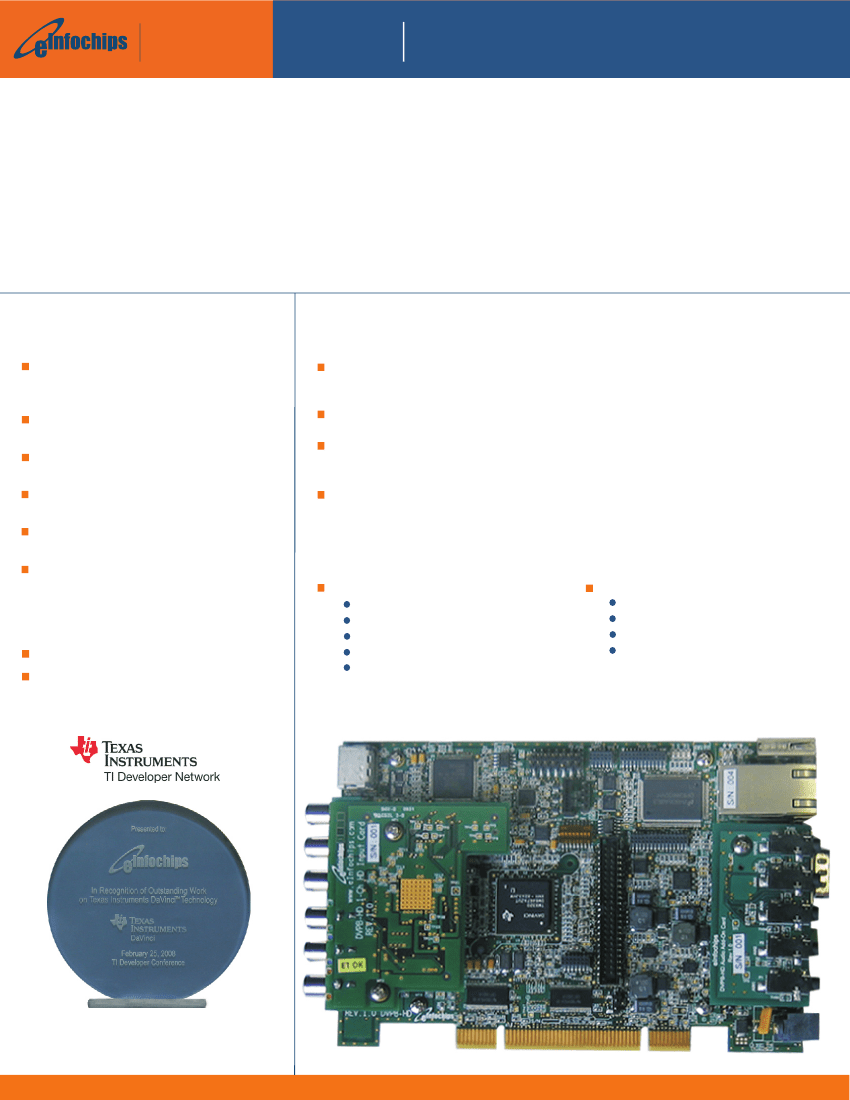

DVPB-HD is a rapid development platform based on Texas Instruments’ DM6467 DaVinci™ Technology. The board/platform features all
commonly required peripheral interfaces like Video & Audio I/O, GbE, RS-232, RS-485, USB2.0, VLYNQ, HDD, RTC, UART/IrDA, PCI, SPI and
GPIO, DVPB-HD enables developers jump-start their application development and is ideal for rapid prototyping end-product.
DVPB-HD is bundled with a software package consisting BSP, SDK Framework and demo application enabling systems and application
engineers develop their applications. The platform is software-compatible with the TI’s TMDXEVM6467, thus allowing easy port of applications
from the TI’s EVM to DVPB-HD.
Features
TM320DM6467 DaVinci™ processor-
based development board with
MontaVista Linux 2.6.10 OS support
Option for Video Input through
BT1120/BT656 interface
4 channel SD or 1 channel HD or 1
channel HDMI through add-on card
Video Output - CVBS, HD Component and
HDMI suport
Option for interfacing CCD/CMOS sensors
for video input
Features Audio I/O, GbE, USB2.0, SPI,
PCI, HDD (ATA/ATAPI - 6 Interface),
VLYNQ, RS-232, RS-485, UART/IrDA,
Wireless (optional), RTC, GPIO and JTAG
(IEEE1149.1) Interfaces
RoHS compliant design
Option for Aluminum Metal Enclosure
Benefits
Optimized prototyping board based on DaVinci™ Technology - Reduce Hardware
Design Efforts
Small Form Factor: 4.2”x 6.2” - Ideal for pre-production prototyping
Bundled with software package consisting of U-Boot bootloader, test utilities,
and demo application - Easy to re-target applications
eInfochips Support - Access to a team of eInfochips' DaVinci™ technology
experts to accelerate product development
Applications
Commercial/Industrial:
Video Encode/Transcode/Transrate
Video Surveillance DVR/Camera
Media Gateways
Multi-Conferencing Units
Medical Imaging
Consumer:
Digital Media Adaptor
IP Video Phone
Videoconferencing
Advanced IP STB
Recipient of Texas Instruments’ “Outstanding
Work on DaVinci(TM) Technology” award
www.einfochips.com
sales@einfochips.com
Ver : Sept’08

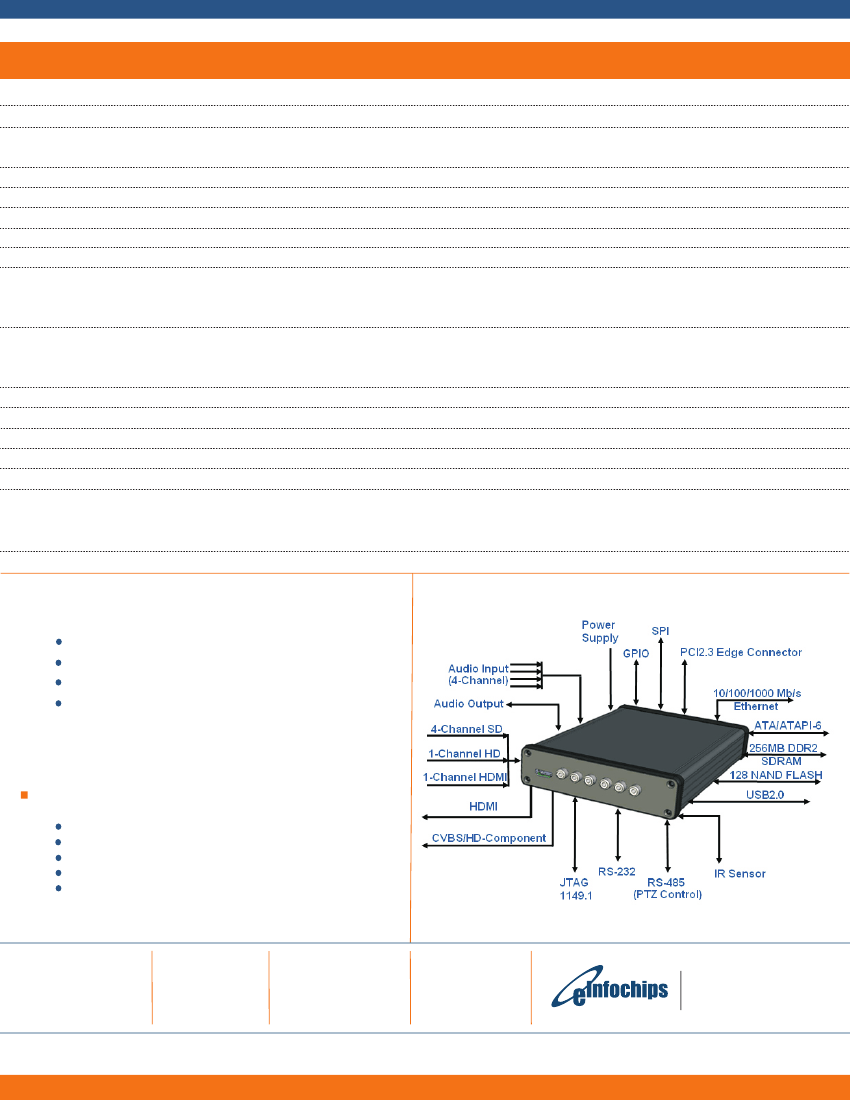

Platform/Board
Memory
Texas Instruments’ DaVinci™ TMS320DM6467, (C64x+ 594MHz; ARM926EJ 297MHz)
Program Memory: 128MB NAND FLASH
System Memory: 256MB DDR2 SDRAM
Video Input
4 Channel SD CVBS or 1 Channel HD Comopnent or HDMI (Optional)
Video Output
Audio Input (4 Channel)
Audio Output (1 Channel)
Real Time Clock
Infrared
Serial Interface
HDMI or HD/SD Component Video
4 Mono Line IN/2 Stereo Line IN (8kHz-to-96kHz sampling)
Stereo (8kHz-to-96kHz sampling)
RTC with battery back-up
IR Interface for Remote Control
RS232
RS485
USB2.0 High-Speed (480Mbps)
DB9 connector
PCB Terminal block connector
Host Type A connector
RJ45 connector
3.5mm Stereo Jack
3.5mm Stereo Jack
Network Interfrace
10/100/1000 Mb/s Ethernet
802.11b/g Wireless (Optional)
Storage
GPIO
Debugging
Activity Indicators
Power
Operating Environment
Supports Parallel ATA 2.5" & 3.5" Hard Disk
Up to 12 with TTL level
RS232 Interface & JTAG (IEEE 1149.1) Interface
Four LEDs
12V DC ±25%, 2A maximum
Operating temperature 0°C to 40°C
Storage temperature -25°C to 85°C
Humidity 5% to 95% (non-condensing)
2.5mm DC Power Jack
24-pin header
JTAG connector
Deliverables
DVPB-HD Board with Power Adapter, Cat5e/Cat 6 Cable
Optional 4 Channel SD, 1 Channel HD, 1 Channel HDMI
Software Package
User Guide & Technical Reference Manual
Software features
The software package enables developers re-target their
applications to DVPB-HD. It consists of:
BSP (Device Drivers and Firmware for the board)
Monta Vista Linux 2.6.10 OS support
U-Boot Bootloader
Test utilities (approximately 8) and sample codes
Demo application for 4 or 1 Channel Audio/Video
Streaming
India Headquarters
eInfochips Ltd.
11/A-B, Chandra Colony,
Ellisbridge,
Ahmedabad 380 006
Tel: +91-79-2656 3705
Fax: +91-79-2656 0722
Pune
Tel: +91-20-2544 2394
US Headquarters
Tel: +1-408-496-1882
Boston
Tel: +1-508-854-4895
Bangalore
Tel: +91-80-4121 6622
Austin
Tel: +1-512-519-9164/9461
Japan
Tel: +81-3-624-5728
