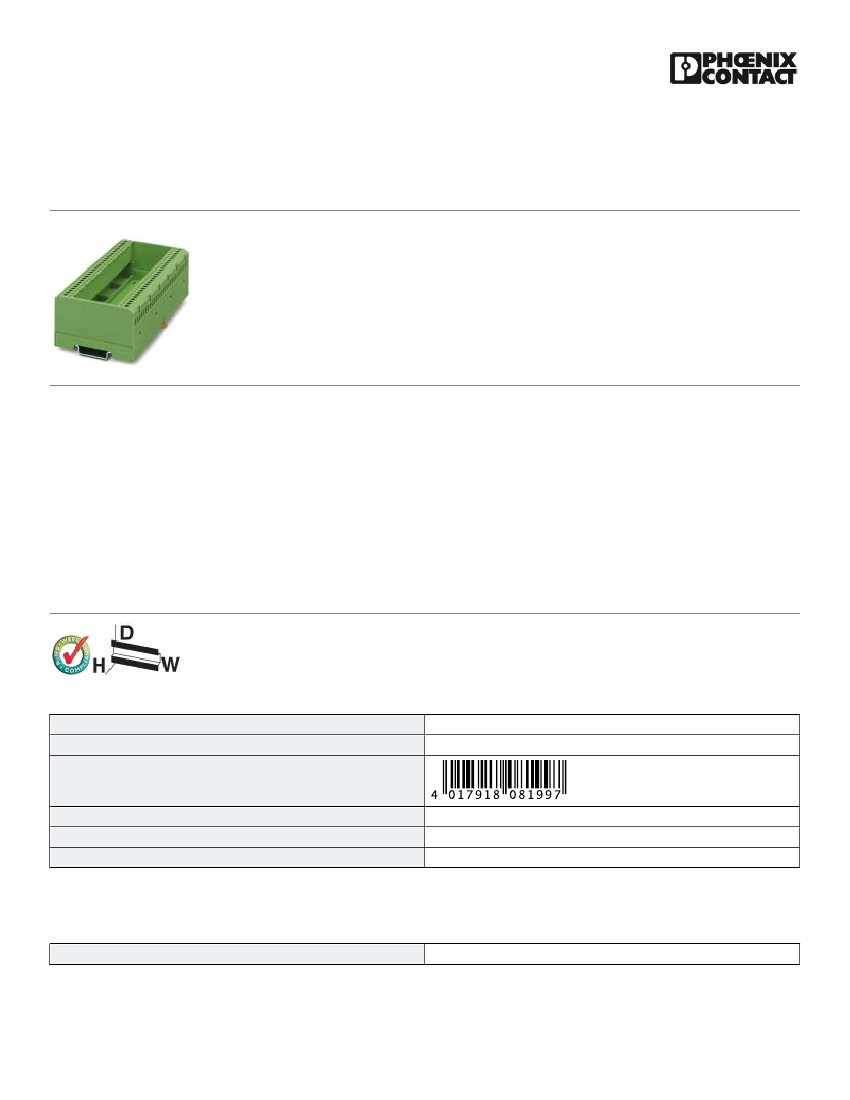

Electronic housing - EMG150-LG - 2946023
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Electronic housing, for PCB insertion, without screw connection terminal blocks and cover
Product Features
■
■
■
■
■
■
■
■
■
Choice of four cover sizes in transparent or color versions
Practical and easy-to-wire conductor connections
Uniform and appropriate housing technology
High degree of flexibility due to the wide choice of versions
User-friendly and safe mounting on DIN rails according to EN 60715
Space-saving accommodation of electronic components in finely graded module versions available with 10 to 150 mm pitch
Inflammability class V0 insulation material (according to UL 94)
Shock and contamination-proof accommodation of electronic components
Universal PCBs for all pitches
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
118.45 g
85472000
Germany
1 pc
2 pc
Technical data
General
Housing type
Component housing
04/27/2016 Page 1 / 6
https://www.phoenixcontact.com/us/products/2946023
Electronic housing - EMG150-LG - 2946023
Technical data
General
Housing material
Color
Polycarbonate fiber reinforced
green
Ambient conditions
Ambient temperature (operation)
-40 °C ... 105 °C (depending on power dissipation)
Dimensions
Constructional height
Width
Pitch
47.5 mm
150 mm
5 mm
Technical data
Flammability rating according to UL 94
Power dissipation without gap
Power dissipation with 20 mm gap
Number of positions
V0
12.3 W
13.1 W
58
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Stripping length
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
24
12
8 mm
Standards and Regulations
Flammability rating according to UL 94
V0
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27180401
27180401
27180506
27180506
27180802
27182702
27182702
27182702
04/27/2016 Page 2 / 6
https://www.phoenixcontact.com/us/products/2946023
Electronic housing - EMG150-LG - 2946023
Classifications
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001031
EC001031
EC001031
EC001031
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
31261501
31261501
31261501
31261501
31261501
Approvals
Approvals
Approvals
EAC
Ex Approvals
Approvals submitted
Approval details
EAC
Accessories
Accessories
Device marking
04/27/2016 Page 3 / 6
https://www.phoenixcontact.com/us/products/2946023
Electronic housing - EMG150-LG - 2946023
Accessories

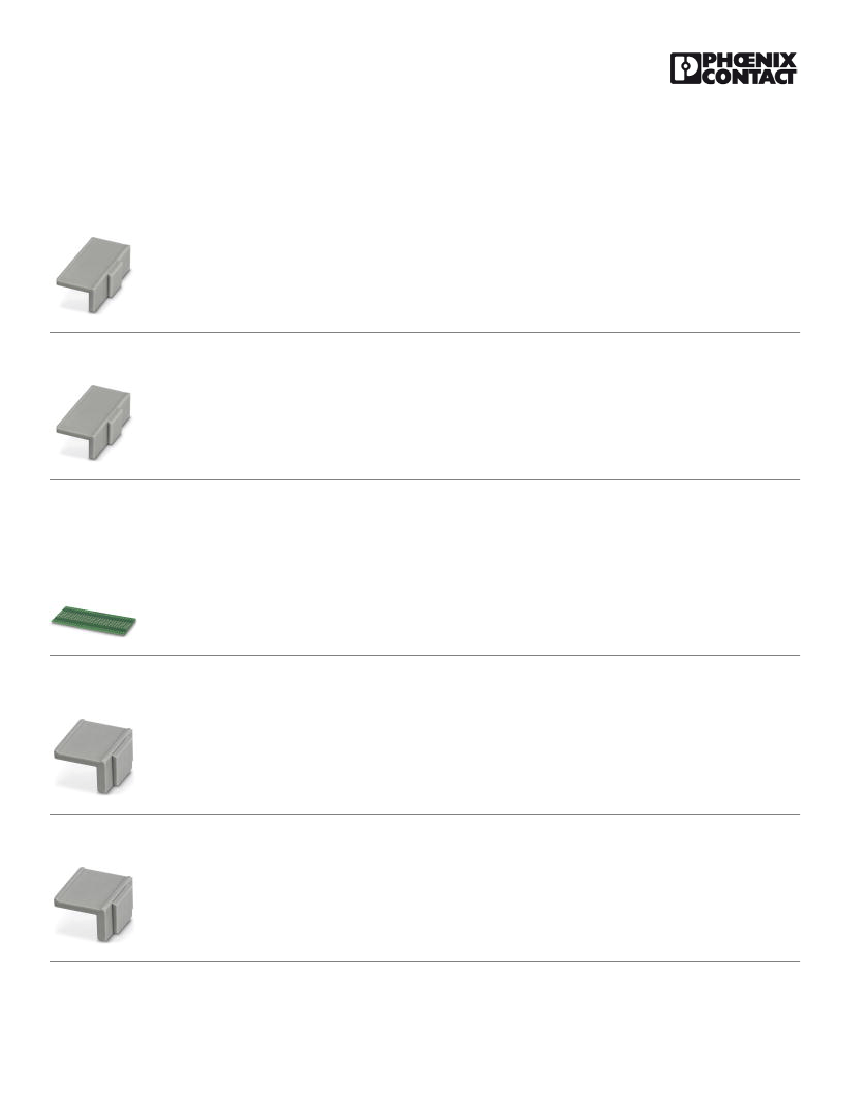

Marking material - EMG-GKS 22 - 2941594
Equipment marker tag, width 22 mm
Marking material - EMG-GKS 22 - 2941594
Equipment marker tag, width 22 mm
PCB
Electronic housing - P 1-EMG150 - 2946049
PCB for assembling electronic components
Marking material - EMG-GKS 12 - 2947035
Equipment marker, width 12 mm
Marking material - EMG-GKS 12 - 2947035
Equipment marker, width 12 mm
04/27/2016 Page 4 / 6
https://www.phoenixcontact.com/us/products/2946023
Electronic housing - EMG150-LG - 2946023
Accessories
Required add-on products
Electronic housing - EMG150-H 7,5MM KLAR - 2943178
Covering hood, for the contact and dust-protected encapsulation of the components, in transparent design. Height: 7.5
mm
Electronic housing - EMG150-H 15MM KLAR - 2943165
Covering hood, for the contact and dust-protected encapsulation of the components, in transparent design. Height: 15
mm, width: 150 mm
Electronic housing - EMG150-H 52MM GN - 2943521
Covering hood, for the contact and dust-protected encapsulation of the components, in green design. Height: 52 mm,
width: 150 mm
Drawings

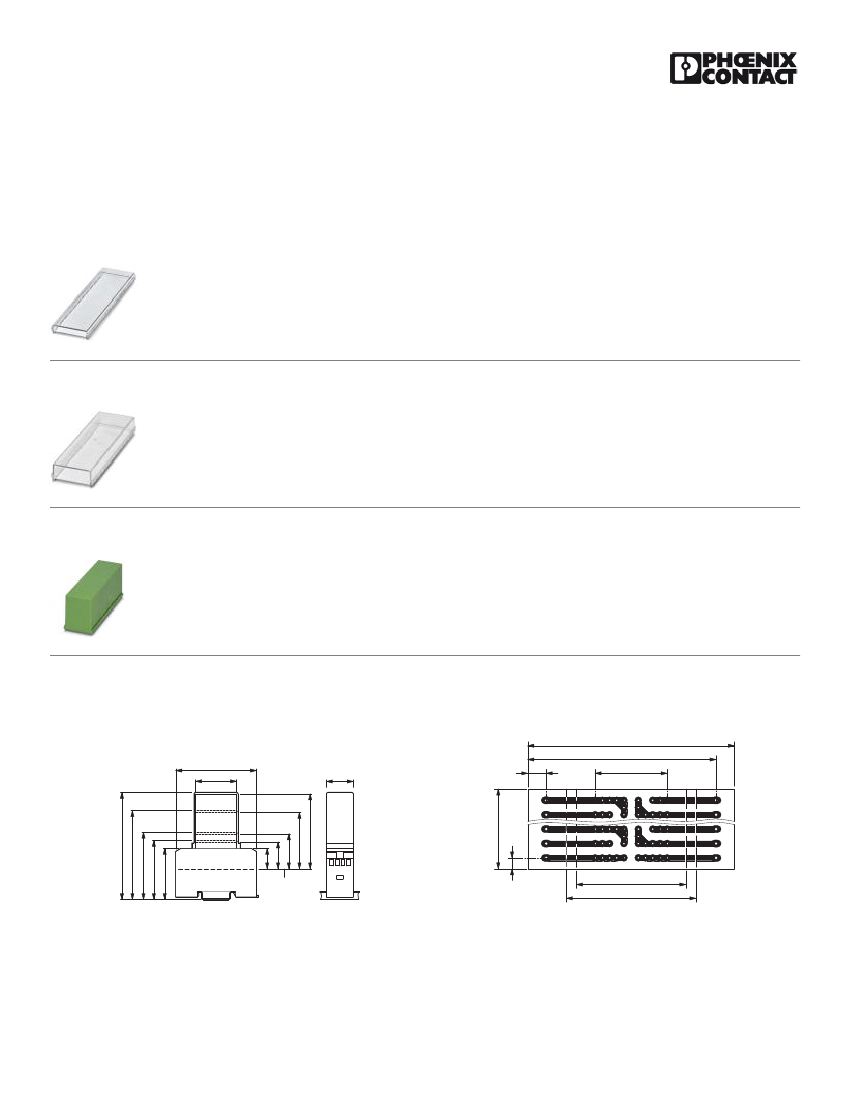

Dimensional drawing
Dimensional drawing
71,8
65,4
75
38
H 52
H 35
6,4
25
B
100
83
62,5
55
47,5
H 15
H 7,5
19
25
32,5
52,5
69,5
146,5
3,3
Top edge
of the PCB
38 mm in hood
Surface that for mounting components
45 mm in housing
1 = Top edge of the PCB
B = Housing width
Pitch 5 mm
a = Area for mounting components, 38 mm in the hood
b = Area for mounting components, 45 mm in the housing
04/27/2016 Page 5 / 6
