138.00
[5.433]
A
102.10
[4.020]
27.00
[1.063]
INSIDE
HEIGHT
50.50
[1.988]
B
B
60.50
[2.382]
55.45
[2.183]
INSIDE
WIDTH
A

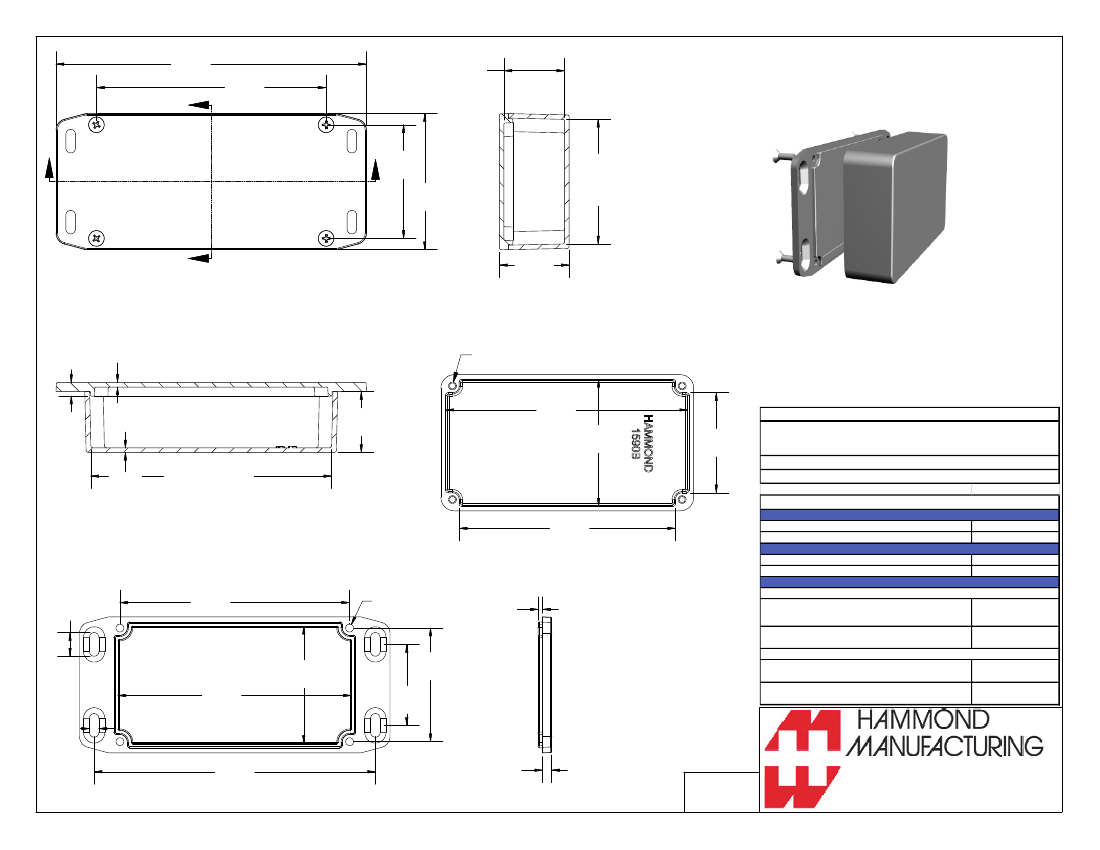

TOP VIEW
31.00
[1.220]
SECTION A-A
END VIEW
4X 6-32 UNC
11.00
3.50
3.00
6.00
[.236]
2.00
[.079]
Enclosures can be Factory Modified ( Milling, Drilling, Printing etc.)
Contact Factory
mjm@hammondmfg.com for quotes
Solid models of this enclosure available in STEP or IGES.
(Part number and text placement/orientation on our products are subject to change,
we do not recommend using them as a locating reference for modification purposes)
27.00
[1.063]
107.05
[4.215]
INSIDE LENGTH
107.58
[4.235]
56.50
[2.224]
44.50
[1.752]
NOTE
Purchased assembly includes box, lid and 4 cover screws.
Box and lid are made from Diecast Aluminum Alloy.
Silicone Gasket supplied with liquid resistant enclosure.
2.00
[.079]
Recommended Torque: 50-55 cN.m [71-78 ozf.in]
Recommended Torque with Gasket : 25-30 cN.m [36-43 ozf.in]
SECTION B-B
SIDE VIEW
PART NUMBERS
96.10
[3.783]
INSIDE BOX
10.50
[.413]
102.10
[4.020]
4X
3.50
[.138]
1590BFL Enclosure
1590BFL
Natural Finish Enclosure
1590BFLBK
Black Textured Enclosure
1590BFL Liquid Resistant Enclosure (Silicone Gasket)
1590WBFL
Natural Finish Enclosure
1590WBFLBK
Black Textured Enclosure
ACCESSORIES
2.00
[.079]
Liquid Resistant Cover Screws
Stainless Steel Cover Screw s (Pkg 100)
[6-32 x 1/2" With O-Ring]
Black Stainless Steel Cover Screws (Pkg 100)
[6-32 x 1/2" With O-Ring]
1590WMS100
1590WMS100BK
103.74
[4.084]
4.25
[.167]
125.00
[4.921]
52.11
[2.052]
50.50
[1.988]
36.00
[1.417]
Standard Cover Screws
Plated Cover Screw s (Pkg 100)
[6-32 x 1/2"]
Black Cover Screws (Pkg 100)
[6-32 x 1/2"]
1590MS100
1590MS100BK
4.00
[.157]
INSIDE LID
Dimensions:
mm
[inches]
1590BFL
