Swing Frame (S2CSWF Series) - Hammond Mfg.
Quality Products. Service Excellence.

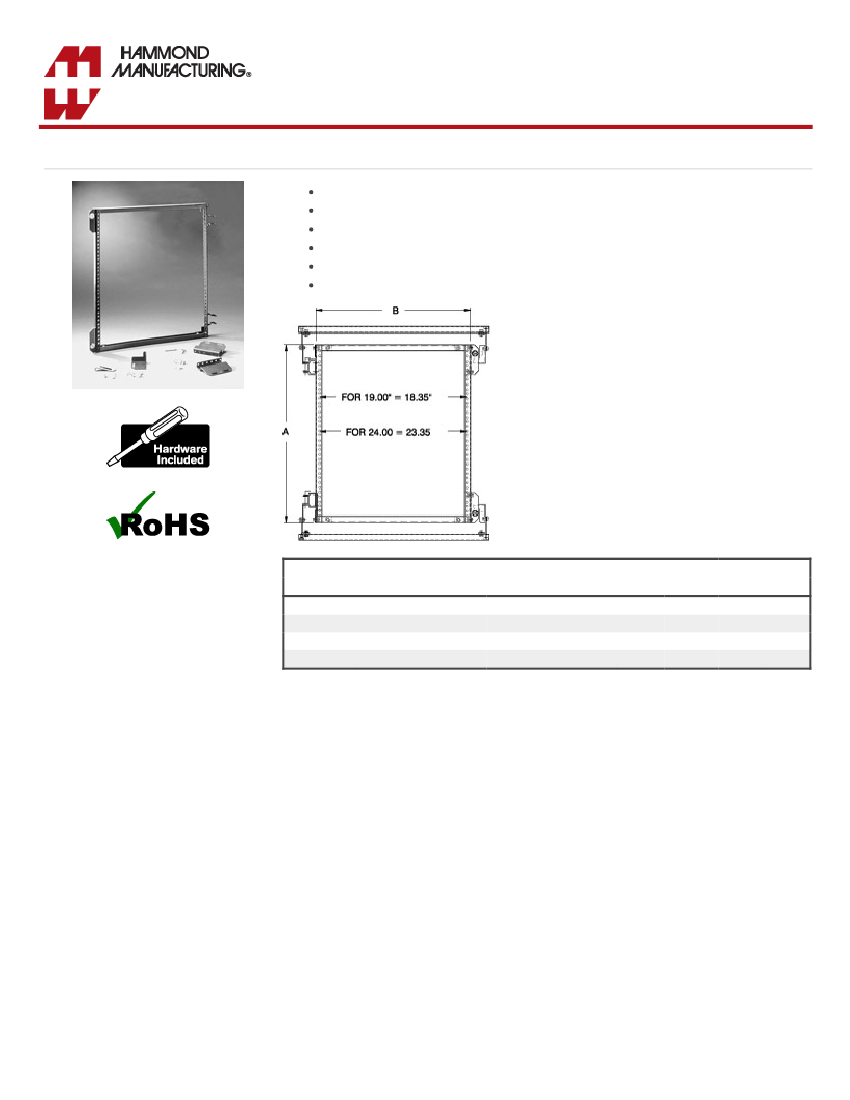

Swing Frame
S2CSWF Series
Available in 19" and 24" widths.
Variable depth feature allows front to rear adjustment.
Installs with either left or right hinging.
Mounts onto Rail Support Kits (not included).
Clip nuts required for mounting to punched rails.
Finished in textured black.
Panel
Part No.
2CSFT19
2CSFT24
2CSFB19
2CSFB24
Fits Console Unit
Turrets/Terminal
Turrets/Terminal
Bases
Bases
Fits Console Size
24,36,48,60
36,48,60
24,36,48,60
36,48,60
Width
19"
24"
19"
24"
Height
8U
8U
12U
12U
A
15.75
15.75
22.09
22.09
B
19.28
24.28
19.28
24.28
Data subject to change without notice
