Intel Server Systems
SR4850HW4S and SR6850HW4S
Configuration Guide
Rev 3.03
®
A reference guide to assist customers in ordering components to configure
SAS 3.5” Harwich 800T-based
server systems -
RoHS compliance w/ server exemption.
SR4850HW4S =
Harwich 800T
4U Server
SAS 3.5
SR6850HW4S =
Harwich 800T
6U Server
SAS 3.5
Revisions/Additions in blue font
6/13/2007
SR4850HW4S / SR6850HW4S Configuration Guide
Page 1 of 12
1.
Table of Contents
1.
2.
3.
4.
5.
6.
7.
8.
Table of Contents..................................................................................................................2
Revision History....................................................................................................................3
Important Notes ....................................................................................................................3
System Configuration Options ............................................................................................4
4U System Part Configurator: SR4850HW4S .....................................................................5
6U System Part Configurator: SR6850HW4S .....................................................................6
Base System SKU Configuration Contents........................................................................7
7.1
8.1
8.2
8.2.1
8.2.2
8.3
8.3.1
8.3.2
8.4
8.5
Table 1: Base System Product Code Contents........................................................7
Table 2: Base System Codes...................................................................................8
Table 3: Common System Accessory Codes...........................................................9
Table 4: 4U Unique Accessory Codes for SHW4URM3SA...................................10
Table 5: 6U Unique Accessory Codes for SHW6URM3SA...................................10
Table 6: Common System Spare Part Codes ........................................................10
Table 7: 4U 3.5“ SAS Unique Spare Part Codes for SHW4URM3SA....................11
Table 8: 6U 3.5” SAS Unique Spare Part Codes for SHW6URM3SA....................11
Table 9: Boxed Processor Codes Reference (Heatsink Included) .........................11
Table 9: Trayed Processor Codes Reference (Requires Heatsink- AHWPROCHS)12
Complete Product Ordering Code Listings ........................................................................8
6/13/2007
SR4850HW4S / SR6850HW4S Configuration Guide
Page 2 of 12
2.
Revision History
Rev
1.1
2.0
2.7
3.0
3.01
3.02
3.02
Modification
Corrected system DVD from a DVD/CDRW to a DVD-ROM.
Harwich 800T revisions.
Harwich 800T MM#s revised, DVD spare
Harwich 800T SAS MM#s added
Updated Boxed and Tray Processor Reference Codes
Updated BHWBASEM MM#
Updated SHW4URM3SA and SHW6URM3SA MM#
Date
Mar 23, 2005
Sept 27, 2005
Apr 24, 2006
Apr 25, 2006
Sept 25, 2006
Oct 25, 2006
Apr 3,2007
3.
Important Notes
1. The SRx850HW4S boardset is ordered and shipped as two separate boards. The two boards are the baseboard and the
memory board. Each system can accommodate up to four memory boards. System SKUs include one memory board in
the base configuration.
2. The 6U server platform SR6850HW4S (product code SHW6URM3SA) comes preconfigured with 1 power supply and an
empty second power supply bay. The second power supply bay must be filled with either a second power supply
(AHW6UPWR) or a power bay fan (AHW6UPWRFAN).
3. Systems will not ship with processors, hard drives, or memory. These parts must be obtained separately from the system.
4. VRMs are not included with the platform.
5. Heat sinks are not included with the platform.
6. Processor thermal blanks must be ordered separately (if no processor is installed).
7. Either a Button Control Panel or Intel
®
Local Control Panel must be ordered for installation in the system.
8. Intel
®
Server Management Professional or Advanced modules must be ordered for installation in the system.
9. The SRx850HW4S memory board supports DDR2 400 SDRAM registered DIMMs.
10. The Intel factory will package board orders into single order packaging and ship to fill customer orders. Each board MM is a
self-contained shipping package of one board.
11. Power cords are not shipped with the system and must be obtained from local suppliers. Please review the power cord
enabling documents on support.intel.com, they cover all the countries that we intend to sell the product and have how to
order the correct cable:
http://support.intel.com/support/motherboards/server/sr6850hw4/sb/cs-020878.htm
http://support.intel.com/support/motherboards/server/sr4850hw4/sb/cs-020879.htm
12. All parts listed below are RoHS compliant with server exemption
.
6/13/2007
SR4850HW4S / SR6850HW4S Configuration Guide
Page 3 of 12
4.

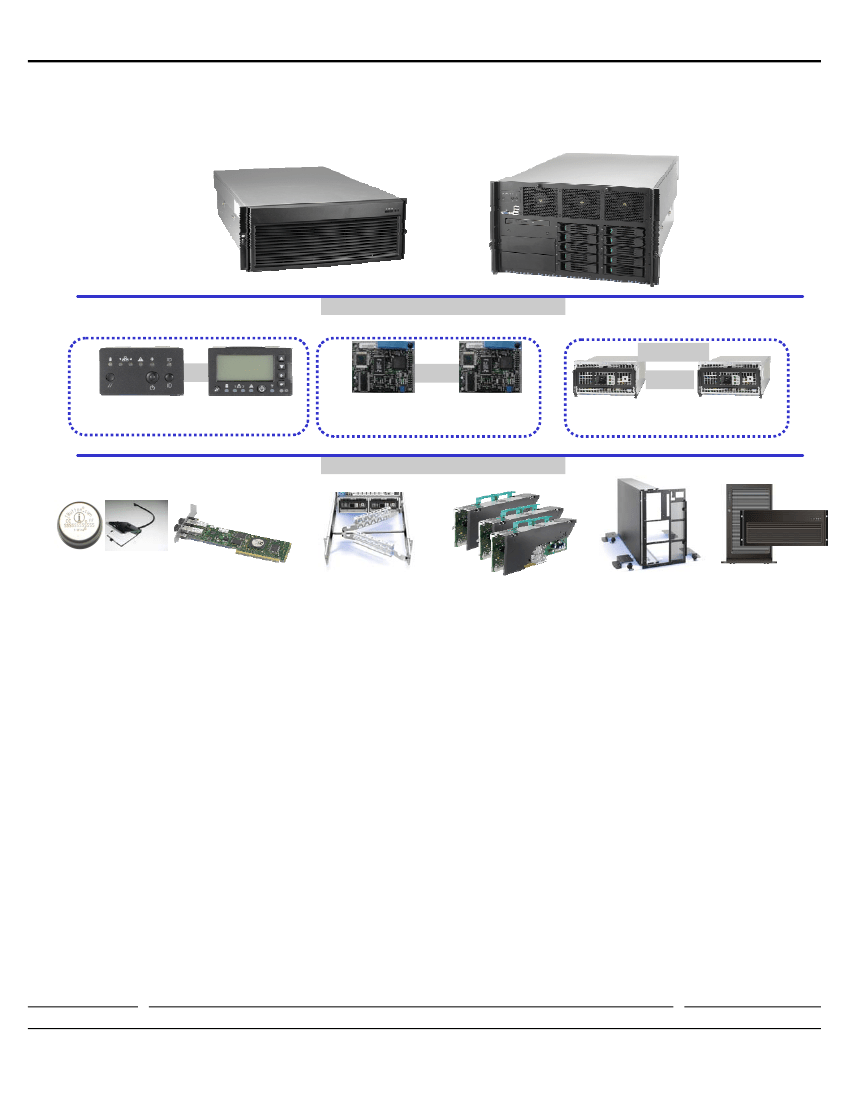

System Configuration Options
SR4850HW4S
4U Platform
SR6850HW4S
6U Platform
Mandatory Accessories
6U Only
OR
Button Control
Panel
LCD Control
Panel
IMM
Professional
OR
IMM
Advanced
2 Power
Supply
nd
OR
Active Fan
Blank
Optional Accessories
ROMB Key and
Battery
Fibre Channel
Module
Rack Rails and
CMA
Up to 3 additional
memory boards.
Pedestal Kit (6U)
Bezels
6/13/2007
SR4850HW4S / SR6850HW4S Configuration Guide
Page 4 of 12
5.
4U System Part Configurator: SR4850HW4S
Mandatory Accessories
Feature
Product
IMM Professional
AHWIMMPRO2
IMM Advanced
AHWIMMADV2
Button control panel
AXXBCPMOD2
LCD control panel
AXXLCPMOD2
Processor heat sink
AHWPROCHS
NOTE: Boxed processors include this heat sink.
Processor blank
AHWPROCBLANK
Processor core 10.2 VRM
AHWVRMPM
(one required for each processor used in socket 3 and 4)
Processor cache 9DO VRM
AHWVRMCM
(one per system required for iL3 processor used in socket 3
and 4)
Intel Management Module
(Choose one per System)
Control Panel
(Choose one per System)
Processor
Heat Sinks and Blanks
(All 4 sockets must have Processor + Heatsink
OR
Processor Blank)
Processor VRM
(Use with 3 and 4 processors)
Optional Accessories
Feature
RAID Solutions
Fibre Channel Module
Rack Mount Solutions
Memory board
Front Bezel
Product
Intel® SAS RAID Activation Key
AXXRAK18E
Intel® RAID Smart Battery
AXXRSBBU3
(only used with Activation Key above)
Fibre channel module
AHWFCMOD
Rack rails
AXXRAIL3U7U
Cable Management Arm
AXXCMA3U7U
4 DIMM memory board
BHW4DIMMM
4U Front bezel for rack mount
AHW4URBEZEL
6/13/2007
SR4850HW4S / SR6850HW4S Configuration Guide
Page 5 of 12
