1590TRPCRD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 1590TRPCRD

1590TRPCRD: DescriptionTest Plugs u0026 Test Jacks BLK BANANA PLUG BU-16-0; CategoryTopical application Mechanical and electrical/engineering/automation; File Size211KB，1 Pages; ManufacturerHammond; Websitehttp://www.hammondmfg.com

Download Datasheet Parametric Compare View All

1590TRPCRD Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1590TRPCRD	-	-	View	Buy Now

1590TRPCRD Overview

Test Plugs u0026 Test Jacks BLK BANANA PLUG BU-16-0

1590TRPCRD Parametric

Parameter Name	Attribute value
Product Category	Enclosures, Boxes, & Cases
Manufacturer	Hammond
RoHS	Details
Product	Boxes
Type	With Cover Panel
Material	Aluminum
Color	Red
Length	5.95 in
Width	3.74 in
Height	1.38 in
IP Rating	IP54
Dimensions	5.95 in L x 3.74 in W x 1.38 in H
Features	Trapezoid Version
Height - in	1.38
Height - mm	35.052
Length - in	5.95
Length - mm	151.13
Factory Pack Quantity	1
Width - in	3.74
Width - mm	94.996
Unit Weight	8.640089 oz

Preview

Download Datasheet

View All

111.76

[4.400]

121.75

[4.793]

85.09

[3.350]

35.00

[1.378]

INSIDE

HEIGHT

89.30

[3.516]

INSIDE

WIDTH

95.00

[3.740]

2.00

[.079]

39.00

[1.535]

2.00

[.079]

151.02

[5.946]

6.00

[.236]

140.97

[5.550]

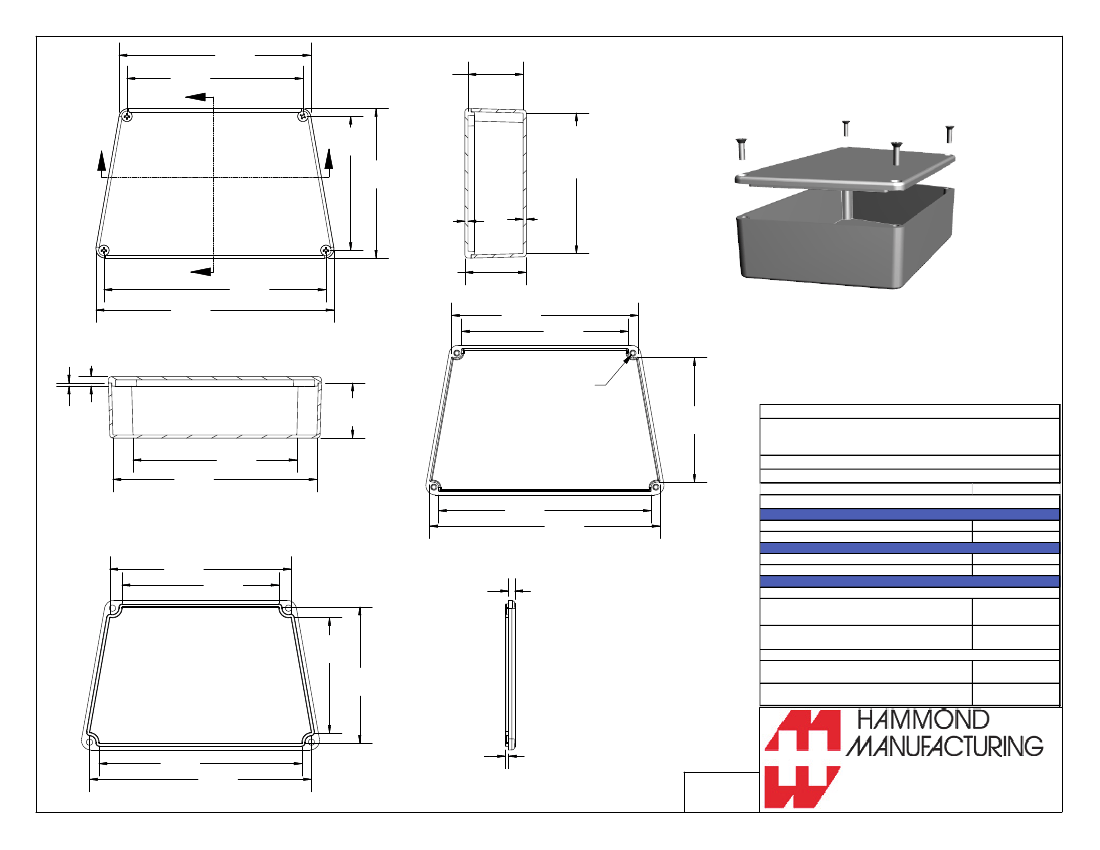

SECTION A-A

118.72

[4.674] 105.76

[4.164]

Enclosures can be Factory Modified ( Milling, Drilling, Printing etc.)

Contact Factory

mjm@hammondmfg.com for quotes

Solid models of this enclosure available in STEP or IGES.

(Part number and text placement/orientation on our products are subject to change,

we do not recommend using them as a locating reference for modification purposes)

TOP VIEW

 

4.00



2.00

4X 6-32 UNC

2.00

[.079]

104.06

[4.097]

35.00

[1.378]

79.18

[3.117]

NOTE

Purchased assembly includes box, lid and 4 cover screws.

Box and lid are made from Diecast Aluminum Alloy.

Silicone Gasket supplied with liquid resistant enclosure.

129.53

[5.099]

Recommended Torque: 50-55 cN.m [71-78 ozf.in]

Recommended Torque with Gasket : 25-30 cN.m [36-43 ozf.in]

SECTION B-B

SIDE VIEW

115.13

[4.533] 99.64

[3.923]

134.97

[5.314] 146.27

[5.759]

PART NUMBERS

1590TRPC Enclosure

1590TRPC

Natural Finish Enclosure

1590TRPCBK

Black Textured Enclosure

1590TRPC Liquid Resistant Enclosure (Silicone Gasket)

1590W TRPC

Natural Finish Enclosure

1590W TRPCBK

Black Textured Enclosure

ACCESSORIES

INSIDE BOX

4.00

[.157]

Liquid Resistant Cover Screws

Stainless Steel Cover Screw s (Pkg 100)

[6-32 x 1/2" W ith O-Ring]

Black Stainless Steel Cover Screw s (Pkg 100)

[6-32 x 1/2" W ith O-Ring]

1590W MS100

1590W MS100BK

73.40

[2.890]

86.38

[3.401]

Standard Cover Screws

Plated Cover Screw s (Pkg 100)

[6-32 x 1/2"]

Black Cover Screw s (Pkg 100)

[6-32 x 1/2"]

1590MS100

1590MS100BK

128.85

[5.073] 140.77

[5.542]

2.00

[.079]

Dimensions:

[inches]

1590TRPC

www.hammondmfg.com

INSIDE LID

1590TRPCRD Related Products

	1590TRPCRD	1590TRPC	1590TRPCPR	1590TRPCCB	1590TRPCGR	1590TRPCYL	1590TRPCLG	1590TRPCBK	1590TRPCOR
Description	Test Plugs u0026 Test Jacks BLK BANANA PLUG BU-16-0	Enclosures, Boxes, u0026 Cases Diecast-NoPCB Guides 6.01x3.24x1.81"UNPTD		USB Cables / IEEE 1394 Cables USB Embedded Serial Conv 3V3 0.1" Hdr	Enclosures, Boxes, u0026 Cases Alum Black Trapezoid 3.74 x 5.95 x 1.38"	Enclosures, Boxes, u0026 Cases Diecast Alum Gray 4.67 x 3.68 x 1.18"	Phone Connectors Audio Jacks	Audio Amplifiers
Product Category	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases
Manufacturer	Hammond	Hammond	Hammond	Hammond	Hammond	Hammond	Hammond	Hammond	Hammond
RoHS	Details	Details	Details	Details	Details	Details	Details	Details	Details
Product	Boxes	Boxes	Boxes	Boxes	Boxes	Boxes	Boxes	Boxes	Boxes
Type	With Cover Panel	With Cover Panel	With Cover Panel	With Cover Panel	With Cover Panel	With Cover Panel	With Cover Panel	With Cover Panel	With Cover Panel
Material	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum
Color	Red	Unfinished	Purple	Blue	Green	Yellow	Gray	Black	Orange
Length	5.95 in	5.95 in	5.95 in	5.95 in	5.95 in	5.95 in	5.95 in	5.95 in	5.95 in
Width	3.74 in	3.74 in	3.74 in	3.74 in	3.74 in	3.74 in	3.74 in	3.74 in	3.74 in
Height	1.38 in	1.38 in	1.38 in	1.38 in	1.38 in	1.38 in	1.38 in	1.38 in	1.38 in
IP Rating	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54
Dimensions	5.95 in L x 3.74 in W x 1.38 in H	5.95 in L x 3.74 in W x 1.38 in H	5.95 in L x 3.74 in W x 1.38 in H	5.95 in L x 3.74 in W x 1.38 in H	5.95 in L x 3.74 in W x 1.38 in H	5.95 in L x 3.74 in W x 1.38 in H	5.95 in L x 3.74 in W x 1.38 in H	5.95 in L x 3.74 in W x 1.38 in H	5.95 in L x 3.74 in W x 1.38 in H
Height - in	1.38	1.38	1.38	1.38	1.38	1.38	1.38	1.38	1.38
Height - mm	35.052	35.052	35.052	35.052	35.052	35.052	35.052	35.052	35.052
Length - in	5.95	5.95	5.95	5.95	5.95	5.95	5.95	5.95	5.95
Length - mm	151.13	151.13	151.13	151.13	151.13	151.13	151.13	151.13	151.13
Factory Pack Quantity	1	1	1	1	1	1	1	1	1
Width - in	3.74	3.74	3.74	3.74	3.74	3.74	3.74	3.74	3.74
Width - mm	94.996	94.996	94.996	94.996	94.996	94.996	94.996	94.996	94.996
Unit Weight	8.640089 oz	8.640089 oz	8.640089 oz	8.640089 oz	8.640089 oz	8.640089 oz	8.640089 oz	8.640089 oz	8.640089 oz
Features	Trapezoid Version	-	-	Trapezoid Version	Trapezoid Version	-	Trapezoid Version	-	Trapezoid Version
