DIN-Based VectorPak
tm
Subracks
Rackmount 3U & 6U EMC Subracks
EMC subracks for Compact PCI, VME64X or PXI
are available off-the-shelf in assembled or kit
form. Standard 19” width or custom sizes available
(contact factory). Can accommodate all 3U (sin-
gle height, 3.937” or 100mm) and 6U (double
height, 9.187” or 233.35mm) 0.062” to 0.100” thick
boards.
Custom card height/depth racks available; contact
factory. Vector’s service design, fabrication,
assembly or kitting are done in-house in the USA,
bringing convenience, accuracy and short lead-
times to your job.
Vectorpak
tm
subracks are sold fully assembled or
in flat-pack kit form. EMC versions are manufac-
tured to IEEE 1101.10 & 1101.11 for use in appli-
cations with EMC requirements and have conduc-
tive connection of all metal components.
Vectorpak
tm
CG3-series card guides sold separate-
ly (Page 29). Vectorpak
tm
front panels, filler panels
(blank-off plates), ejector handles and cooling fan
trays all available and described at the end of this
section.
Ordering Information

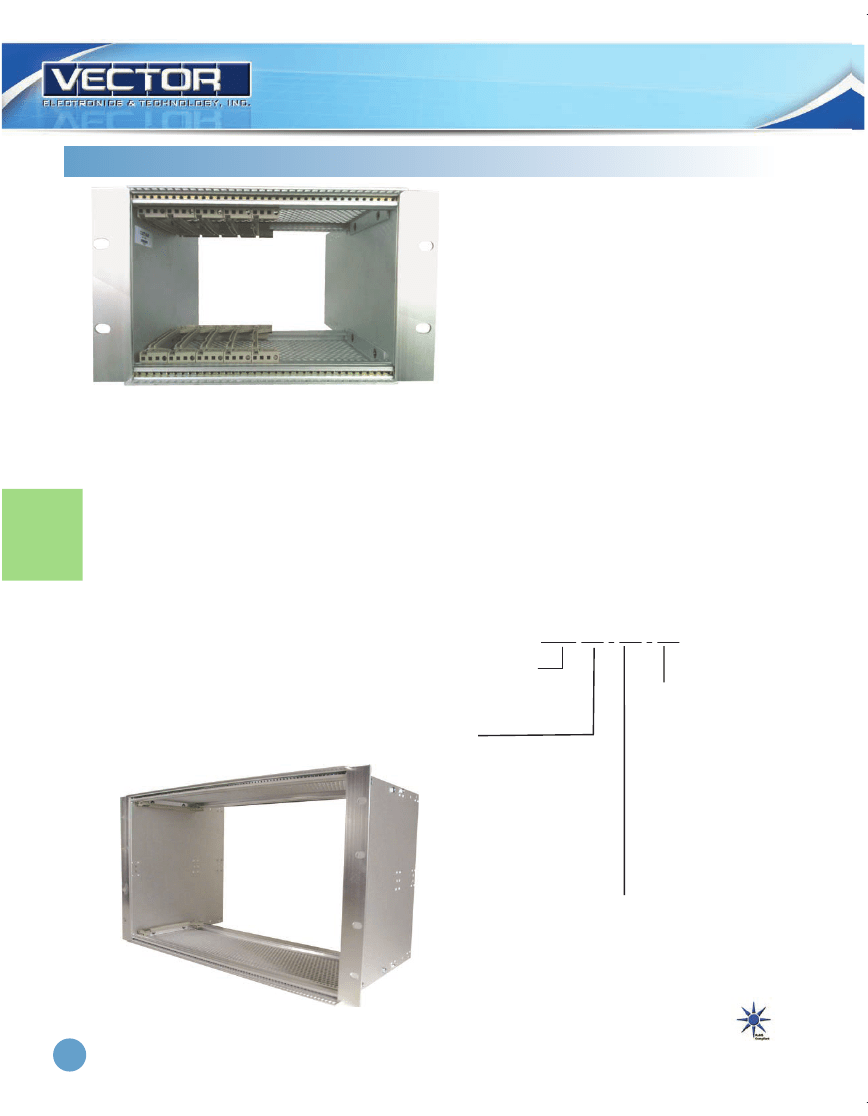

3U Subrack P/N CCA27-36-01 shown with 5 pairs of CG3-160
card guides (1 pair provided with rack)
Subrack Contents (Generic): for 3U & 6U Subracks
• 2 Front EMC Extrusions, P/N 1440-0012-84
• 2 Rear Extrusions, P/N 1440-0013-84
• 2 Aluminum side plates
• 2 M2.5 tapped nut strips for front extrusions P/N 1404-0016-84
• 2 M2.5 tapped nut strips for rear extrusions P/N 5700202
• 2 removable rack “ears” (left/right), P/N 1406-1006-01 (6U) OR
2 Removable rack “ears” (left/right), P/N 1406-1003-01 (3U)
• 2 Insulator strips , .030” PVC, P/N 5250998-84
• 1 Sample pair of CG3 card guides
DIN
Subracks
Specify CCA for assembled or CCK for flat-pack kit.
Card guides sold separately in packs of 12 (enough for
6 cards, on Page 29).
Standard card depths:
160mm (6.299”)
220mm (8.661”)
280mm (11. 024”)
340mm (13.386”)
400mm (15.748”)
CCX XX - XX - XX
Model Numbers
A = assembled subracks
K = unassembled flat-packed kit
Covers (Optional)
01
02
03
04
05
Depth
3U
26
27
31
34
36
38
6U
28
29
30
32
33
35
37
=
=
=
=
=
=
=
=
=
=
=
=
=
160mm;
160mm;
220mm;
280mm;
340mm;
400mm;
160mm;
160mm;
160mm;
220mm;
280mm;
340mm;
400mm;
8.5”
12.0”
12.0”
15.0”
16.0”
18.0”
10.0”
12.0”
15.0”
12.0”
15.0’
16.0”
18.0”
= Top & bottom, vented
= Rear fixed
= Both ‘01’ & ‘02’
= Custom
= Solid Top & Bottom
Inside Width
(not including flanges)
36
44
64
84
=
=
=
=
36HP [7.4”(188mm)]
44HP [9.0”(229mm)]
64HP [13”(330mm)]
84HP [17”(432mm)]
P/N CCA28-84-01:
with optional perforated
top/bottom covers. 1pr. CG3-160 card
guides included
Material & Finish: Brushed aluminum, with clear chem film
1U = 1.75”
1HP = 0.200” (5.08mm)
Specification subject to change without notice
26
www.vectorelect.com
800-423-5659
DIN-Based VectorPak
tm
Subracks

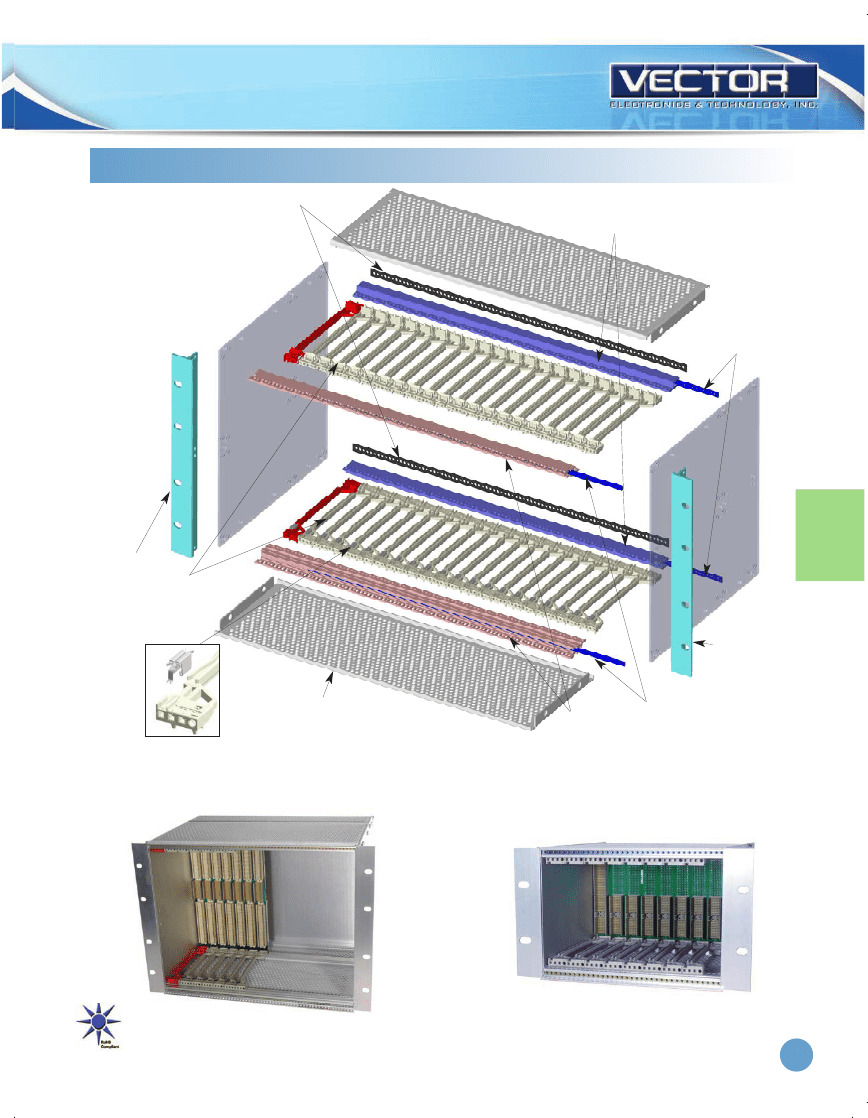

Hybrid / Custom 3U & 6U EMC Subracks
5250998-84
1440-0013-84
5700202 or
5250268-84
DIN
Subracks
1406-1006-01
CG3-160
Card Guides
CG3-ESD
1406-1006-01
AC3-160-84-1
1404-0012-84
1404-0016-84
VectorPak
tm
subracks are available standard 19” or custom configurations including subsystem components such
as plug-in power supplies and integrated fan cooling. Wall or panel mount, horizontal or vertical card orientation.
Subracks with dividers for mixed card sizes. Backplanes and plug-in power supplies available.
Custom configuration and integration available (contact factory)
CCA28-64-01 with perforated top/bottom
covers and Vector 7-slot VME64x backplane
www.vectorelect.com
CCA26-36-01 with perforated top/bottom
covers and Vector cPCI 8-slot backplane
800-423-5659
27
