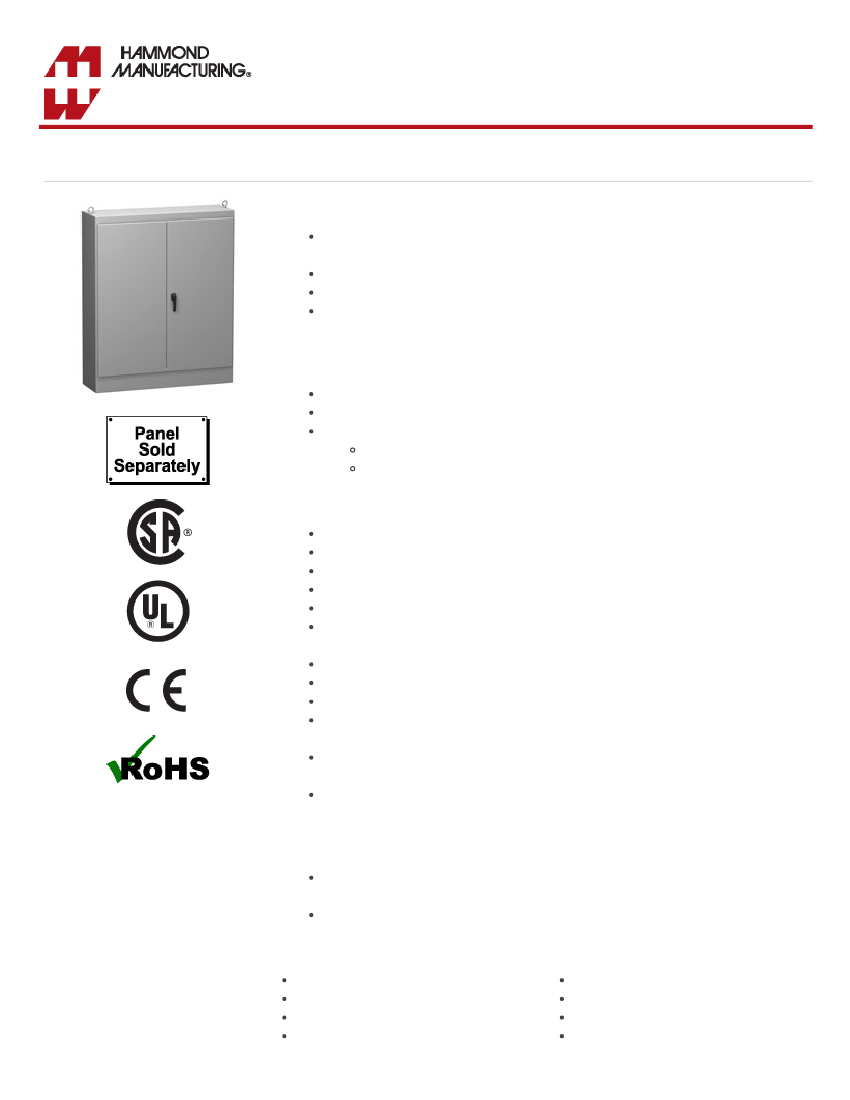

Type 12 Mild Steel Two Door Freestanding Enclosure
1418 FS Series
Continuous Hinge Door with Handle
Application
Designed to house electrical, electronic, hydraulic or pneumatic controls with provision for
panel mounting or rack mounting of equipment.
Provides a degree of protection from falling dirt, dust, oil and water.
Available with front access only or both front and rear access.
A variety of inner panels, rack mounting angles and swing frames are available to provide
flexibility in equipment mounting.
Standards
UL 508A Type 12
CSA Type 12
Complies with
NEMA Type 12
IEC 60529, IP54
Construction
Formed 12 gauge steel (10 gauge on back of single access enclosures).
Smooth, continuously welded seams without knockouts, cutouts or holes.
Stiffeners on the rear of the enclosure provide rigidity. (Single access)
Lifting eyes provide for easy enclosure handling.
Doors are supported with heavy gauge continuous hinges.
Doors are secured with a three point latch and operated with a key locking automotive
type handle.
Latch rods are equipped with rollers for easier door closing.
Oil resistant gaskets are permanently secured.
Provision for light kit mounting.
Mounting channels are welded on the inside of the enclosure for mounting of optional
inner panels or rack equipment rails.
A bonding stud is provided on the door and a grounding stud is provided in the enclosure
for each door.
A literature pocket is provided for the inside of the door (Two pockets are provided for
dual access units).
Finish
Cover and enclosure are finished in recoatable smooth ANSI 61 gray powder coating on
the outside, with white powder coating on the inside.
Optional inner panels, rails, frames and supports are available in white powder coating.
Accessories
Cooling Products
Ventilation
Door Stop Kit
Filtered Fans
https://www.hammfg.com/electrical/products/industrial/1418tdfs
Blowers and Fans
Center Panel Supports
Drip Shield Kit
Floor Stand Kit
1/3
11/11/2017
Type 12 Mild Steel Two Door Freestanding Enclosure (1418 FS Series) - Hammond Mfg.
Gland Plates
Inner Panels
Type 1 Louvered Ventilating Plates
Temperature Controls
Ground Wire Kits
Heaters
Lighting
Panel Rails
Window Kits
Single Access
Optional

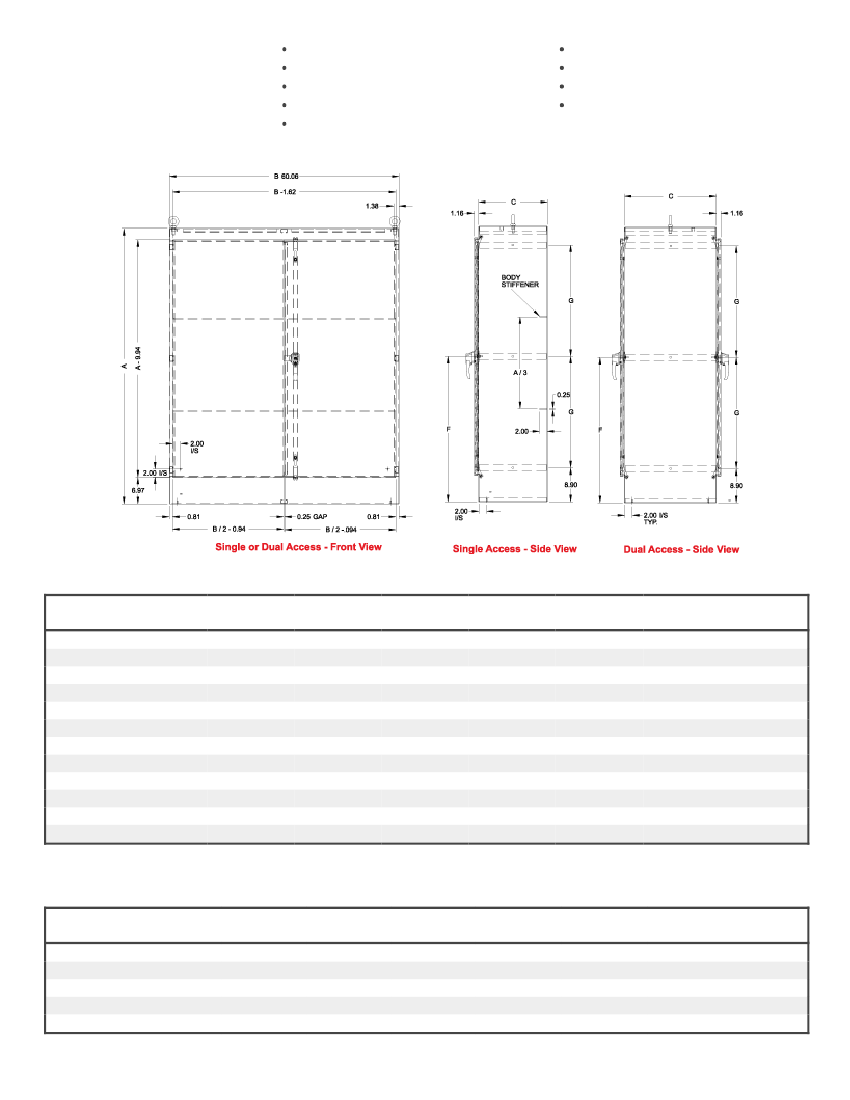

Part No.
1418AW18
1418ZW18
1418ZX18
1418ZY18
1418BW20
1418BY20
1418BY24
1418ZW24
1418ZX24
1418ZY24
1418ZX36
1418BY36
A
60.06
72.06
72.06
72.06
90.06
90.06
90.06
72.06
72.06
72.06
72.06
90.06
B
48.06
48.06
60.06
72.06
48.06
72.06
72.06
48.06
60.06
72.06
60.06
72.06
C
18.06
18.06
18.06
18.06
20.06
20.06
24.06
24.06
24.06
24.06
36.06
36.06
F
32.03
38.03
38.03
38.03
47.03
47.03
47.03
38.03
38.03
38.03
38.03
47.03
G
23.13
29.13
29.13
29.13
38.13
38.13
38.13
29.13
29.13
29.13
29.13
38.13
Full Panel¹
60AWFW
72ZWFW
72ZXFW
72ZYFW
90BWFW
90BYFW
90BYFW
72ZWFW
72ZXFW
72ZYFW
72ZXFW
90BYFW
¹ Refers to optional full height/full width panels.
Depth panels/half height width panels are also available
Dual Access
Optional
Part No.
1418ZWD24
1418ZXD24
1418ZYD24
1418BYD24
1418ZXD36
A
72.06
72.06
72.06
90.06
72.06
B
48.06
60.06
72.06
72.06
60.06
C
24.06
24.06
24.06
24.06
36.06
F
38.03
38.03
38.03
47.03
38.03
G
29.13
29.13
29.13
38.13
29.13
Full Panel¹
72ZWFW
72ZXFW
72ZYFW
90BYFW
72ZXFW
¹ Refers to optional full height/full width panels.
Depth panels/half height width panels are also available
https://www.hammfg.com/electrical/products/industrial/1418tdfs
2/3
