C-4-G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> C-4-G

C-4-G: CategoryTopical application Mechanical and electrical/engineering/automation; File Size129KB，2 Pages; ManufacturerSERPAC

Download Datasheet Parametric Compare View All

C-4-G Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	C-4-G	-	-	View	Buy Now

C-4-G Parametric

Parameter Name	Attribute value
Product Category	Enclosures, Boxes, & Cases
Manufacturer	SERPAC
RoHS	Details
Product	Cases
Type	Hand Held
Material	Plastic
Color	Gray
Length	54.11 mm
Width	35.06 mm
Height	14.74 mm
Flammability Rating	UL 94 HB
Packaging	Bulk
Dimensions	54.11 mm L x 35.06 mm W x 14.74 mm H
Features	Customs, Colors, Machining, Molding & Pad Printing, 2-Piece Standard Design
Factory Pack Quantity	1

Preview

Download Datasheet

View All

1.38

.58

1.08

Insert

Area

R.10

typ.

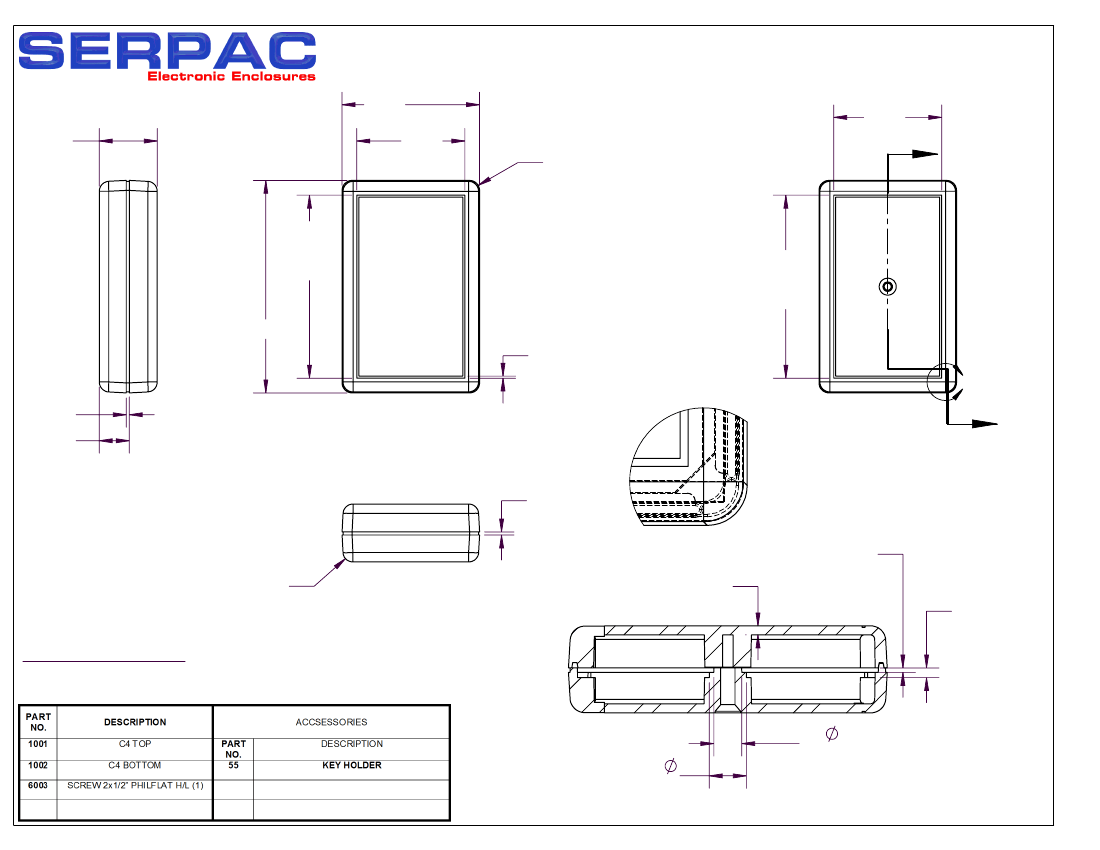

NOTES:

1) When machine or I-plates modifications are required,

use the center of the enclosure to dimension.

1.08

Insert

Area

1.83

Insert

Area

2.13

1.83

Insert

Area

.02 W

X .01 D

Top

DETAIL B

corner detail

Bottom

.03

.30

.03

R.10

typ.

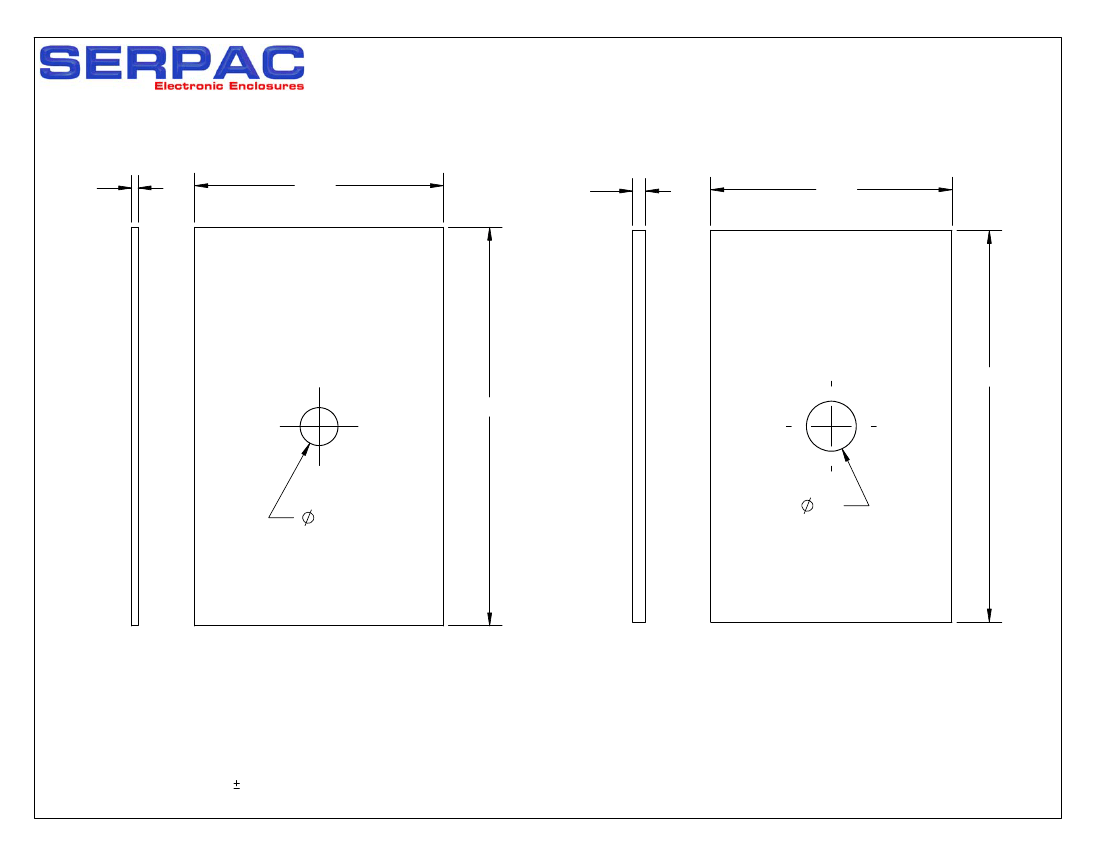

Enclosure can hold either a 0.032" PCB or a 0.063 PCB

PCB dimensions are:

(PCB drawings on page 2)

0.032" [.8mm] PCB 1.99" X 1.24"

0.063" [1.6mm] PCB 1.96" X 1.21"

Top

Bottom

SECTION A-A

.25

for 0.063" PCB

.06

typ.

.03

@ perimeter

to trap

0.032" thk

PCB

.07

@ 4 corners

to trap

0.065" thk

PCB

.19

for 0.032" PCB

11/10/11

ALL DIMENSIONS ARE ± .010"

2009 Wright Ave., La Verne, CA 91750

Ph. (626) 331-0517 Fx. (626) 331-8584 www.serpac.com

C-4-G Related Products

	C-4-G	C-4-B	C-4TR-RD	C-4TR-GR	C-4TR-BL	C-4-A	C-4-PC-BLACK	C-4-PC-GRAY	C-4TR-GY
Description		Fixed Inductors 47uH 20% 1.2A shd SMD AEC-Q200		Enclosures, Boxes, u0026 Cases 1.38X2.13X.58 GR	Enclosures, Boxes, u0026 Cases Mini/Handheld/ABS 2.36x1.38x.79" Black		Enclosures, Boxes, u0026 Cases 1.38X2.13X.58 W/PC B		Enclosures, Boxes, u0026 Cases 1.38X2.13X.58 GY
Product Category	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases
Manufacturer	SERPAC	SERPAC	SERPAC	SERPAC	SERPAC	SERPAC	SERPAC	SERPAC	SERPAC
RoHS	Details	Details	Details	Details	Details	Details	Details	Details	Details
Product	Cases	Cases	Cases	Cases	Cases	Cases	Cases	Cases	Cases
Type	Hand Held	Hand Held	Hand Held	Hand Held	Hand Held	Hand Held	Hand Held	Hand Held	Hand Held
Material	Plastic	Plastic	Plastic	Acrylonitrile Butadiene Styrene (ABS)	Plastic	Plastic	Acrylonitrile Butadiene Styrene (ABS)	Acrylonitrile Butadiene Styrene (ABS)	Plastic
Color	Gray	Black	Red	Green	Blue	Brown	Black	Gray	Gray
Flammability Rating	UL 94 HB	UL 94 HB	UL 94 HB	UL 94 HB	UL 94 HB	UL 94 HB	UL 94 HB	UL 94 HB	UL 94 HB
Features	Customs, Colors, Machining, Molding & Pad Printing, 2-Piece Standard Design	Customs, Colors, Machining, Molding & Pad Printing, 2-Piece Standard Design	Customs, Colors, Machining, Molding & Pad Printing, 2-Piece Standard Design	Customs, Colors, Machining, Molding & Pad Printing, 2-Piece Standard Design	Customs, Colors, Machining, Molding & Pad Printing, 2-Piece Standard Design	Customs, Colors, Machining, Molding & Pad Printing, 2-Piece Standard Design	Customs, Colors, Machining, Molding & Pad Printing, 2-Piece Standard Design	Customs, Colors, Machining, Molding & Pad Printing, 2-Piece Standard Design	Customs, Colors, Machining, Molding & Pad Printing, 2-Piece Standard Design
Factory Pack Quantity	1	1	1	1	1	1	1	1	1
Length	54.11 mm	54.11 mm	54.11 mm	-	54.11 mm	54.11 mm	-	-	54.11 mm
Width	35.06 mm	35.06 mm	35.06 mm	-	35.06 mm	35.06 mm	-	-	35.06 mm
Height	14.74 mm	14.74 mm	14.89 mm	-	14.74 mm	14.74 mm	-	-	14.74 mm
Dimensions	54.11 mm L x 35.06 mm W x 14.74 mm H	54.11 mm L x 35.06 mm W x 14.74 mm H	54.11 mm L x 35.06 mm W x 14.89 mm H	-	54.11 mm L x 35.06 mm W x 14.74 mm H	54.11 mm L x 35.06 mm W x 14.74 mm H	-	-	54.11 mm L x 35.06 mm W x 14.74 mm H
Unit Weight	-	-	0.352034 oz	0.352034 oz	0.352034 oz	-	0.463853 oz	0.463853 oz	0.352034 oz
