Modular Freestanding Enclosures - NEMA 12
Accessories
238
Modular Freestanding
© Hammond Manufacturing

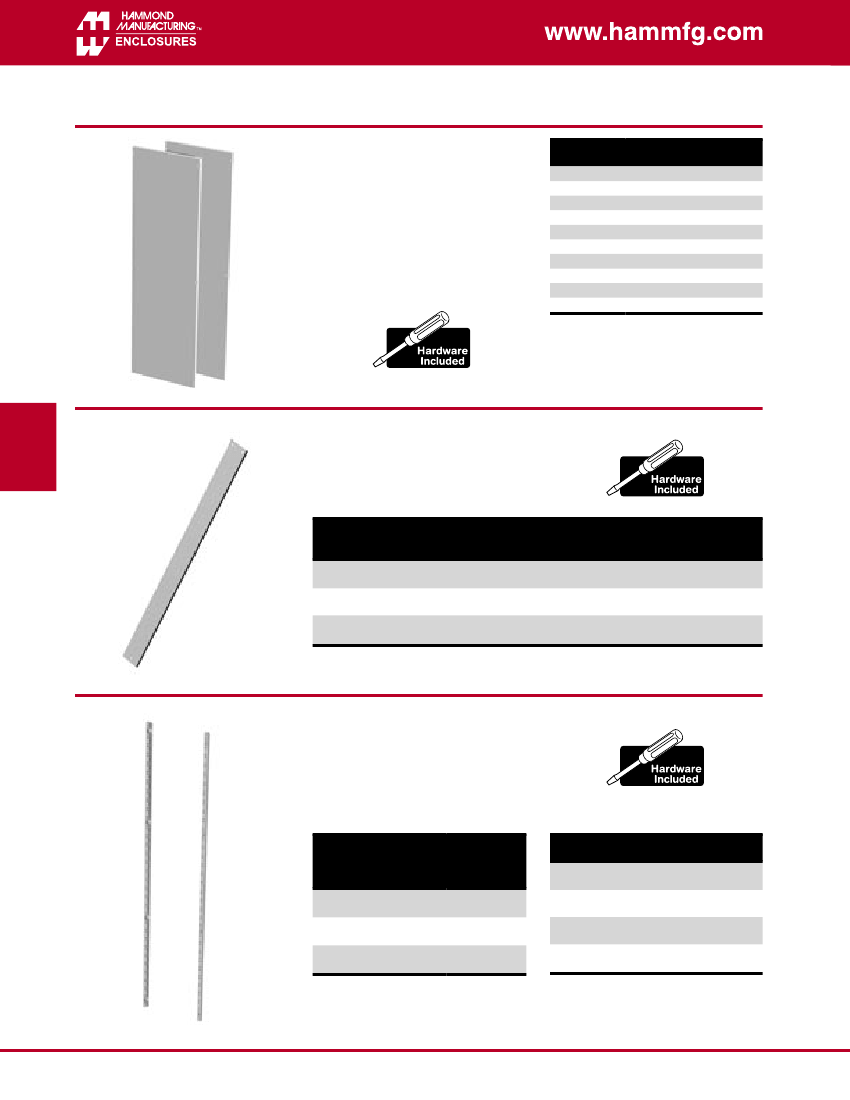

IME Side Panels
•
•
•
•
•
•
Maintains UL/CSA Type 12 approvals.
Screw fastens into frame.
Bond studs provided for grounding.
Finished in beige.
Packaged in quantities of two.
Optional tamper resistant screws
available...see
page
245.
Part No.
(Pair)
ISP166
ISP168
ISP184
ISP185
ISP186
ISP188
ISP204
ISP205
ISP206
ISP208
For Use With Enclosure
A x C (mm)
1600 x 600
1600 x 800
1800 x 400
1800 x 500
1800 x 600
1800 x 800
2000 x 400
2000 x 500
2000 x 600
2000 x 800
IME Bridge Panel
• Mounts between inner panels of
joined enclosures.
• Finished in white.
For Use With Enclosure
Nominal Height
(mm)
1600
1800
2000
inch
mm
Part No.
IBP16
IBP18
IBP20
Overall Dimensions
Height
59.31
1507
Width
5.13
130
inch
mm
66.31
1684
5.13
130
inch
mm
75.06
1907
5.13
130
IME Door Mount Rails
• Allows for a variety of door mounting
applications.
• Mounts to studs on door.
• Finished in beige.
• Packaged in quantities of two.
Part No.
For Use With
Enclosure
Nominal
Height (mm)
1600
1800
2000
inch
mm
inch
mm
inch
mm
Usable
Height
50.25
1276
57.25
1454
64.25
1632
Door Width
(mm)
600
700
800
1000
Door Mounting
Rail Centers
inch
16.13
mm
410
IDMR16
IDMR18
IDMR20
inch
mm
21.38
543
inch
mm
21.38
543
inch
mm
31.00
787
Technical references and DXF downloads available at www.hammfg.com
All dimensions in inches unless specified otherwise
Quality Enclosures. Service Excellence.
Canada: 519.822.2960 or 905.456.3770
USA: 716.630.7030
Data Subject to change without notice
Modular Freestanding Enclosures - NEMA 12
Accessories
Modular Freestanding

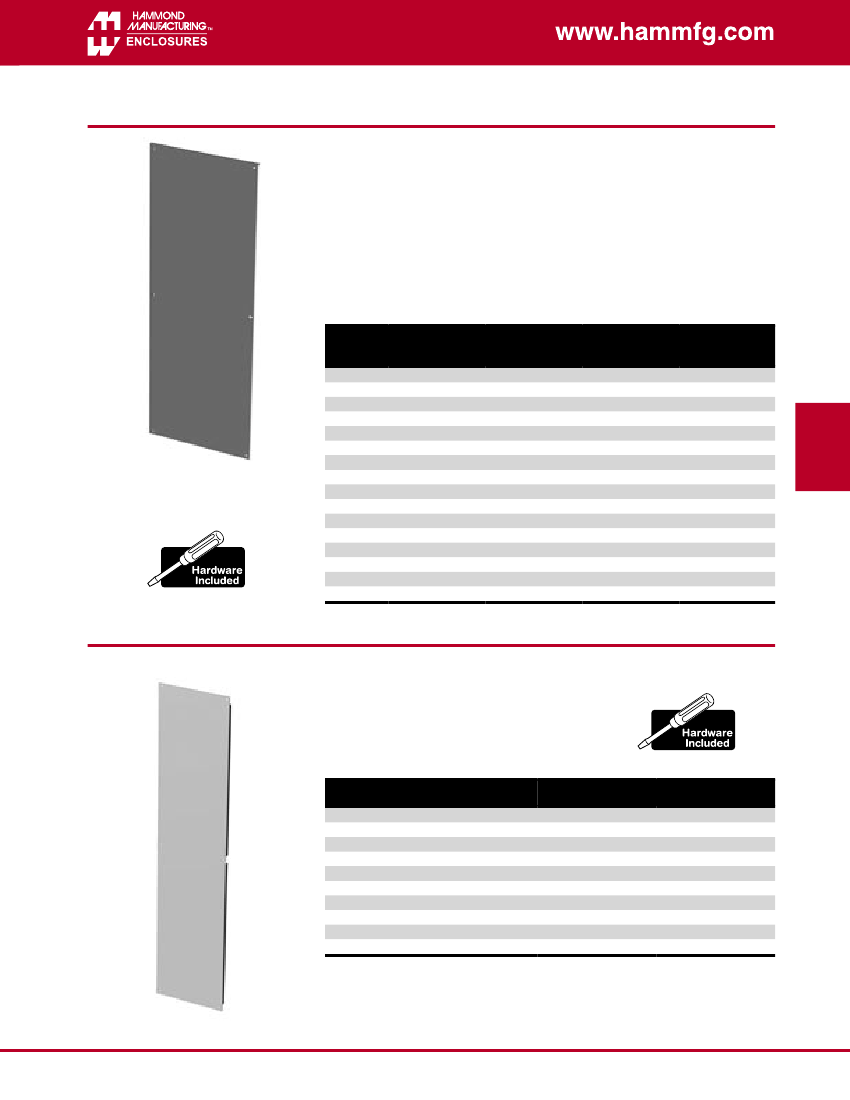

Additional Inner Panel
• For use with IME, IFMD and IMET Series.
• Can be used with IPC Series, must order IPC Base Panel Bracket (Part No.
IPCPSK).
• Replacement or additional mounting panel (standard enclosures include 1
inner mounting panel).
• 12 gauge (IME, IFMD) or 10 gauge (IMET) steel panel.
• Comes complete with all mounting hardware.
• Finished in white.
Part No
IMEP166
IMEP167
IMEP168
IMEP1612
IMEP186
IMEP187
IMEP188
IMEP1810
IMEP1812
IMEP1816
IMEP206
IMEP207
IMEP208
IMEP2010
IMEP2012
IMEP2016
Fits IME/IMET/IFMD
Nominal Dimension
A
B
1600
600
1600
700
1600
800
1600
1200
1800
600
1800
700
1800
800
1800
1000
1800
1200
1800
1600
2000
600
2000
700
2000
800
2000
1000
2000
1200
2000
1600
Panel Size (In.)
Height
61.75
61.75
61.75
61.75
68.75
68.75
68.75
68.75
68.75
68.75
77.50
77.50
77.50
77.50
77.50
77.50
Width
17.75
22.75
26.25
40.00
17.75
22.75
26.25
34.12
40.00
57.75
17.75
22.75
26.25
34.12
40.00
57.75
Side Mount Inner Panel
•
•
•
•
For use with IME, IFMD and IMET Series only
12 gauge steel.
Comes complete with all mounting hardware.
Finished in white.
For Use With Enclosure
A x C (mm)
1600 x 600
1600 x 800
1800 x 400
1800 x 500
1800 x 600
1800 x 800
2000 x 400
2000 x 500
2000 x 600
2000 x 800
Part No.
IMEPS166
IMEPS168
IMEPS184
IMEPS185
IMEPS186
IMEPS188
IMEPS204
IMEPS205
IMEPS206
IMEPS208
Height
62.75
62.75
69.75
69.75
69.75
69.75
78.50
78.50
78.50
78.50
Width
17.12
25.00
9.25
13.12
17.12
25.00
9.25
13.12
17.12
25.00
Technical references and DXF downloads available at www.hammfg.com
All dimensions in inches unless specified otherwise
Quality Enclosures. Service Excellence.
© Hammond Manufacturing
Canada: 519.822.2960 or 905.456.3770
USA: 716.630.7030
Data Subject to change without notice
239
Modular Freestanding Enclosures - NEMA 12
Accessories
240
Modular Freestanding
© Hammond Manufacturing

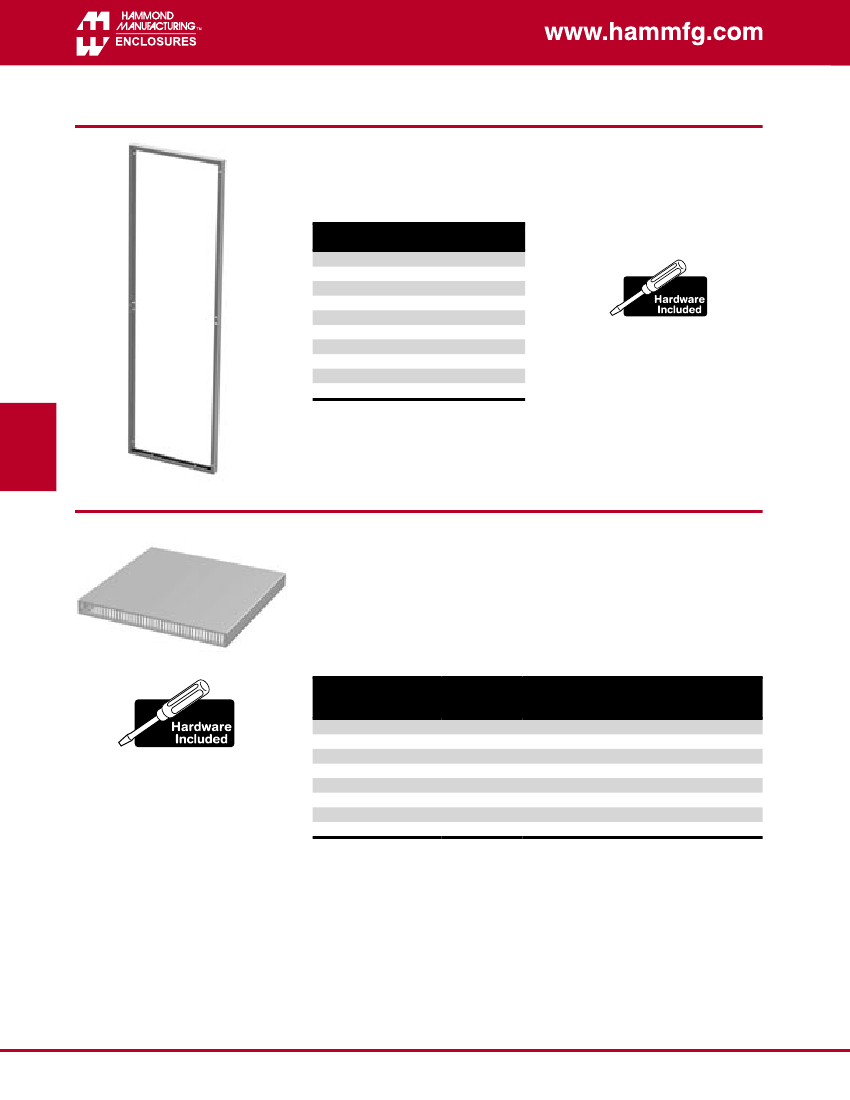

IME Joining Kit
• Connects side by side units at 6 points.
• Maintains UL/CSA Type 12 approvals.
• Finished in beige.
Part No.
IJK166
IJK168
IJK184
IJK185
IJK186
IJK188
IJK204
IJK205
IJK206
IJK208
For Use With Enclosure
A x C (mm)
1600 x 600
1600 x 800
1800 x 400
1800 x 500
1800 x 600
1800 x 800
2000 x 400
2000 x 500
2000 x 600
2000 x 800
Vented Raised Top
•
•
•
•
•
For use with IME, IFMD and IPC Series only.
Provides top ventilation in enclosure.
Cutout diagram provided.
Comes complete with all mounting hardware.
Finished in beige.
Part No
IPT64
IPT65
IPT66
IPT68
IPT84
IPT85
IPT86
IPT88
Fits IME/IPC/IFMD
Nominal Dimension
B
(mm)
C
(mm)
600
400
600
500
600/700
600
600/700
800
800
400
800/1000
500
800/1000
600
800/1000
800
Actual Outside Dimension
A
(In.)
2.00
2.00
2.00
2.00
2.00
2.00
2.00
2.00
B
(In.)
13.13
13.13
13.13
13.13
21.63
21.63
21.63
21.63
C
(In.)
13.75
17.63
21.63
29.50
13.75
17.63
21.63
29.50
Technical references and DXF downloads available at www.hammfg.com
All dimensions in inches unless specified otherwise
Quality Enclosures. Service Excellence.
Canada: 519.822.2960 or 905.456.3770
USA: 716.630.7030
Data Subject to change without notice
Modular Freestanding Enclosures - NEMA 12
Accessories
Modular Freestanding

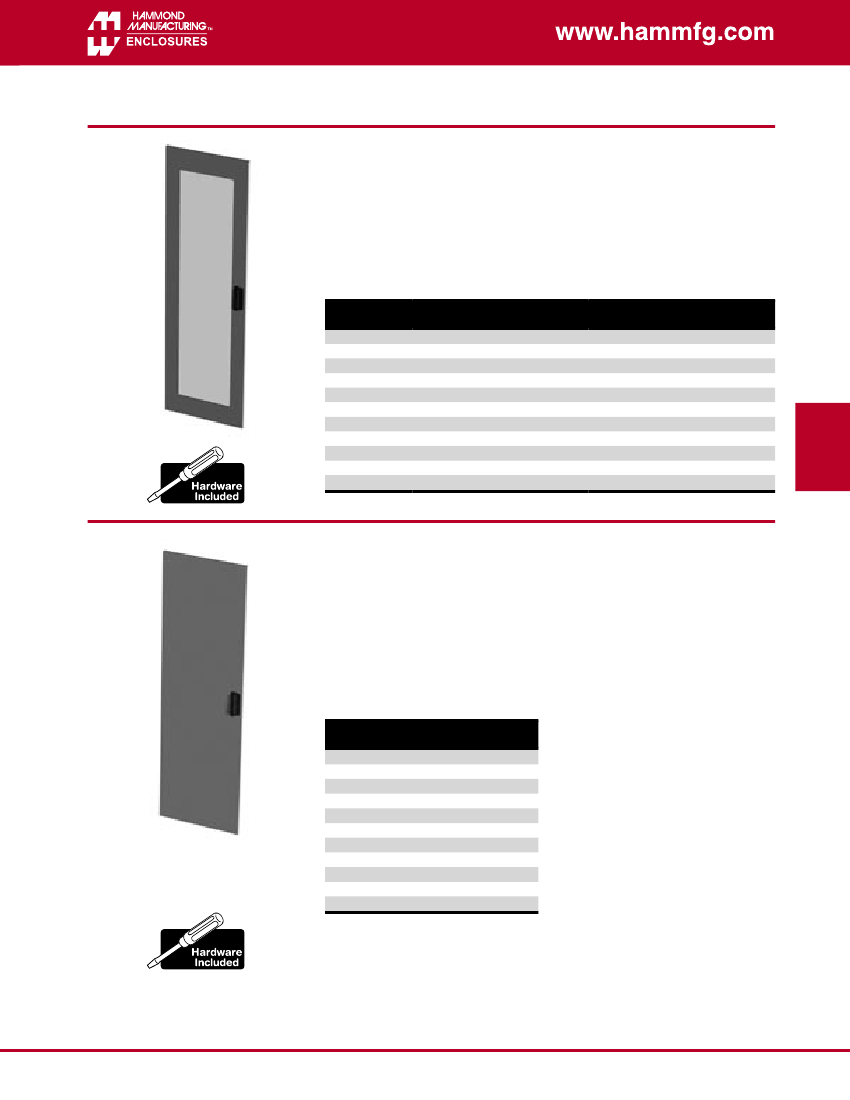

Window Door
•
•
•
•
•
•
•
•
For use with IME Series only.
Provides maximum viewing area of enclosed equipment.
Maintains NEMA 12 rating.
UL 94-VO polycarbonate window.
Removable and reversible for left or right hand opening.
NOTE:
Left hand opening will not work with interlock kits.
Complete with locking handle and required mounting hardware.
Finished in beige.
For Use With Enclosure A x B
(mm)
1600 x 600
1600 x 700
1600 x 800
1800 x 600
1800 x 700
1800 x 800
1800 x 1000
2000 x 600
2000 x 700
2000 x 800
2000 x 1000
Viewing Area (In.)
A
B
56.69
15.00
56.69
20.00
56.69
23.50
63.69
15.00
63.69
20.00
63.69
23.50
63.69
31.37
72.44
15.00
72.44
20.00
72.44
23.50
72.44
31.37
Part No
IMEWD166
IMEWD167
IMEWD168
IMEWD186
IMEWD187
IMEWD188
IMEWD1810
IMEWD206
IMEWD207
IMEWD208
IMEWD2010
Solid Door
•
•
•
•
•
•
•
•
For use with the IME Series only.
Maintains NEMA 12 rating.
Constructed of 14 gauge steel.
Smooth action handle provides solid NEMA 12 seal.
Quick release hinge design allows for easy removal.
Can fit either front or back of frame.
Complete with locking handle and required mounting hardware.
Finished in beige.
Part No.
IMESD166
IMESD167
IMESD168
IMESD186
IMESD187
IMESD188
IMESD1810
IMESD206
IMESD207
IMESD208
IMESD2010
For Use With Enclosure
A x B (mm)
1600 x 600
1600 x 700
1600 x 800
1800 x 600
1800 x 700
1800 x 800
1800 x 1000
2000 x 600
2000 x 700
2000 x 800
2000 x 1000
Technical references and DXF downloads available at www.hammfg.com
All dimensions in inches unless specified otherwise
Quality Enclosures. Service Excellence.
© Hammond Manufacturing
Canada: 519.822.2960 or 905.456.3770
USA: 716.630.7030
Data Subject to change without notice
241
Modular Freestanding Enclosures - NEMA 12
Accessories
242
Modular Freestanding

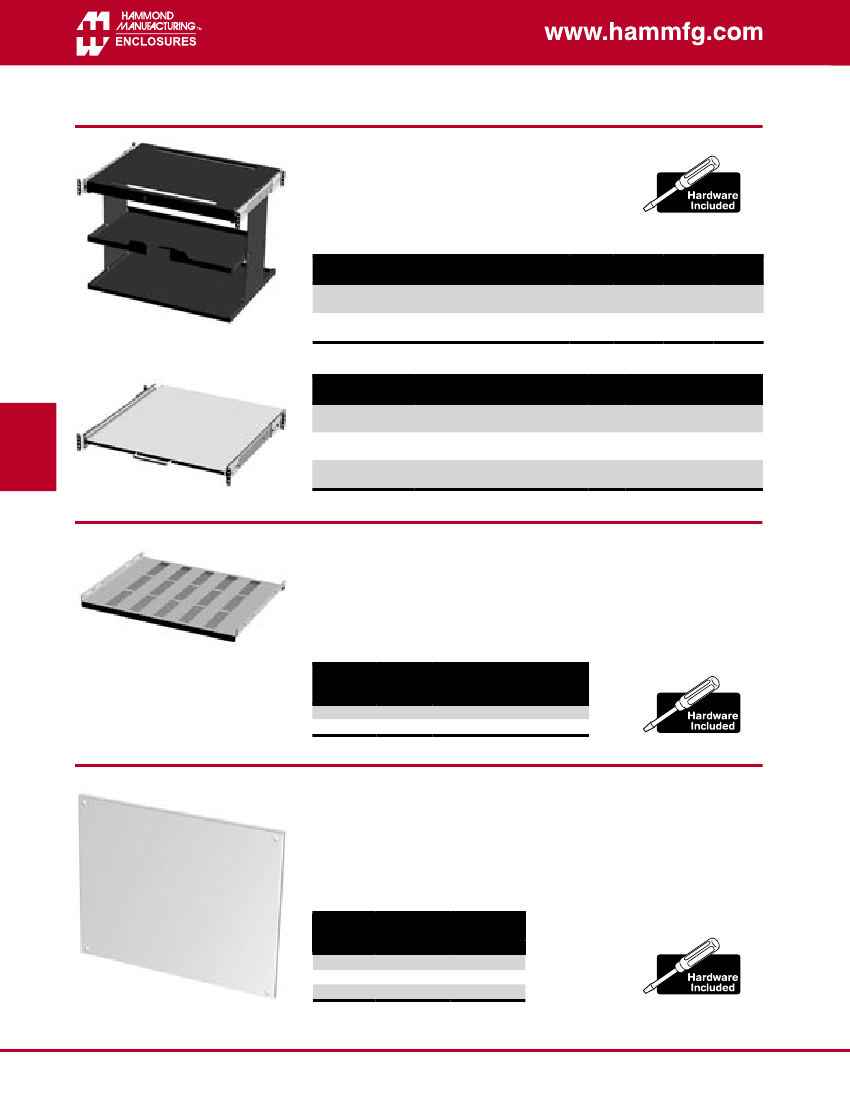

IPC Enclosure Shelves
• Pull-out printer shelf with 3 levels for printer, paper
feed and paper collection, finished in black.
• Pull-out server shelf with handle for convenience,
finished in white.
• Slides included.
Printer Shelf
Part No.
IPCPS7
Printer Shelf
For Use with
Enclosure Nominal Width
700mm
800mm
inch
mm
inch
mm
IPCPS8
Usable Shelf Dimensions
Height
Width
Depth
12.25
21.59
19.00
311
548
483
12.25
25.09
19.00
311
637
483
Server Shelf
Part No.
IPCSS76
IPCSS78
IPCSS86
Server Shelf
For Use with Enclosure Nominal
Width x Depth
700mm x 600mm
700mm x 800mm
800mm x 600mm
inch
mm
inch
mm
inch
mm
Usable Shelf Dimensions
Width
Depth
21.56
16.00
548
406
21.56
23.88
548
607
25.15
16.00
639
406
IPC Fixed Vented Shelf
• For use with IPC Series only (NOTE: standard IPC enclosure with window
includes 1 Fixed Vented Shelf for top section as standard).
• Vented shelf provides a sturdy shelf while still allowing air flow.
• Comes complete with all mounting hardware.
• Finished in beige.
Part No
Fits IPC
Nominal Dimension
B
C
700
600/800
800
600
Shelf Size (In.)
W
22.75
26.25
D
18.00
18.00
IPCFVS76
IPCFVS86
IPC Base Inner Panel
•
•
•
•
•
•
For use with IPC Series only
Provides electrical panel mounting in bottom compartment of IPC enclosure.
12 gauge steel panel.
Comes complete with all mounting hardware.
Finished in white.
Not compatible when using IPC shelves.
Panel Size
Fits IPC
Nominal Dim.
(In.)
B
C
Ht
Width
700
600 27.50 22.25
700
800 27.50 22.25
800
600 27.50 25.75
Part No
IPCBP76
IPCBP78
IPCBP86
Technical references and DXF downloads available at www.hammfg.com
All dimensions in inches unless specified otherwise
Quality Enclosures. Service Excellence.
© Hammond Manufacturing
Canada: 519.822.2960 or 905.456.3770
USA: 716.630.7030
Data Subject to change without notice
