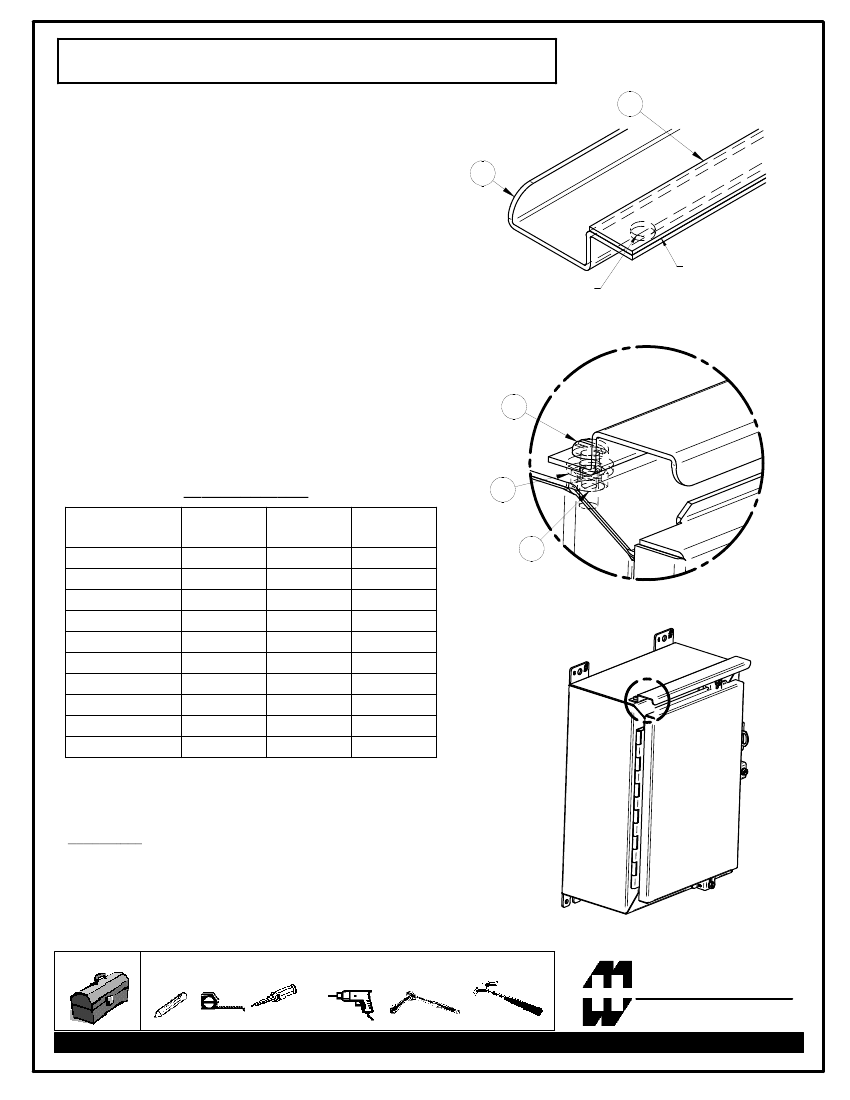

DK__ DRIP SHIELD KIT
The Hammond dripshield protects the door hardware from continuously falling water or dust.
BUL86010
REV. D
2
ASSEMBLY INSTRUCTIONS
A) Line the offset edge of the dripshield up with the front edge of
the enclosure and centered on the enclosure. See DETAIL A.
B) Using the dripshield (PART 1) as a template, mark the hole
positions and drill the 17/64 (or 9/32)"/6.7MM (or 7.1MM)
diameter holes.
C) Stick the gasket (PART 2) to the dripshield and pierce the
holes with a sharp pointed object.
D) Fasten the dripshield in place using the provided screws,
sealing washers, and hex nuts. (PARTS 3, 4, & 5). The screw
heads must be outside the enclosure and the neoprene side of the
sealing washer against the inside of the enclosure top.
1
USE THE HOLES IN
THE DRIPSHIELD AS
A DRILL TEMPLATE
PLACE GASKET
ON THIS SIDE
3
STANDARD SIZES:
4
KIT
NUMBER
DK12LG
DK16LG
DK20LG
DK24LG
DK30LG
DK36LG
DK42LG
DK48LG
DK60LG
5
DETAIL A
ENCLOSURE
WIDTH
12 INCHES
16 INCHES
20 INCHES
24 INCHES
30 INCHES
36 INCHES
42 INCHES
48 INCHES
60 INCHES
72 INCHES
KIT
NUMBER
DK12S16
DK16S16
DK20S16
DK24S16
DK30S16
DK36S16
KIT
NUMBER
DK12GY
DK16GY
DK20GY
DK24GY
DK30GY
DK36GY
DK42GY
DK48GY
DK60GY
DK72GY
A
OTHER SIZES
- Dripshield kits for other lengths can be built to your specifications.
- Standard dripshields may be field cut to satisfy odd length requirements.
TOOL BOX
Pencil
Tape
Measure
Centre
Punch
Electric Drill
17/64 (OR 9/32)"/
6.7mm (OR 7.1mm) Bit
3/8" OR 7/16"
Socket
Wrench
Hammer
HAMMOND
MANUFACTURING
TM
ENCLOSURES
PAGE 1 OF 1
